Manual Operation Is Impossible

CIRCUIT DESCRIPTION
Signals of the front power seat switch are monitored by the power seat ECU that driver's each motor.

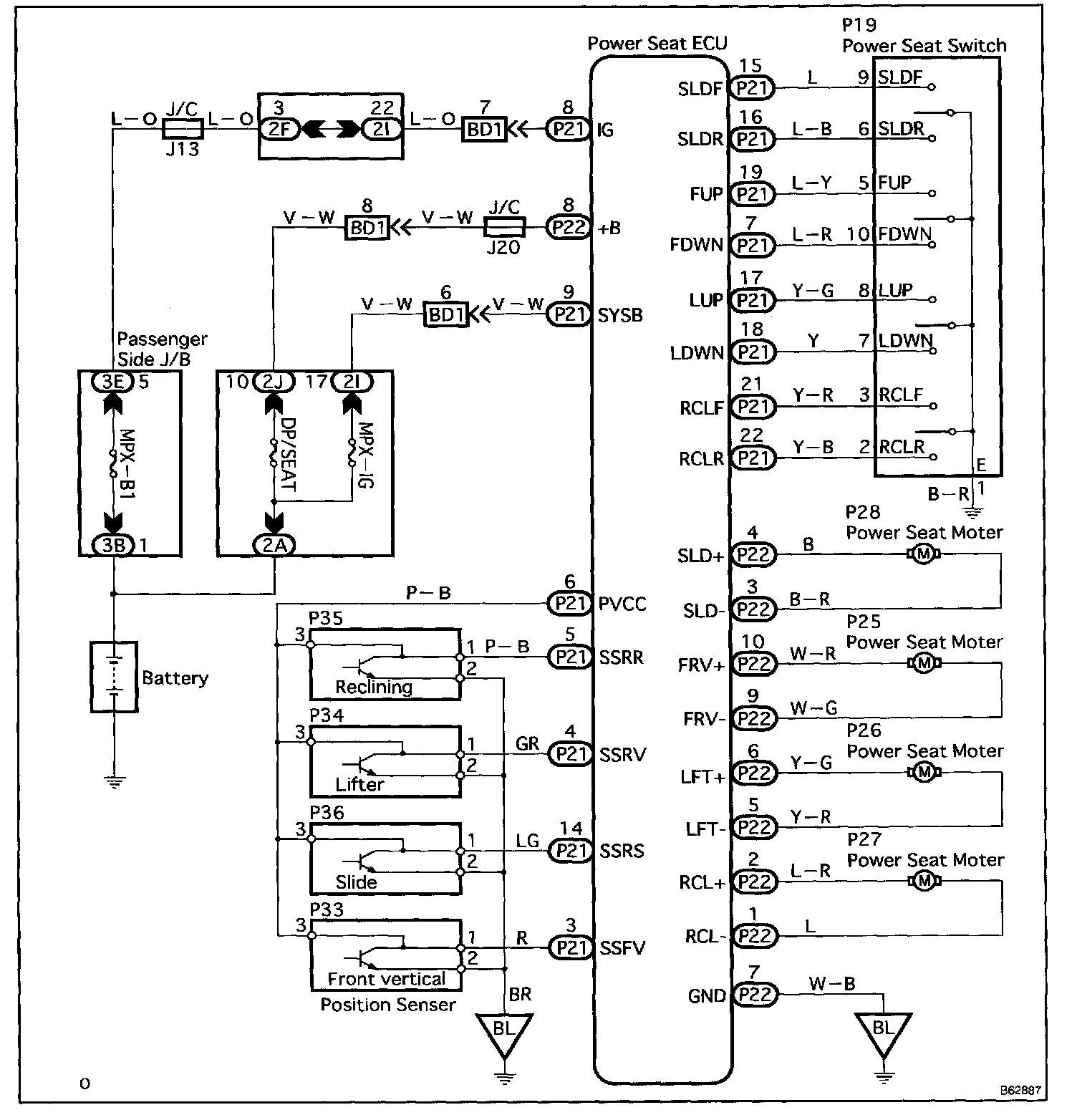

Wiring Diagram:

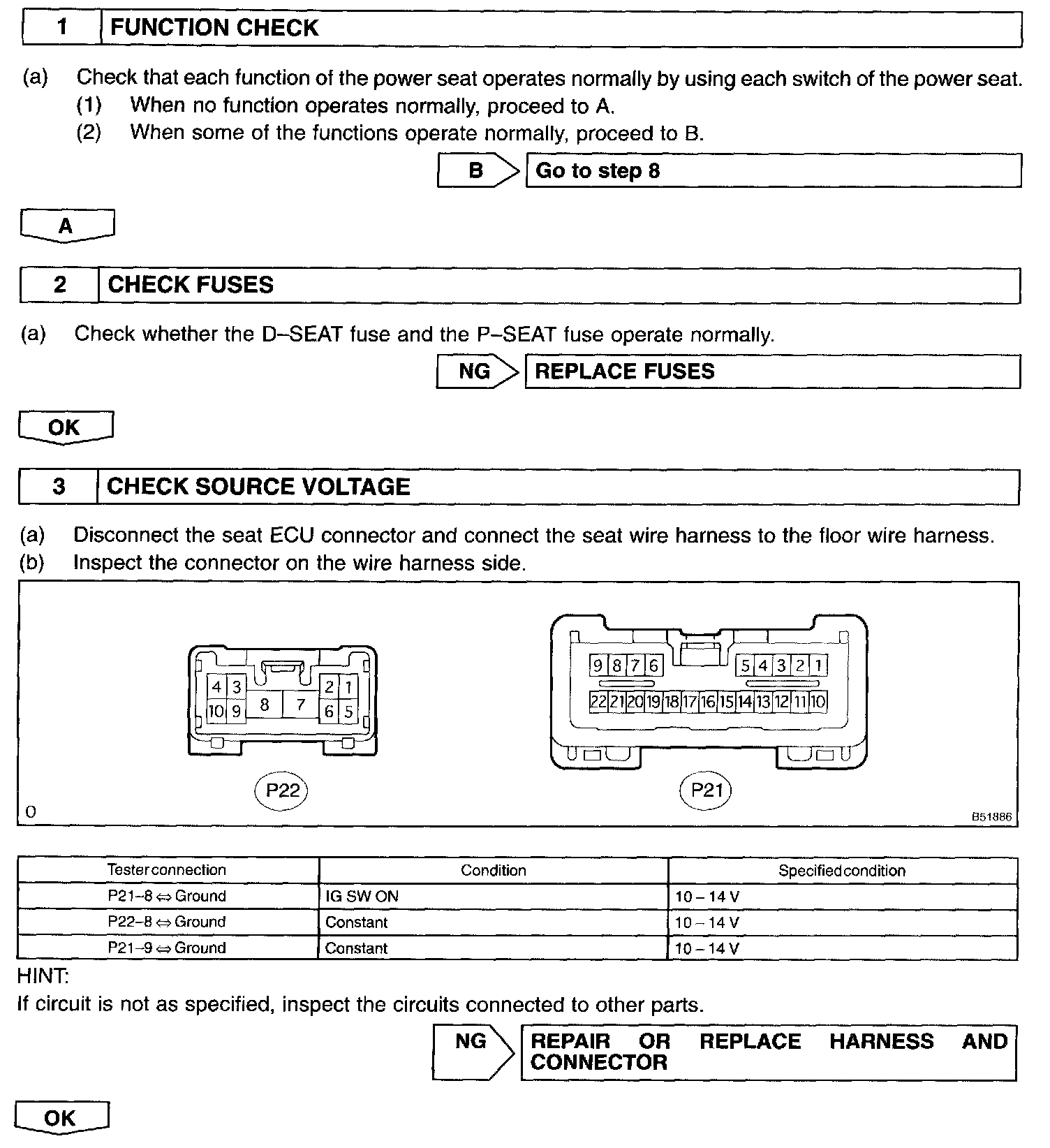

Step 1 - 3:

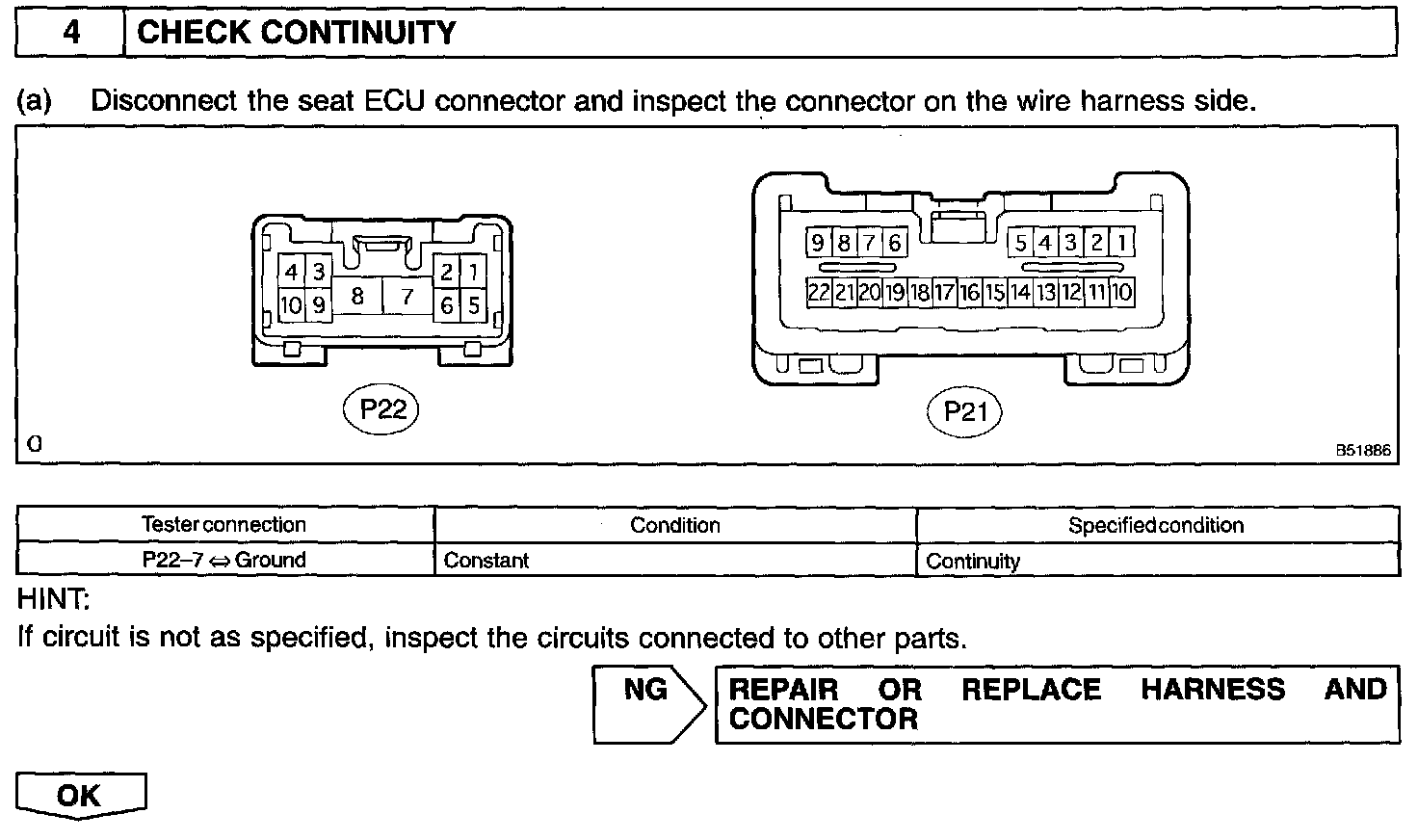

Step 4:

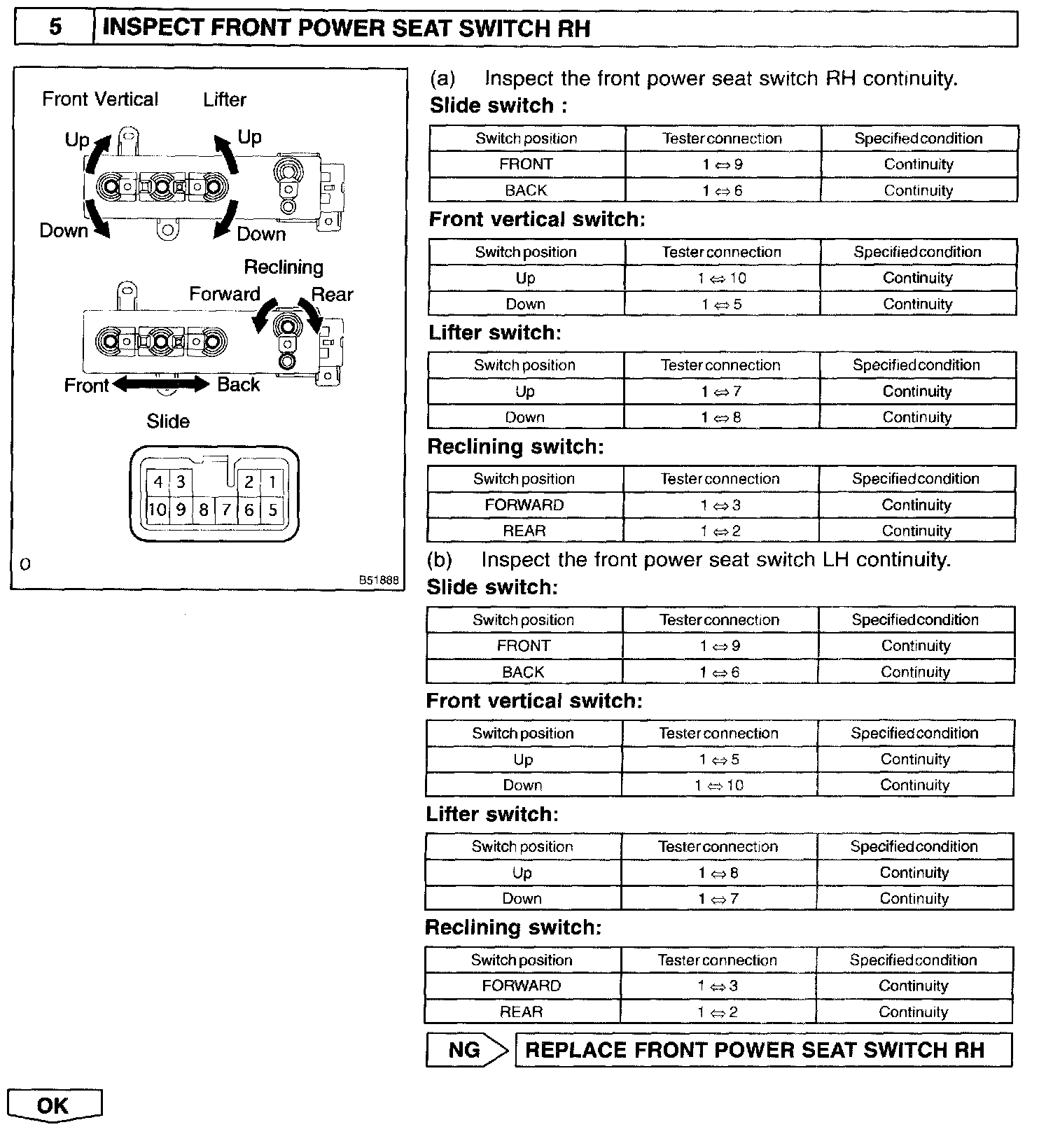

Step 5:

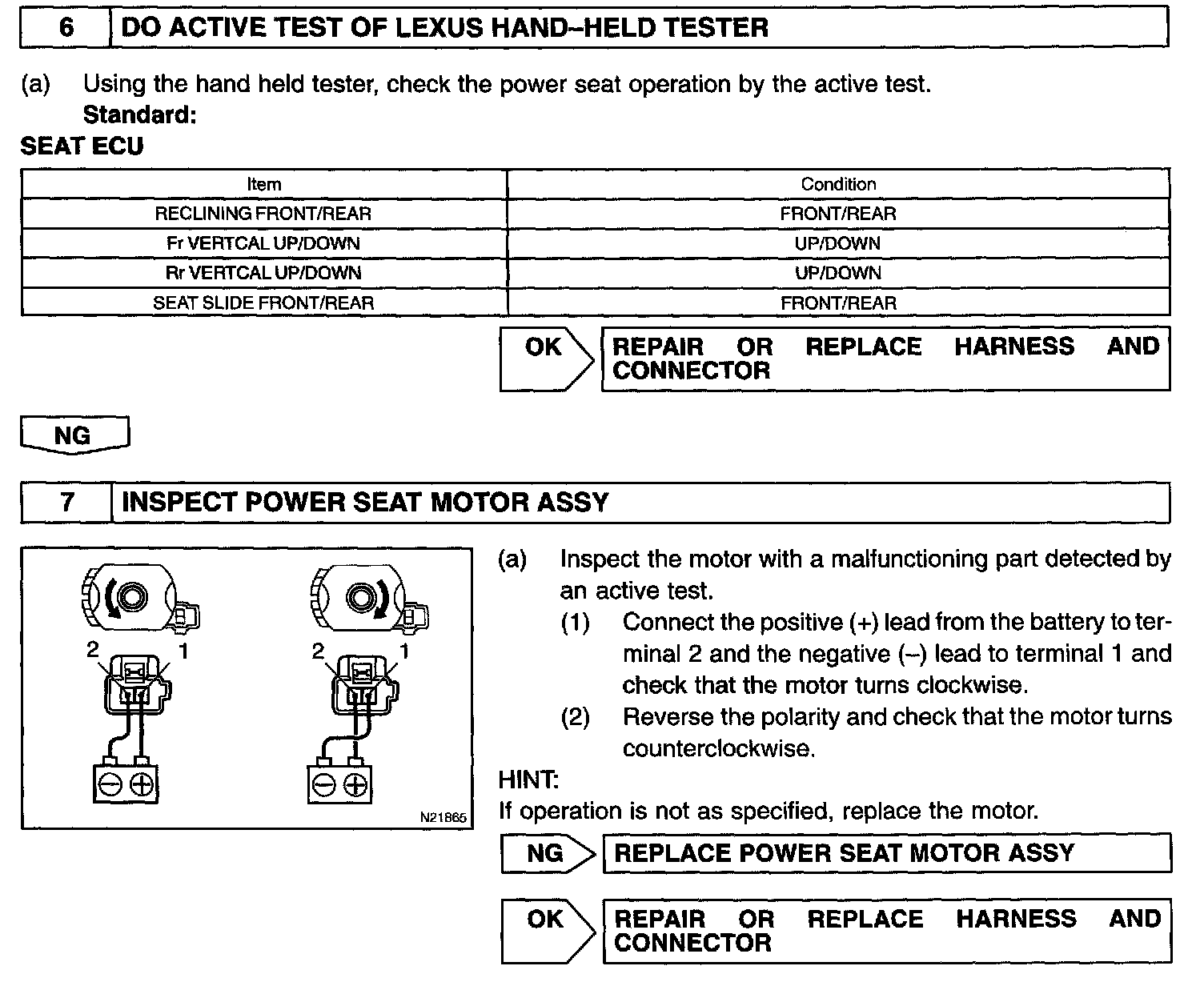

Step 6 - 7:

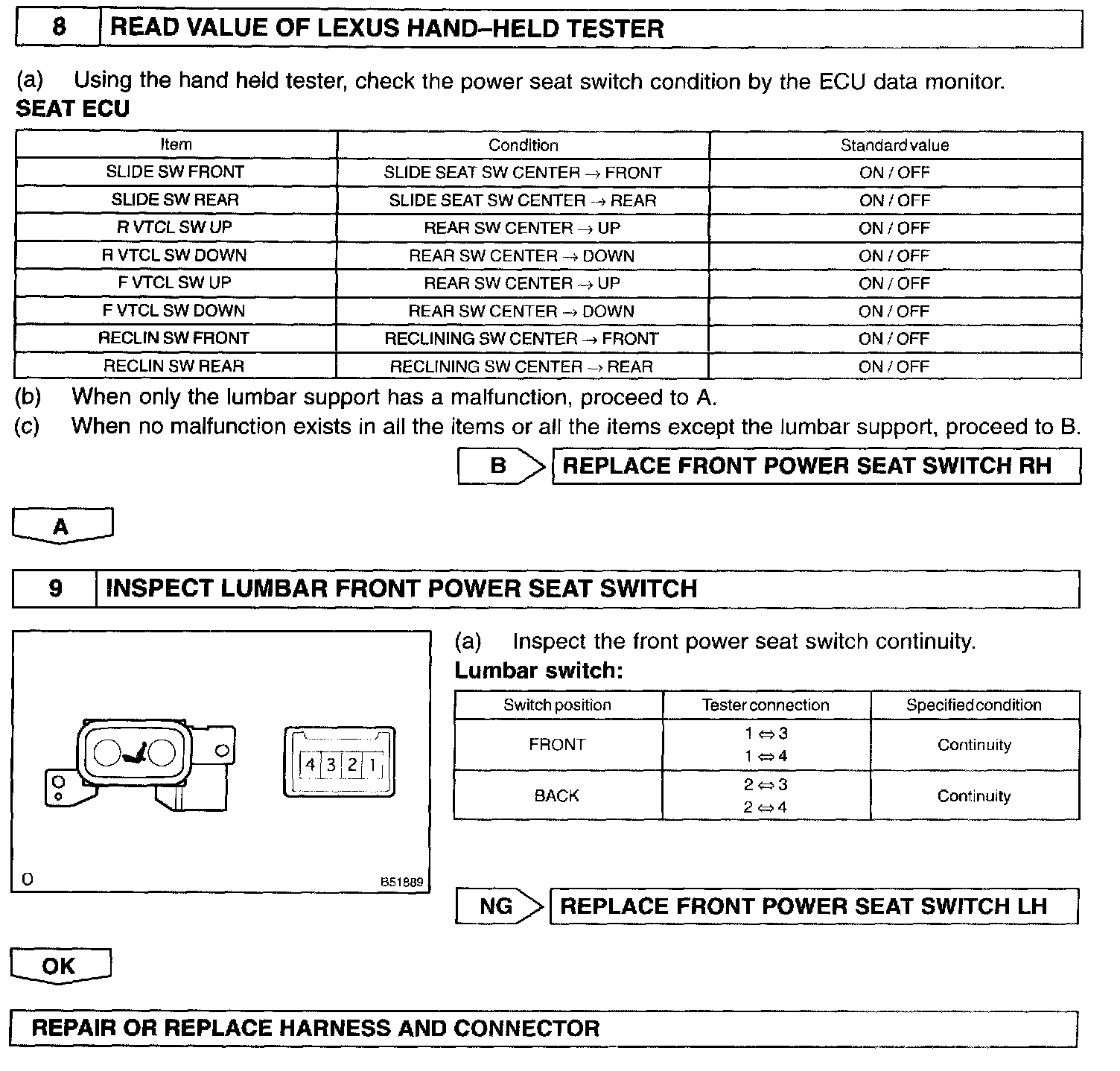

Step 8 - 9:

INSPECTION PROCEDURE
