Pinout Values and Diagnostic Parameters
TERMINALS OF ECU1. INSPECT DRIVER SEAT ECU

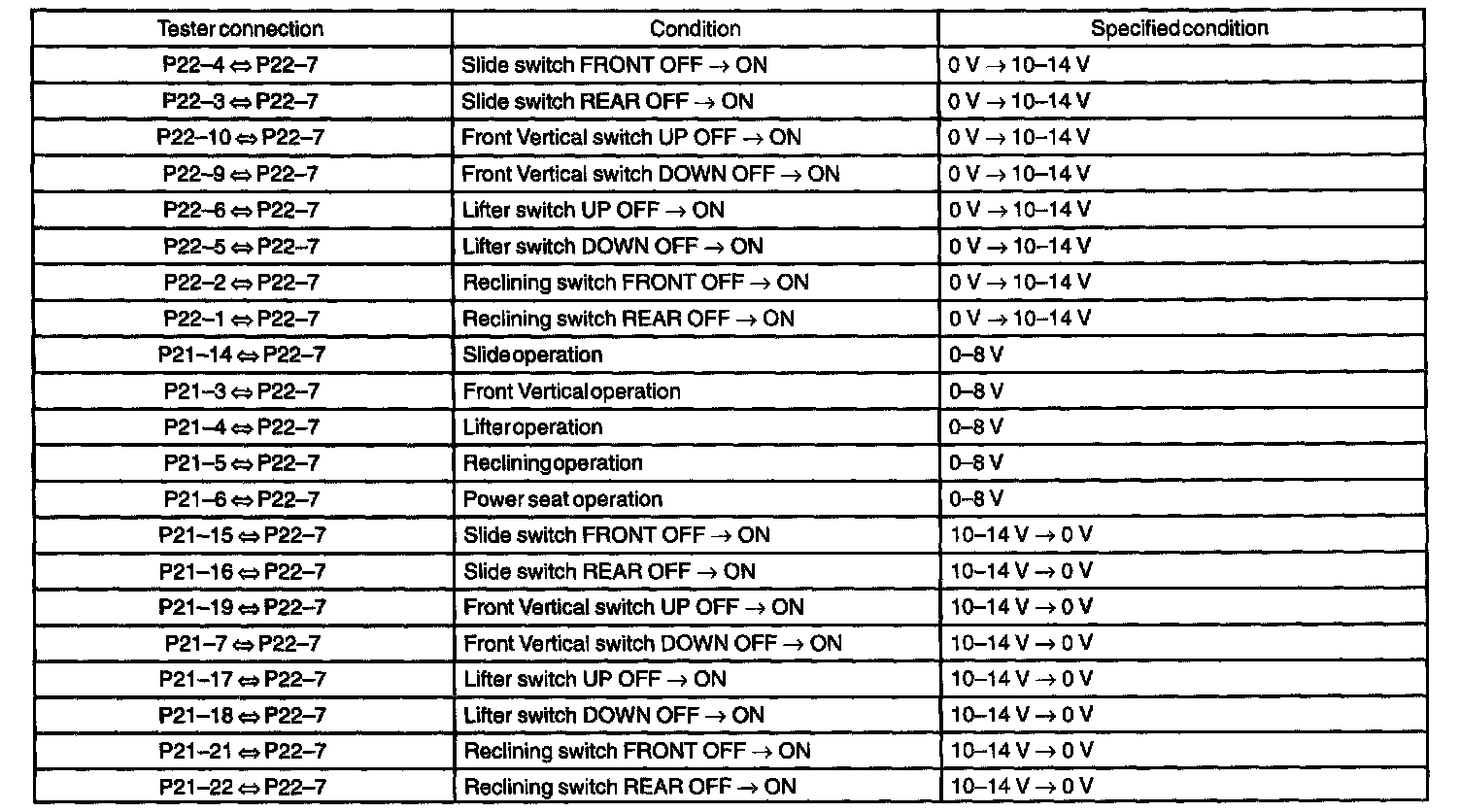

Terminals Of ECU - Driver Seat ECU Part 1:

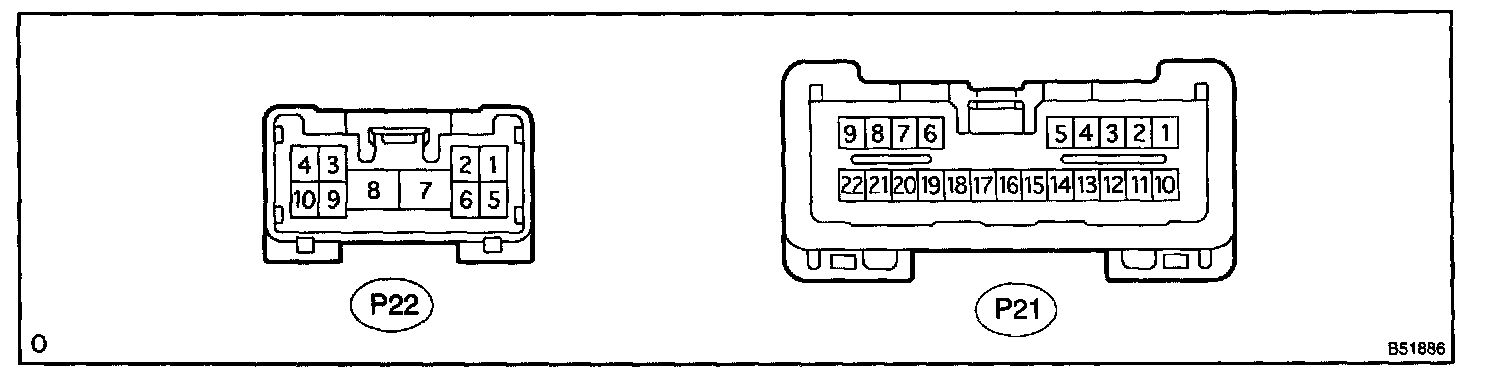

a. Disconnect the connector from the power seat ECU and inspect the connector on the wire harness side.
Terminals Of ECU - Driver Seat ECU Part 2:
If the circuit is not as specified, inspect the circuits connected to other parts.
Terminals Of ECU - Driver Seat ECU Part 3:

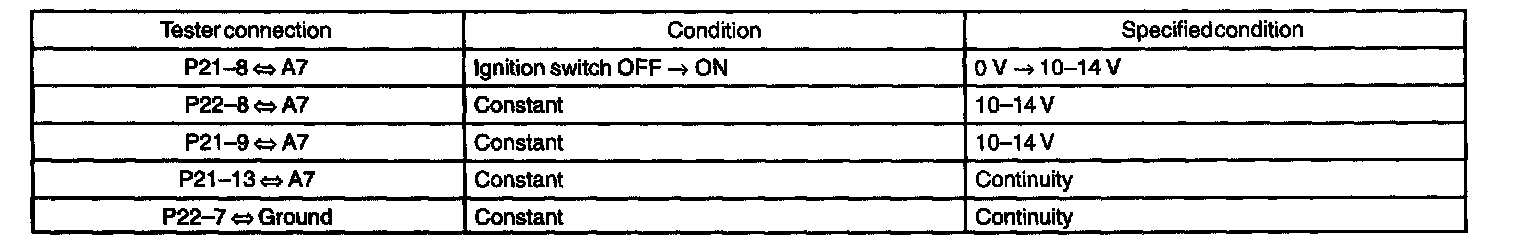

b. Connect the wire harness side connector to the power seat ECU and inspect the connector from the back side.
It the circuit is not as specified, inspect the circuits connected to other parts.
