Pre-Check

PRE-CHECK

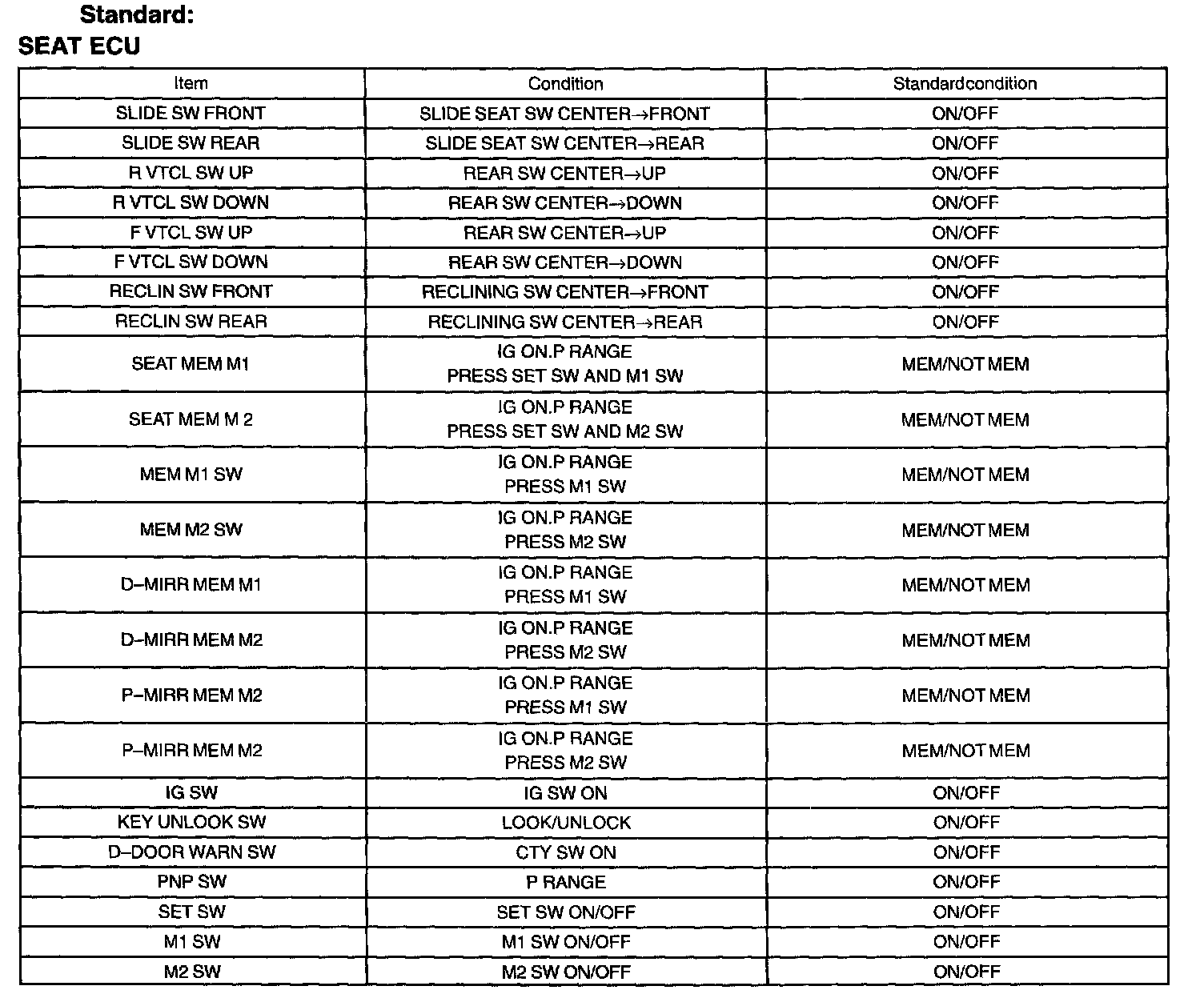

1. INSPECT ECU DATA MONITOR WITH HAND-HELD TESTER




a. Using hand-held tester, check the power seat system by the data monitor.


2. INSPECT ACTIVE TEST WITH HAND-HELD TESTER




a. Using hand-held tester, check the power seat system operation the data monitor.
