Pre-Check

PRE-CHECK

1. INSPECT DRIVER SIDE J/B

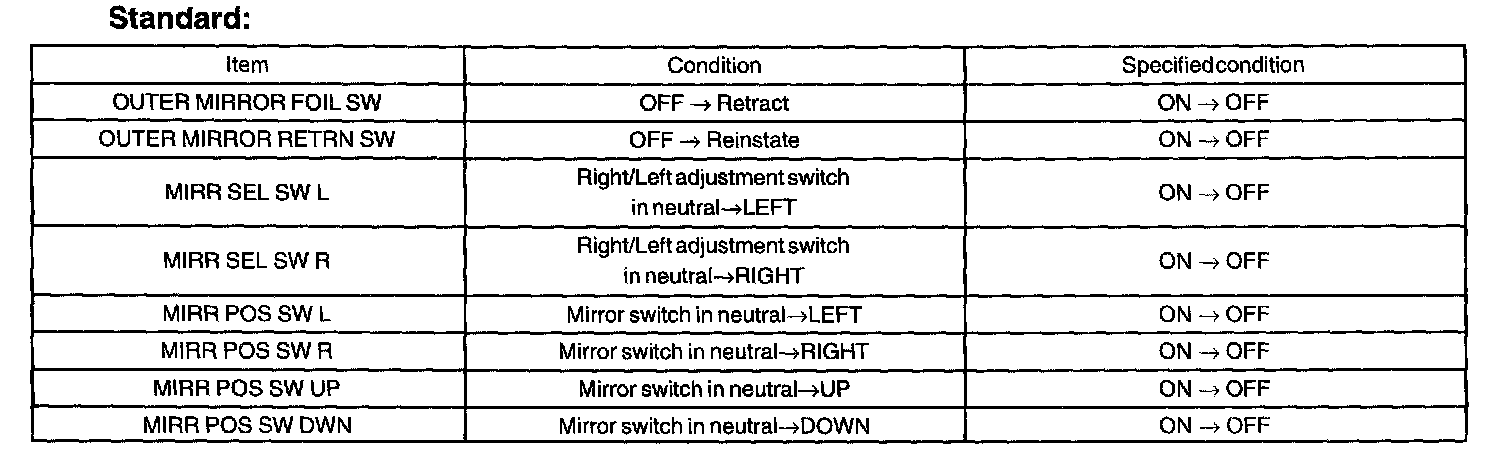

a. Using hand-held tester, check the driver side J/B condition on the data monitor.

2. INSPECT DRIVER SEAT ECU AND PASSENGER SEAT ECU

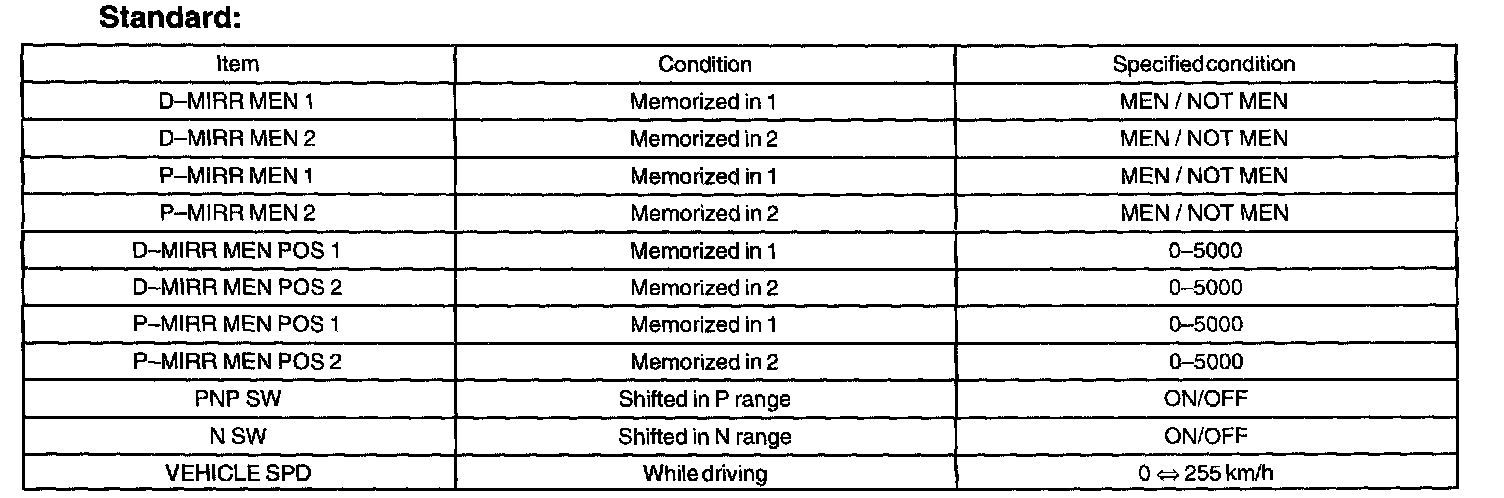

a. Using hand-held tester, check the condition of the driver seat ECU and passenger seat ECU on the data monitor.

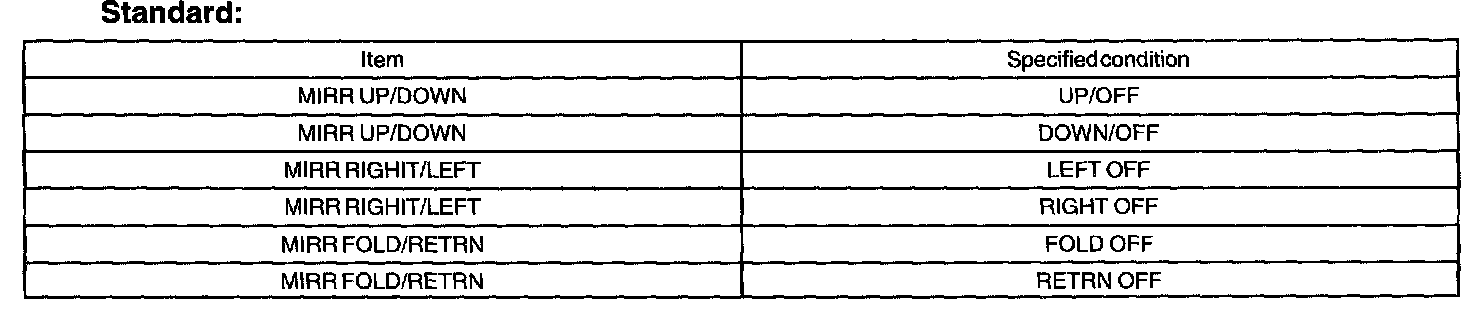

3. PERFORM ACTIVE TEST (DOOR ECU)




a. Using hand-held tester, check the operation of the power mirror.
