On-Vehicle Inspection
POWER MIRROR CONTROL SYSTEMON-VEHICLE INSPECTION
1. INSPECT OPERATION (DOOR MIRROR) (TAIWAN)
a. Turn the ignition switch to the ACC position.
b. Inspect the operations of the outer mirror bodies at each position when the retract switch is pressed.

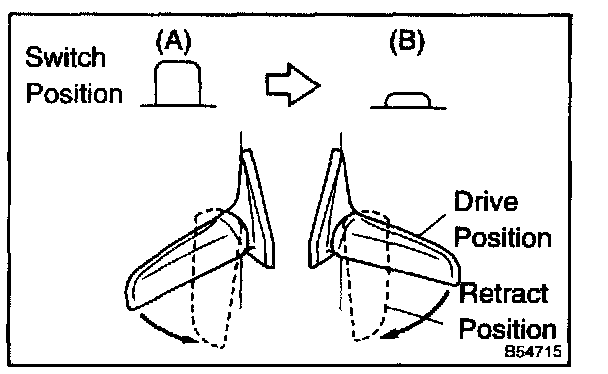

c. Check the outer mirrors operation as shown in the illustration.
1. Put the retract switch from the (A) into the (B) position.
2. Check that the right and left mirrors move from the drive position to the retract position.

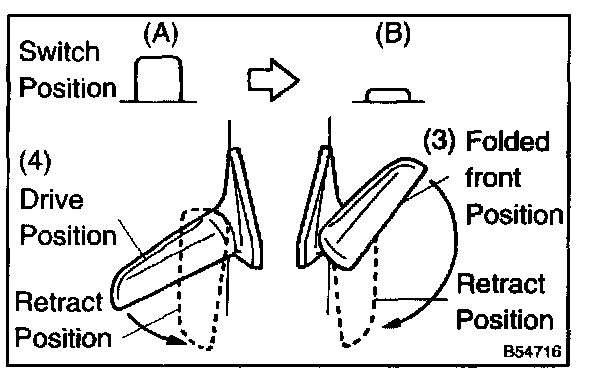

d. Check the outer mirror operation as shown in the illustration.
1. Move one of the mirrors to the folded front position by hand.
2. Put the retract switch from the (A) into the (B) position.
3. Check that the mirror moves from the folded front position to the retract position.
4. Check that the other mirror moves from the drive position to the retract position.

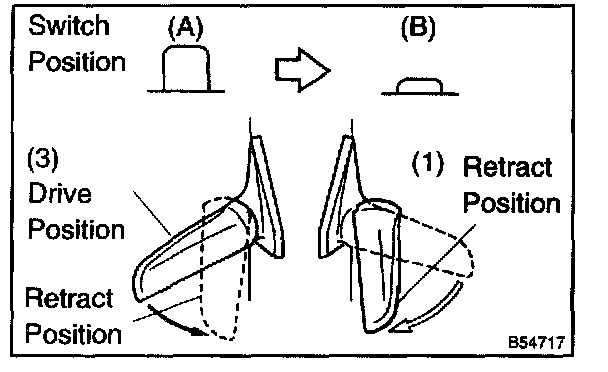

e. Check the outer mirror operation as shown in the illustration.
1. Move one of the mirrors to the retract position by hand.
2. Put the retract switch from the (A) into the (B) position.
3. Check that the other mirror moves from the drive position to the retract position.

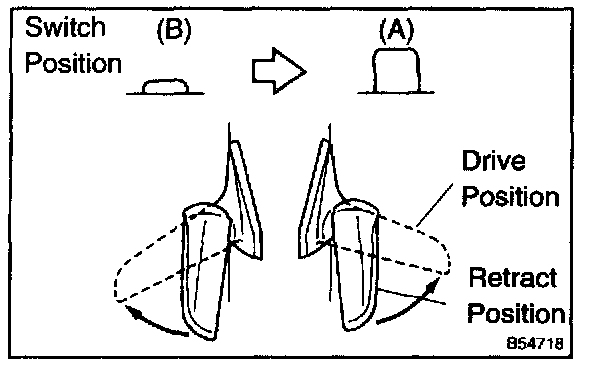

f. Check the outer mirror operation as shown in the illustration.
1. Put the retract switch from the (B) into the (A) position.
2. Check that the right and left mirrors move from the retract position to the drive position.
