Automatic Locking Function By Vehicles Speed Does Not Work
Automatic Locking Function By Vehicles Speed Does Not WorkCIRCUIT DESCRIPTION
The theft deterrent ECU monitors a signal of vehicle's speed transmitted multiply from the meter ECU, and it will drive each door lock motor when any of the doors is in the unlocked state with the vehicle's speed at approximately 20 km/h (13 mph).
NOTE: The electrical door lock system has a function with large-scale body multiplex communication. First of all, inspect the communication function and check that no malfunction exists in the troubleshooting.

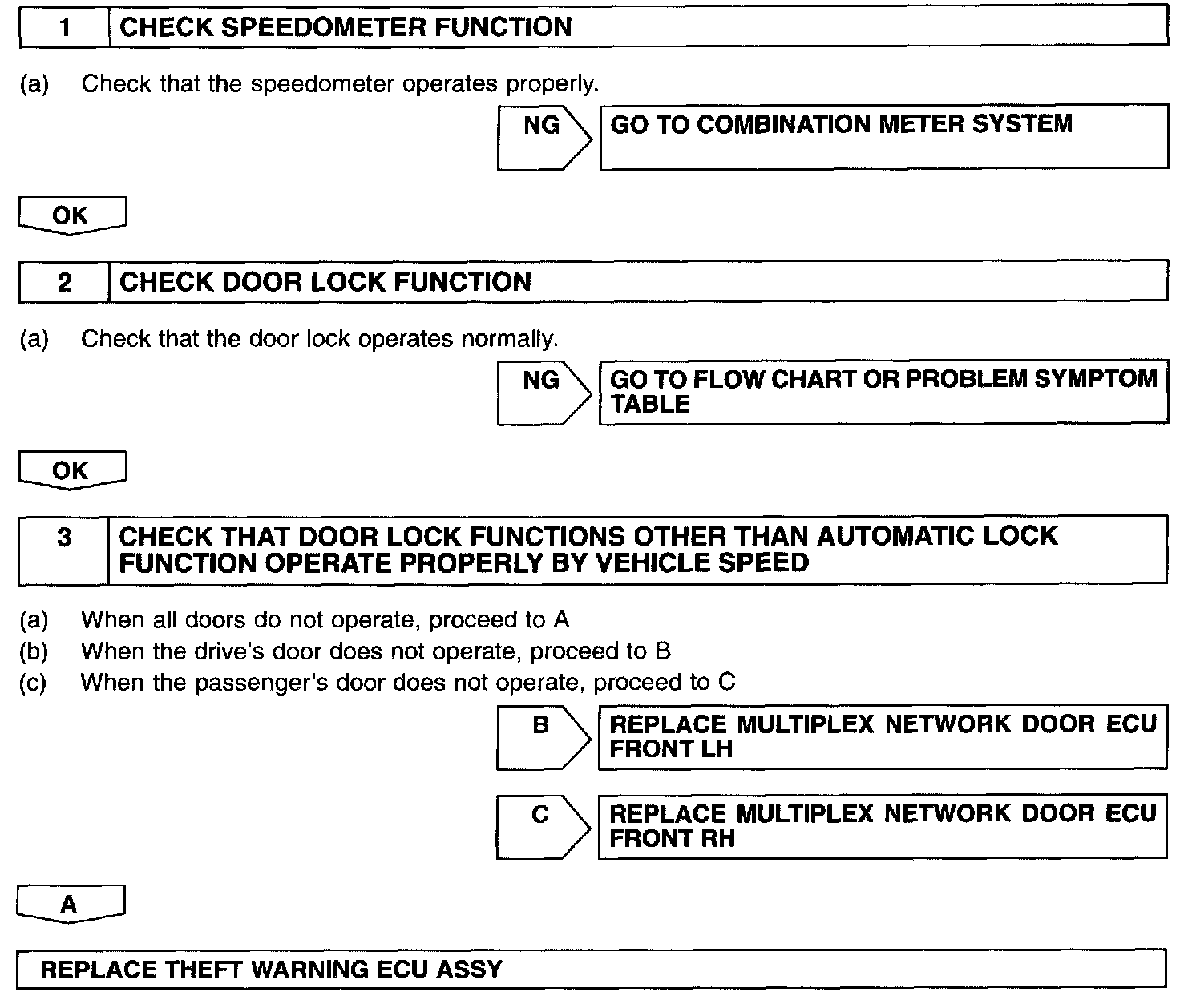

Step 1 - 3:
INSPECTION PROCEDURE
