Keyless Entry Transmitter Battery: Service and Repair
TRANSMITTER BATTERYREPLACEMENT
HINT: Installation is in the reverse order of removal. But, the installation is indicated only when it has a point.
1. REMOVE DOOR CONTROL TRANSMITTER ASSEMBLY
2. REMOVE TRANSMITTER BATTERY
a. Using a screwdriver, remove the 2 screws and cover.
b. Remove the transmitter battery (lithium battery).
NOTE:
- Do not push the terminals with a finger.
- If prying up the battery (lithium battery) forcibly to remove it, the terminals are deformed.
3. INSTALL TRANSMITTER BATTERY

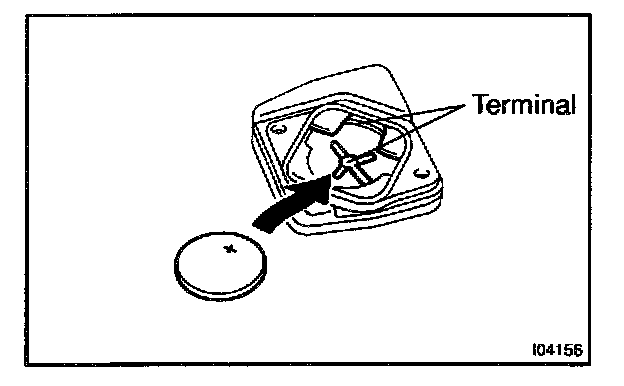

a. Install the transmitter battery (lithium battery) as shown in the illustration.
NOTE: Face the battery upward, take care not to deform the terminals.

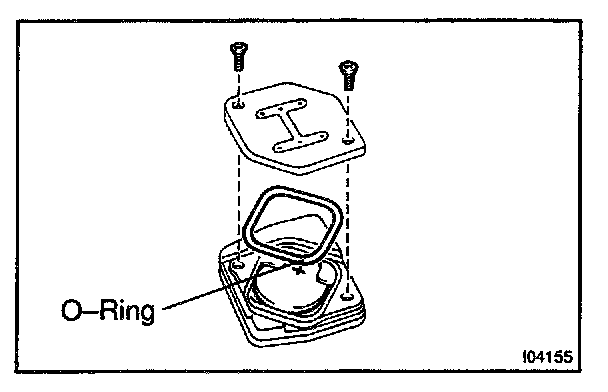

b. Check that O-ring is not distorted or slipped off, and install the cover.
c. Using a screwdriver, tighten the 2 screws.
NOTE: When the screws are tightened loosely, it might cause faulty contact of battery (lithium battery) and terminals.
