Pinout Values and Diagnostic Parameters
TERMINALS OF ECU1. INSPECT THEFT WARNING ECU
Terminals Of ECU - Theft Warning ECU Part 1:

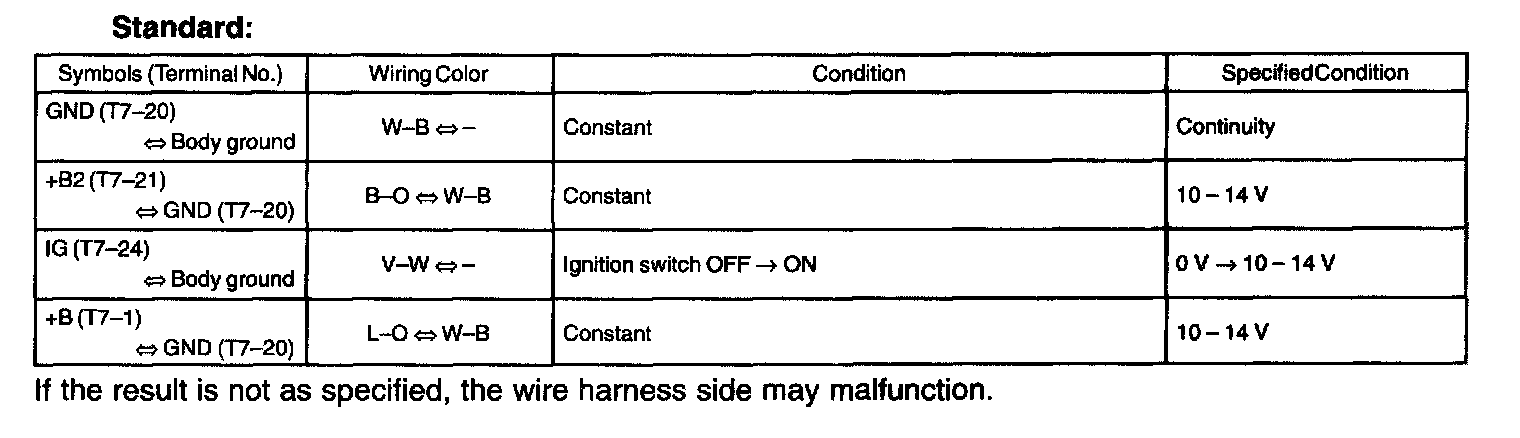

Terminals Of ECU - Theft Warning ECU Part 2:
a. Disconnect the the T7 ECU connector, and check the voltage or continuity between each terminal of the wire harness side connector.
2. INSPECT DRIVER SIDE JUNCTION BLOCK

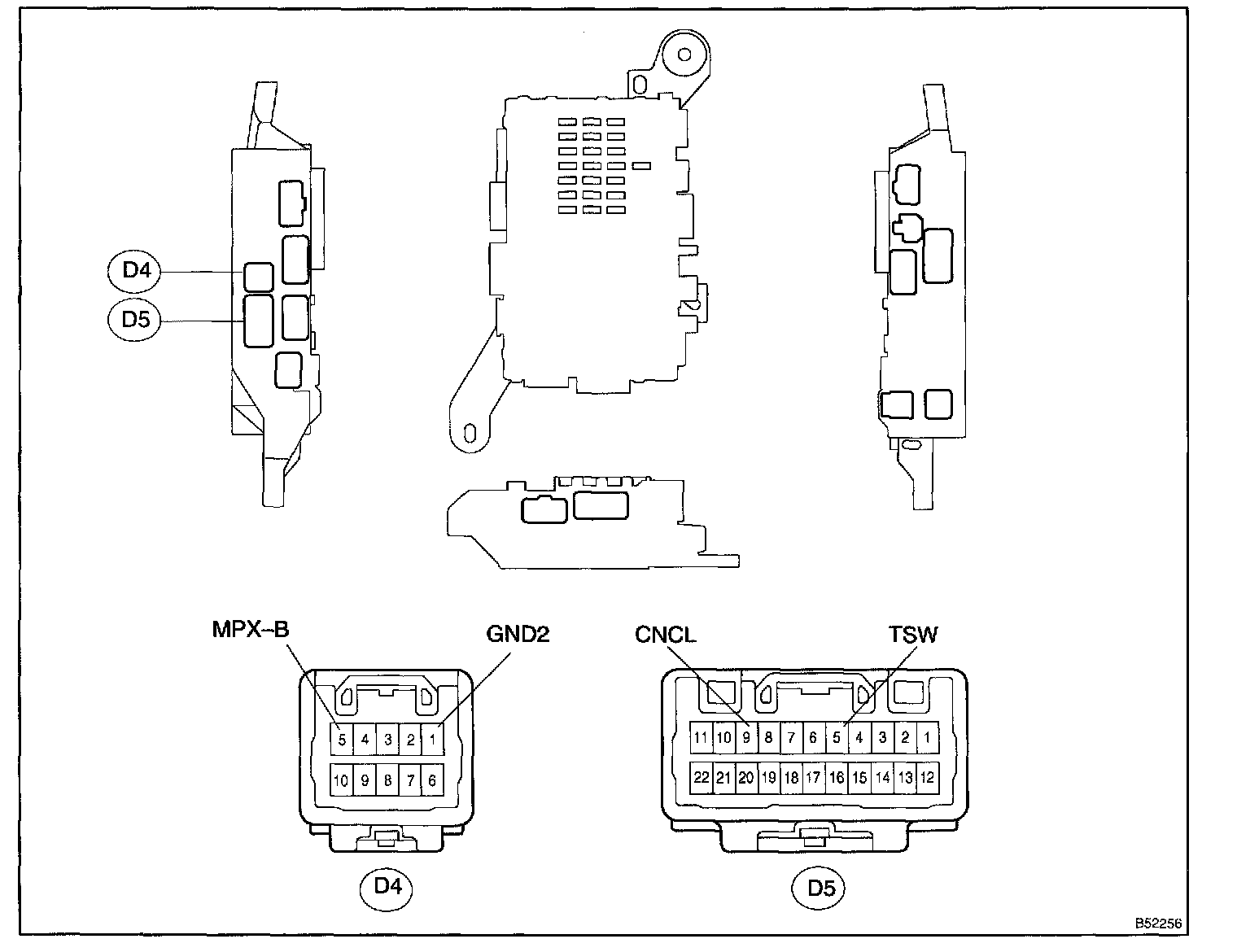

Terminals Of ECU - Driver Side Junction Block Part 1:

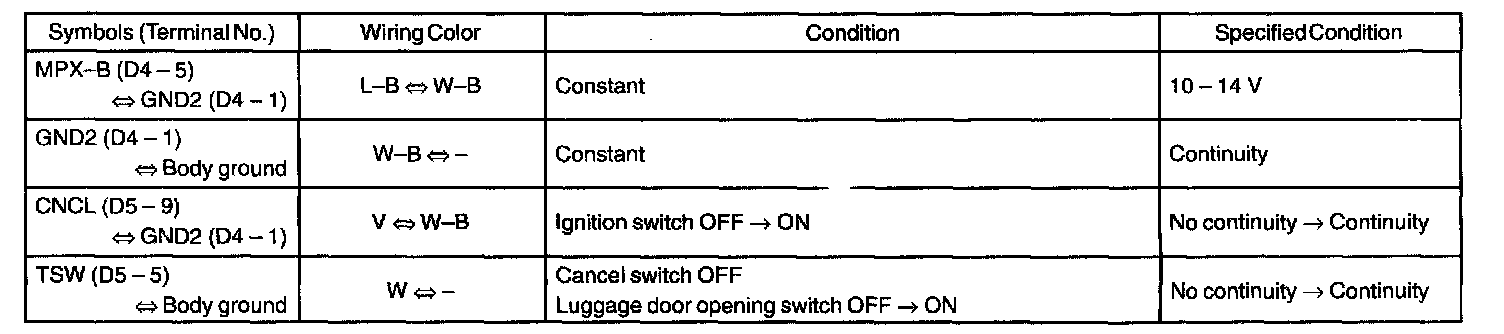

Terminals Of ECU - Driver Side Junction Block Part 2:
a. Disconnect the the D4 and D5 driver side J/B connectors, and check the voltage between continuity of each terminal of the wire harness side connectors.
If the result is not as specified, the wire harness side may malfunction.

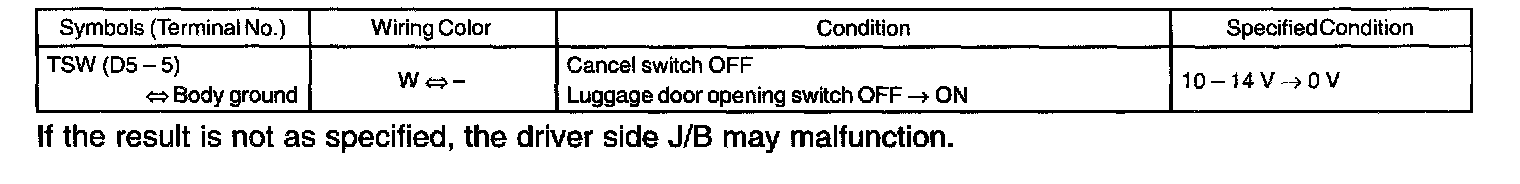

Terminals Of ECU - Driver Side Junction Block Part 3:
b. Reconnect the wire harness side connector to the driver side J/B, and check the voltage between the terminal of the connector.
3. INSPECT LUGGAGE ROOM JUNCTION BLOCK

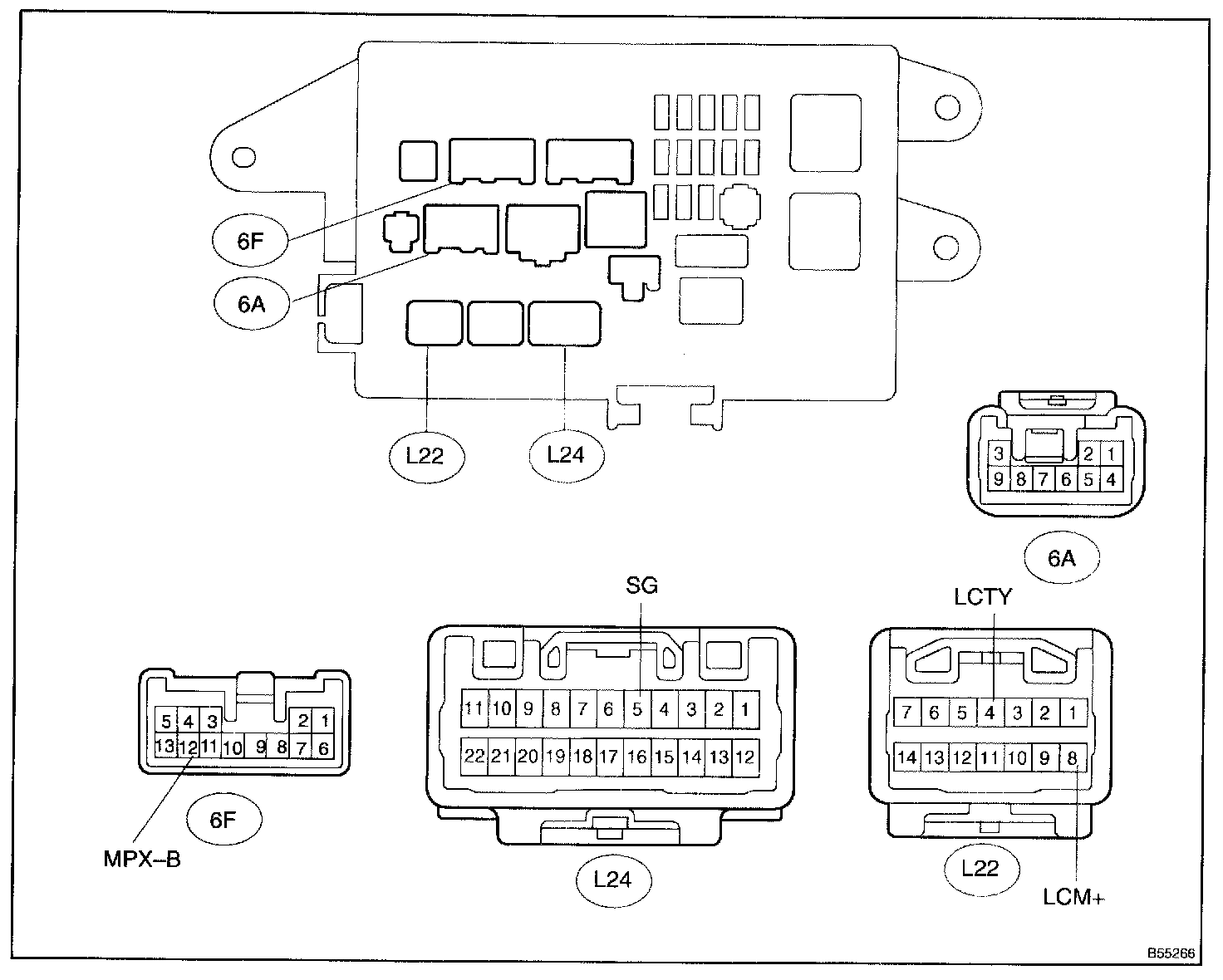

Terminals Of ECU - Luggage Room Junction Block Part 1:

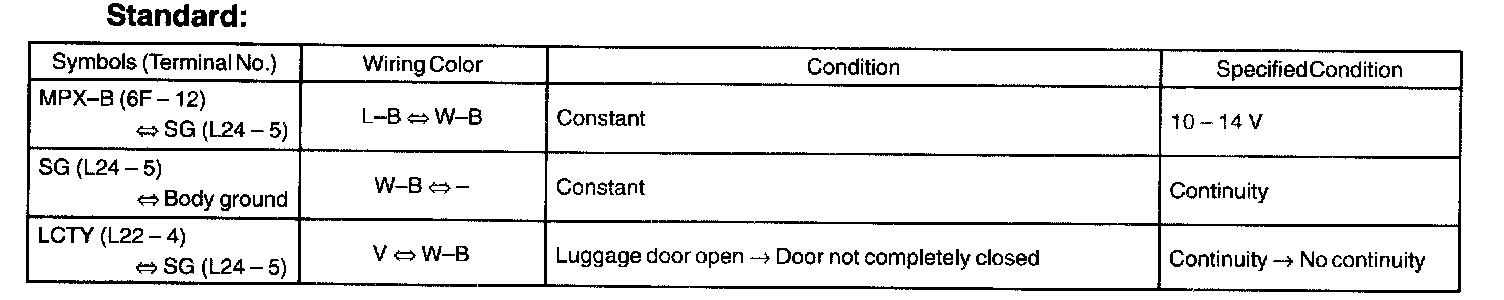

Terminals Of ECU - Luggage Room Junction Block Part 2:
a. Disconnect the the each luggage room J/B connectors, and check the voltage or continuity between each terminal of the wire harness side connectors.
If the result is not as specified, the wire harness side may malfunction.

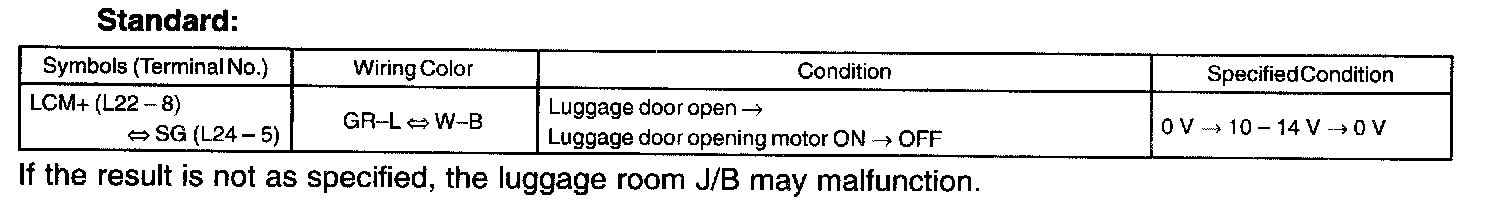

Terminals Of ECU - Luggage Room Junction Block Part 3:
b. Reconnect the wire harness side connector to the luggage room J/B and check the voltage between the terminal of the connector.
