Home >> Lexus >> 2003 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Sensors and Switches - Accessories and Optional Equipment >> Global Positioning System Switch >> Locations

Global Positioning System Switch: Locations

Ju - Ma:

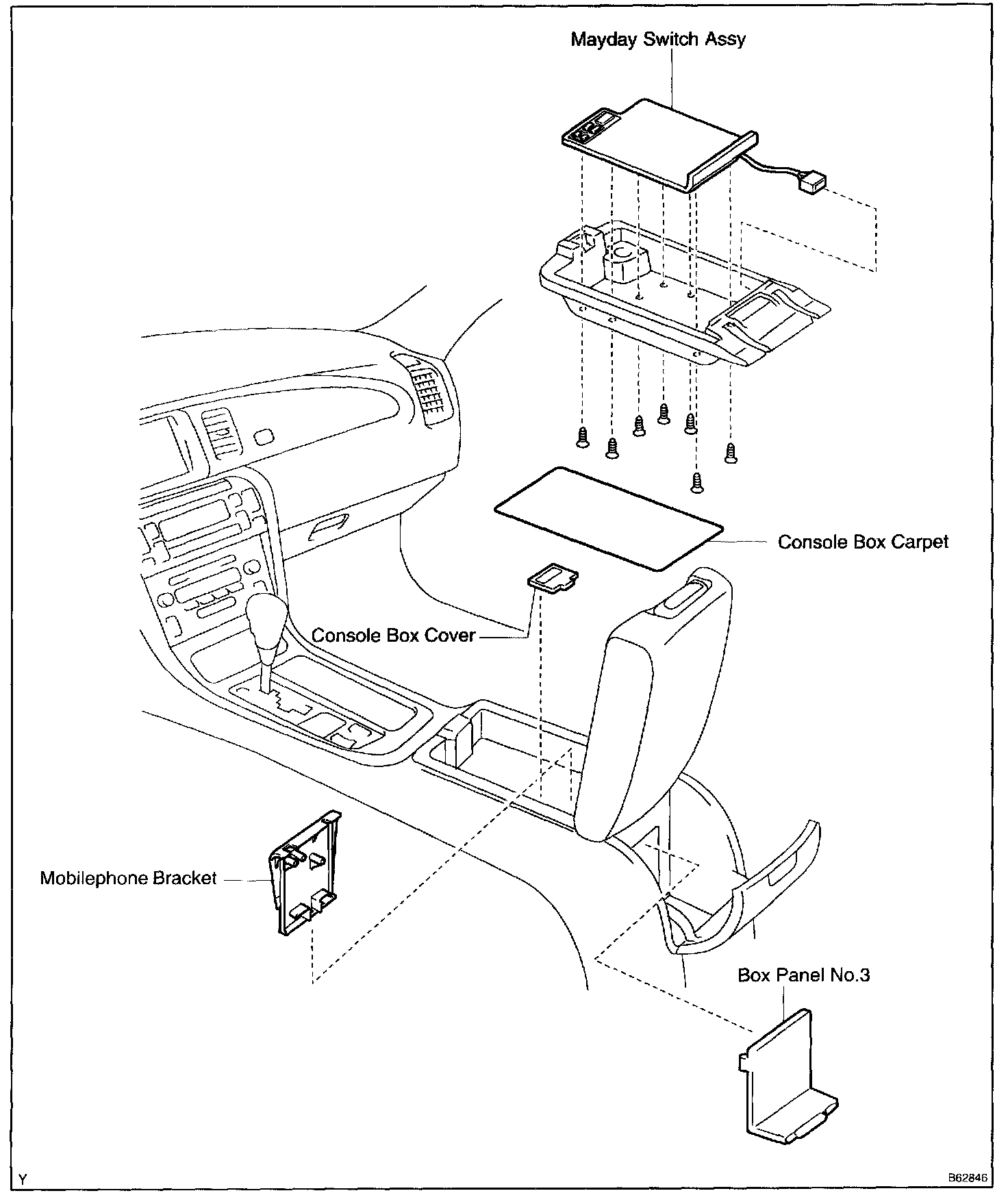

Mayday Switch Assy (2003 MY):
