Volume Cannot Be Adjusted By Using Steering Pad Switch

Volume Cannot Be Adjusted By Using Steering Pad Switch (Sound Is Heard. Volume Can Be Adjusted By Radio Receiver)

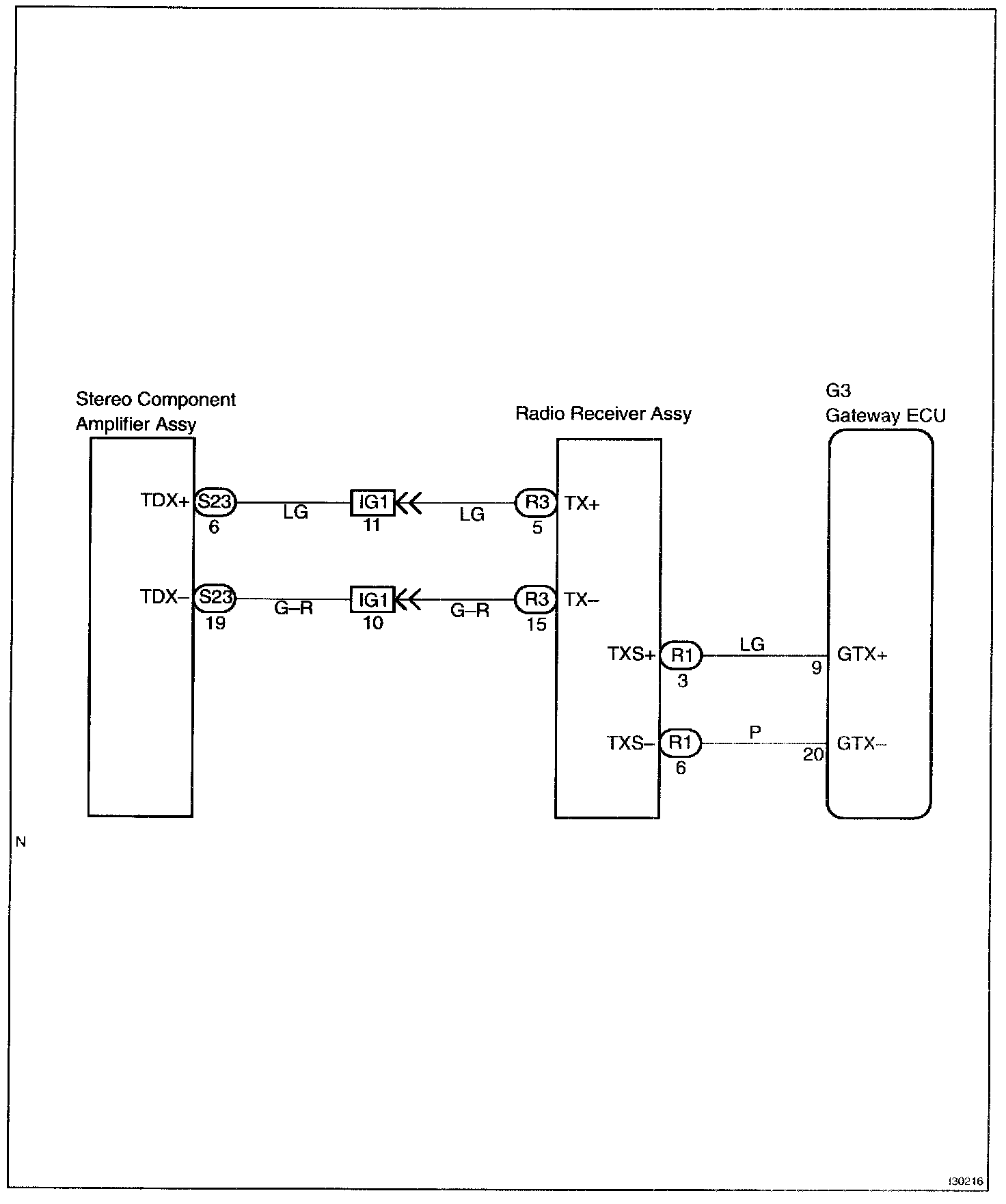

Wiring Diagram:

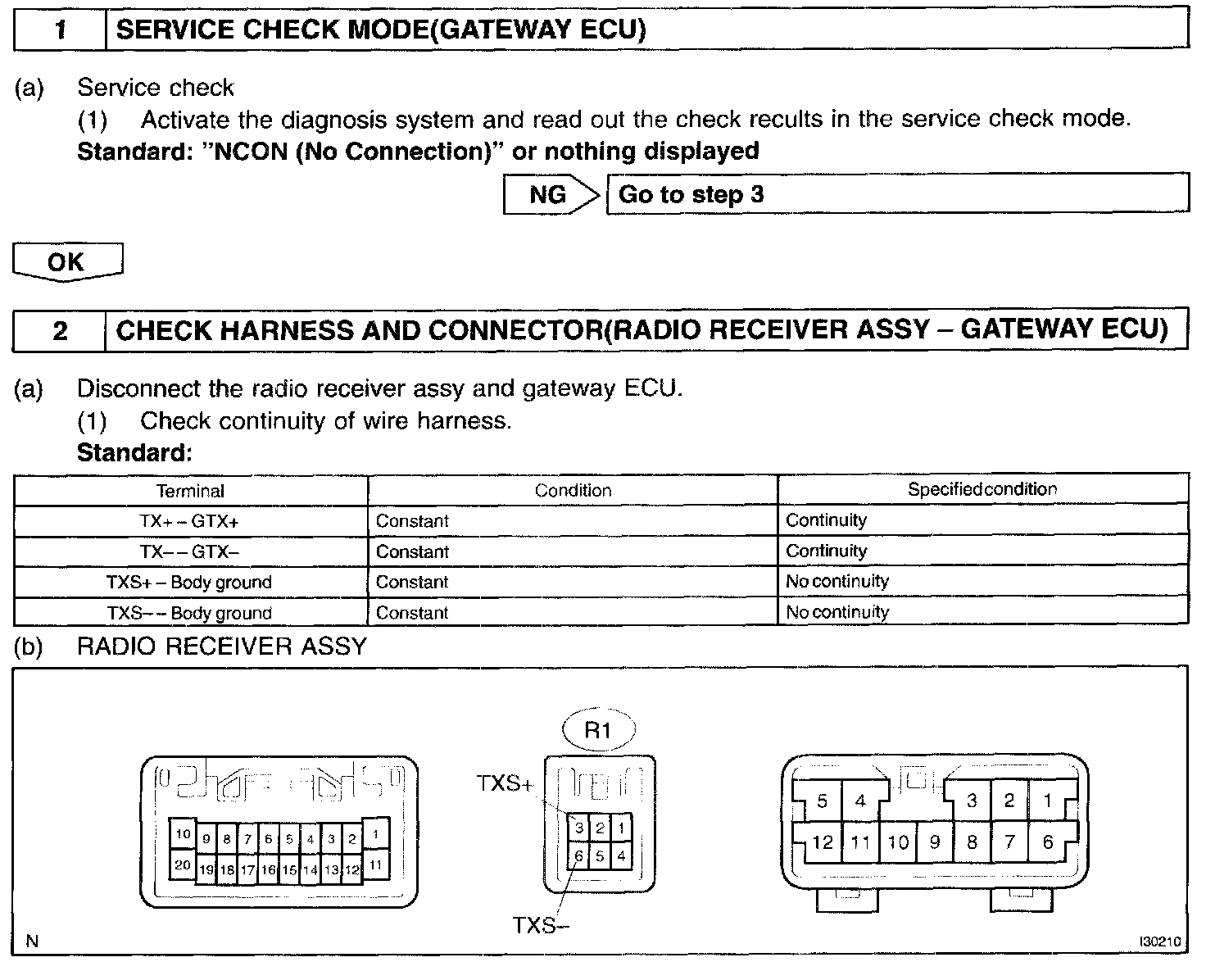

Step 1 - 2:

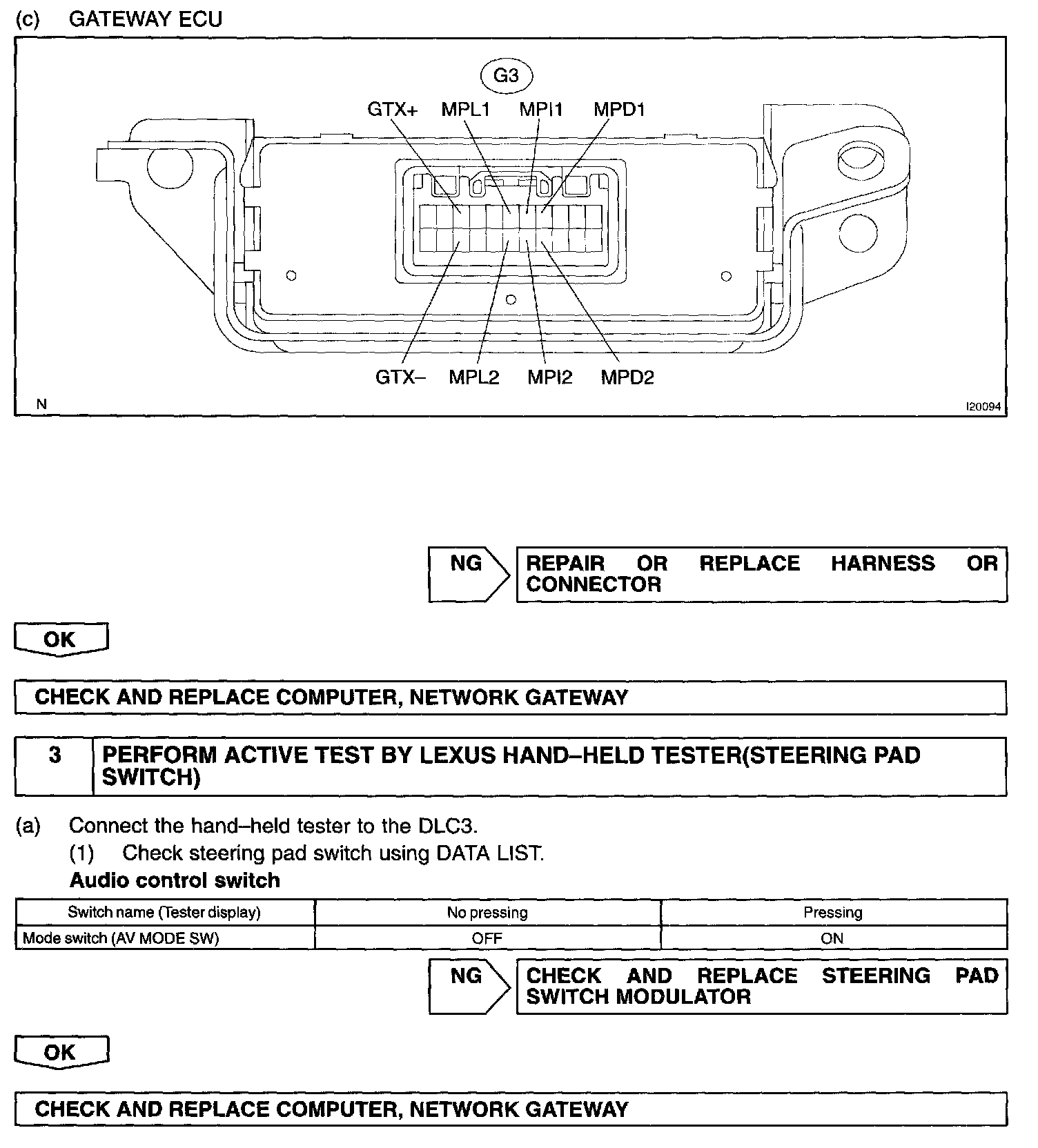

Step 2(Continued) - 3:




INSPECTION PROCEDURE
