Tape is Tangled Due to Tape Speed or Auto-Reverse Malfunction
Tape is Tangled Due to Tape Speed or Auto-Reverse Malfunction
Tape Is Tangled Due to Incorrect Tape Speed or Auto-Reverse Malfunction

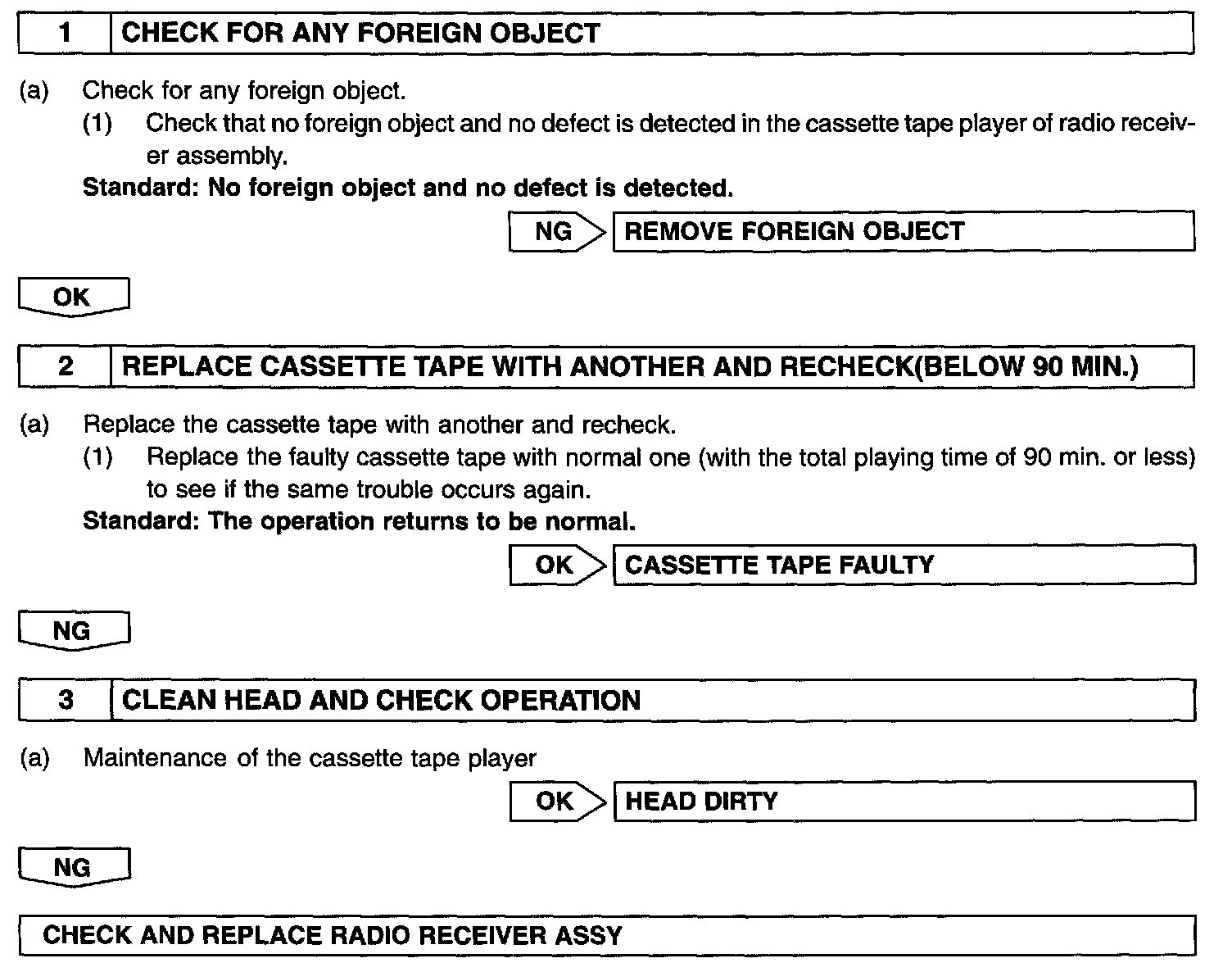

Step 1 - 3:
INSPECTION PROCEDURE
