Sound of Cassette Tape and CD Only is Not Heard From Speakers

Sound of Cassette Tape and CD Only Is Not Heard From Speakers


Wiring Diagram Part 1:




Wiring Diagram Part 2:

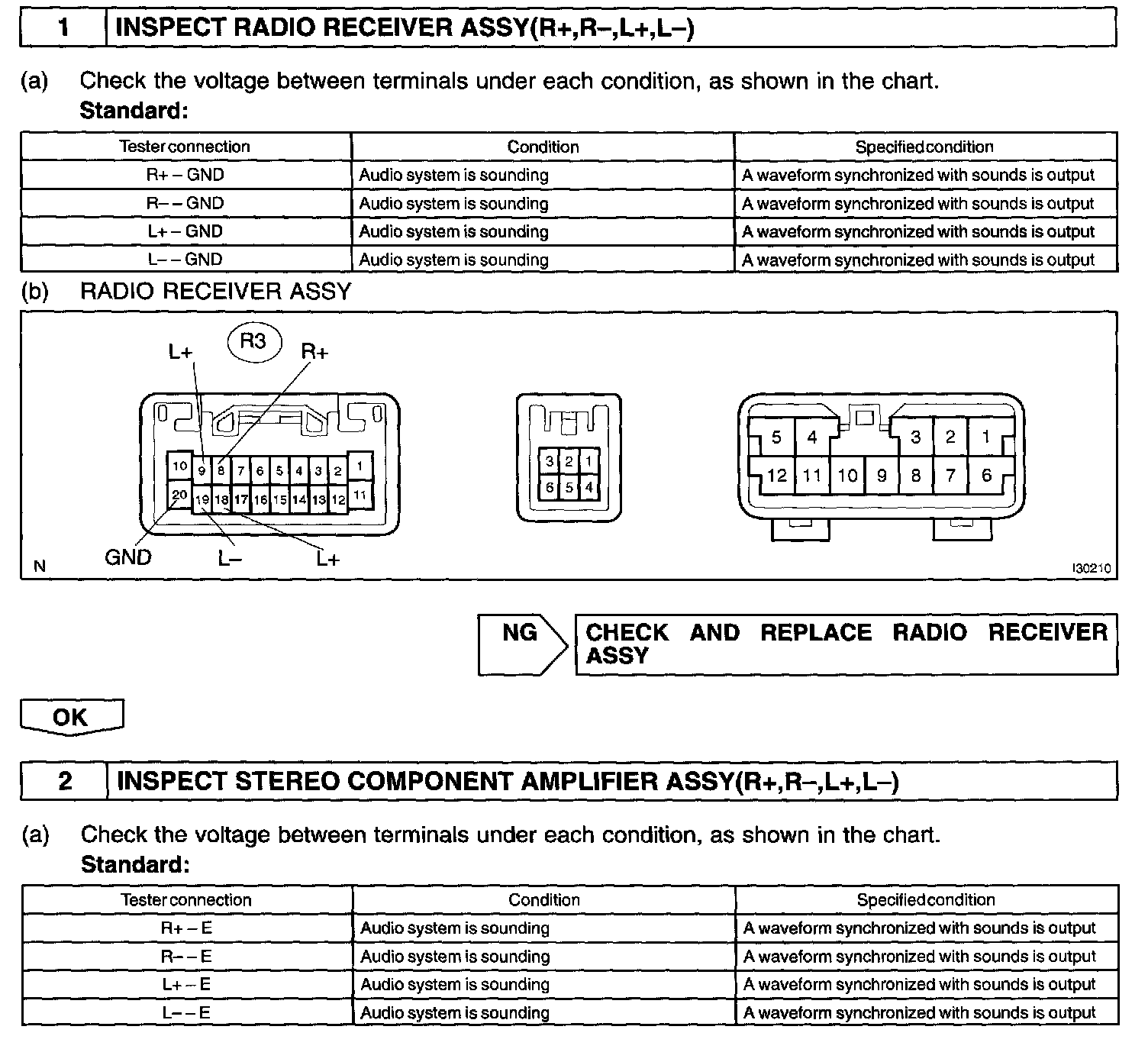

Step 1 - 2:

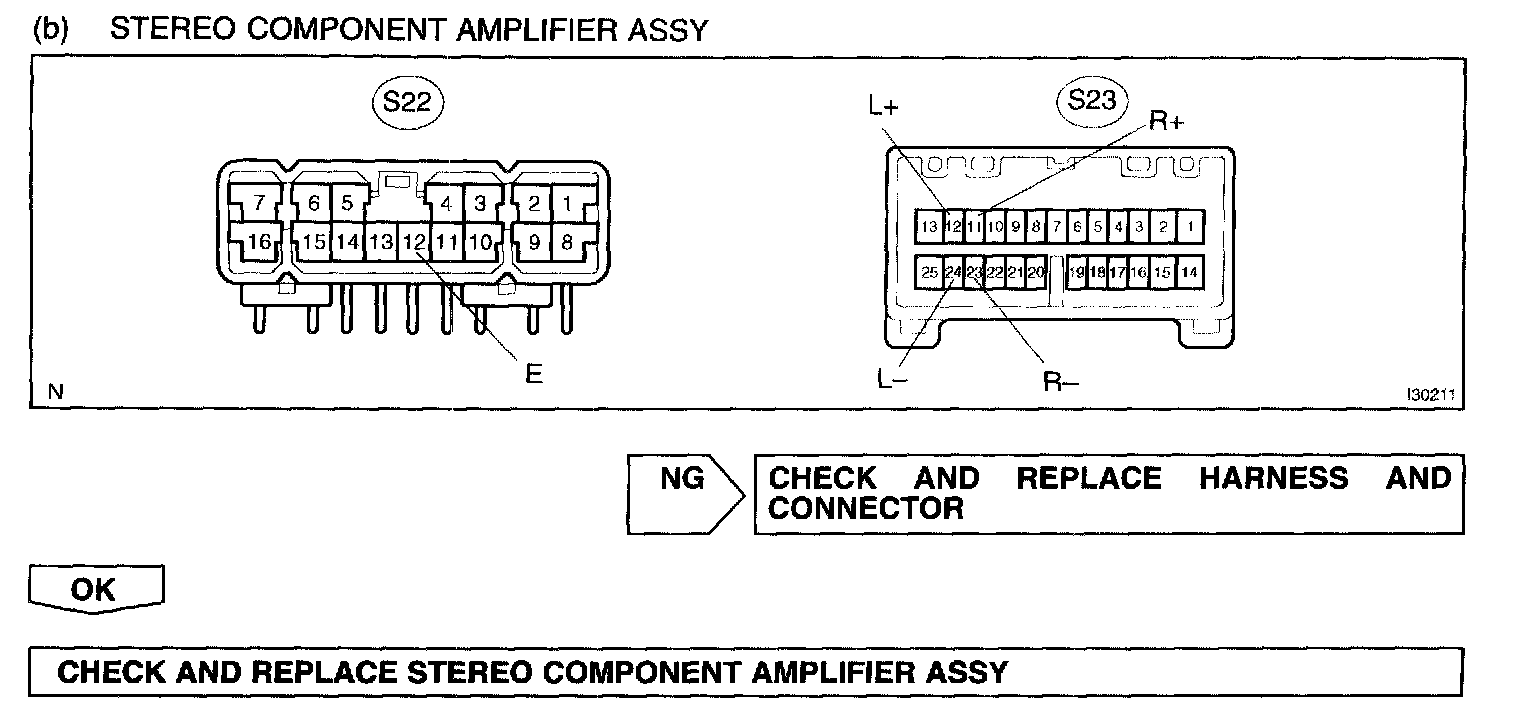

Step 1 - 2 (Continued):




INSPECTION PROCEDURE
