Radio Broadcast Cannot Be Received (Poor Reception)
Radio Broadcast Cannot Be Received (Poor Reception)
Radio Broadcast Cannot Be Received (Bad Reception. Noise Occurs)

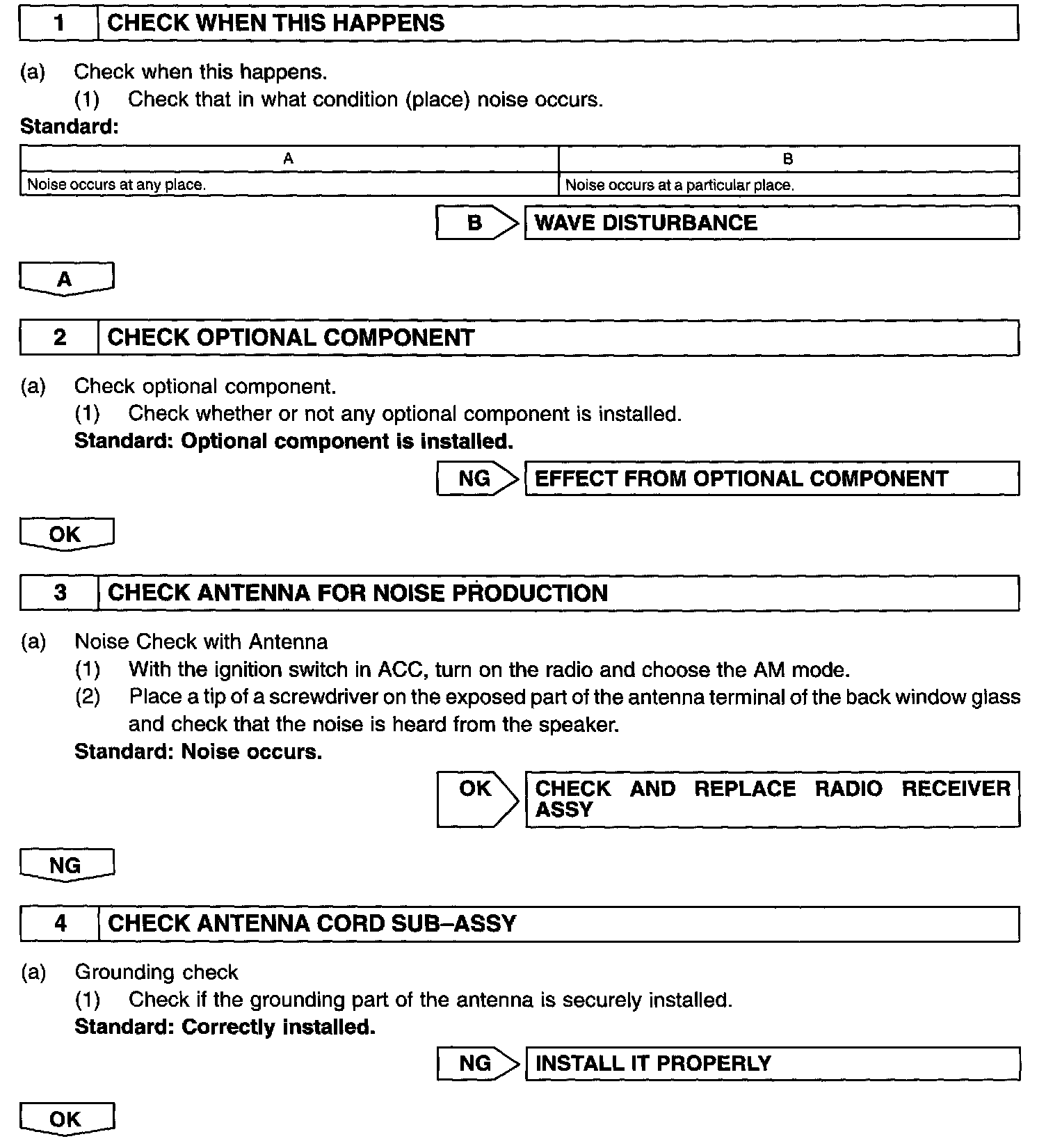

Step 1 - 4:

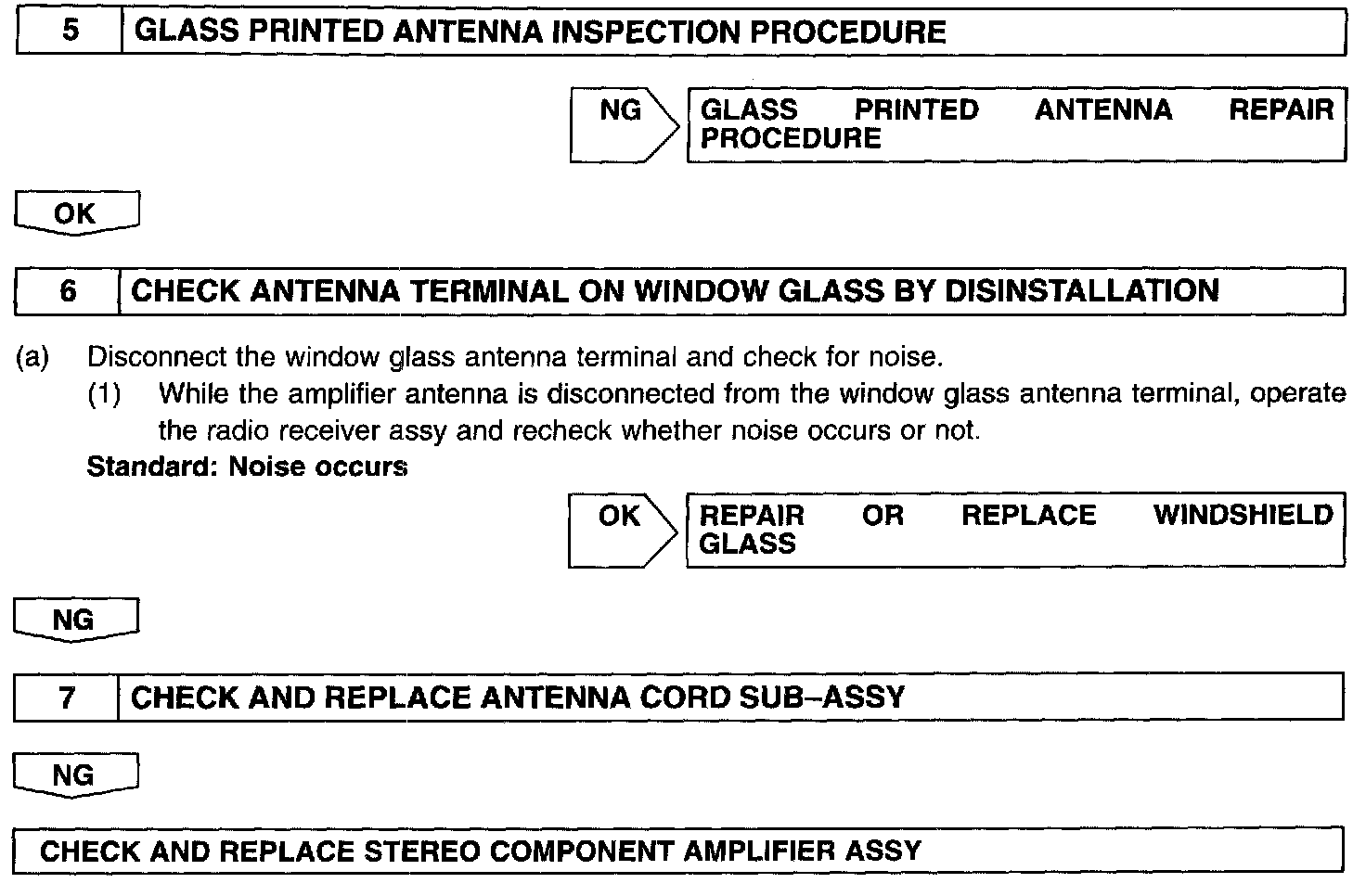

Step 5 - 7:
INSPECTION PROCEDURE
