Headlight Dimmer Switch On, Radio Receiver Not Illuminated
Headlight Dimmer Switch On, Radio Receiver Not Illuminated
With Headlight Dimmer Switch ON,
Radio Receiver
Is Not Illuminated
Wiring Diagram:

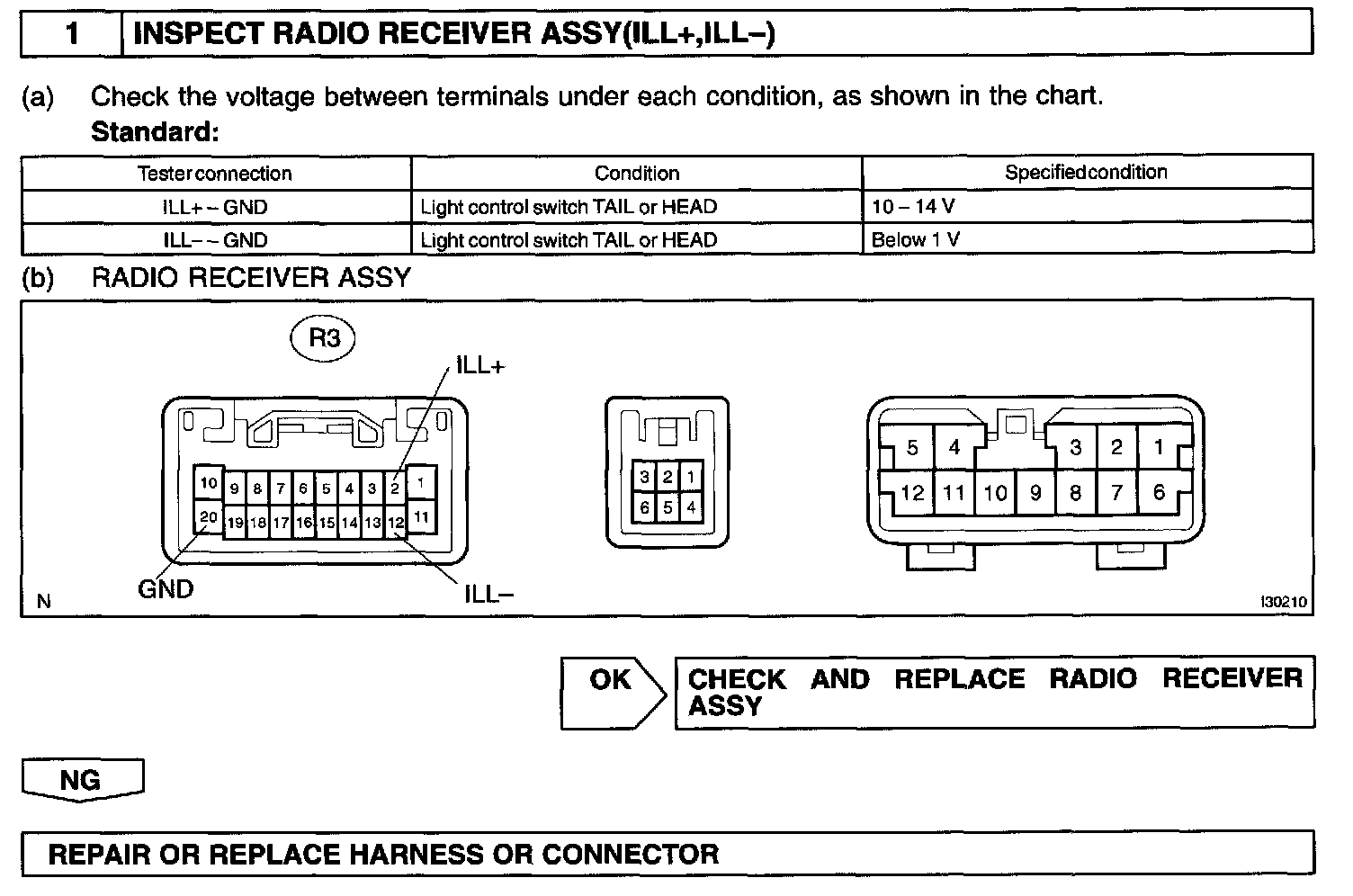

Step 1:
INSPECTION PROCEDURE
