CD Cannot Be Inserted Or Is Ejected Right After Insertion

CD Cannot Be Inserted/Is Ejected Right After Insertion/Cannot Be Played


Wiring Diagram:

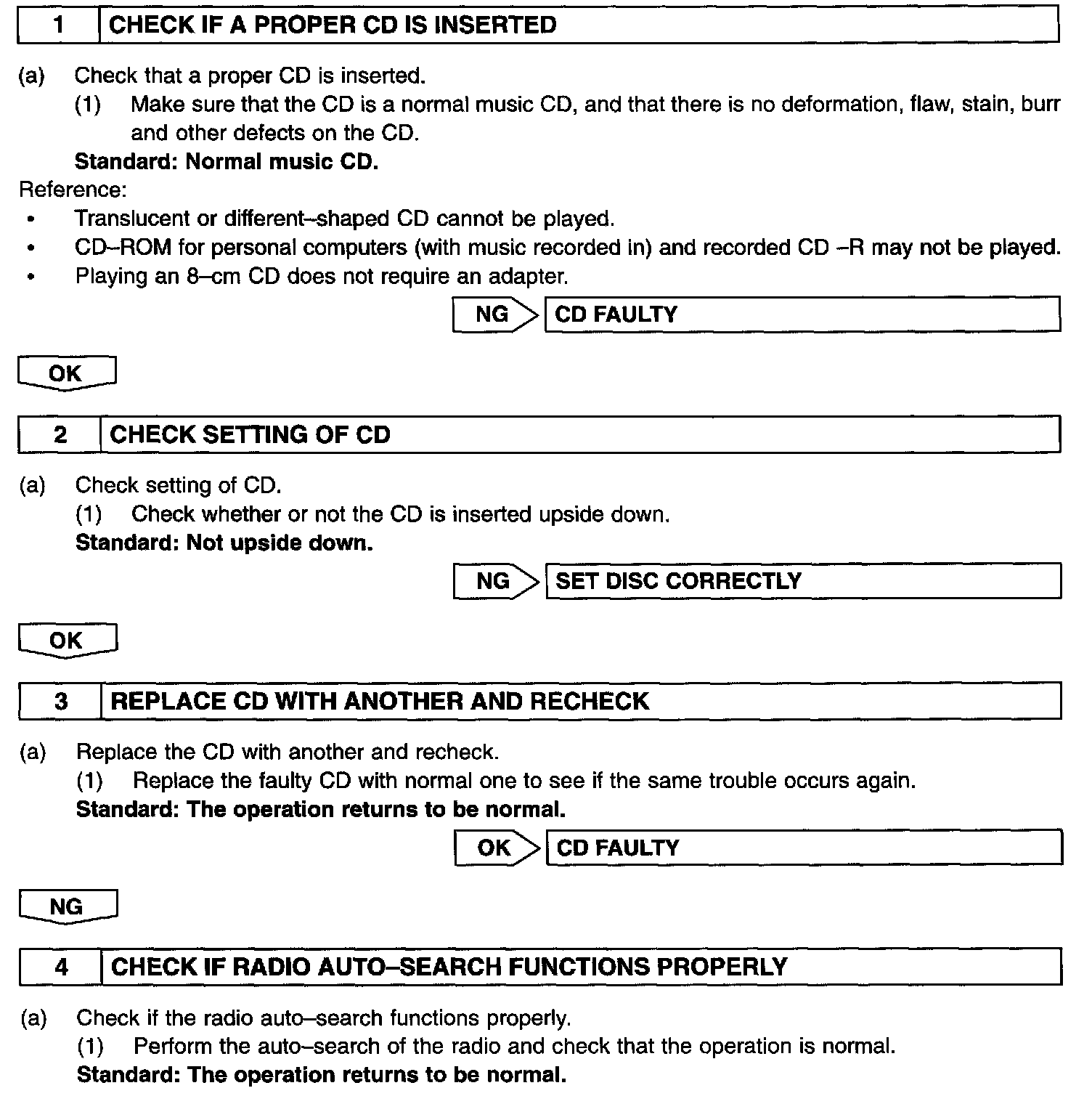

Step 1 - 4:

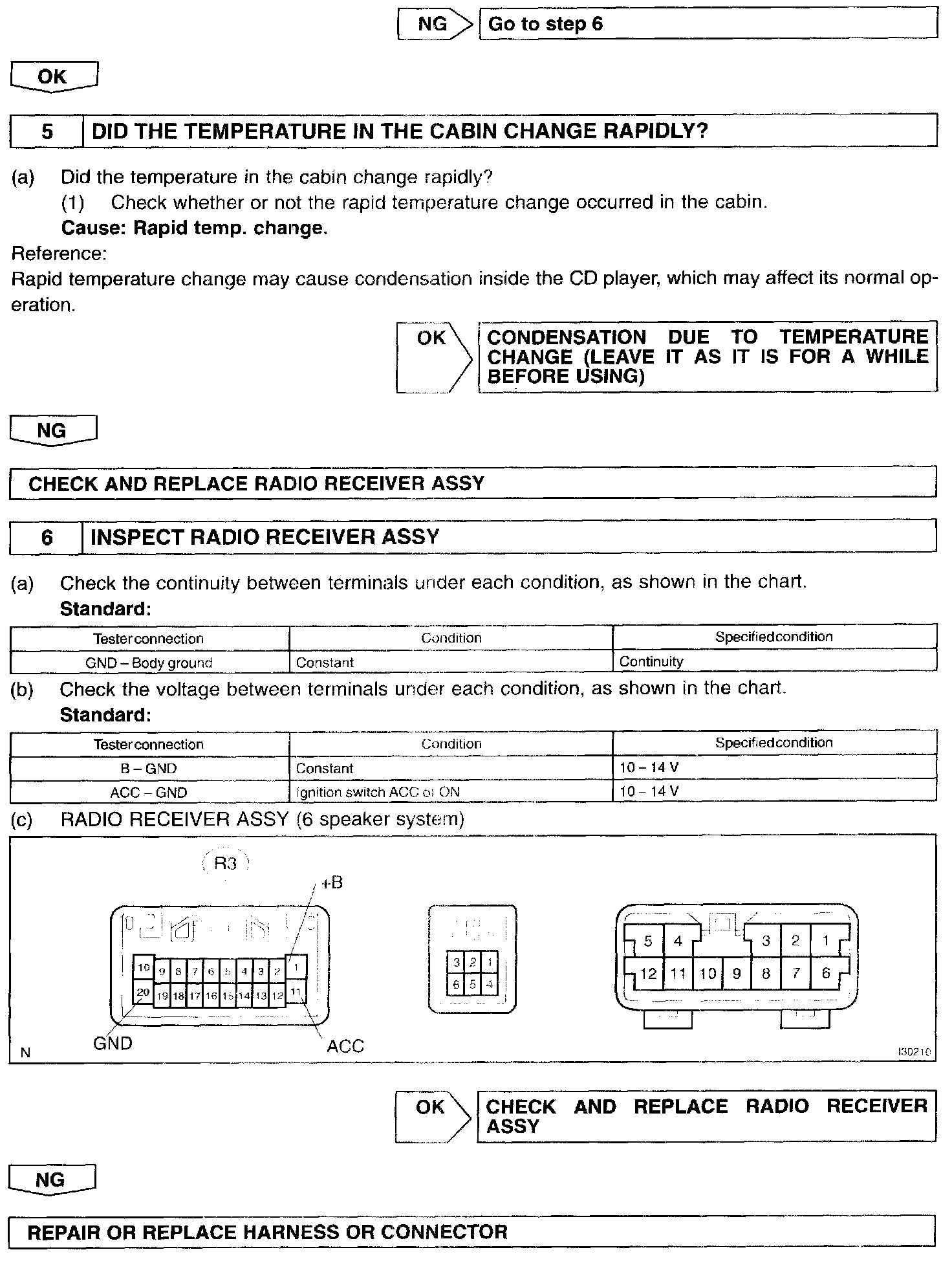

Step 4(Continued) - 6:




INSPECTION PROCEDURE
