CD Cannot Be Ejected

CD Cannot Be Ejected

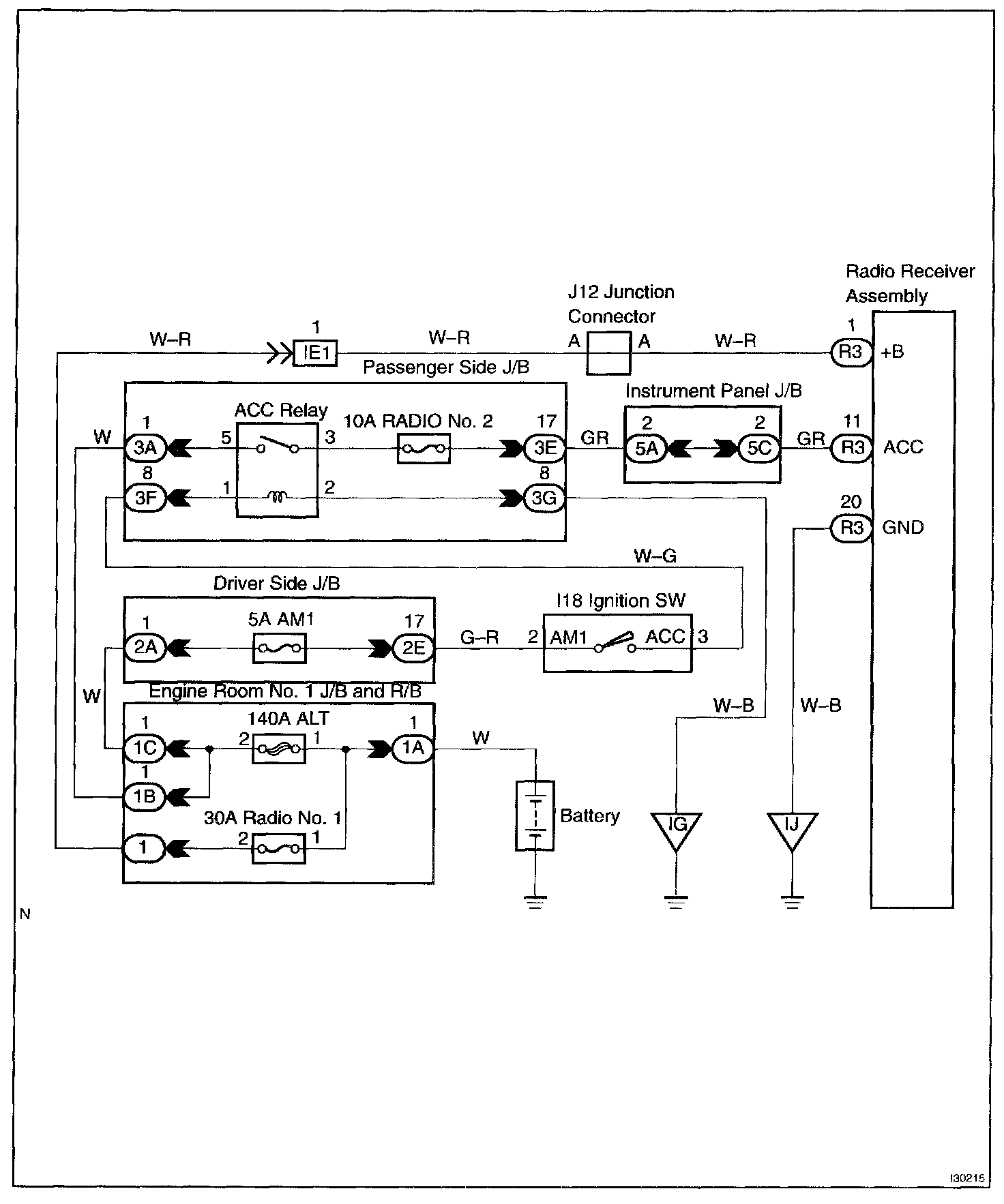

Wiring Diagram:

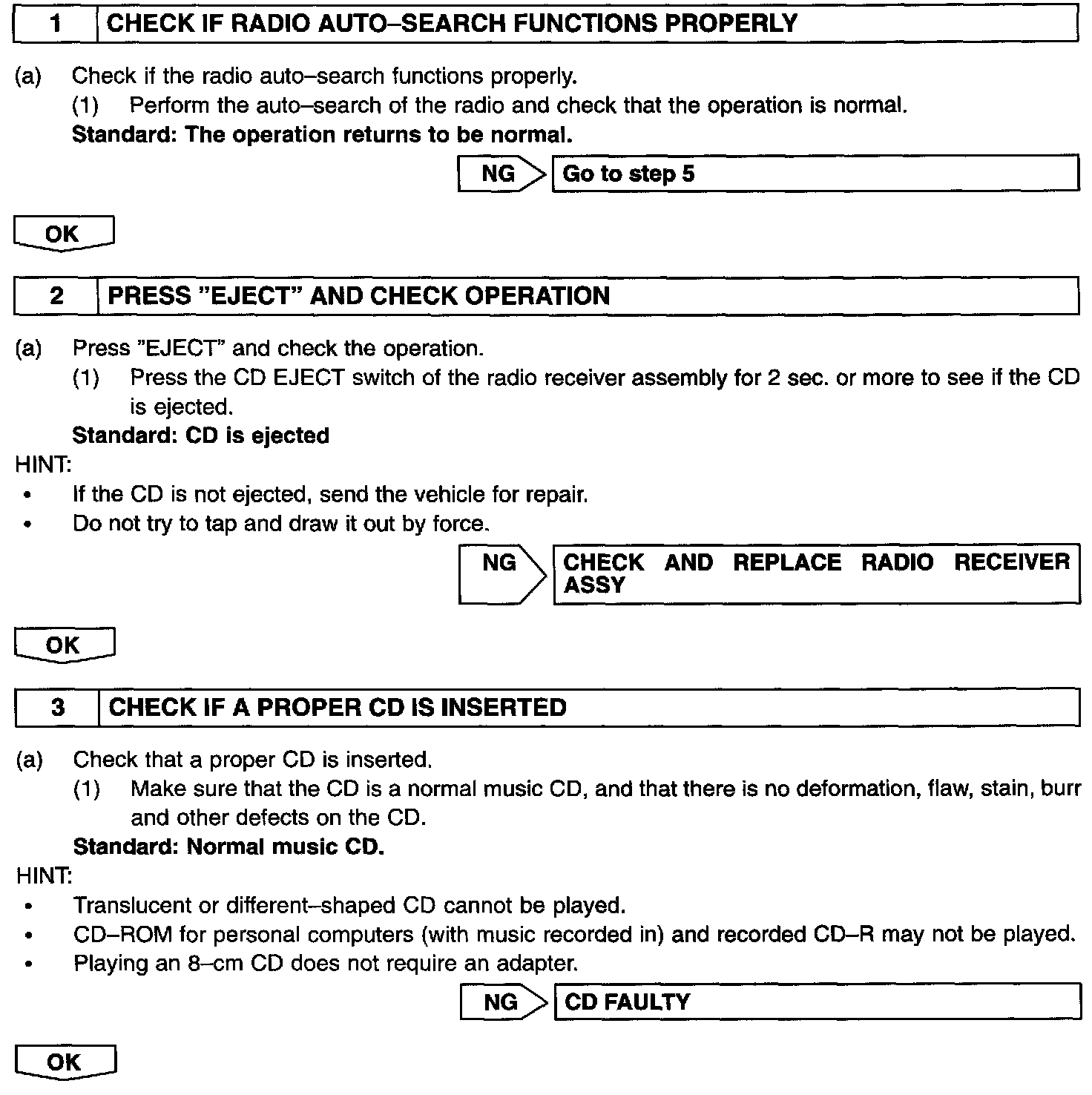

Step 1 - 3:

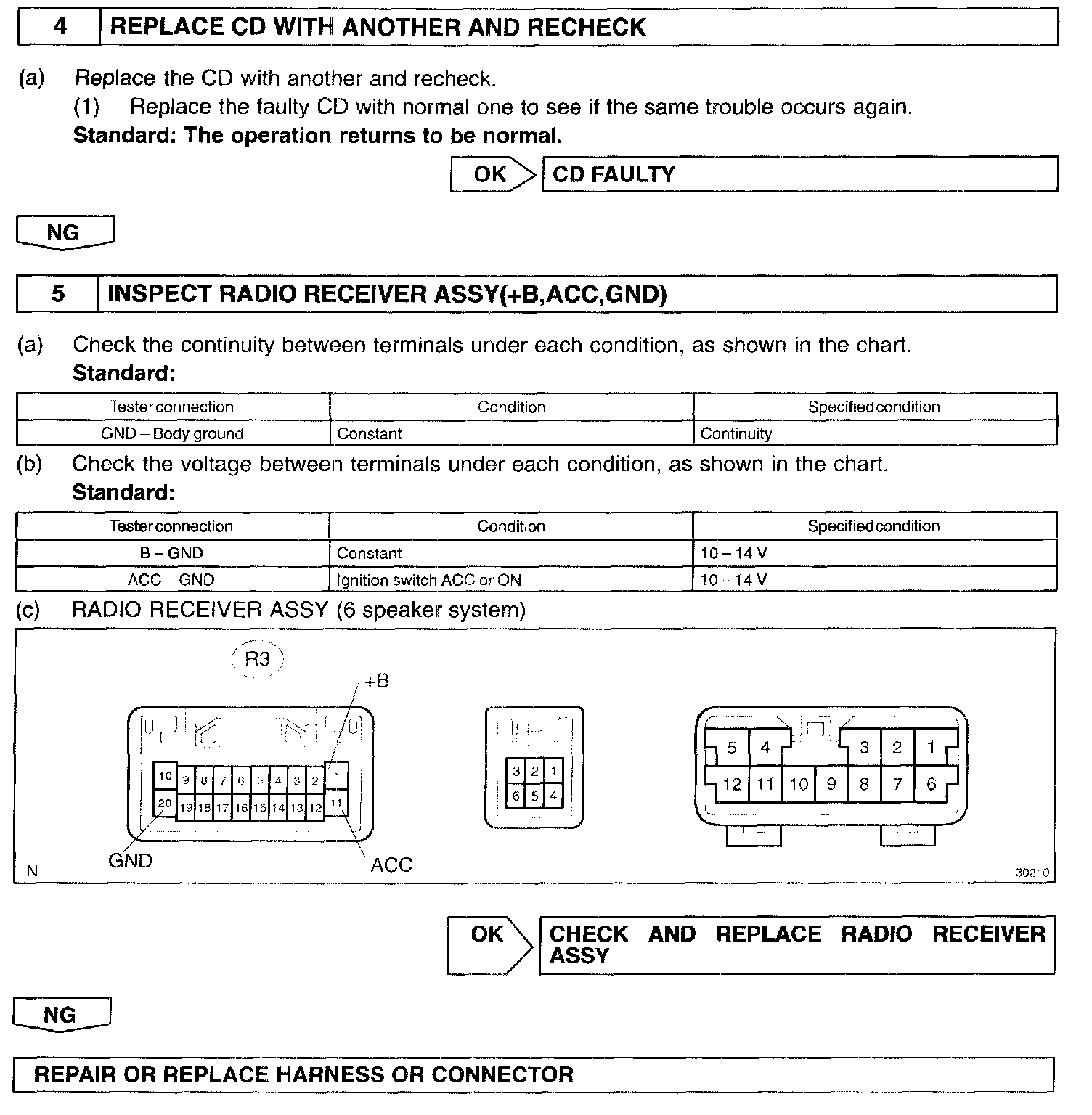

Step 4 - 5:

INSPECTION PROCEDURE
