Audio Door Does Not Operate

Audio Door Does Not Operate

Wiring Diagram:

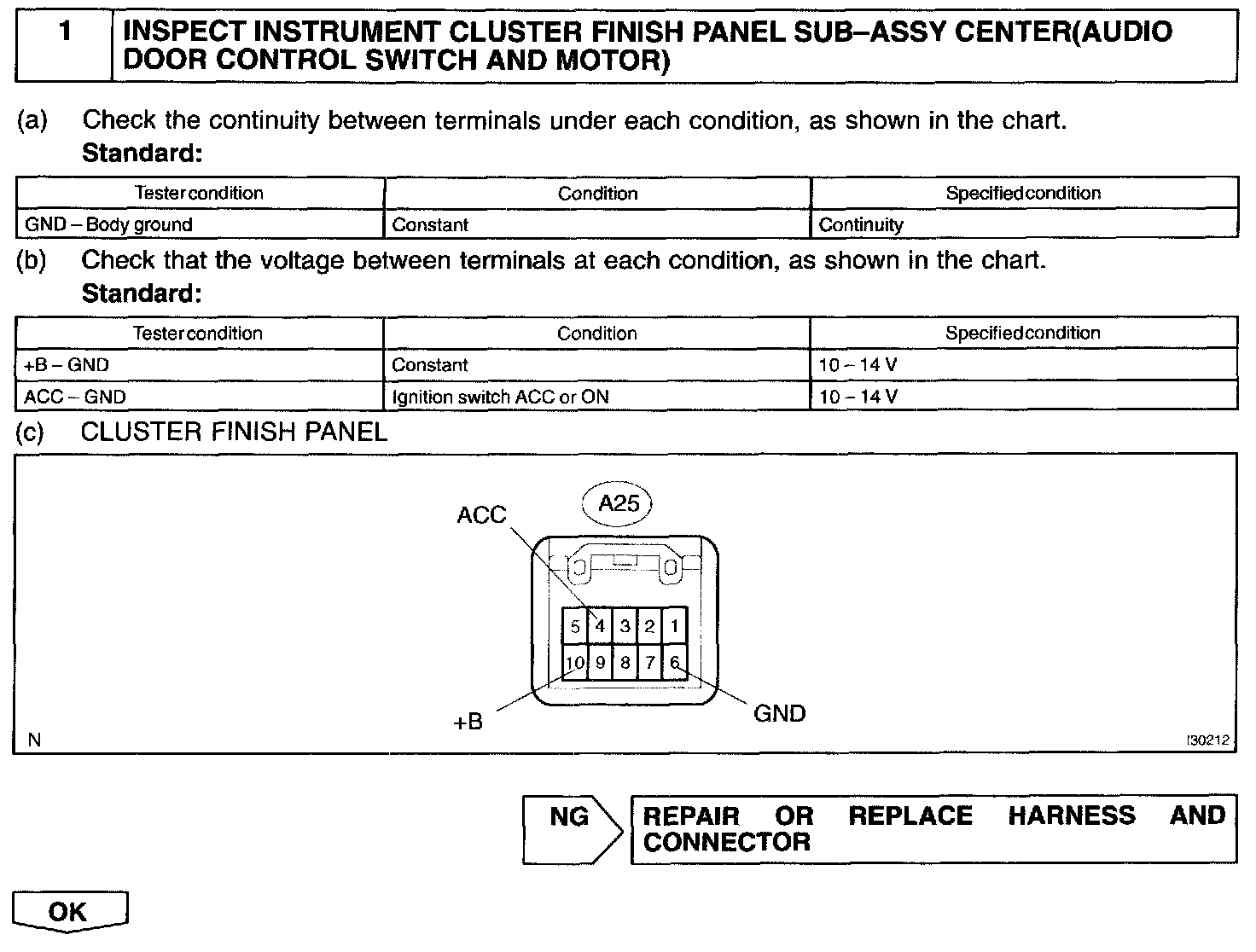

Step 1:

Step 2:

INSPECTION PROCEDURE
