Although "Power" Is Pressed, No Sound Is Heard
>>
Nothing Is Shown on Display
Nothing Is Shown on Display
Although "Power" Is Pressed, No Sound Is Heard (Nothing Is Shown On Display)
Wiring Diagram:

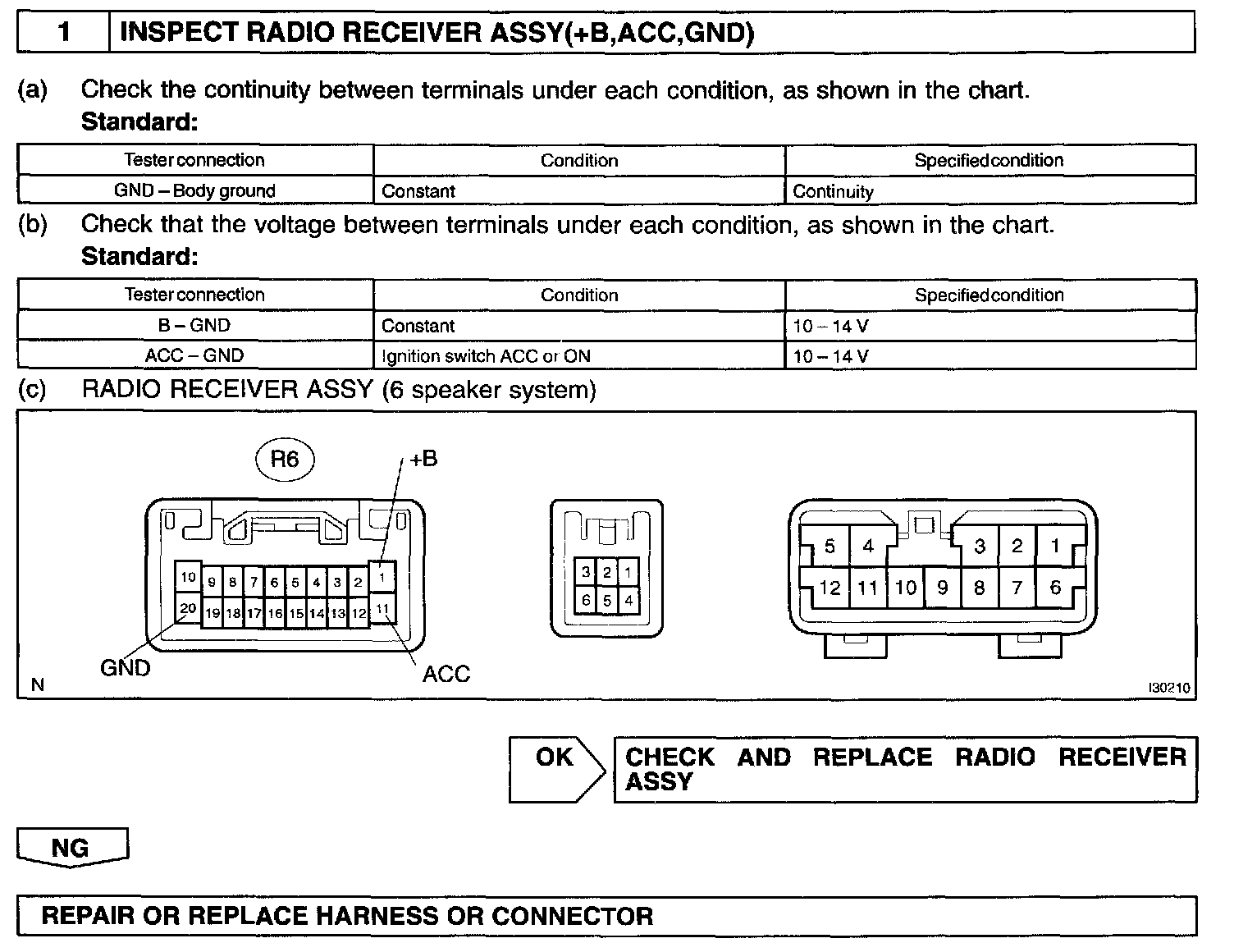

Step 1:
INSPECTION PROCEDURE
