Display and Switch Operation is Normal

Although "Power" Is Pressed, No Sound Is Heard (Display and Switch Operation Is Normal)

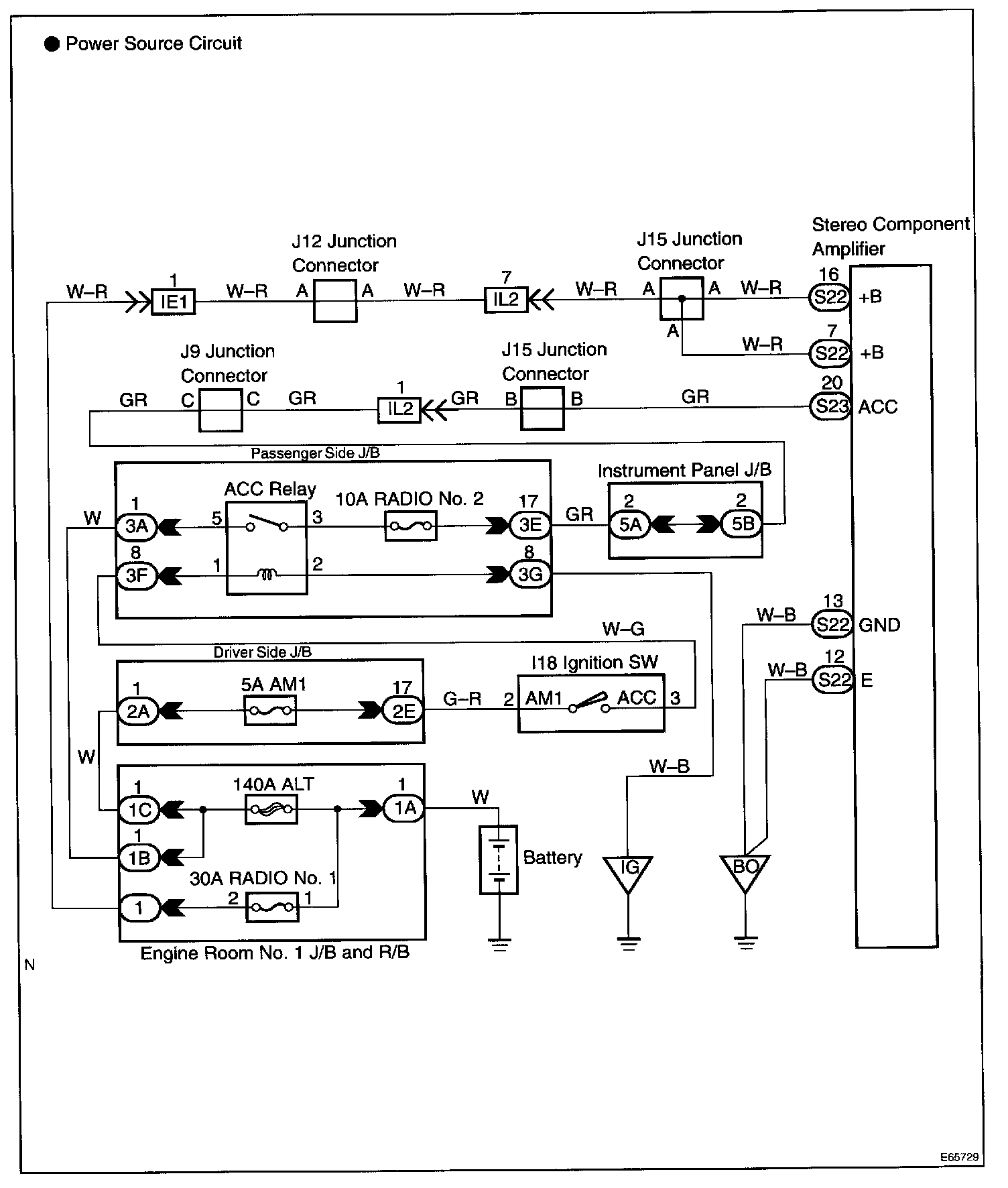

Wiring Diagram Part 1:




Wiring Diagram Part 2:

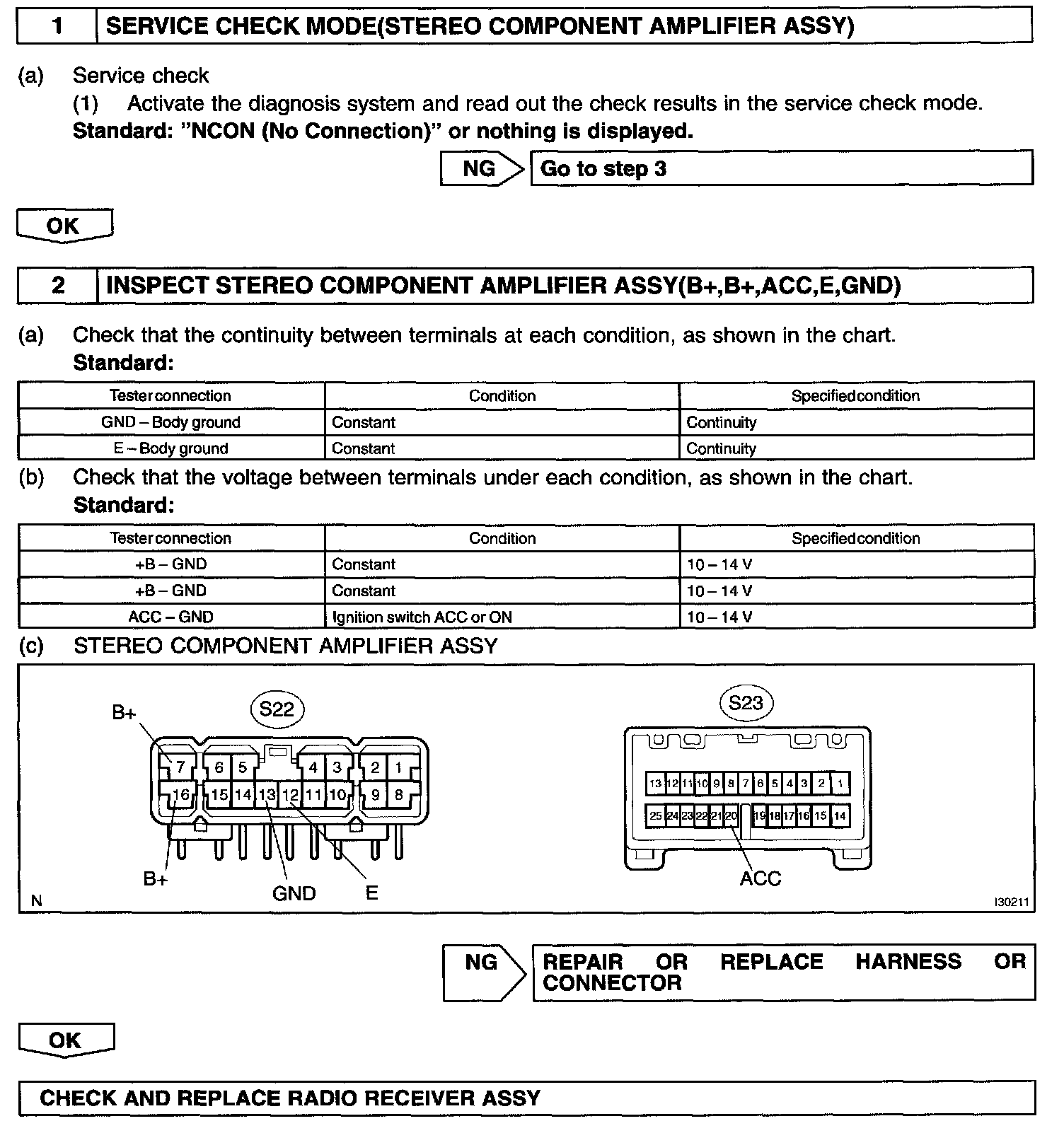

Step 1 - 2:

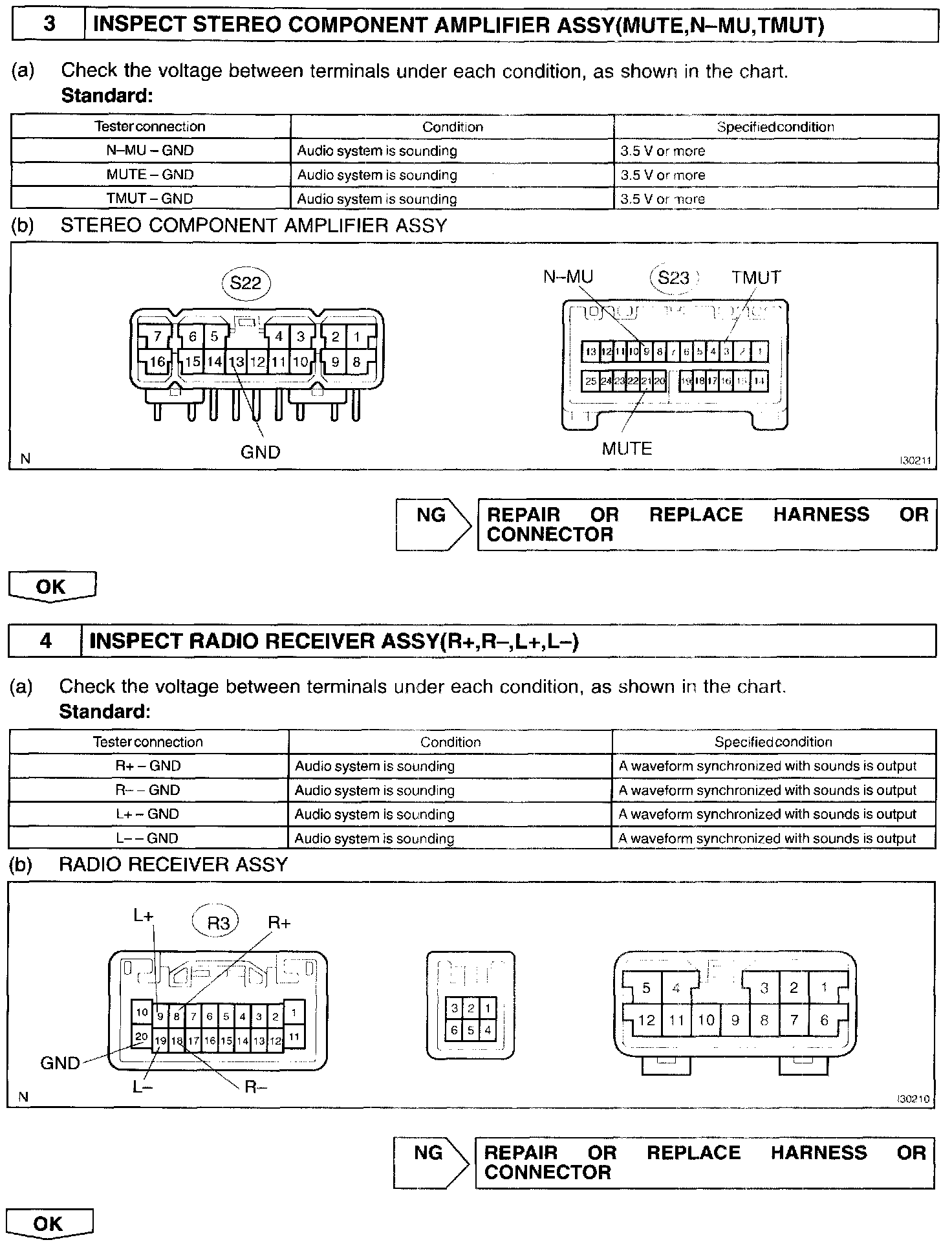

Step 3 - 4:

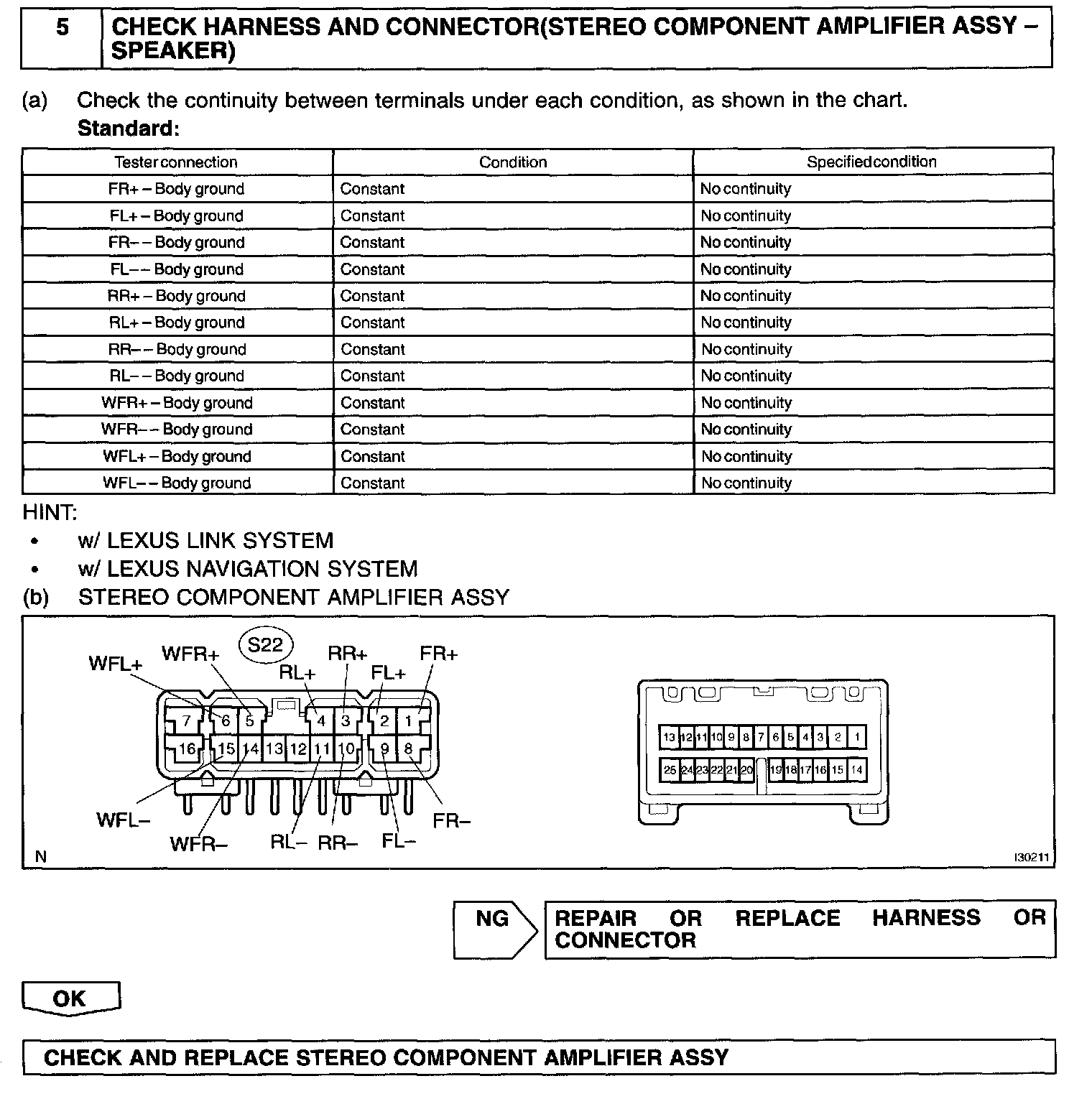

Step 5:




INSPECTION PROCEDURE
