Pinout Values and Diagnostic Parameters

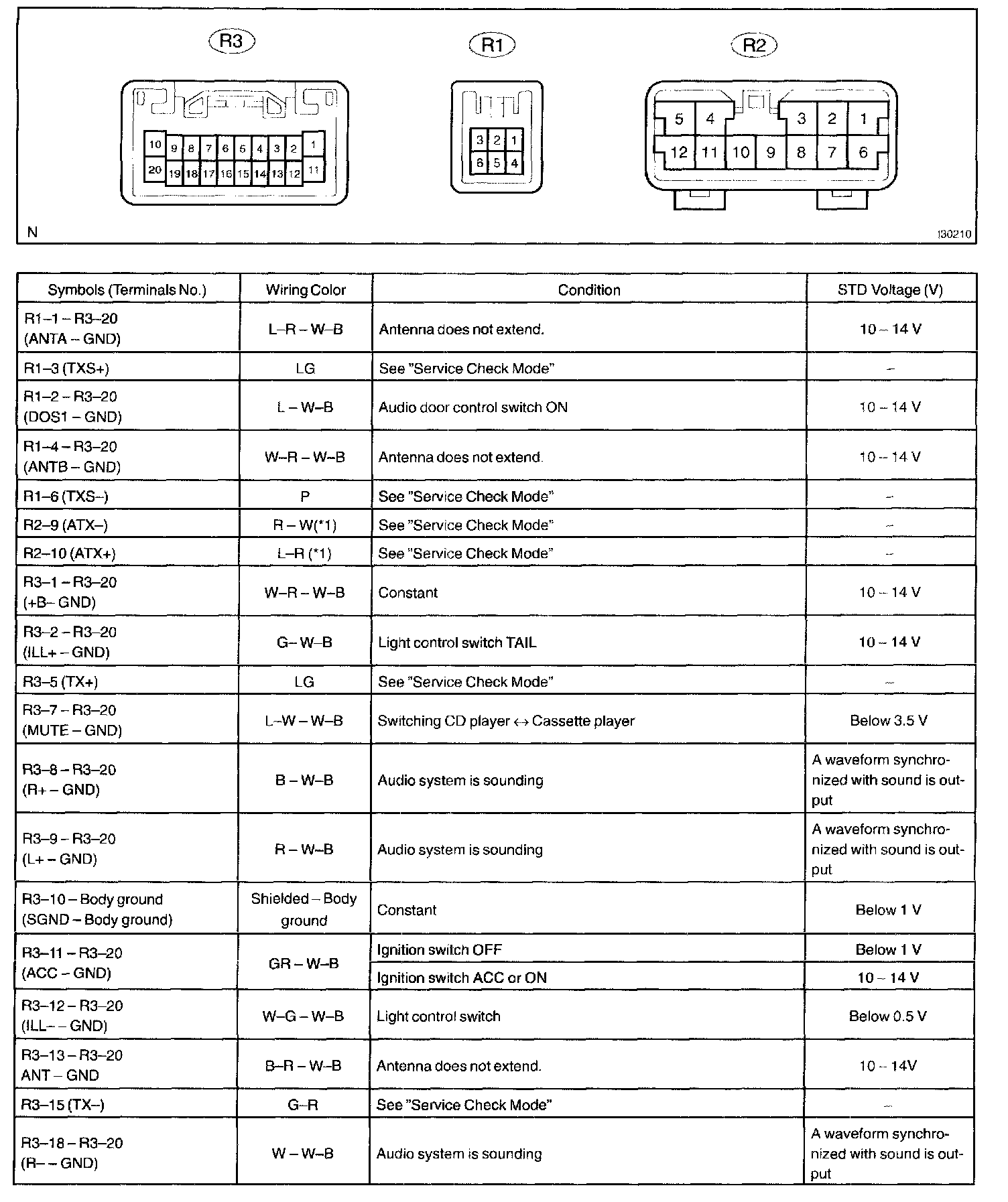

Terminals Of ECU - Radio Receiver Assy Part 1:

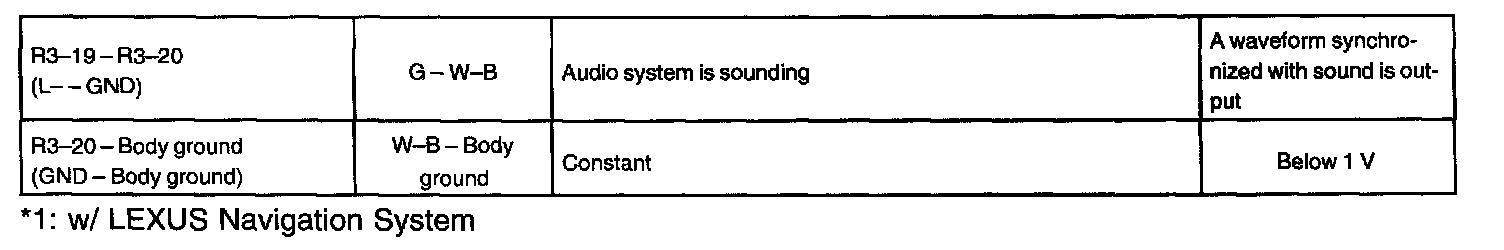

Terminals Of ECU - Radio Receiver Assy Part 2:

Terminals Of ECU - Stereo Component Amplifier Assy Part 1:

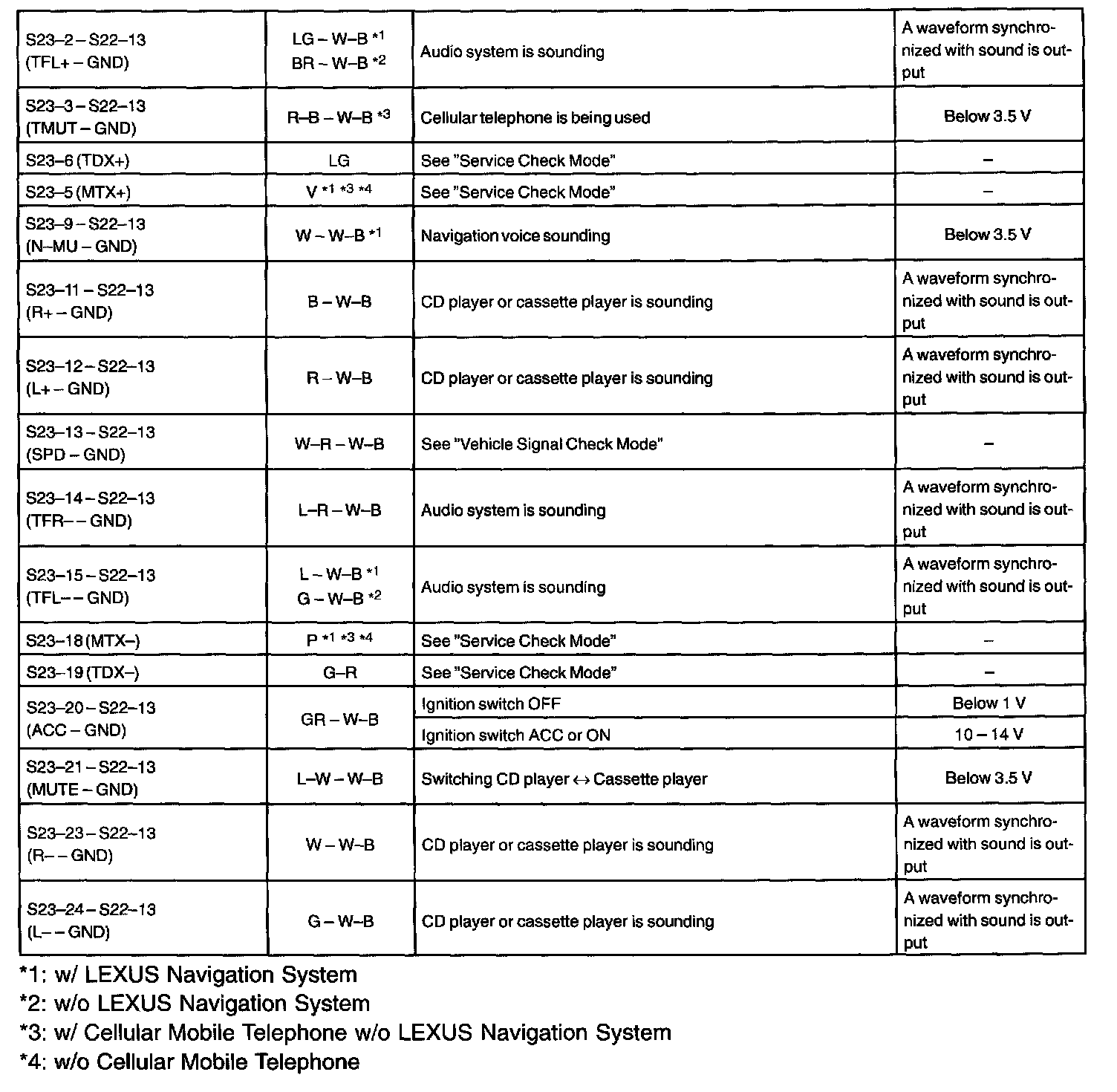

Terminals Of ECU - Stereo Component Amplifier Assy Part 2:

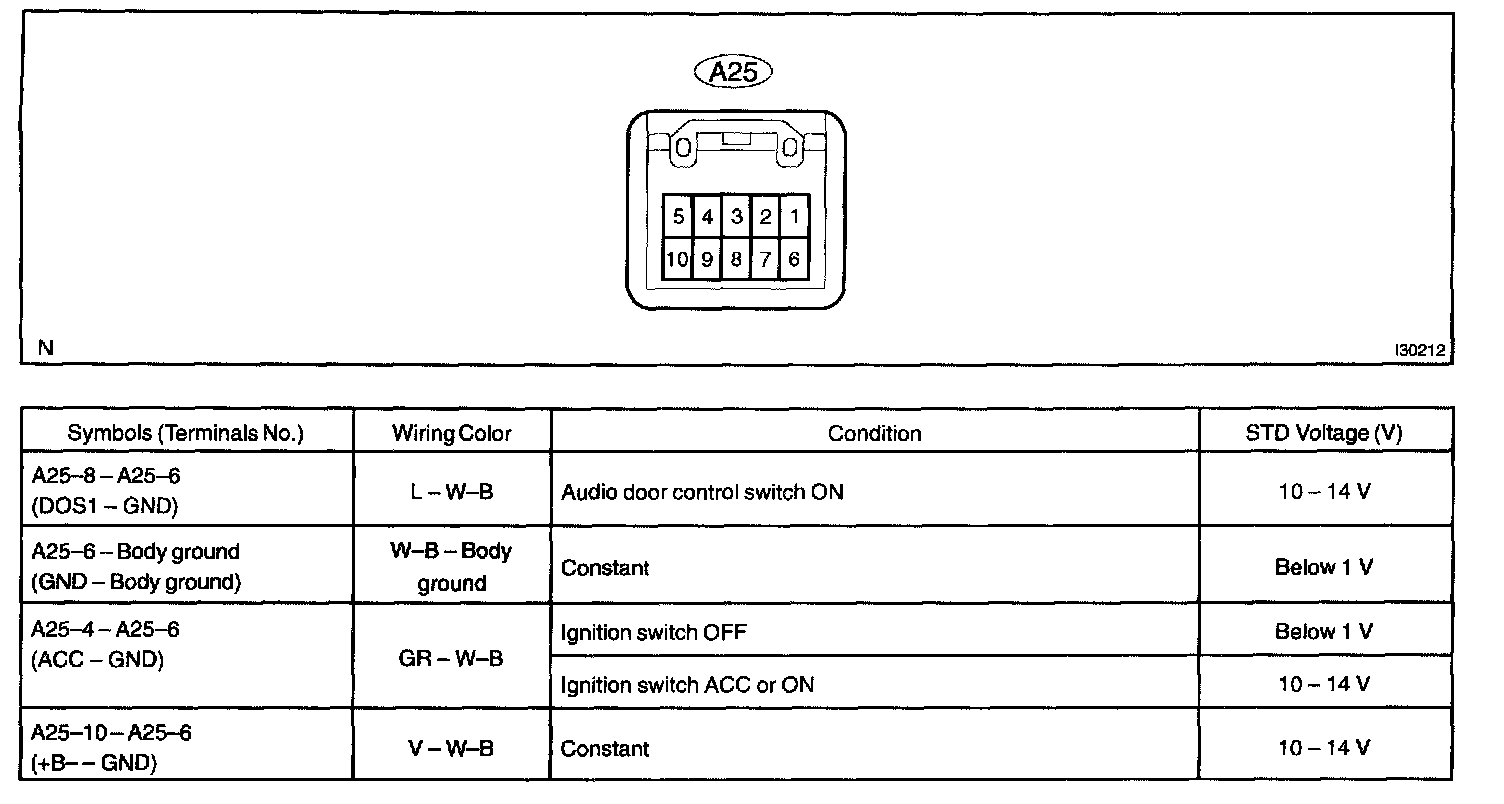

Terminals Of ECU - Audio Door Control Switch:

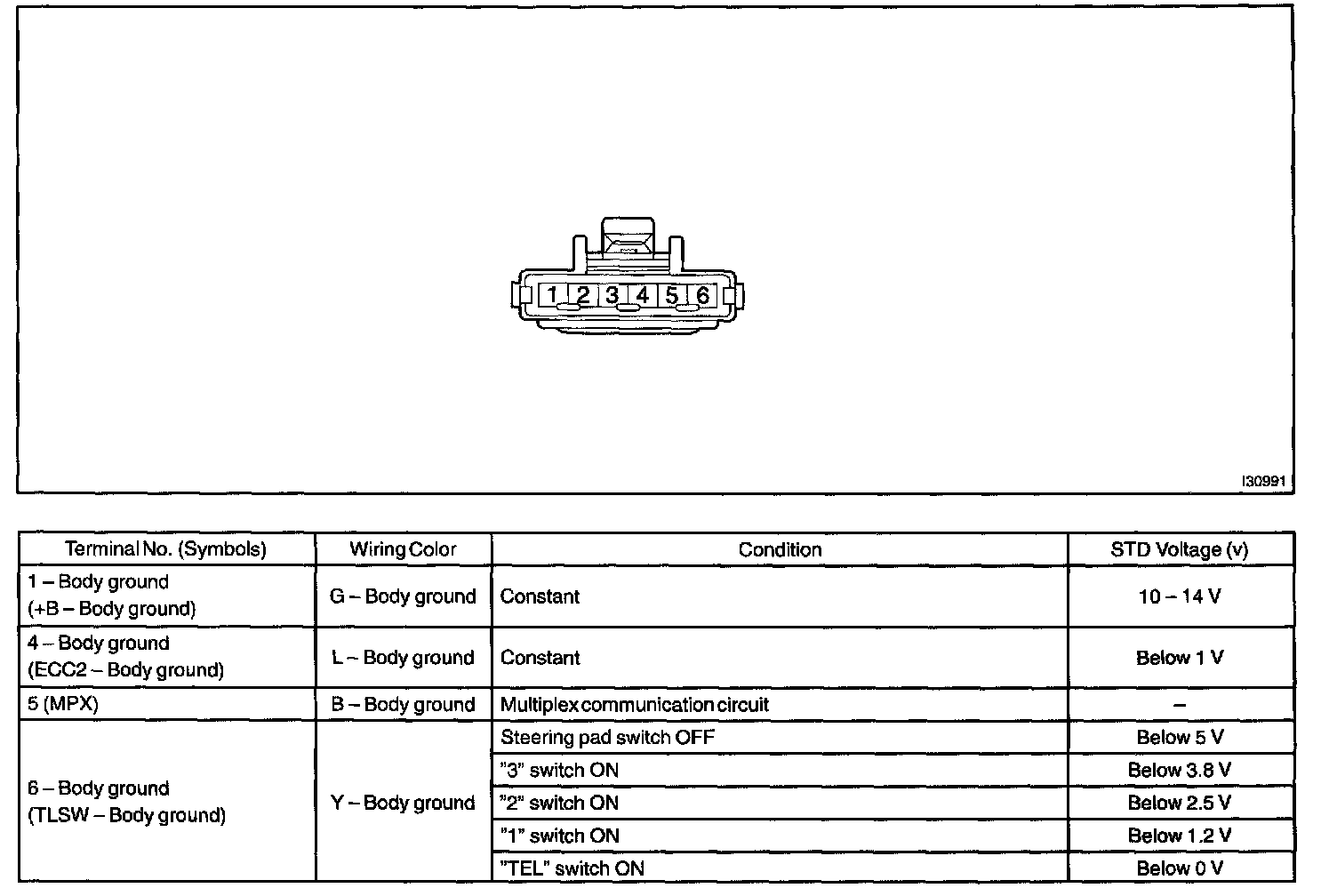

Terminals Of ECU - Steering Pad Switch Modulator:
