STEREO COMPONENT SPEAKER ASSY

REPLACEMENT

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. REMOVE DOOR INSIDE HANDLE BEZEL NO.2 LH
3. REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH

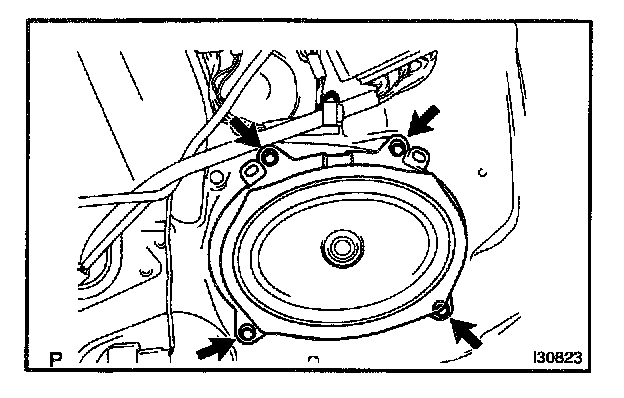

5. REMOVE STEREO COMPONENT SPEAKER ASSY
a. Disconnect the connector.
b. Remove the 4 screws and stereo component speaker assy.
