REPLACEMENT

REAR SPEAKER ASSY
1. REMOVE REAR SEAT CUSHION ASSY
2. REMOVE REAR SEAT HEADREST PLATE COVER
3. REMOVE WIND DEFLECTOR BOARD ASSY
4. REMOVE REAR SEAT HEADREST PLATE
5. REMOVE REAR SEAT HEADREST ASSY
6. REMOVE REAR SEAT BACK ASSY
7. REMOVE DOOR SCUFF PLATE ASSY LH
8. REMOVE QUARTER TRIM PANEL ASSY FRONT LH




9. REMOVE REAR SPEAKER ASSY
a. Disconnect the connector.
b. Remove the clamp.
c. Remove the 3 screws and rear speaker assy.

10. INSTALL REAR SEAT BACK ASSY


REAR SPEAKER ASSY NO.2
1. REMOVE REAR SEAT CUSHION ASSY
2. REMOVE REAR SEAT HEADREST PLATE COVER
3. REMOVE WIND DEFLECTOR BOARD ASSY
4. REMOVE REAR SEAT HEADREST PLATE
5. REMOVE REAR SEAT HEADREST ASSY
6. REMOVE REAR SEAT BACK ASSY




7. REMOVE REAR SPEAKER ASSY NO.2
a. Disconnect the connector.

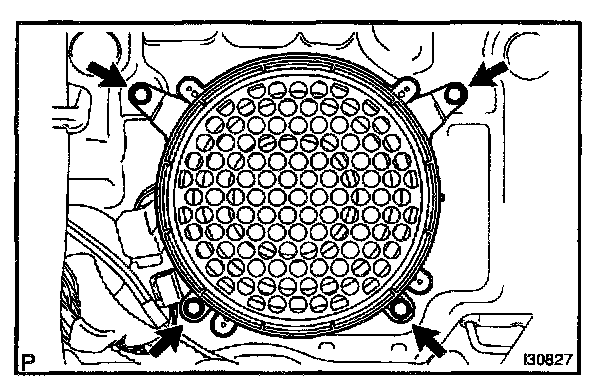

b. Remove the 4 screws and rear speaker assy No.2.

8. INSTALL REAR SEAT BACK ASSY
