REPLACEMENT

FRONT NO.1 SPEAKER ASSY

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. REMOVE DOOR INSIDE HANDLE BEZEL NO.2 LH
3. REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH




5. REMOVE FRONT NO.1 SPEAKER ASSY
a. Disconnect the connector.
b. Remove the bolt and front No.1 speaker assy.

FRONT NO.2 SPEAKER ASSY

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. REMOVE DOOR INSIDE HANDLE BEZEL NO.2 LH
3. REMOVE FRONT DOOR WINDOW UPPER BRACKET GARNISH LH
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH

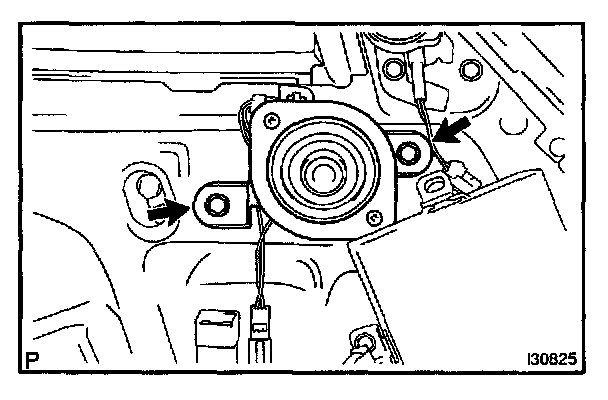

5. REMOVE FRONT NO.2 SPEAKER ASSY
a. Disconnect the 2 connectors.
b. Remove the 2 screws and front No.2 speaker assy.
