When Pressing Any Switches, The Screen Remains Black
When Pressing Any Switches, The Screen Remains Black
Black Screen Appears When "MAP", "Menu" or "Destination" Switch Pressed

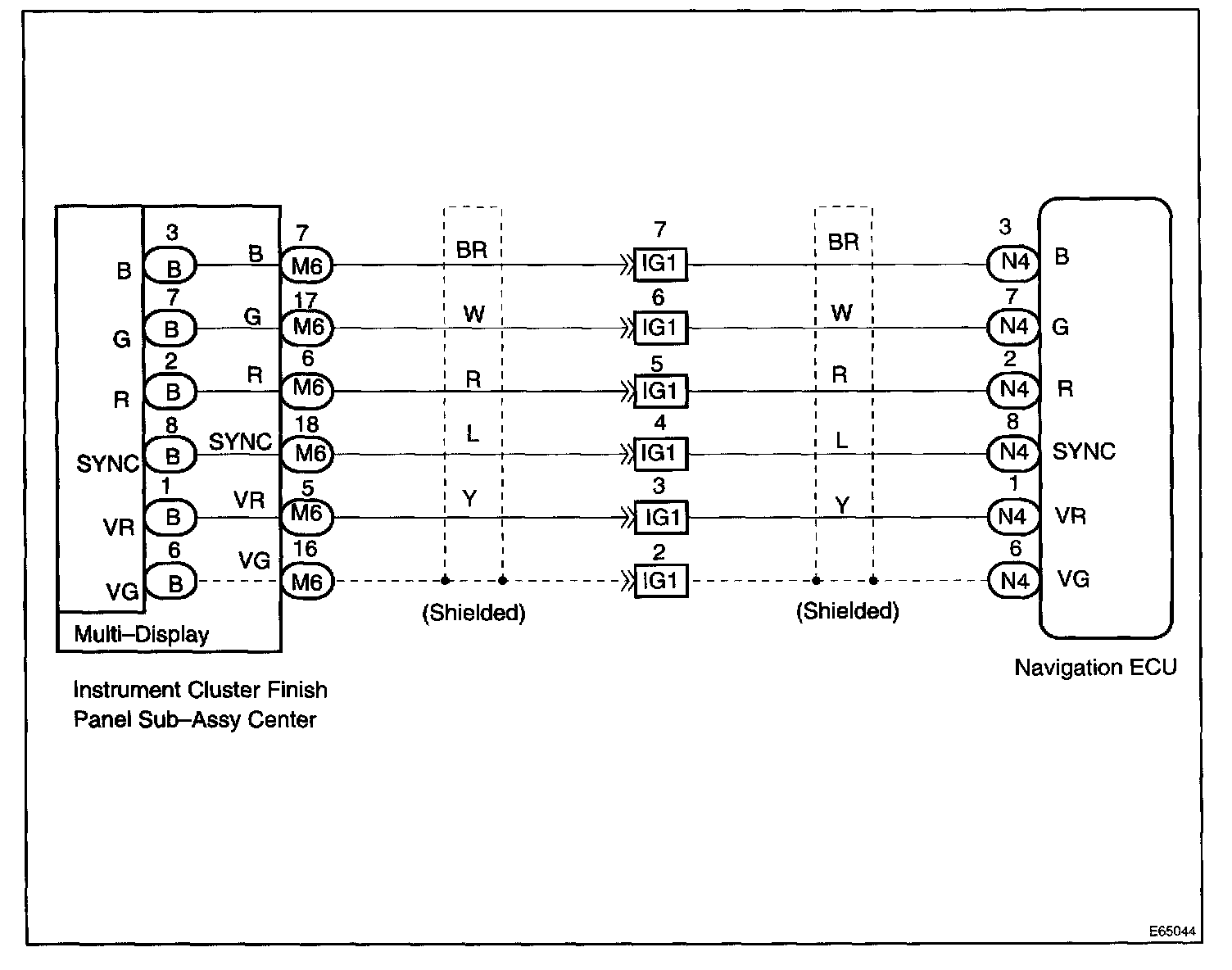

Wiring Diagram:
Step 1 - 2:

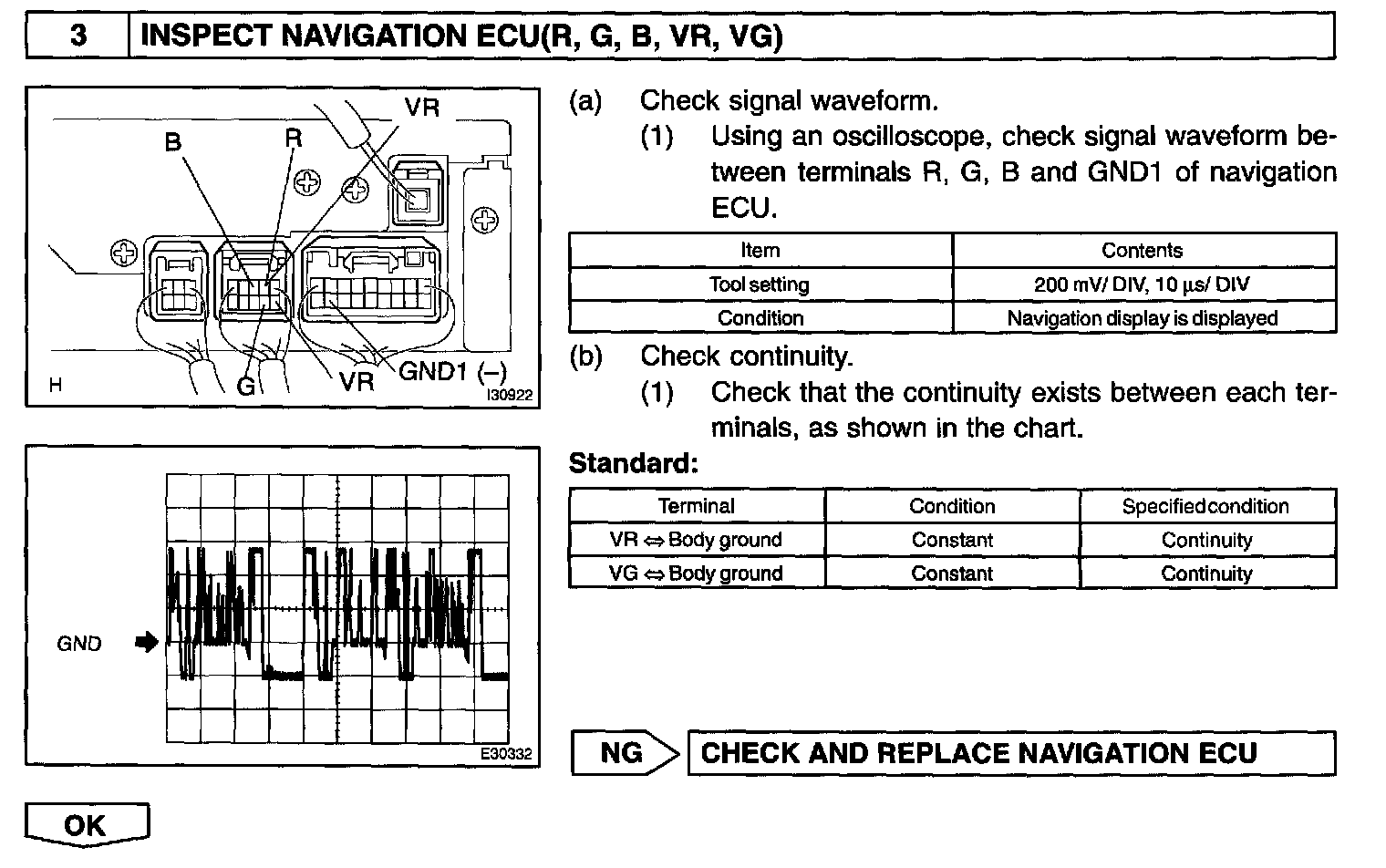

Step 3:

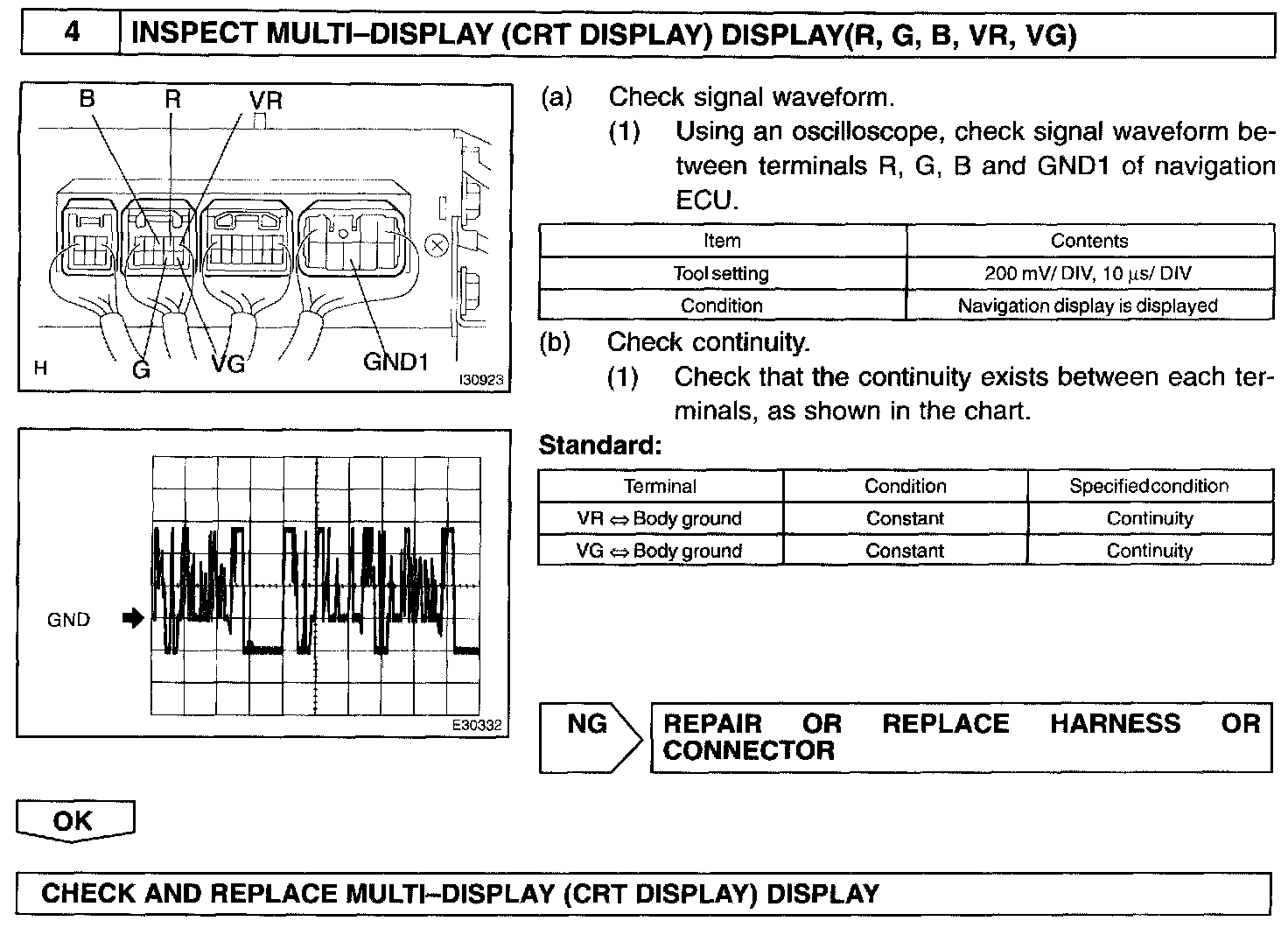

Step 4:
INSPECTION PROCEDURE
