Voice Guidance/Audio Not Heard From Front Squawker/Tweeter

Voice Guidance or Audio Sound Is Not Heard From Front Squawker and Tweeter During Voice Guidance (Audio Mode Is Normal)

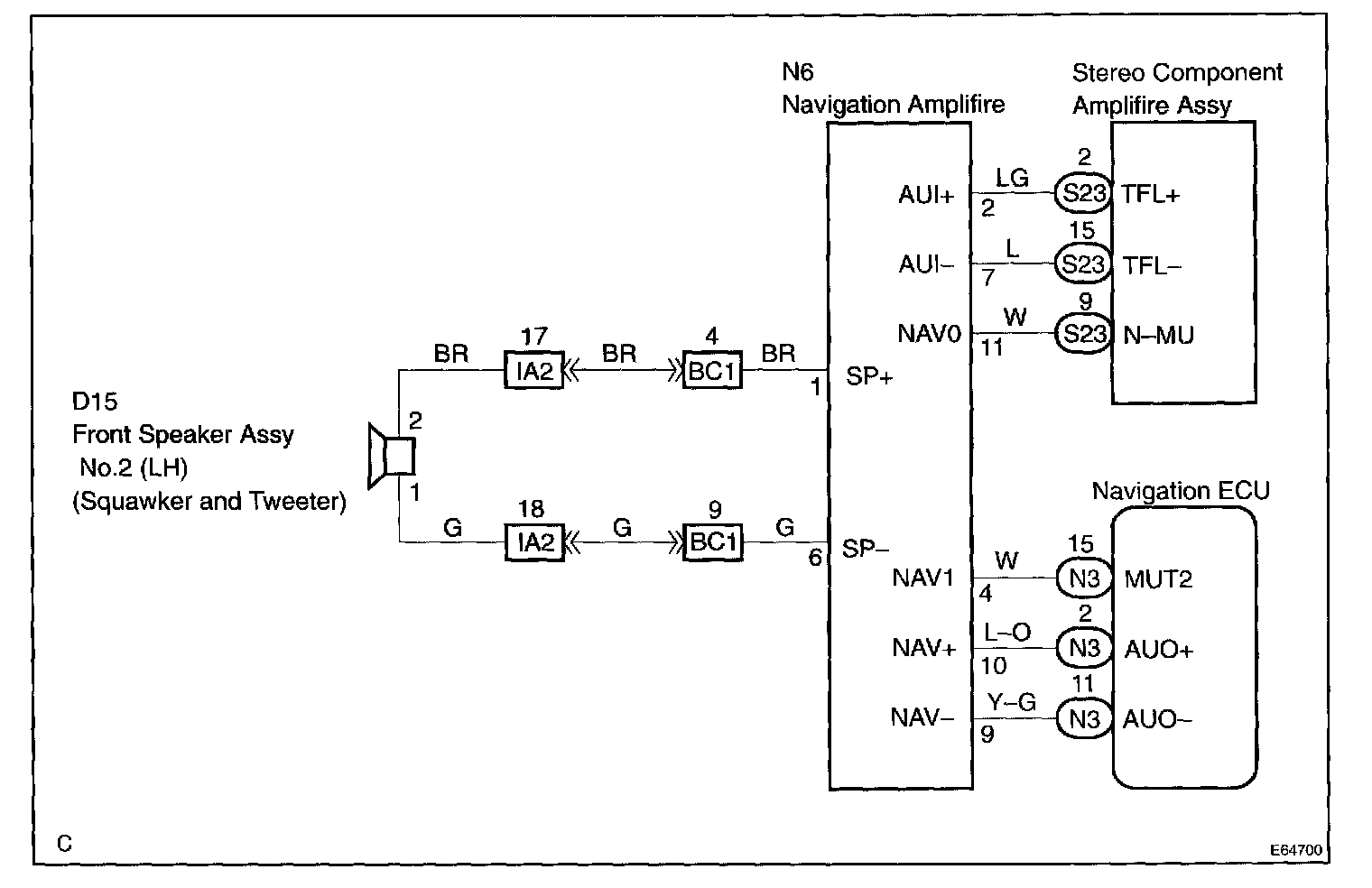

Wiring Diagram:

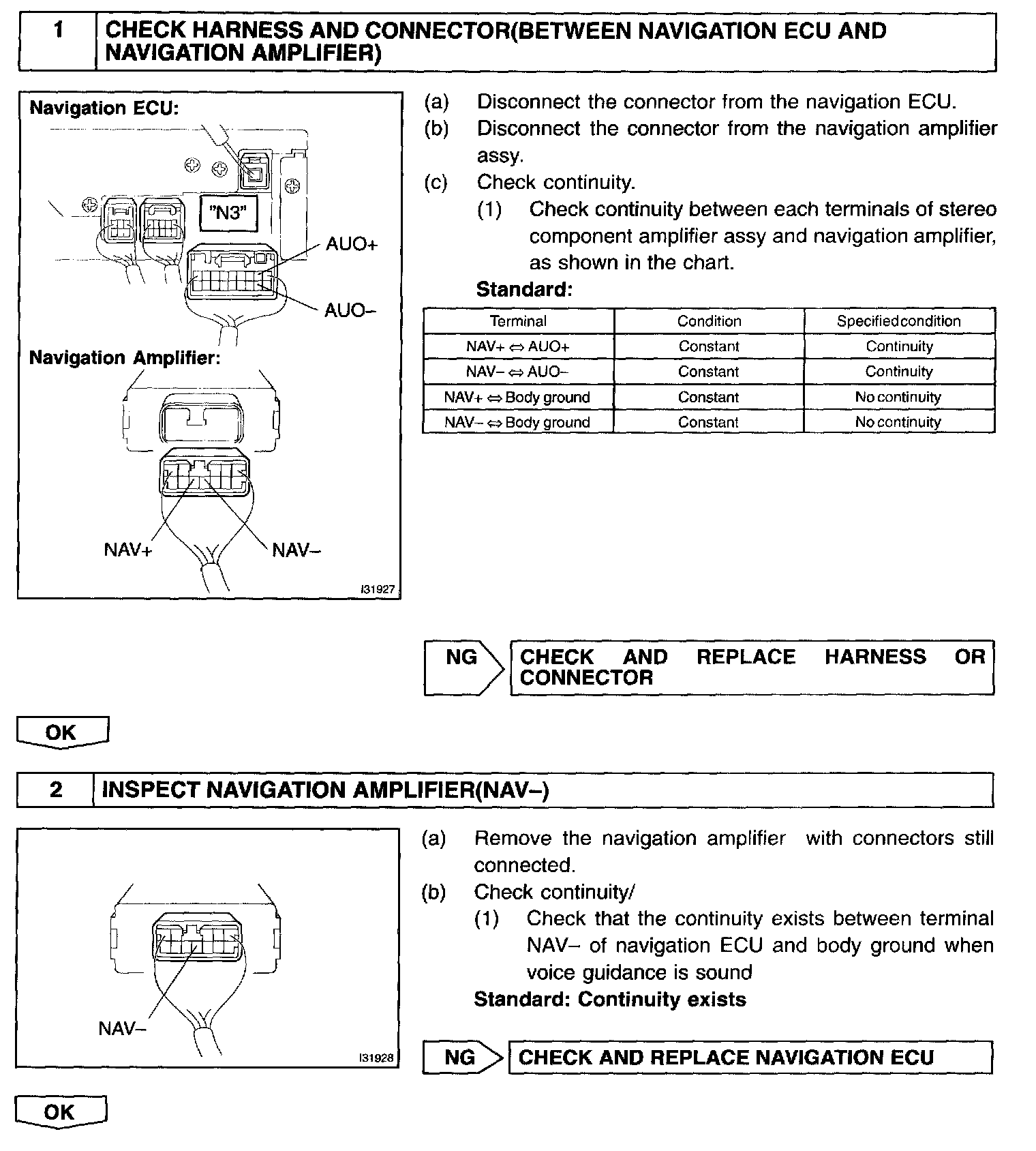

Step 1 - 2:

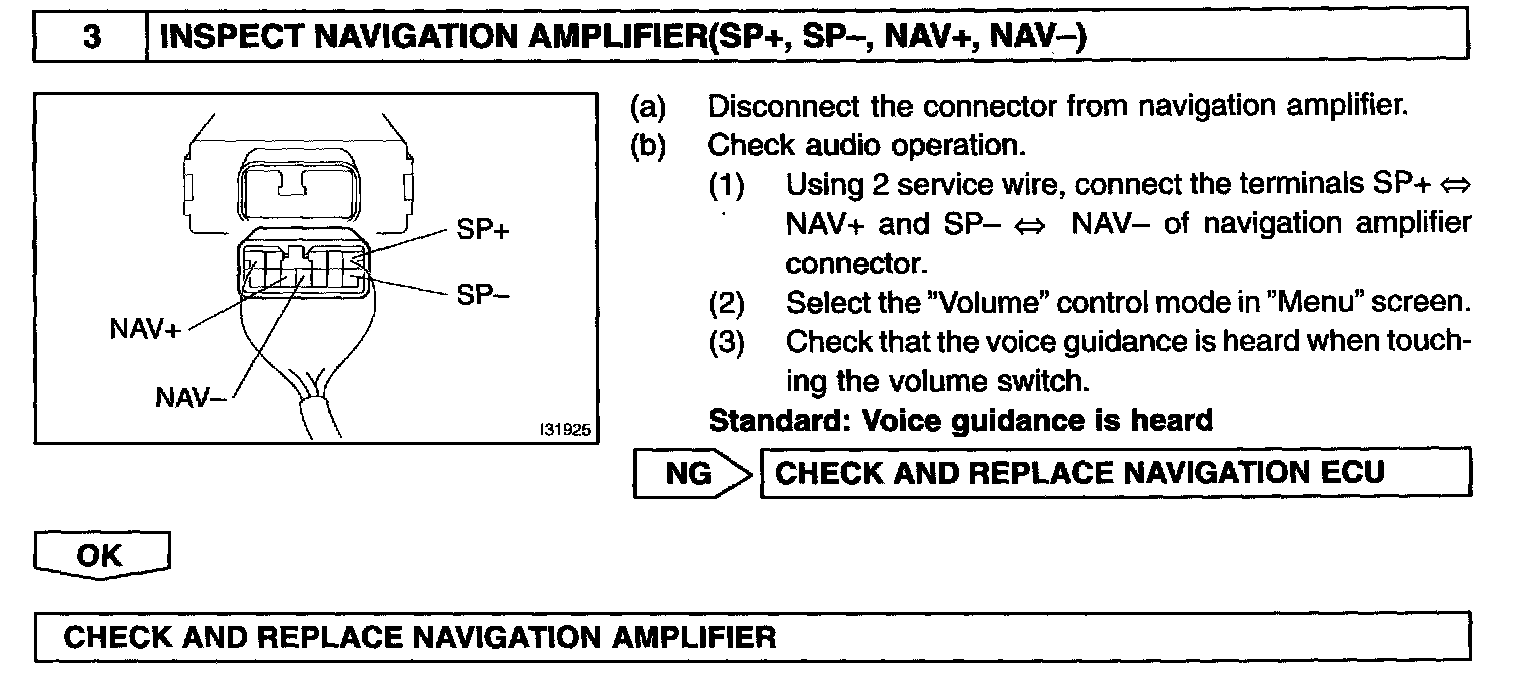

Step 3:




INSPECTION PROCEDURE
