Vehicle Position Mark Rotates Without Control

Vehicle Position Mark Rotates Without Control (MAP Rotates Without Control)

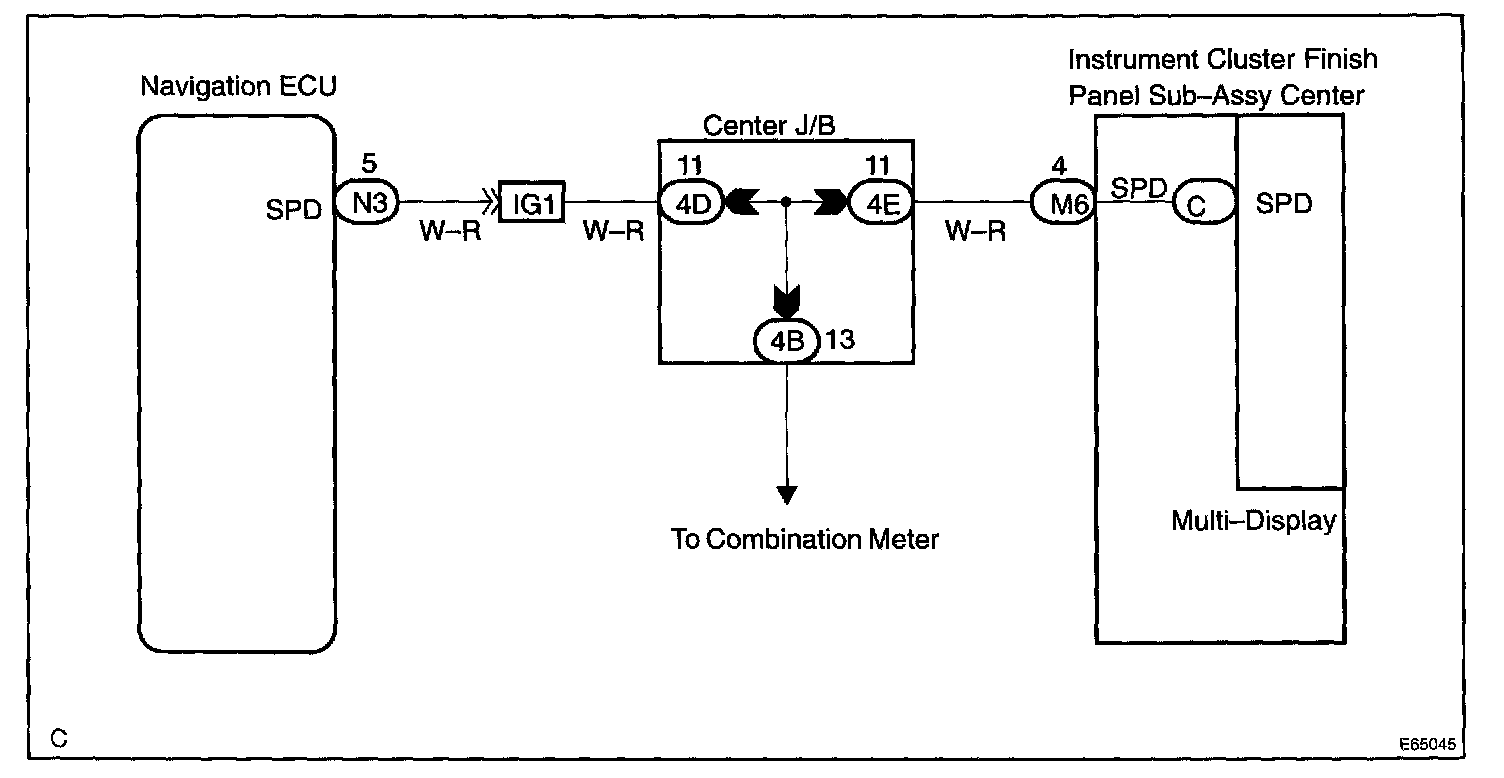

Wiring Diagram:

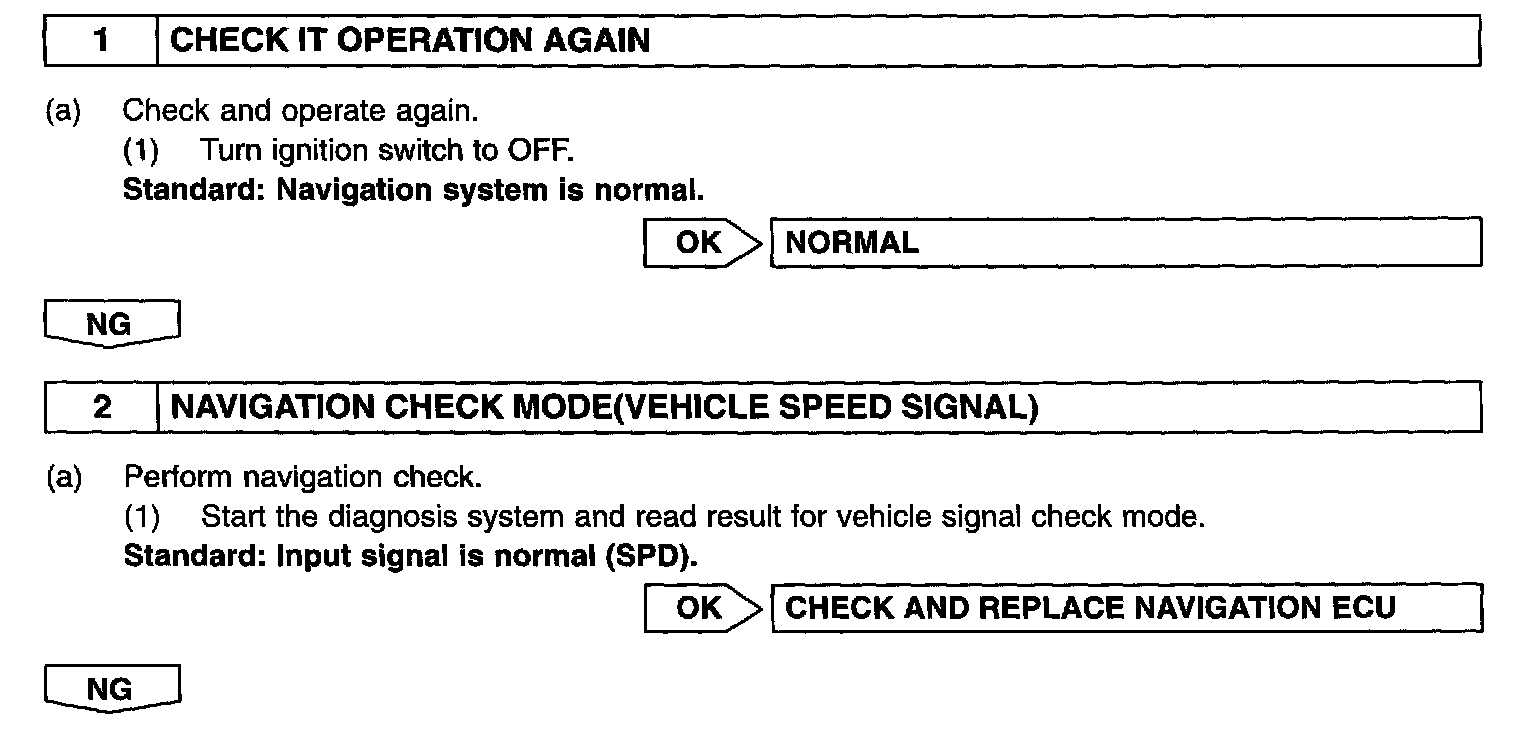

Step 1 - 2:

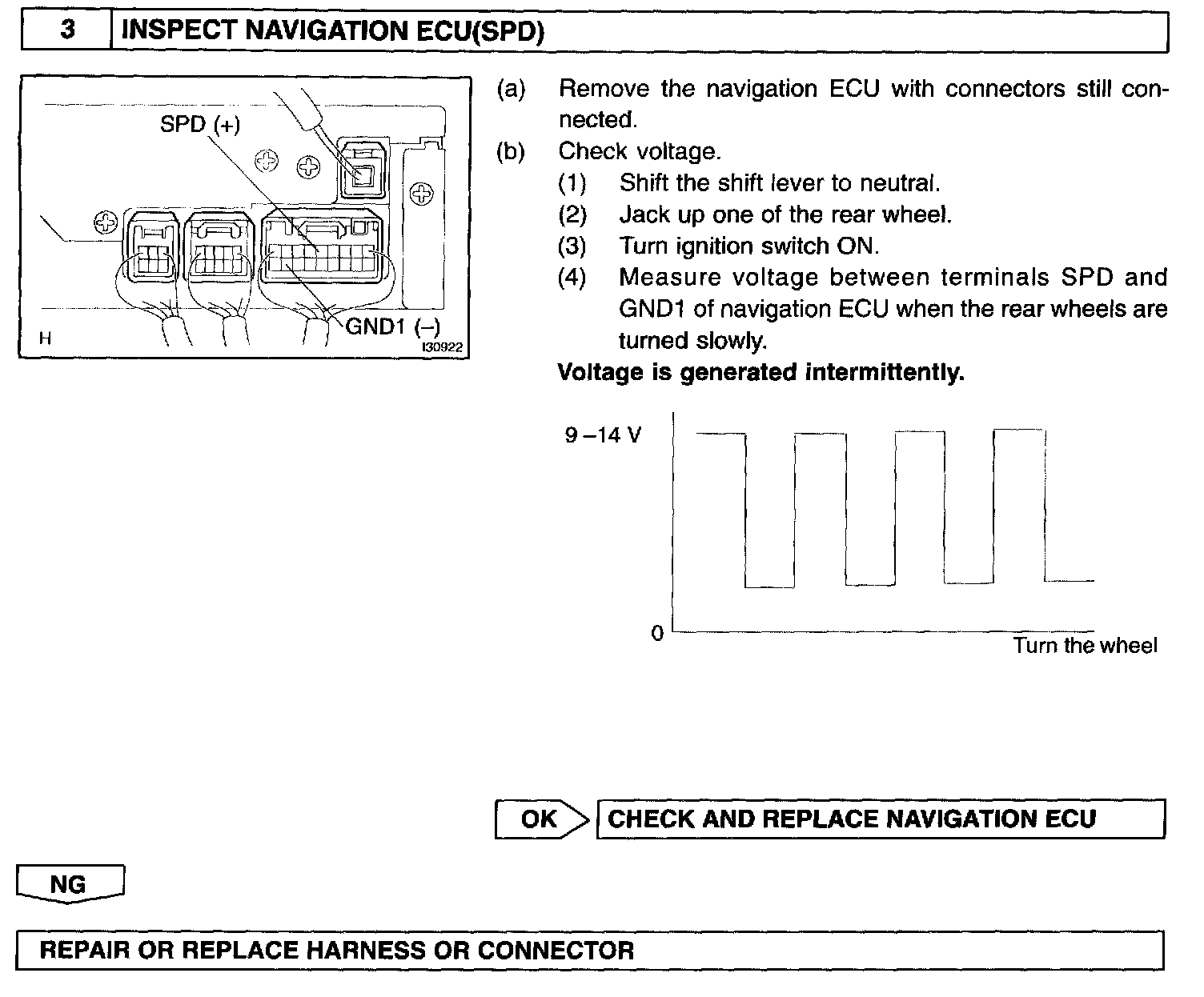

Step 3:




INSPECTION PROCEDURE
