Home >> Lexus >> 2003 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Vehicle Position Is Deviated From Correct Point Badly

Vehicle Position Is Deviated From Correct Point Badly

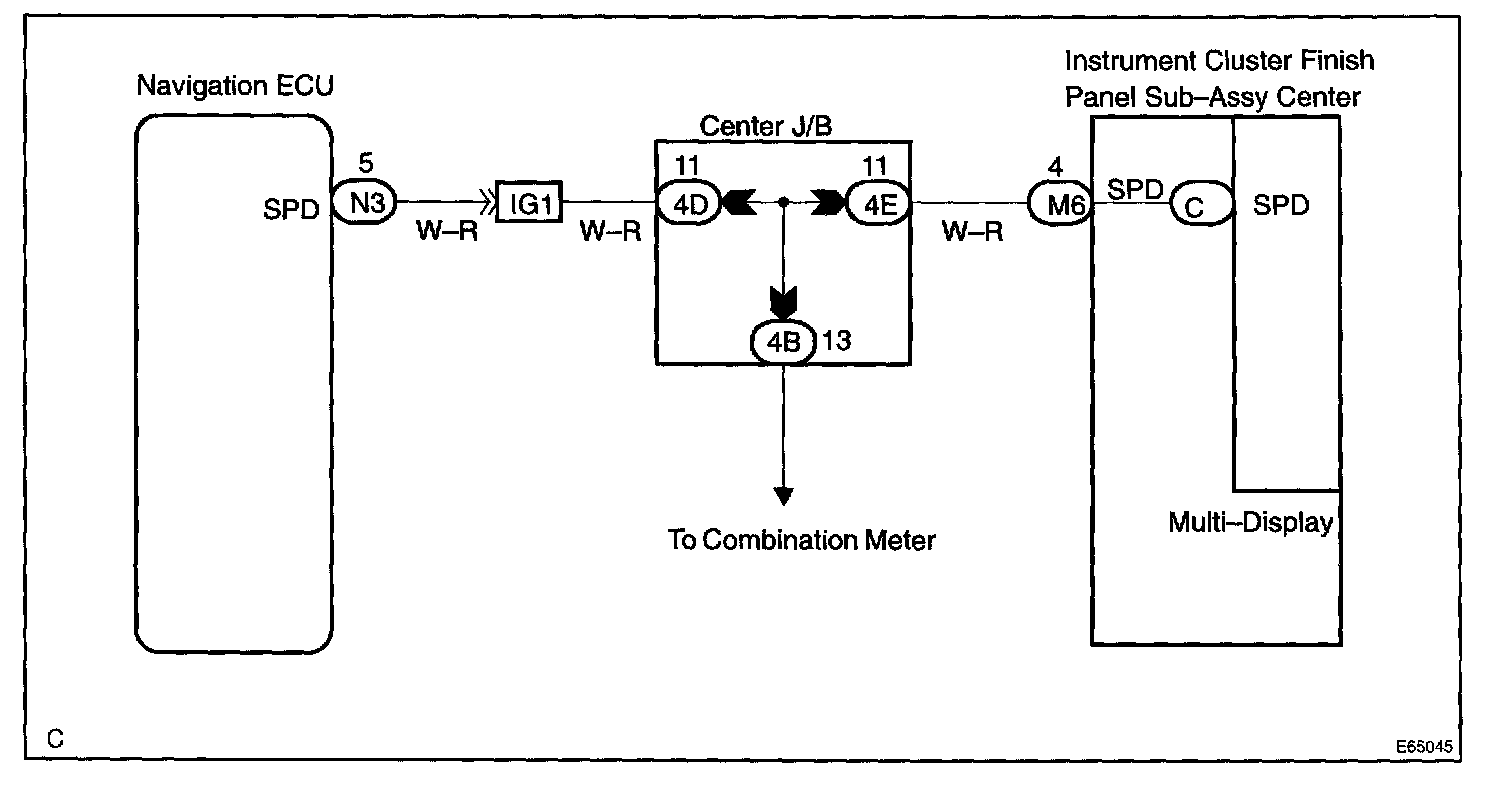

Step 1:

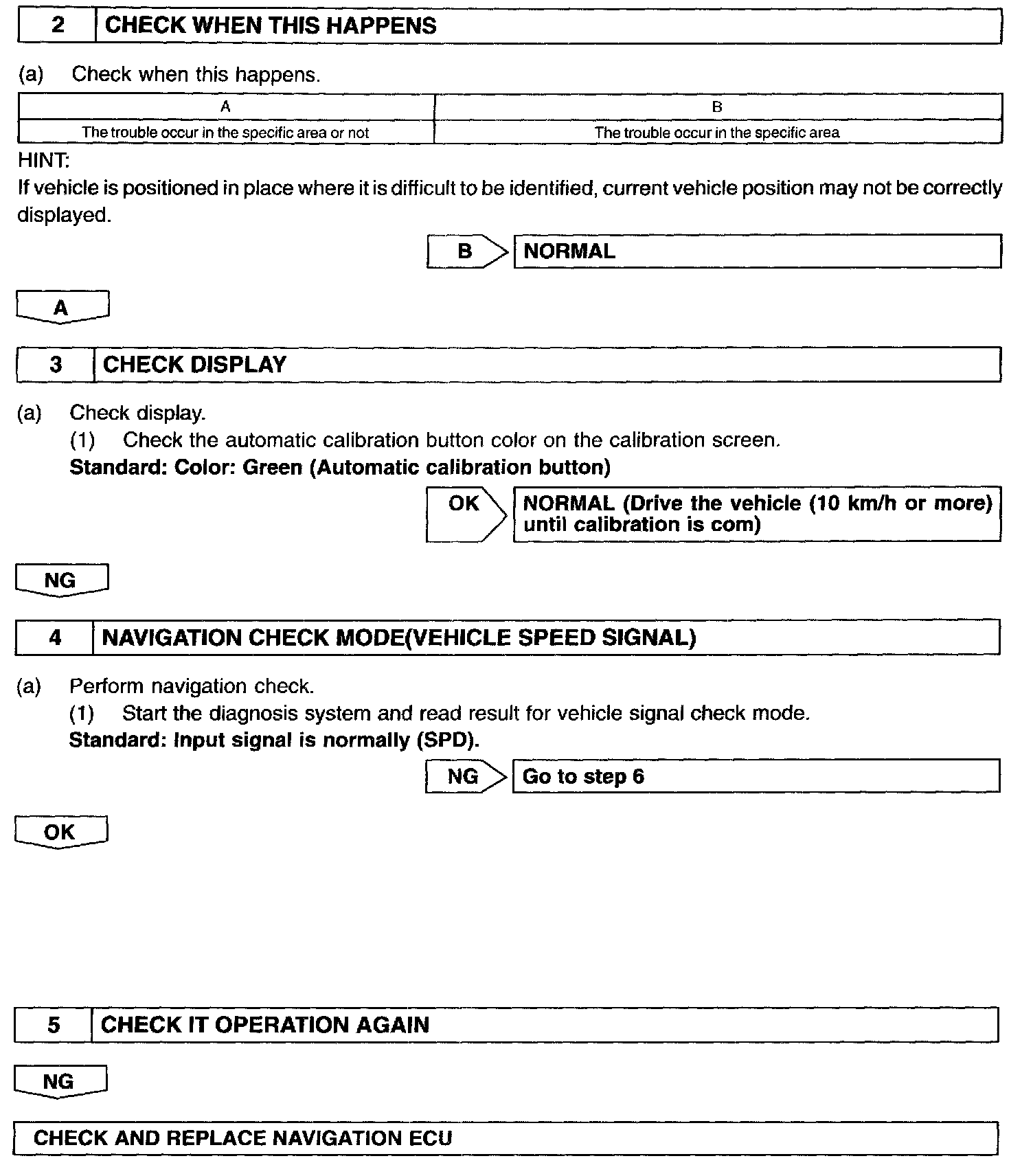

Step 2 - 5:

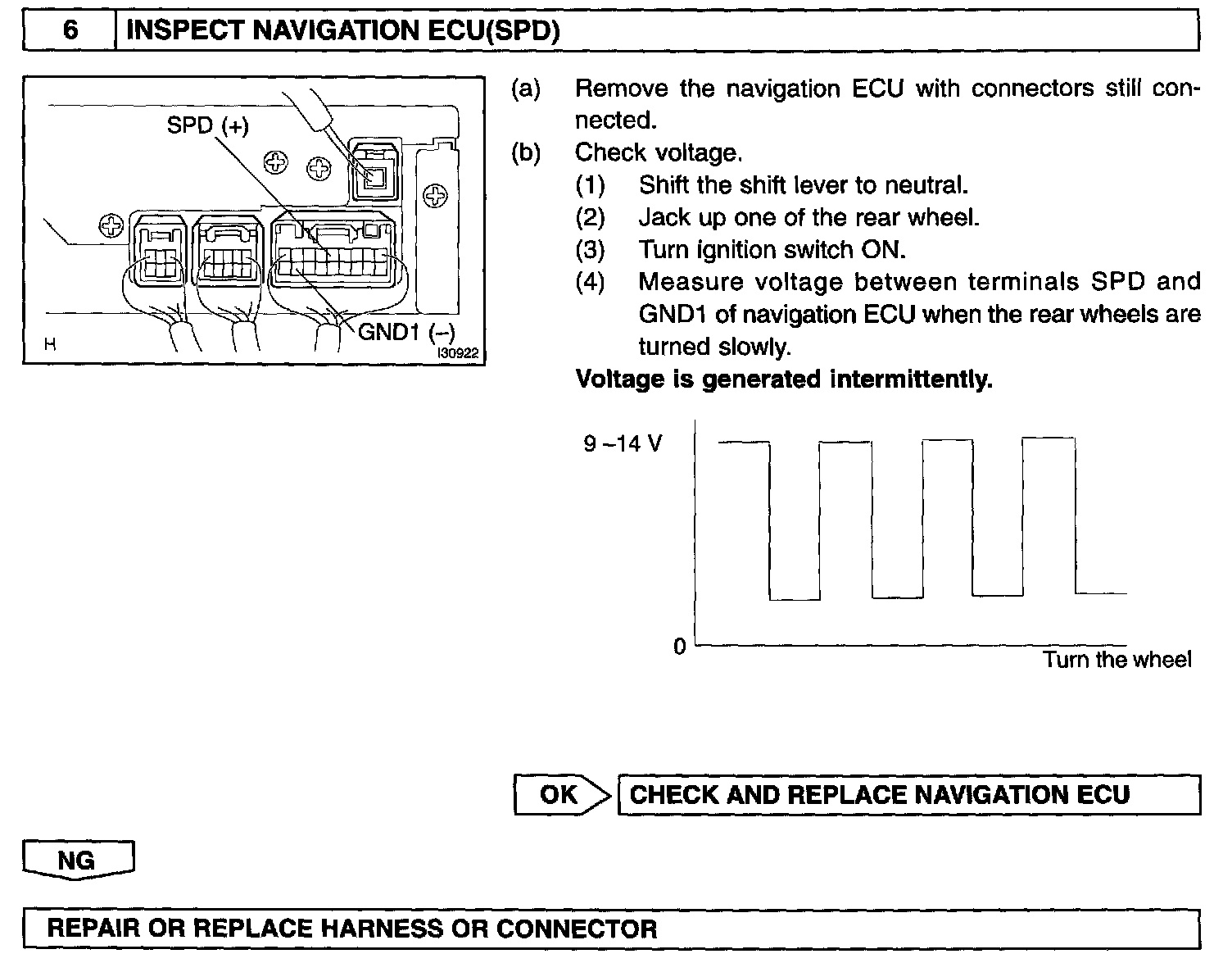

Step 6:




INSPECTION PROCEDURE
