Sound Quality Is Bad Only Navigation Voice
Sound Quality Is Bad Only Navigation Voice
Sound Quality Is Bad Only Navigation Voice (Audio Sound Is Normal)

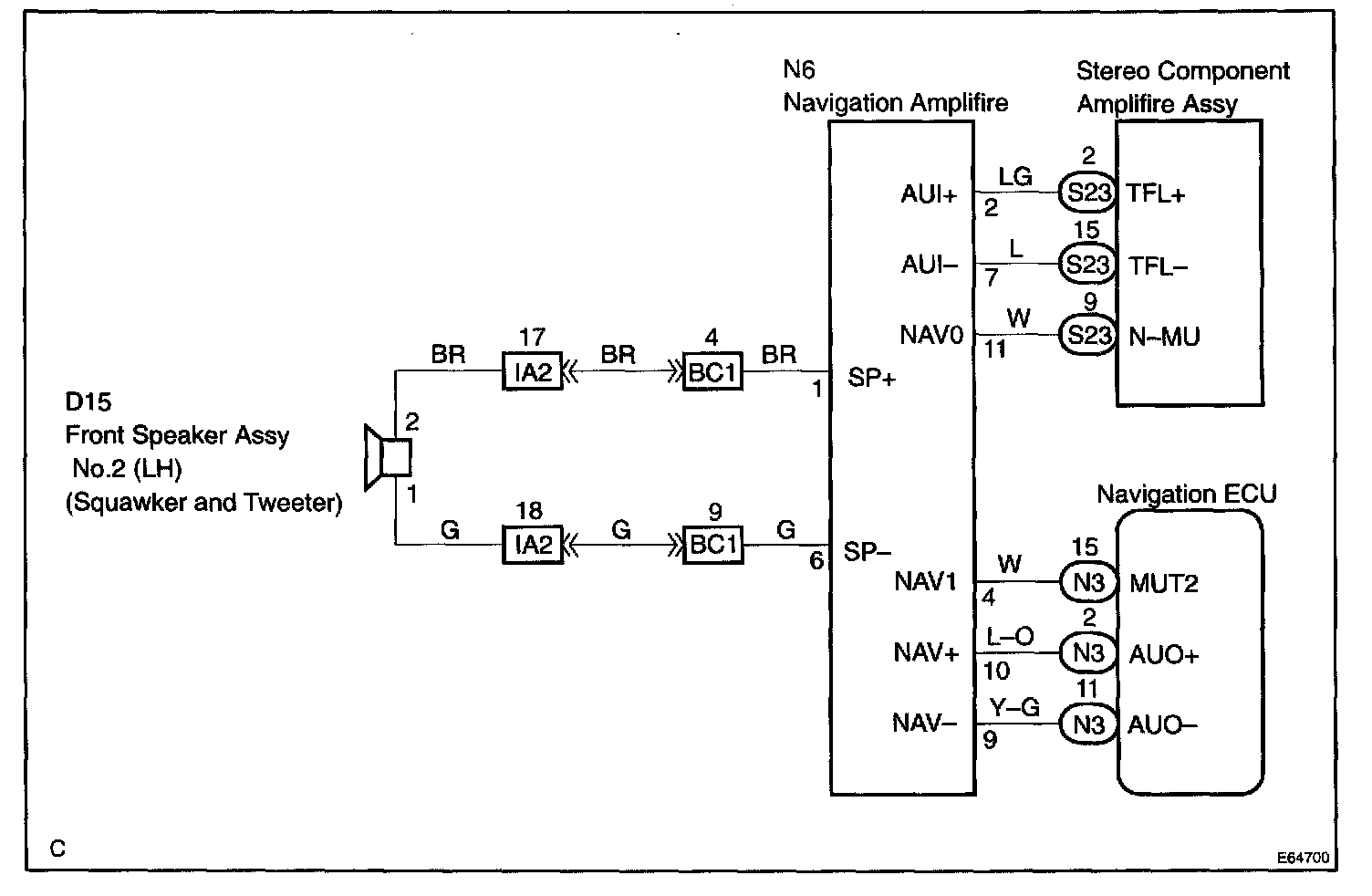

Wiring Diagram:

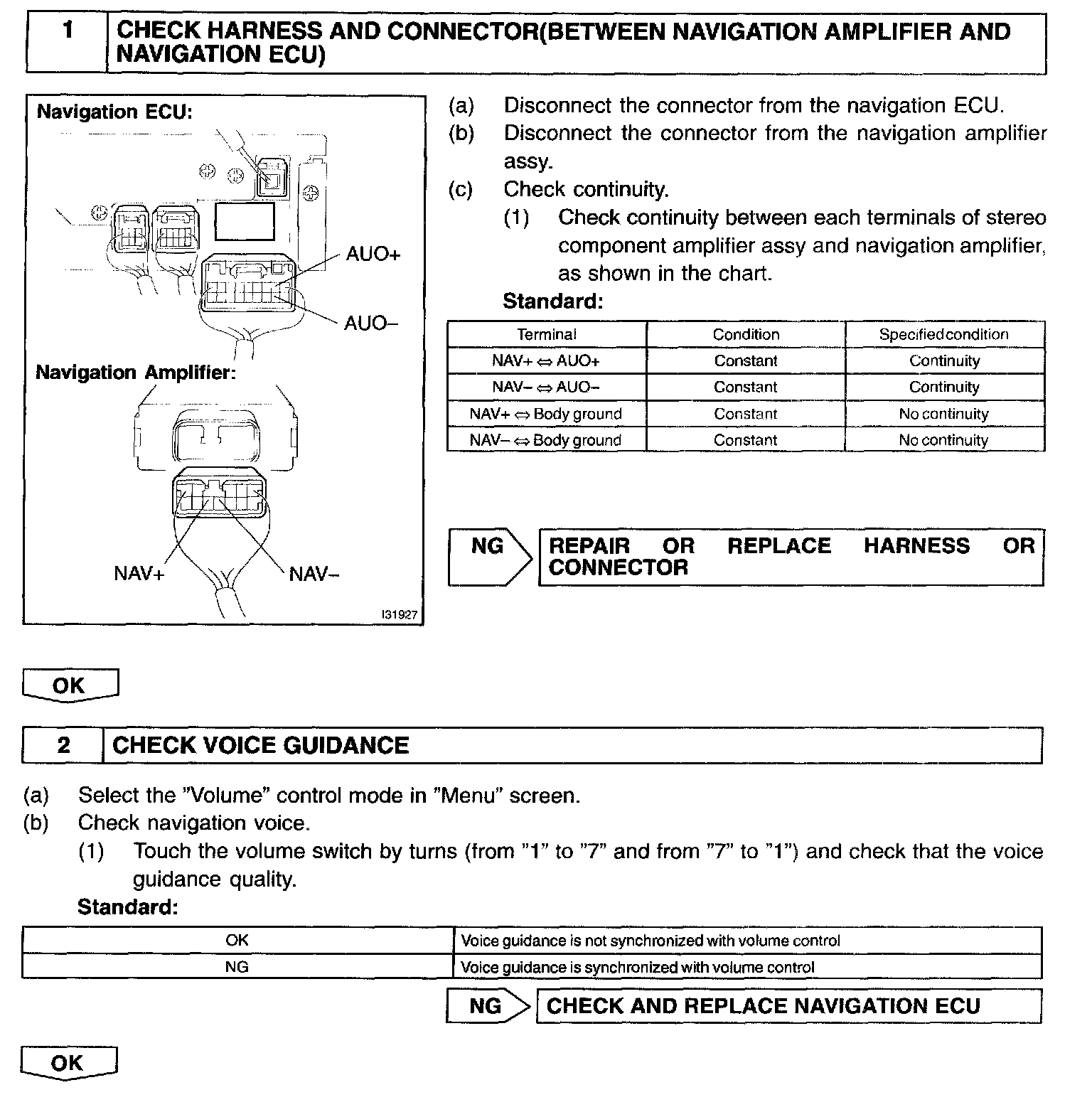

Step 1 - 2:

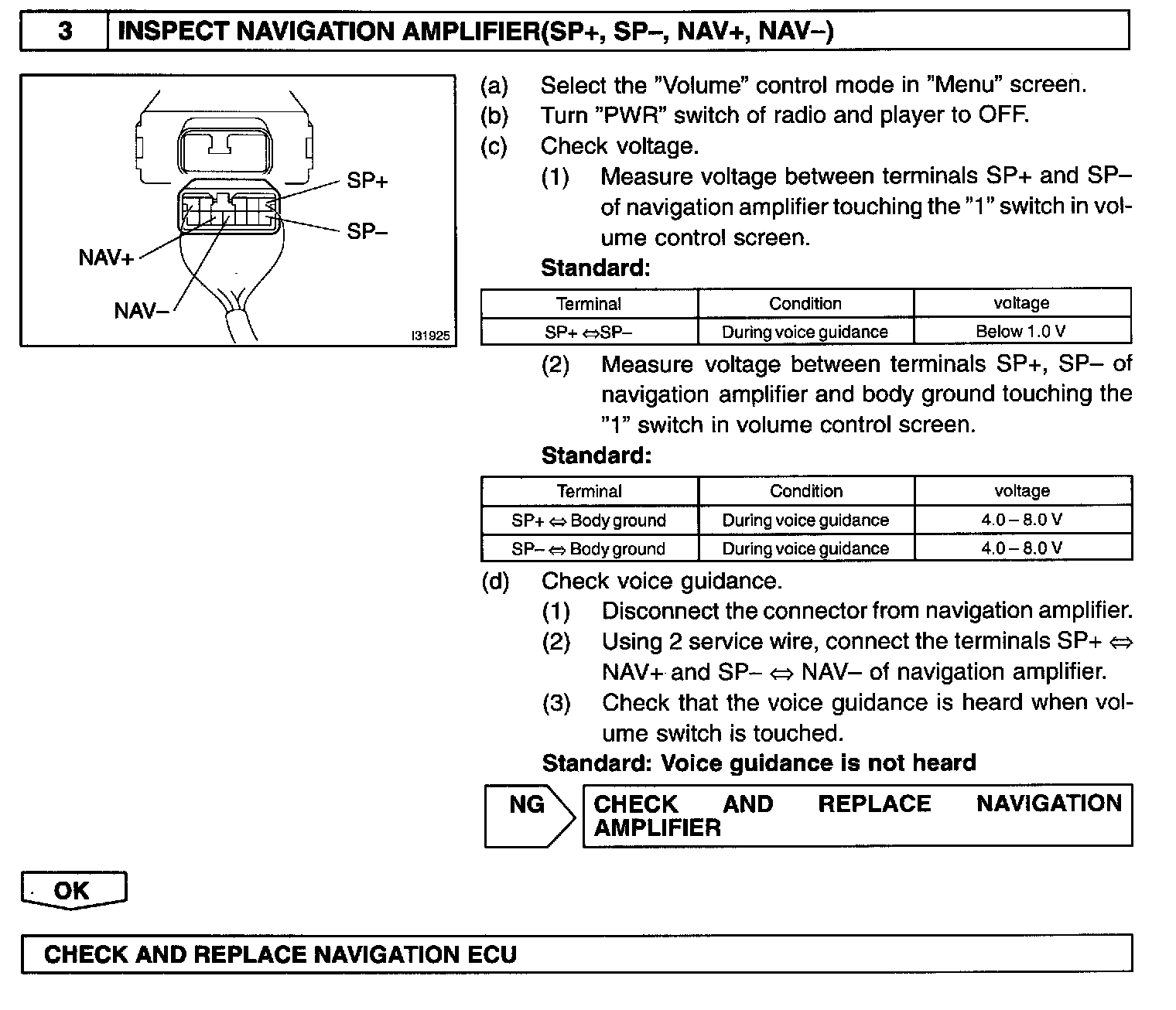

Step 3:
INSPECTION PROCEDURE
