No Navigation Screen Displayed (Screen Cannot Be Switched)

No Navigation Screen Displayed When "MAP", "Menu" or "Destination" Switch Pressed (Screen Cannot Be Switched)


Wiring Diagram:

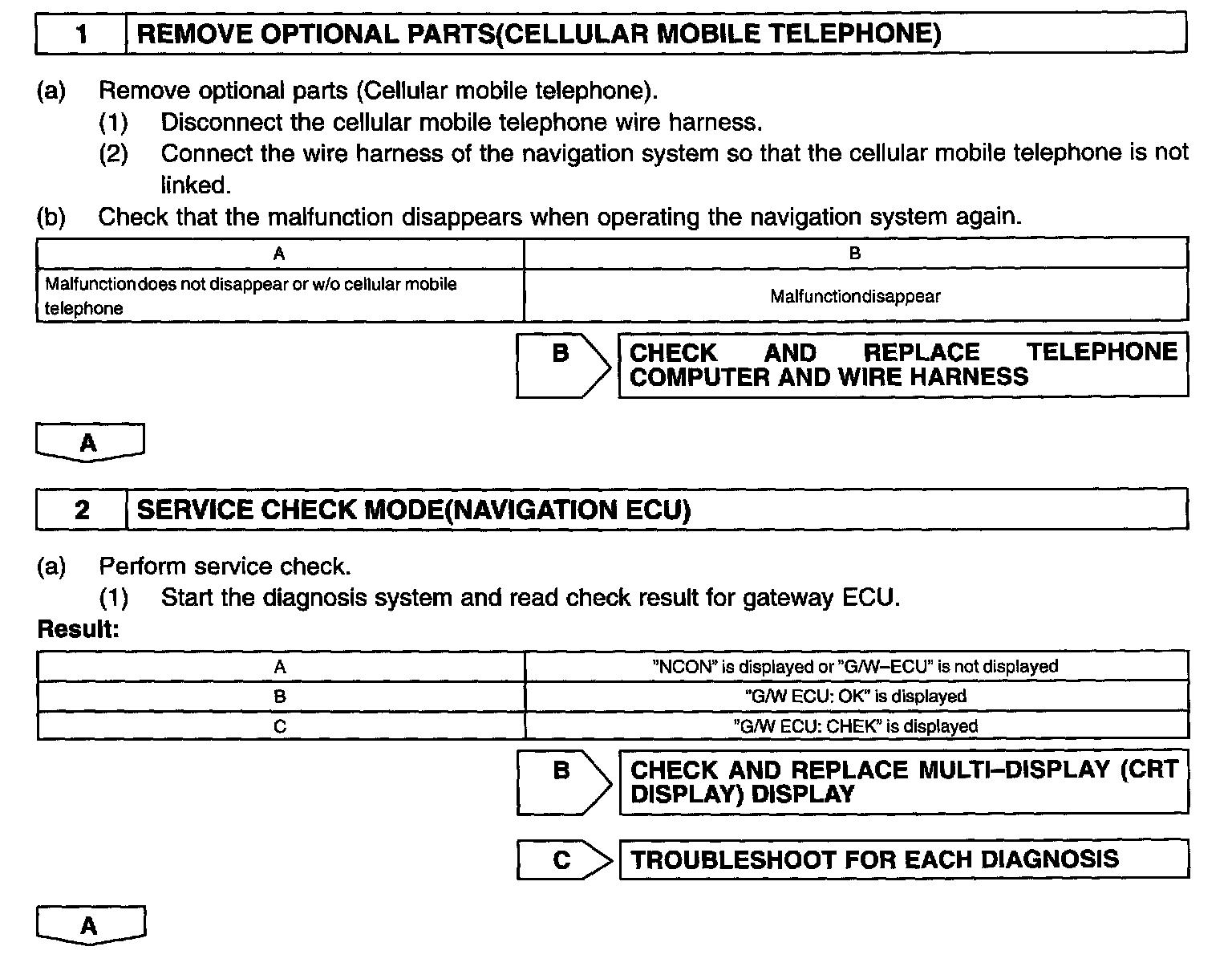

Step 1 - 2:

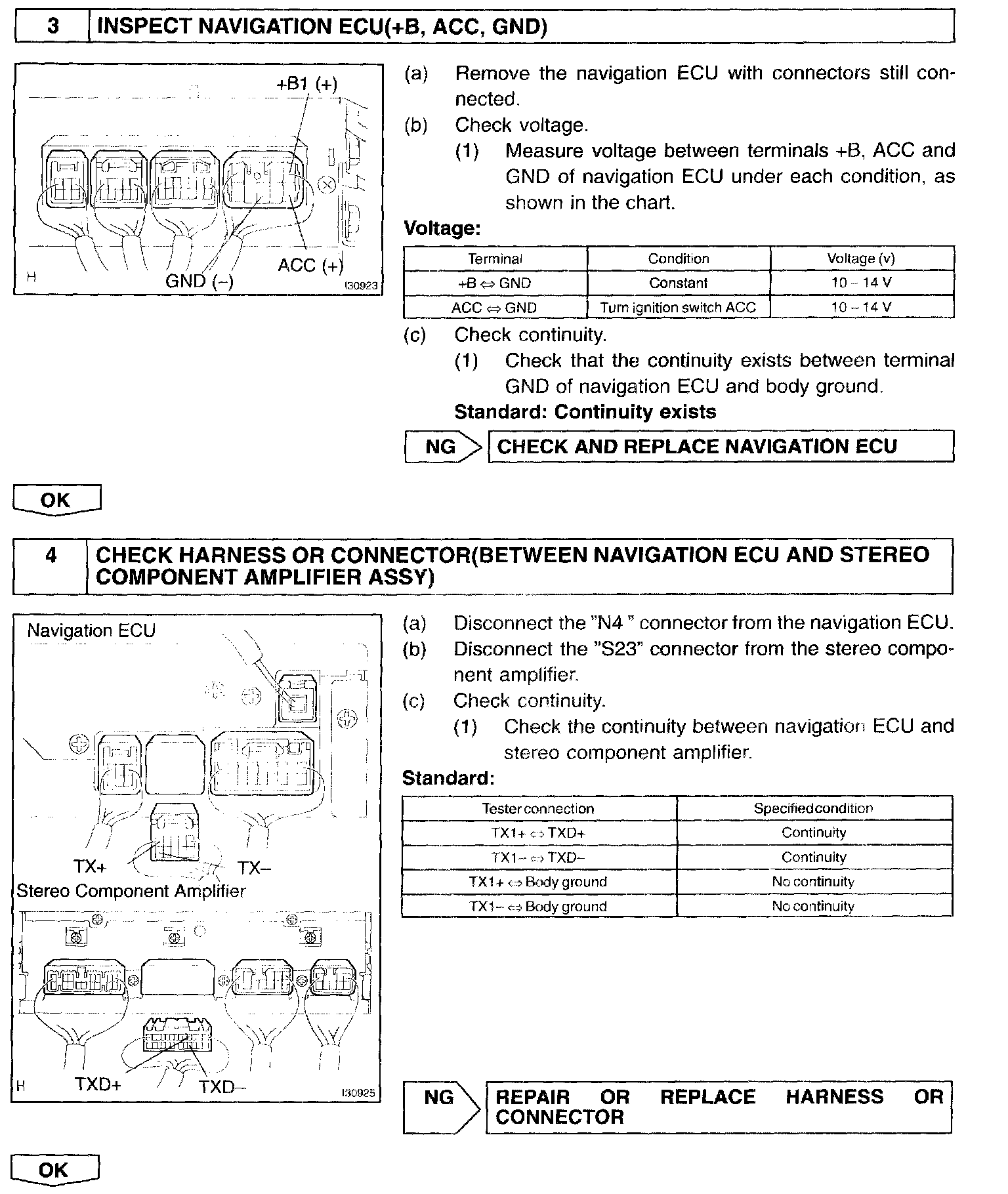

Step 3 - 4:

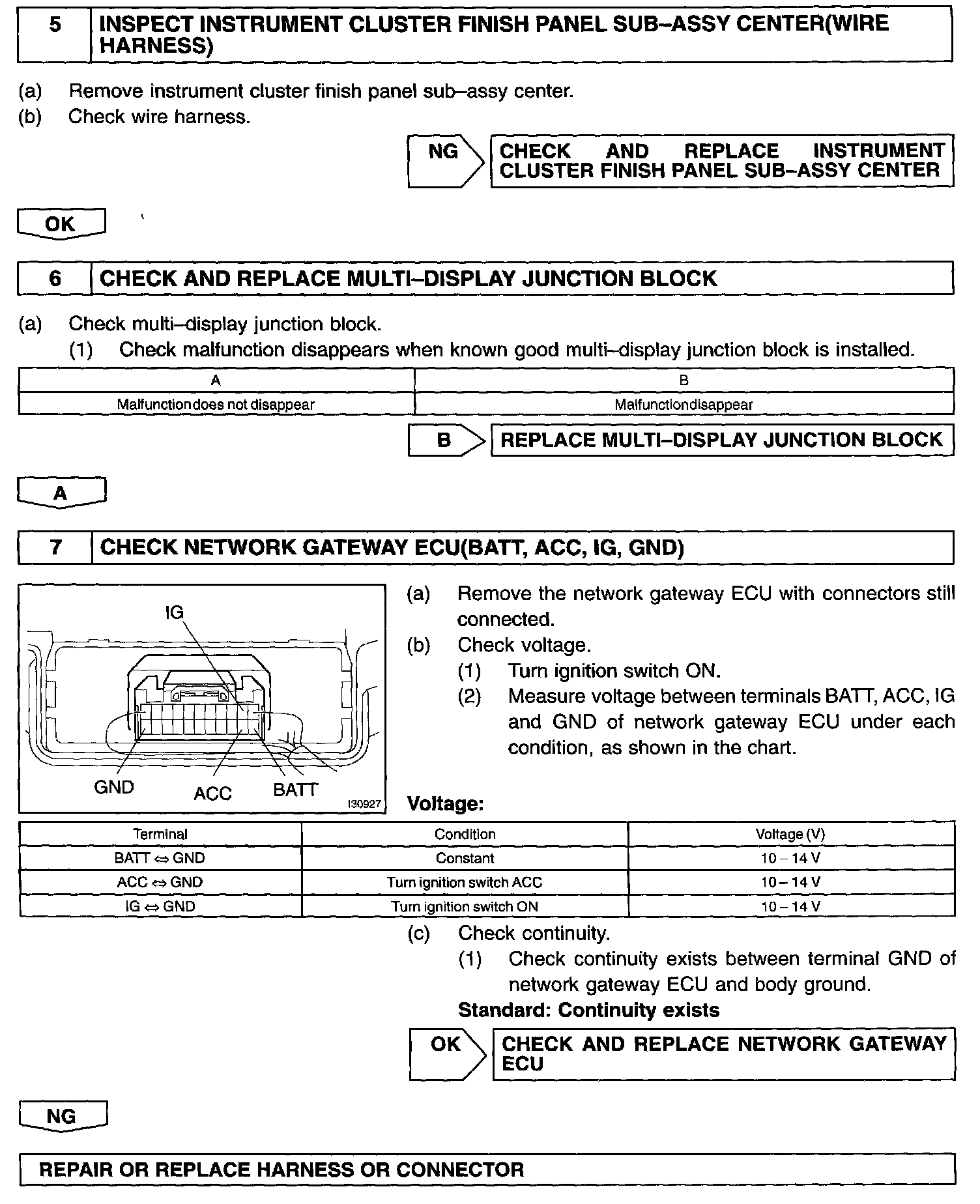

Step 5 - 7:




INSPECTION PROCEDURE
