Front Speaker Only Does Not Sound

Front Speaker (Front Squawker and Front Tweeter) Only Does Not Sound

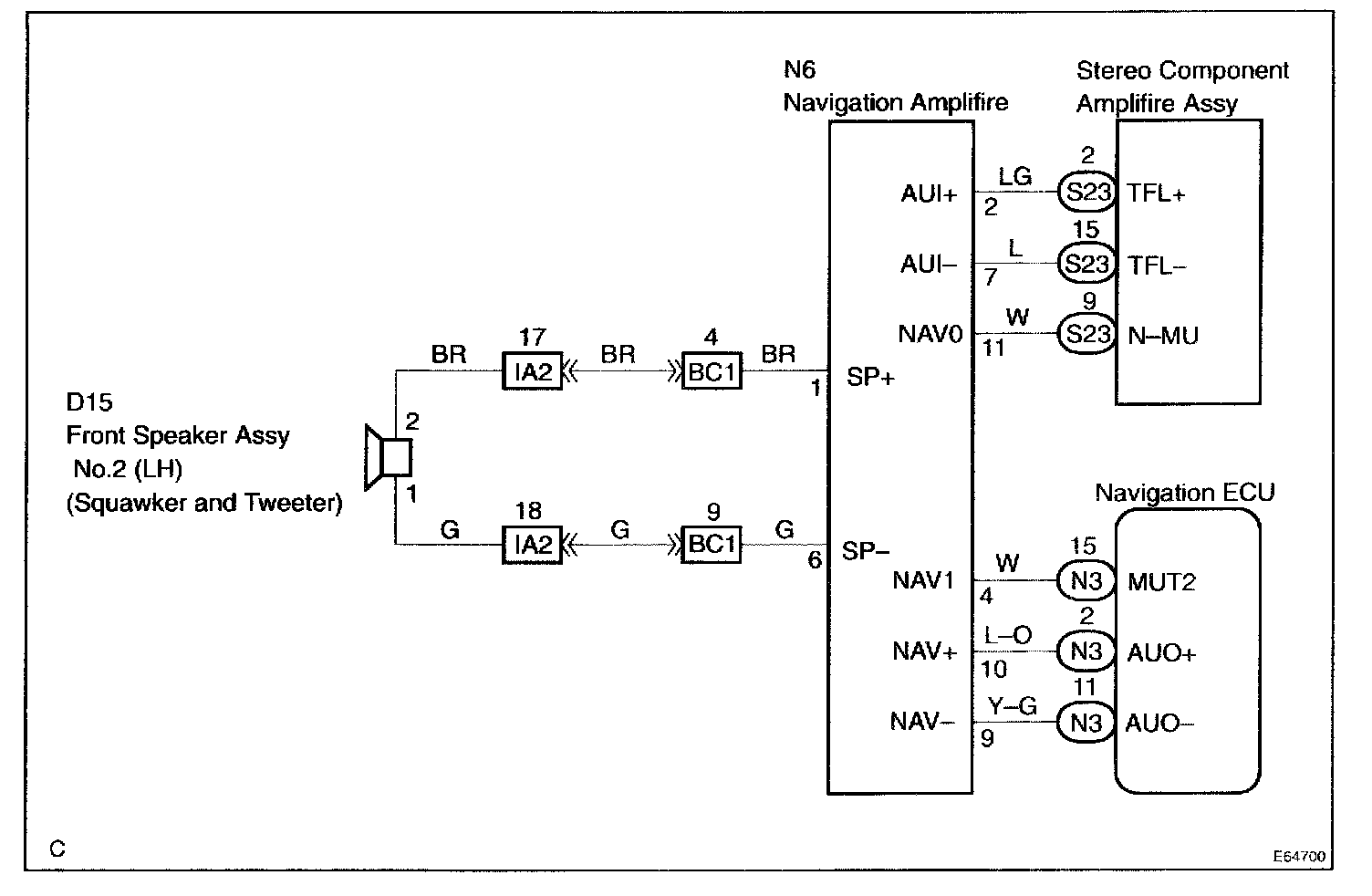

Wiring Diagram:

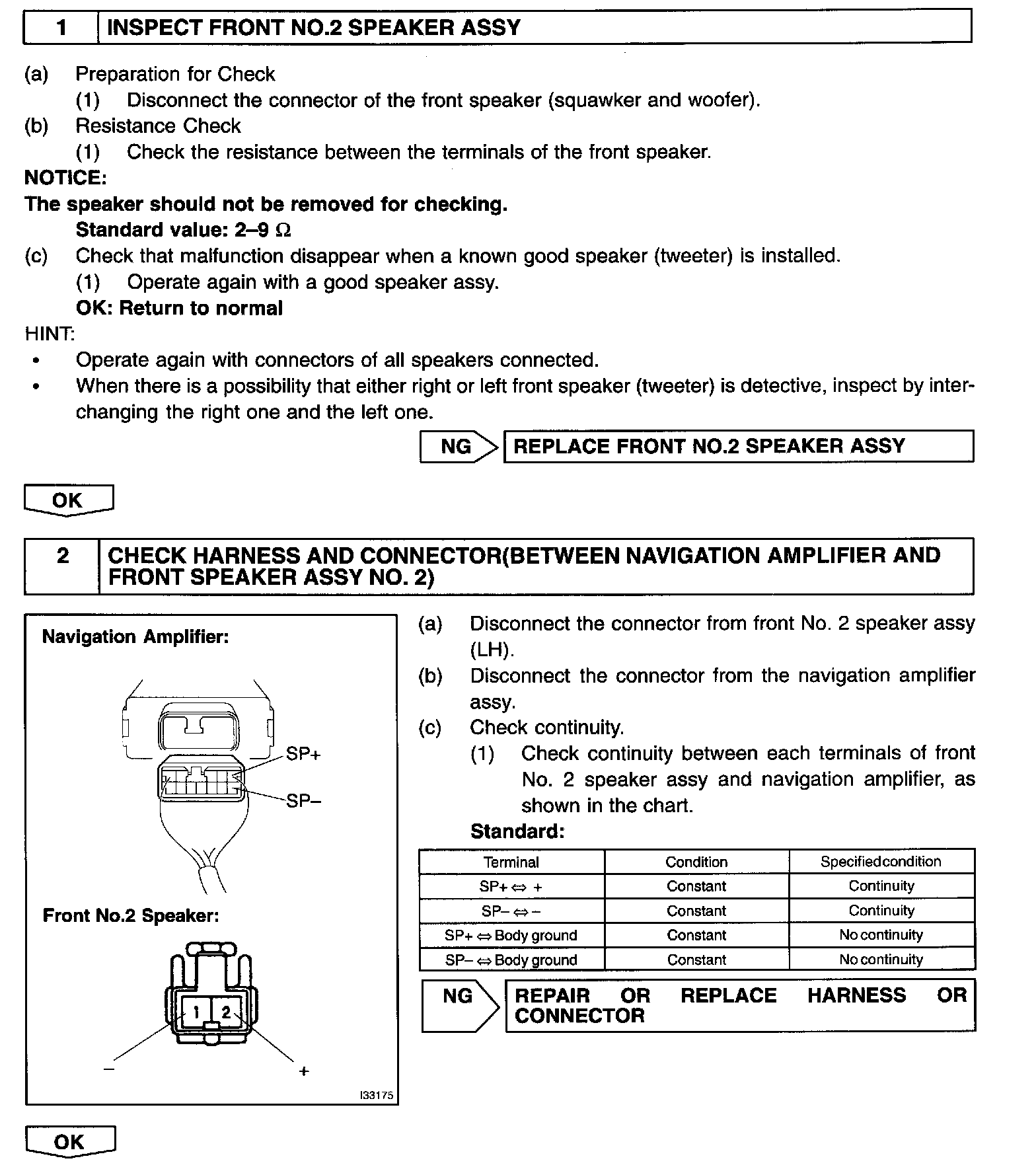

Step 1 - 2:

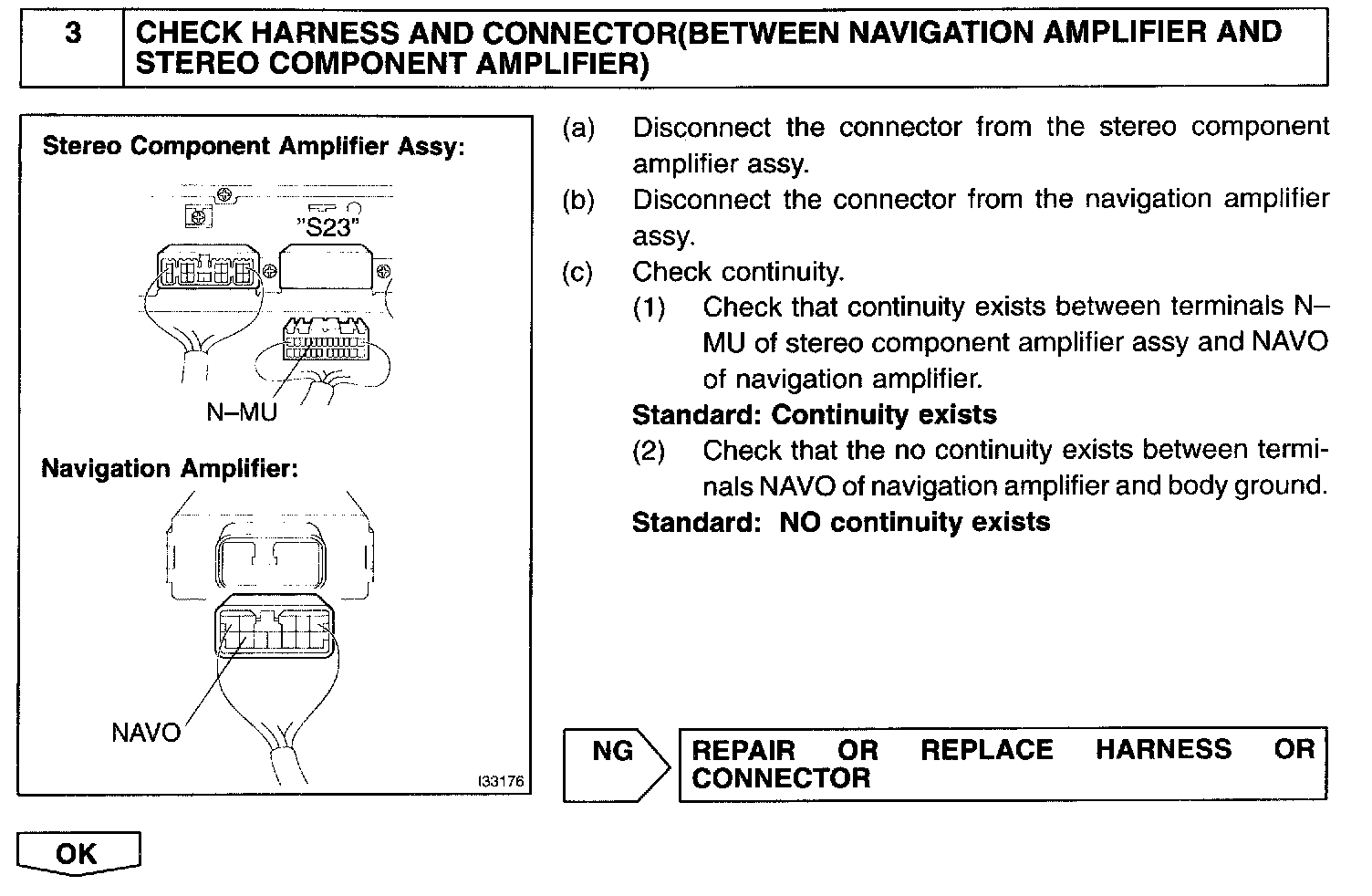

Step 3:

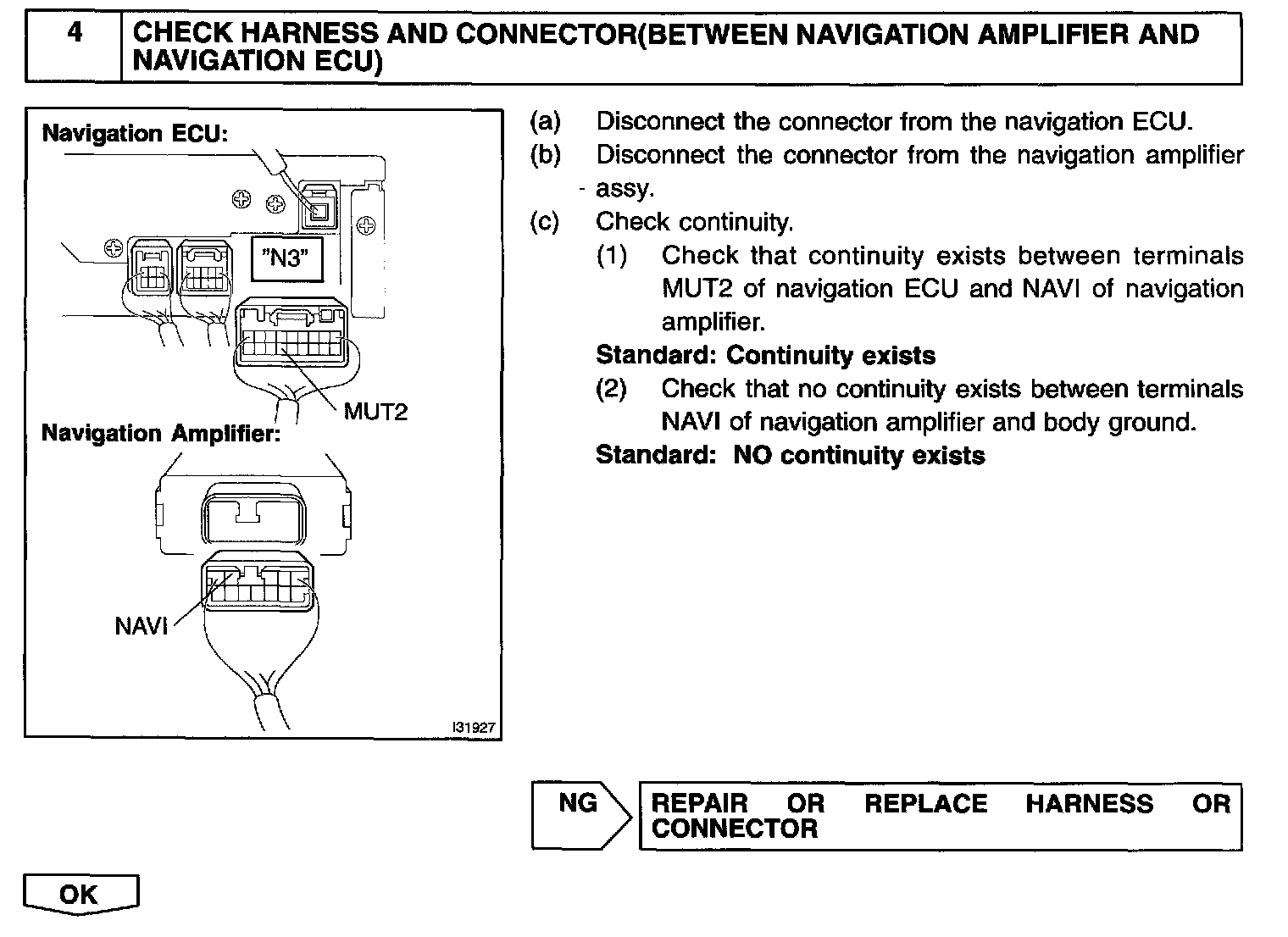

Step 4:

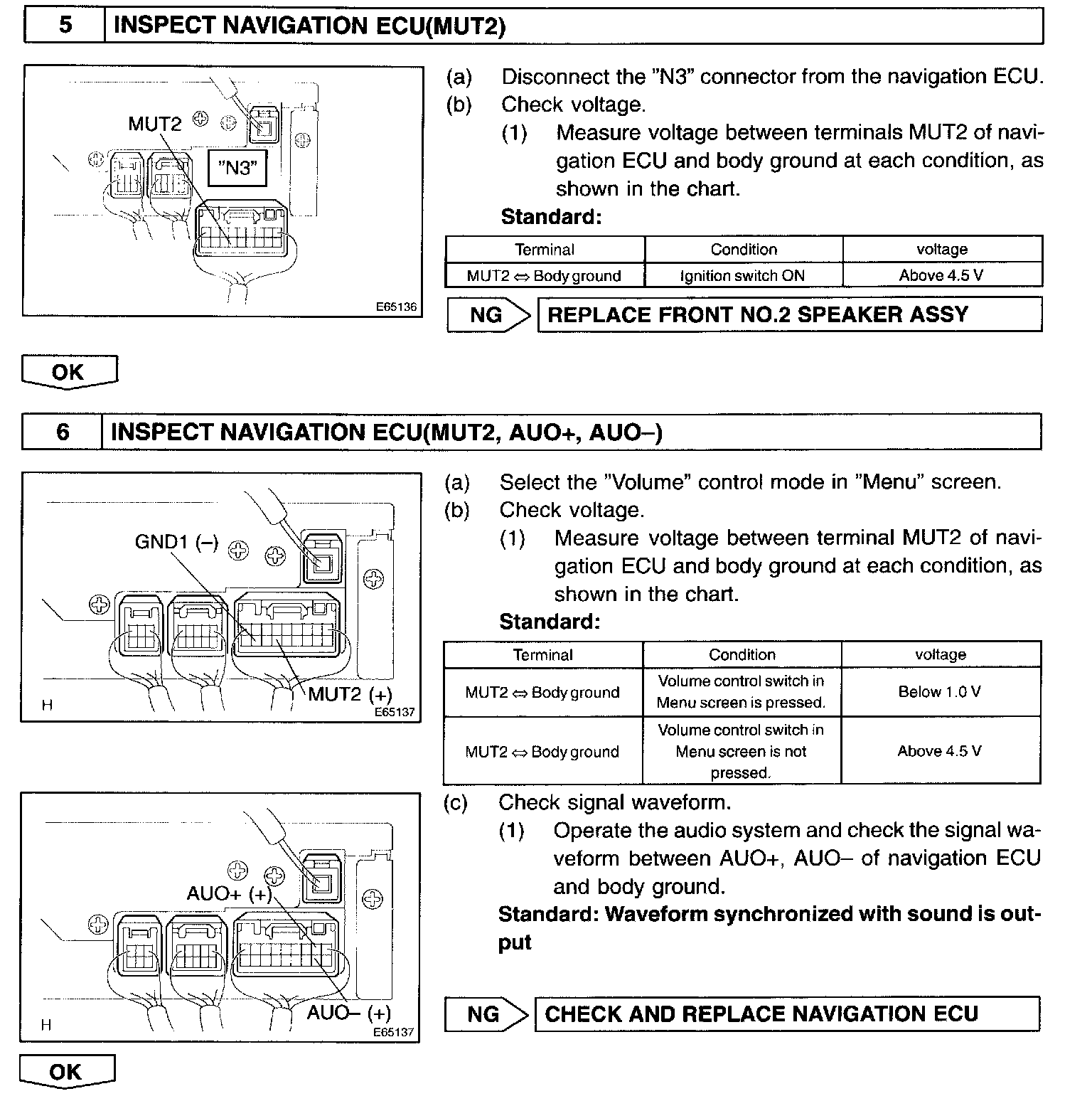

Step 5 - 6:

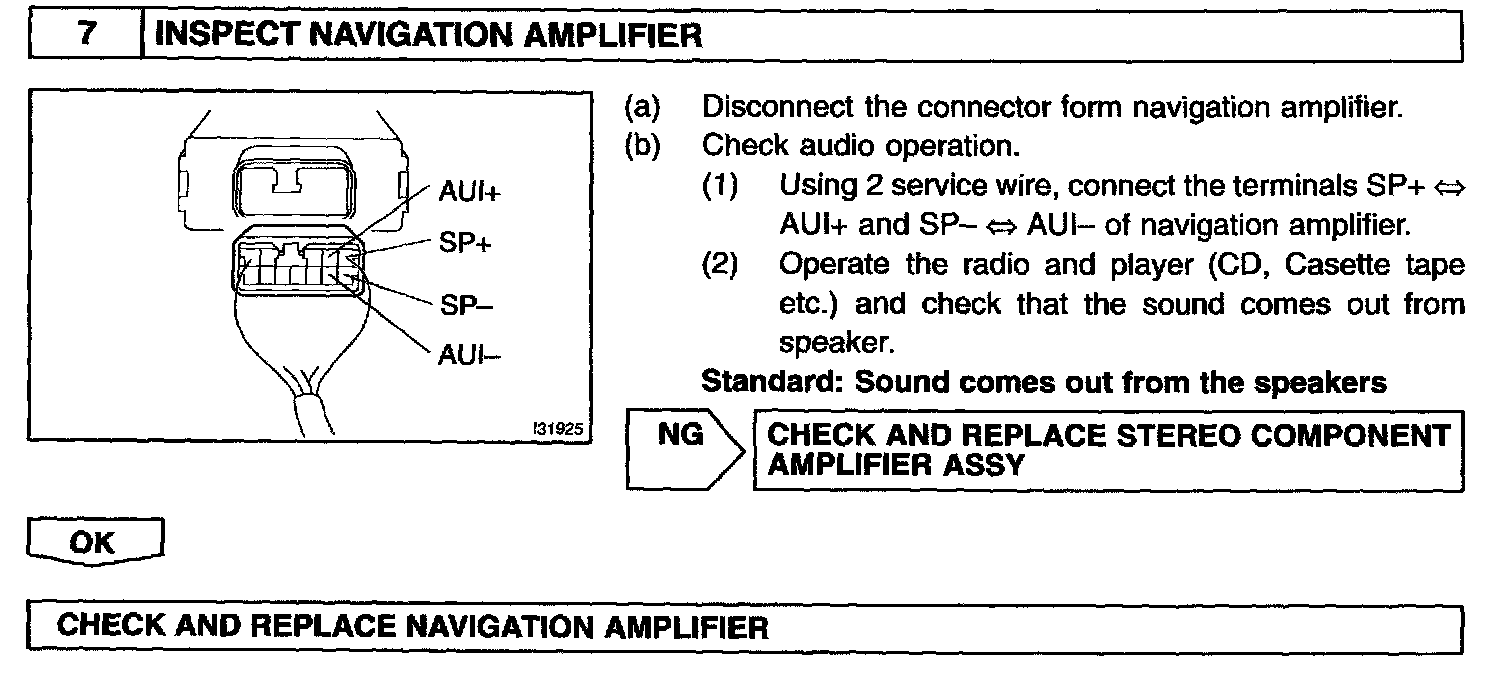

Step 7:




INSPECTION PROCEDURE
