Home >> Lexus >> 2003 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Driving Directions Opposite to Vehicle Position Mark

Driving Directions Opposite to Vehicle Position Mark

Driving Directions Opposite to Moving Direction of Vehicle Position Mark

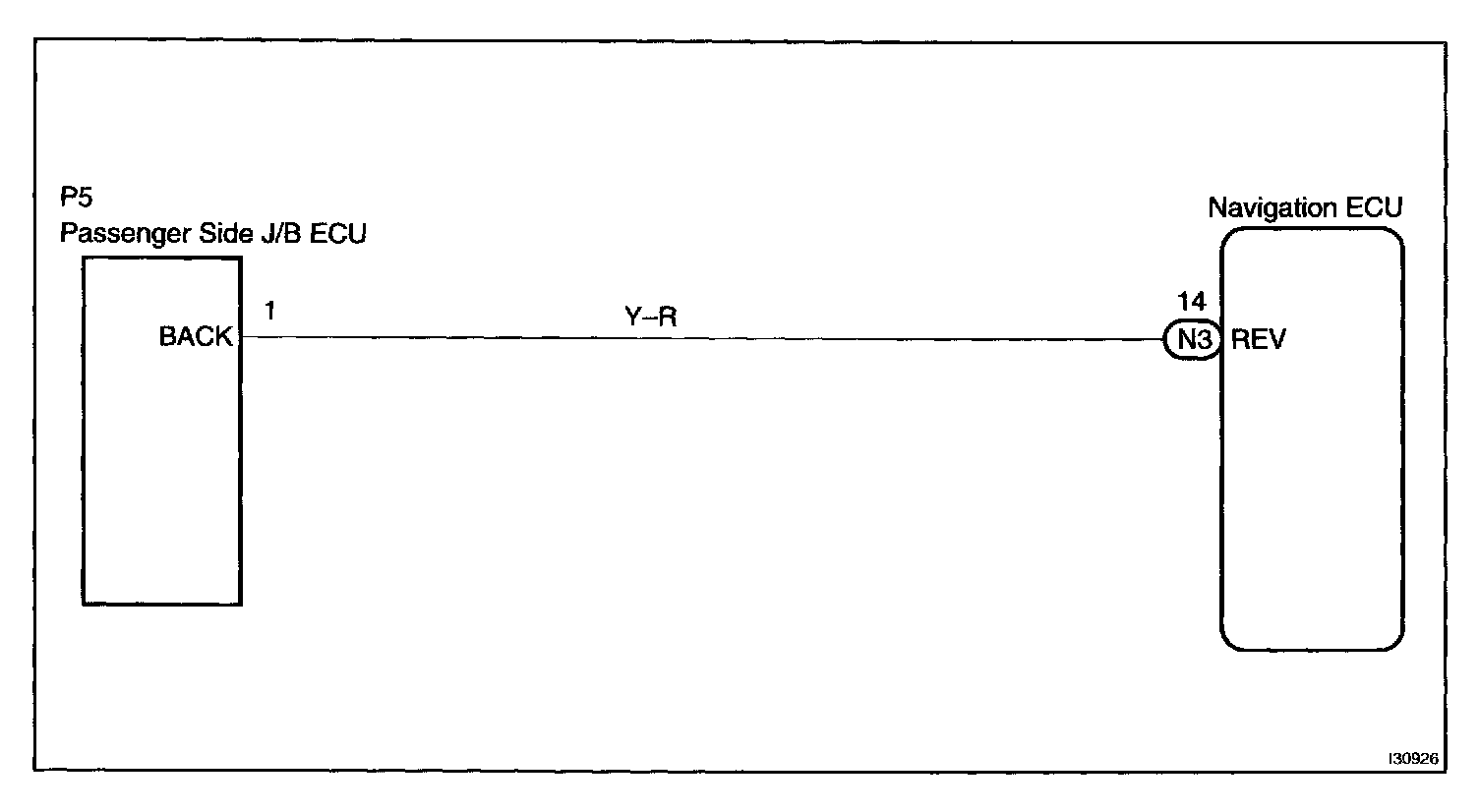

Wiring Diagram:

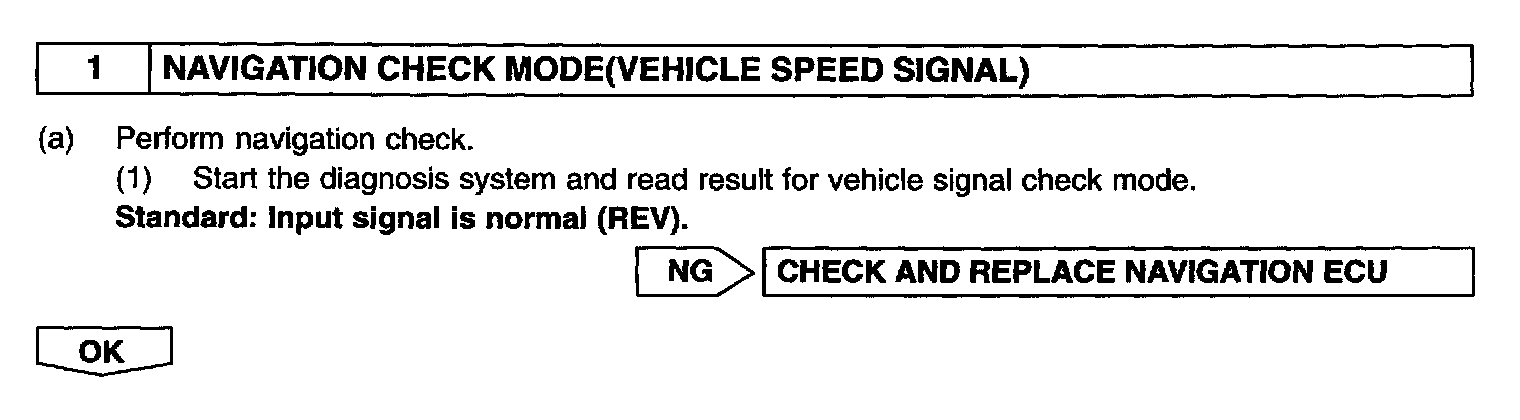

Step 1:




Step 2:




INSPECTION PROCEDURE
