Door of Multi-Display Stops During Open/Close Operation

Door of Multi-Display Unexpectedly Stop During Open/Close Operation

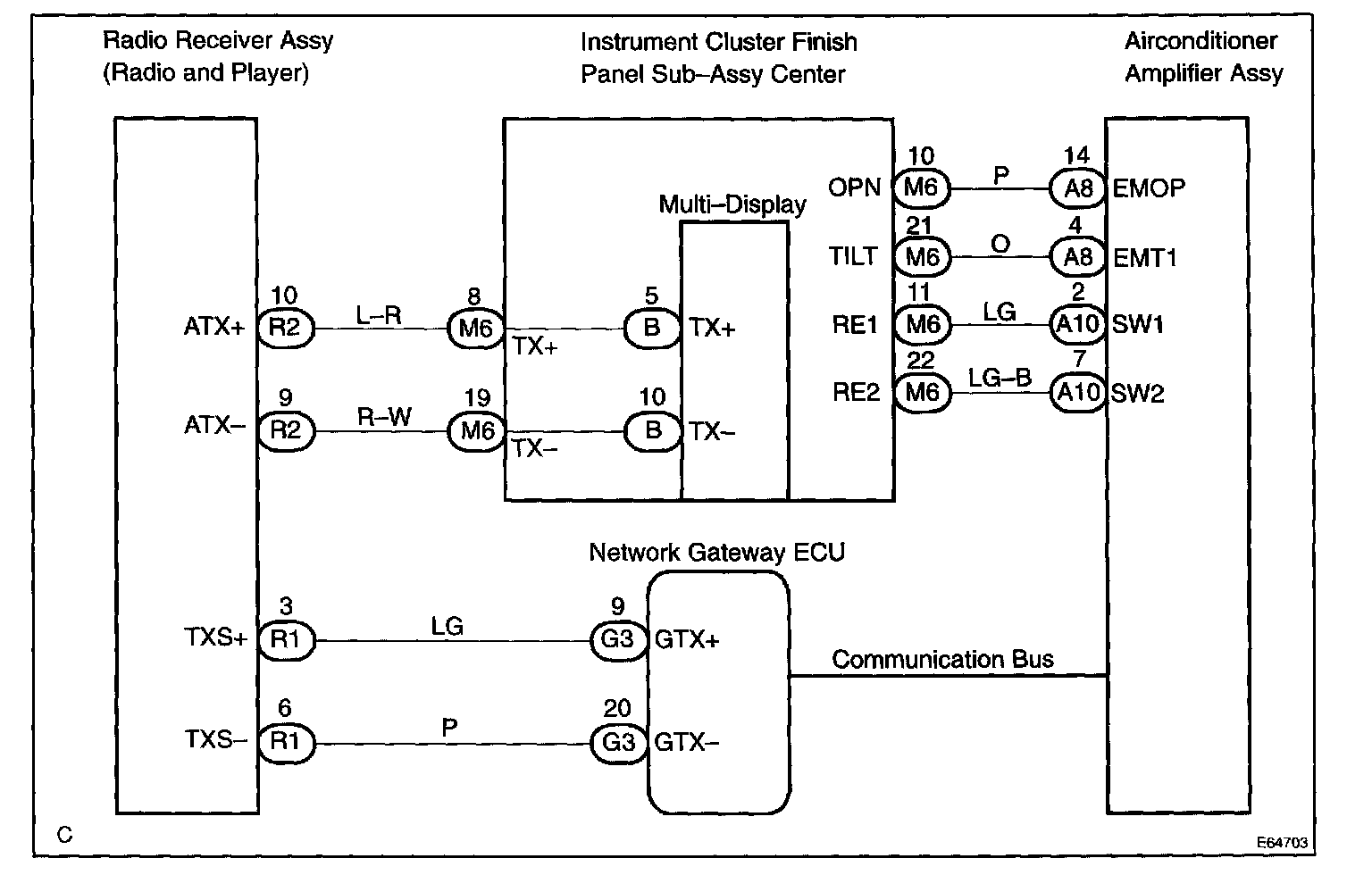

Wiring Diagram:

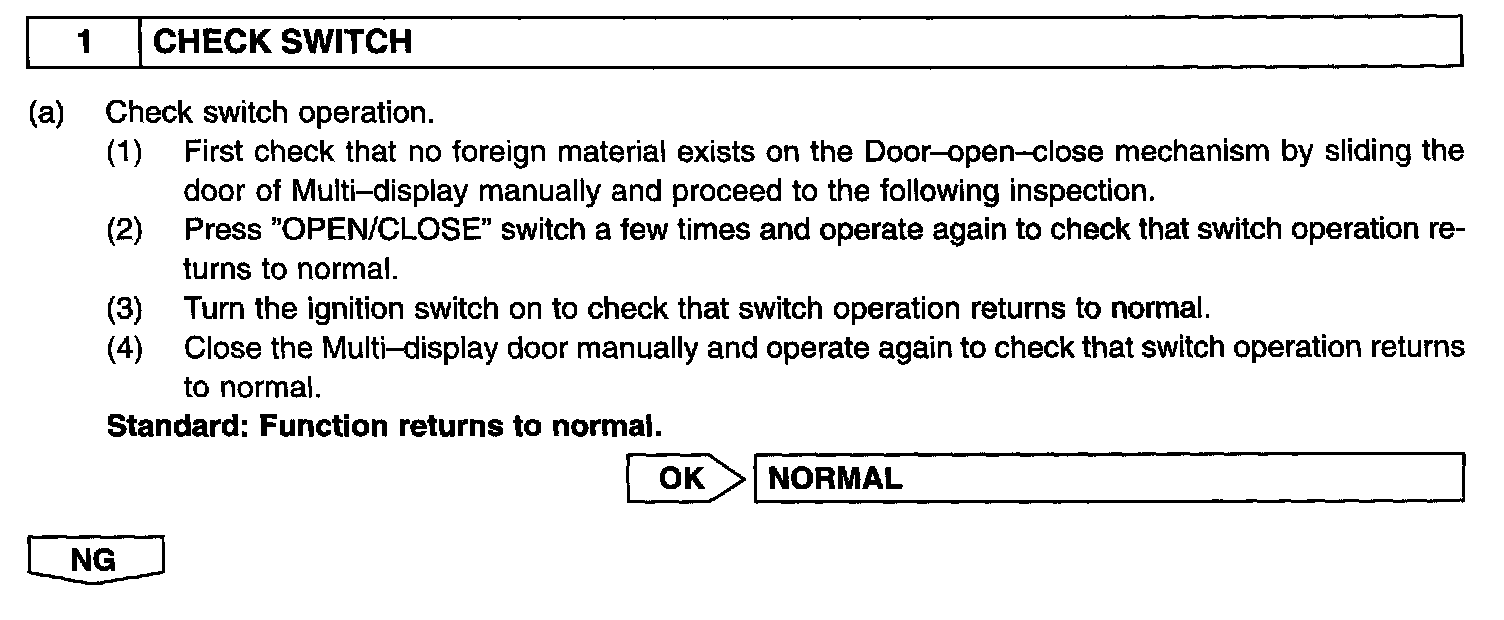

Step 1:




Step 2 - 4:

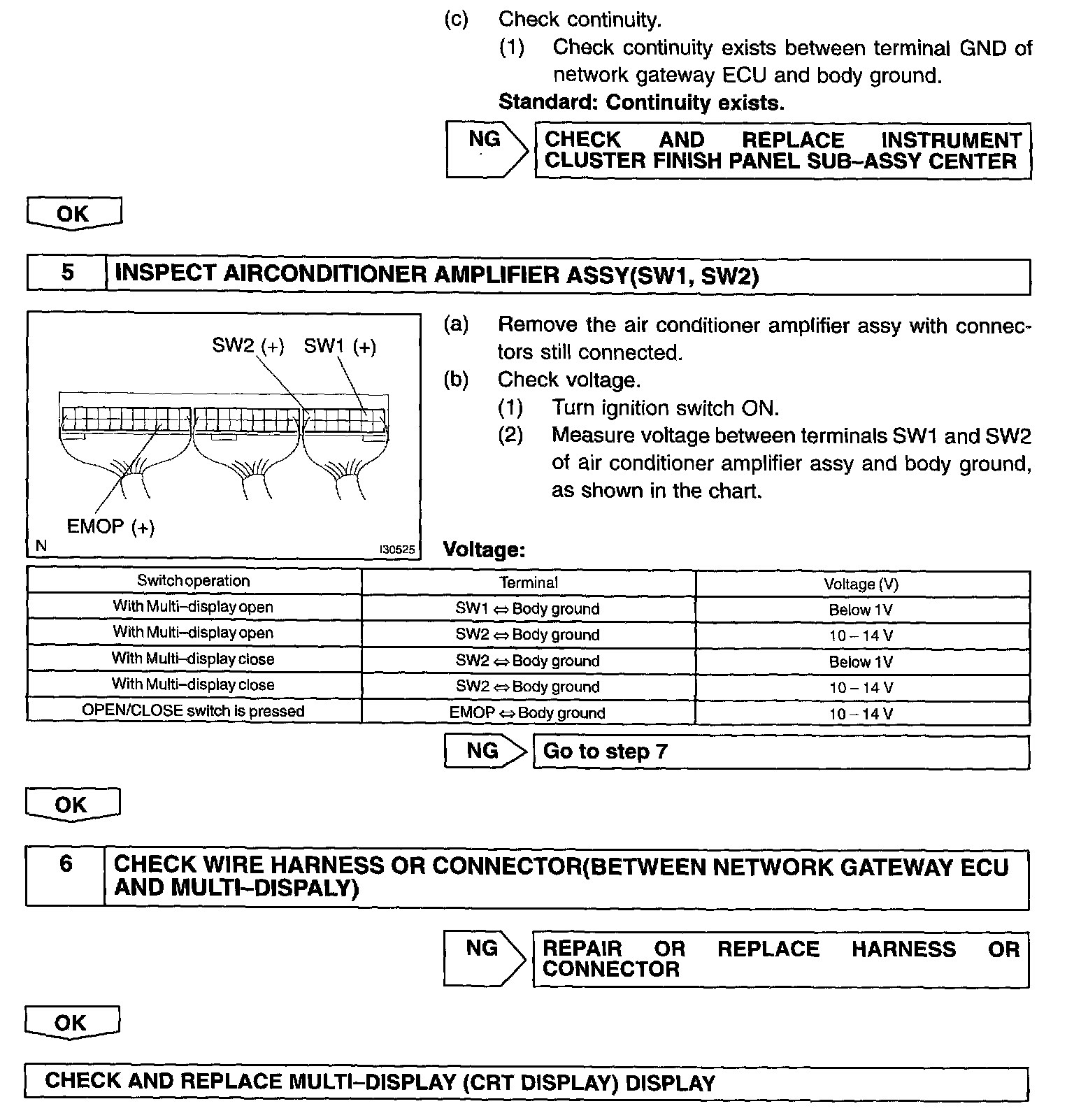

Step 4 (continued) - 6:

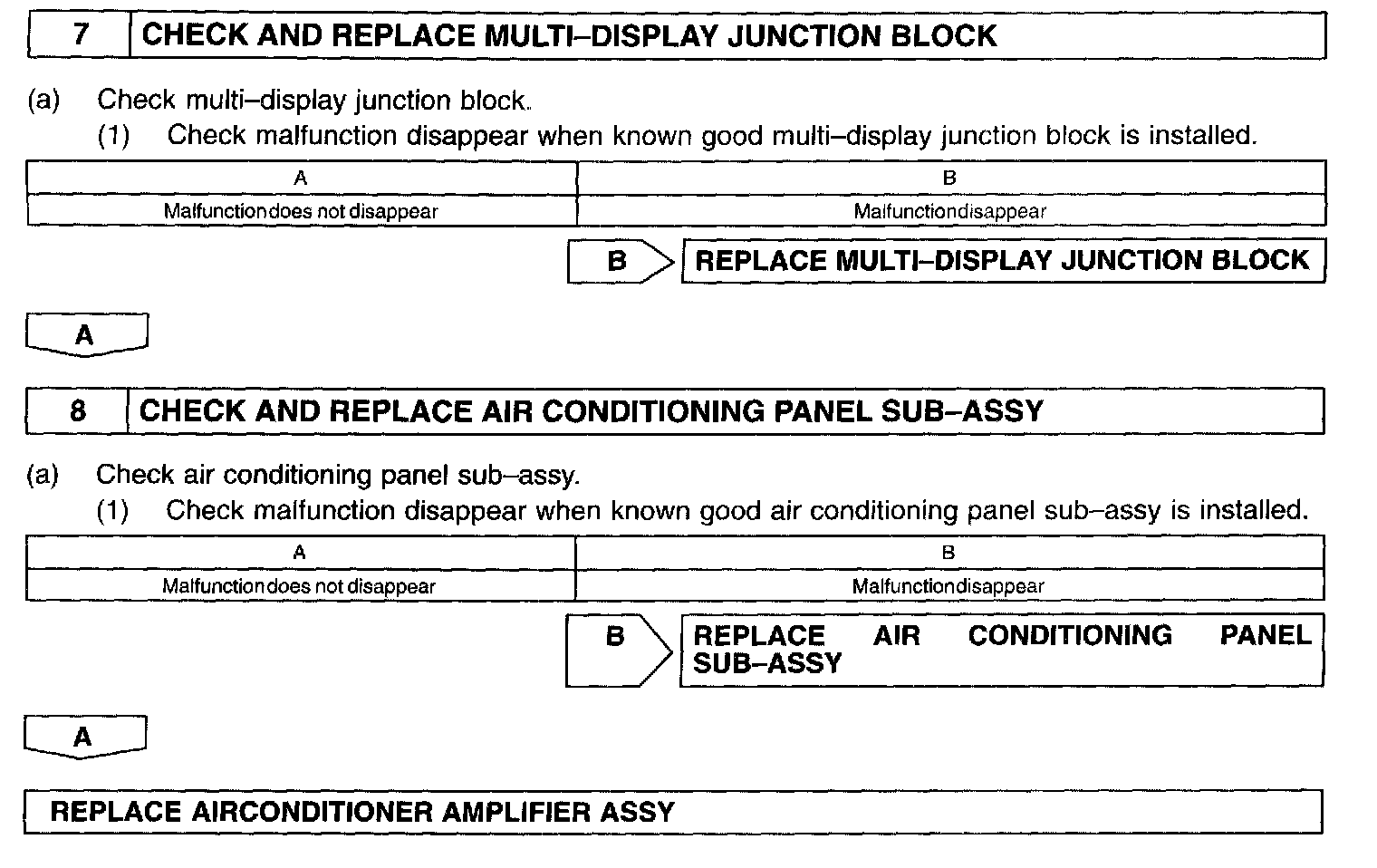

Step 7 - 8:




INSPECTION PROCEDURE
