Closed/Opened Door of Multi-Display Does Not Open/Close

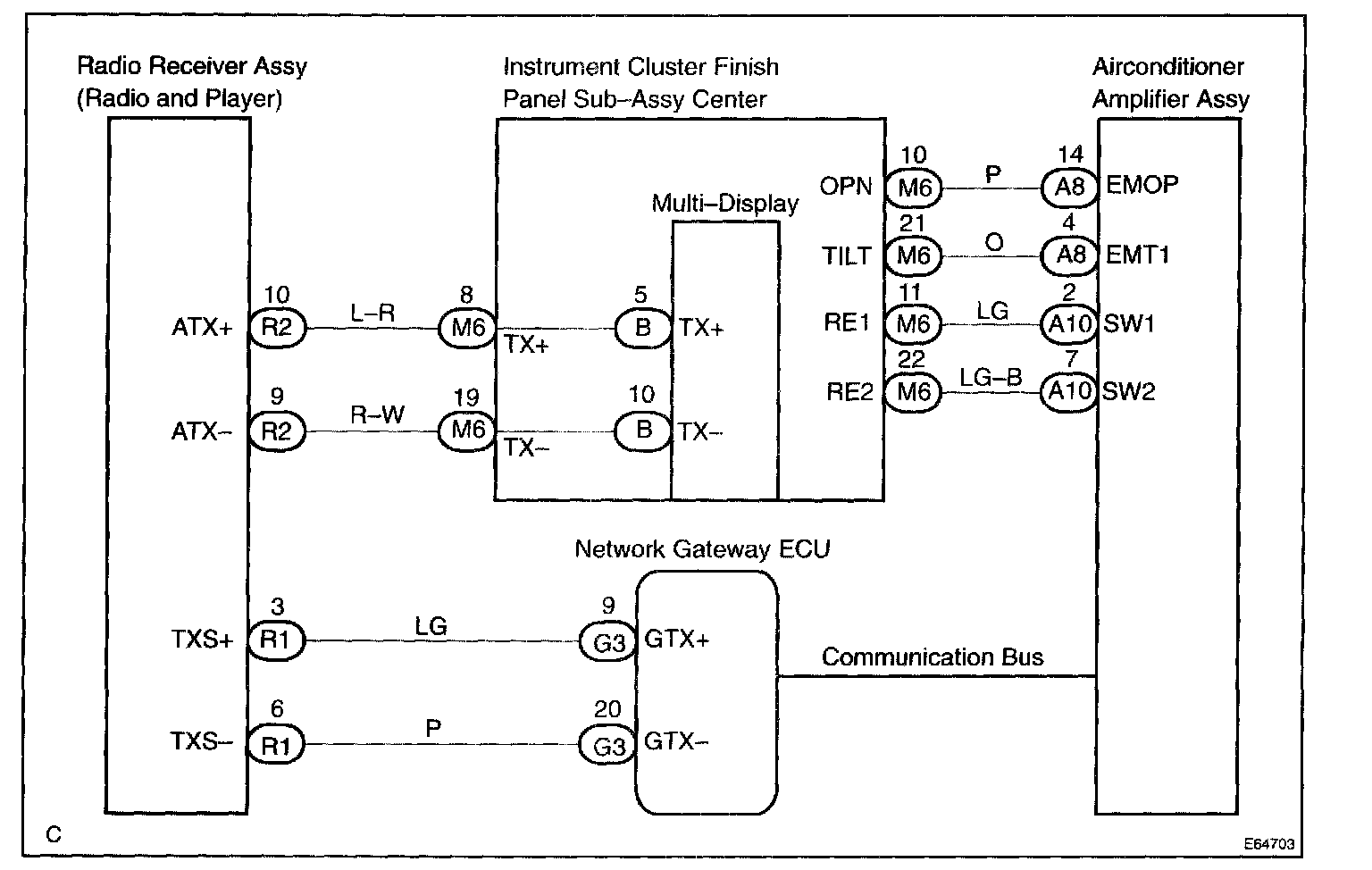

Wiring Diagram:

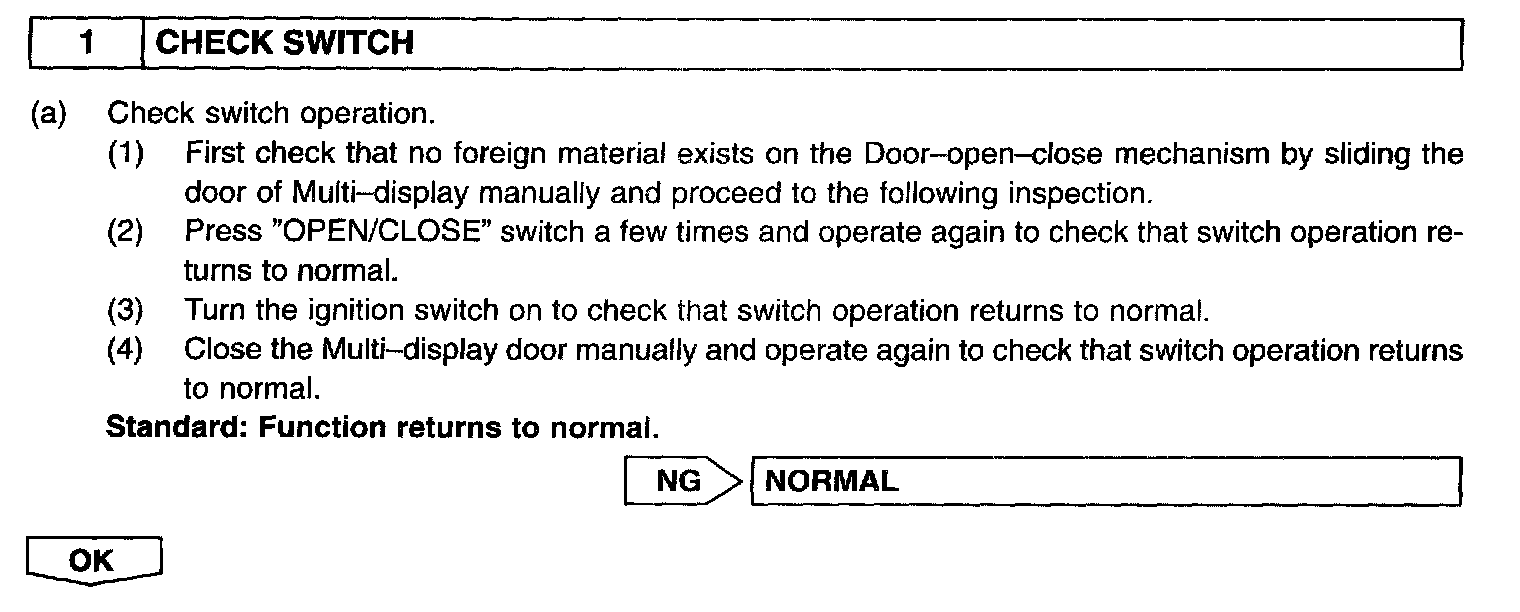

Step 1:

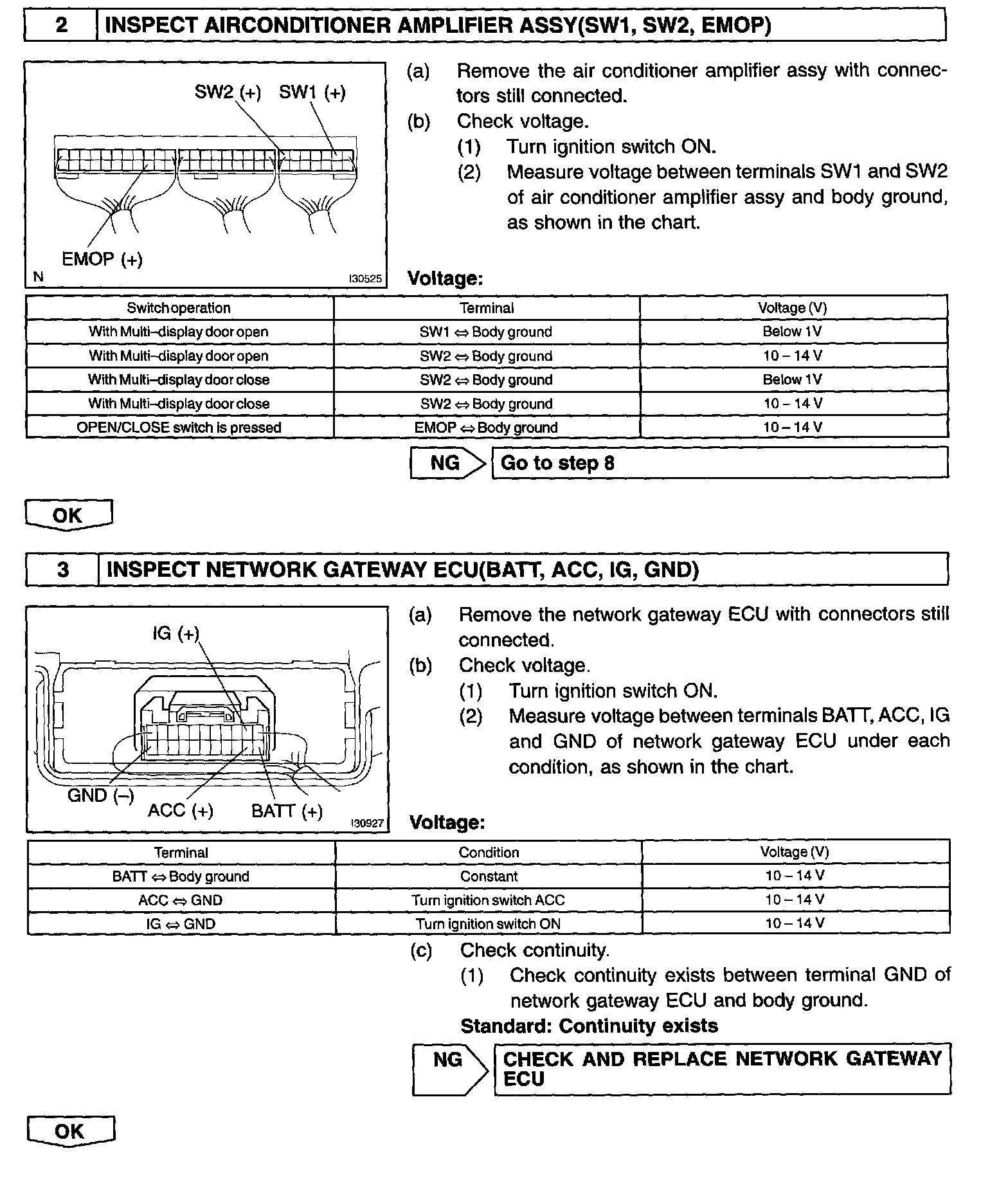

Step 2 - 3:

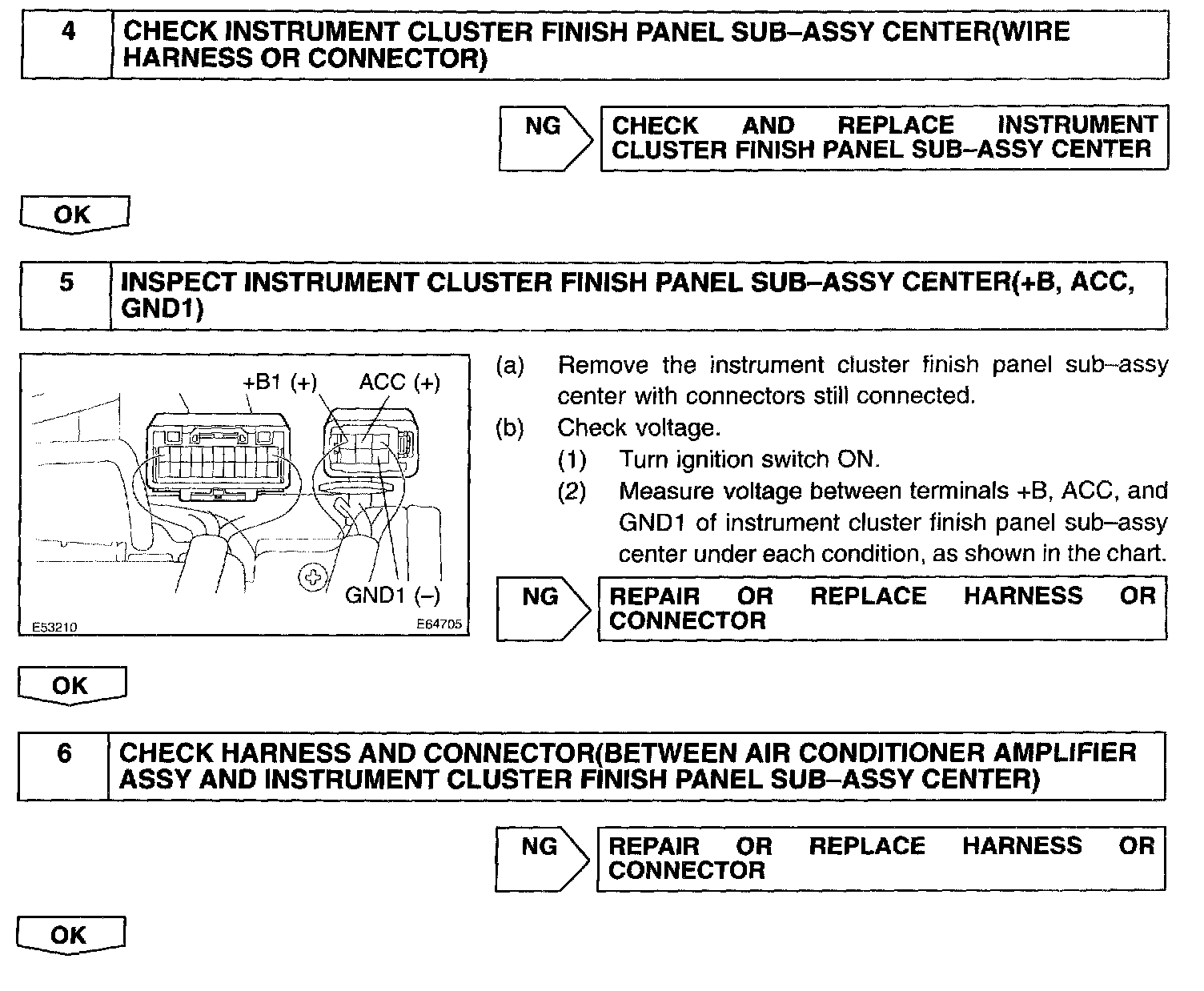

Step 4 - 6:




Step 7:

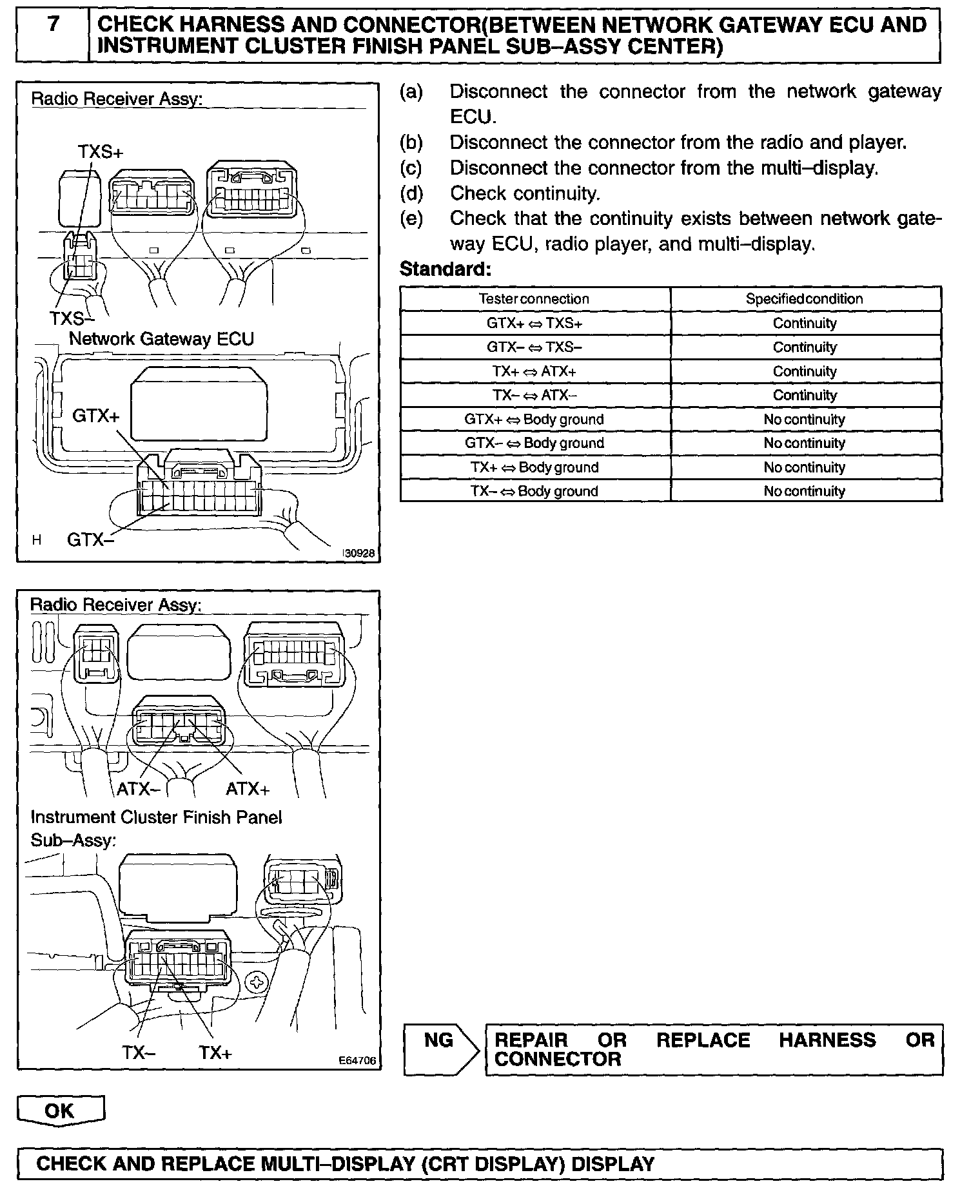

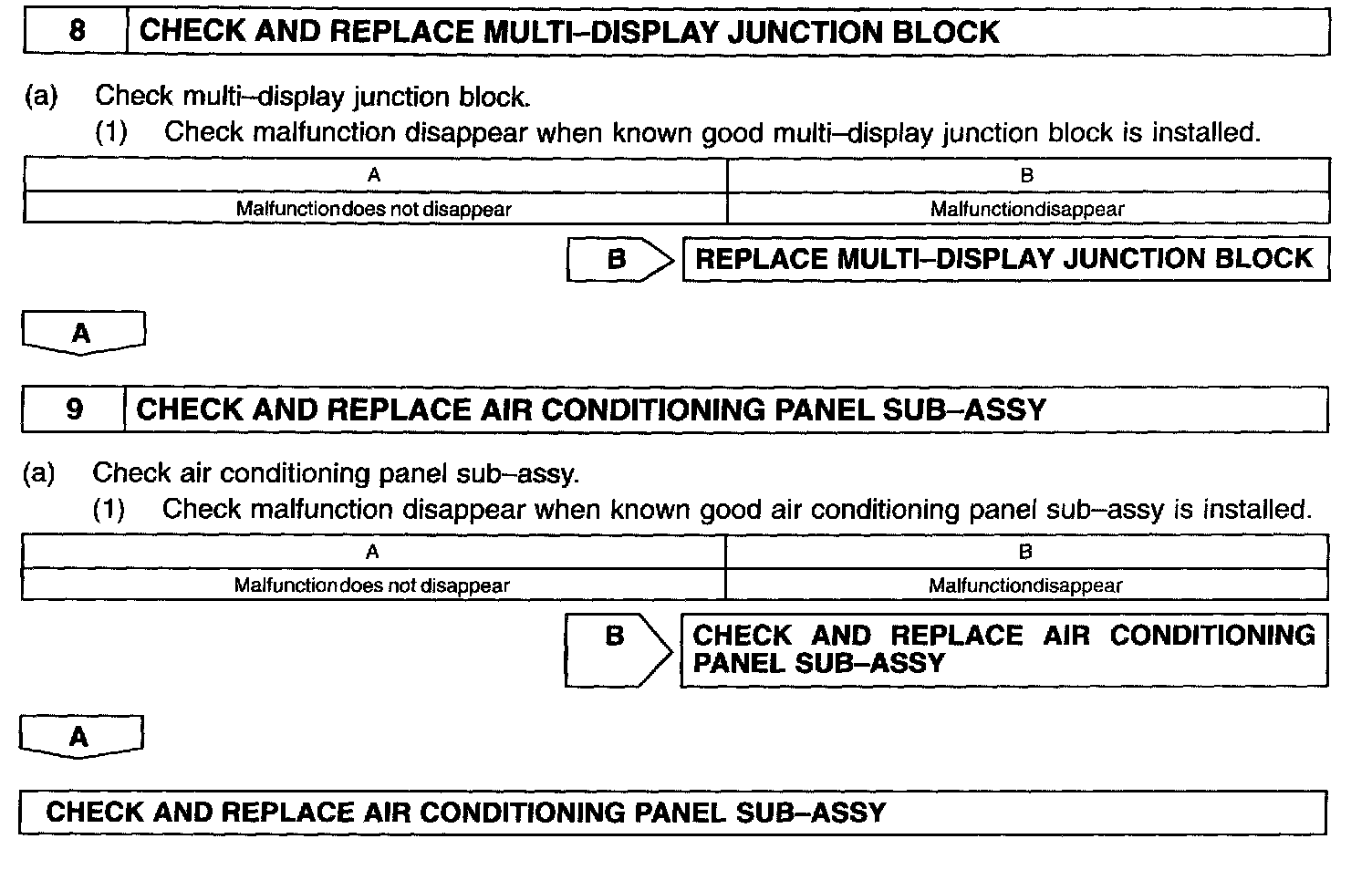

Step 8 - 9:




INSPECTION PROCEDURE
