Cellular Phone Transceiver: Service and Repair
REPLACEMENTHINT: The installation is in the revers order of the removal. However when there is a special point concerning the installation, it is indicated
1. REMOVE SPARE WHEEL COVER ASSY
2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
3. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
5. REMOVE TOOL BOX COVER
6. REMOVE LUGGAGE HOLD BELT STRIKER ASSY
7. REMOVE TONNEAU COVER ASSY
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
9. REMOVE REAR FLOOR FINISH SIDE PLATE RH
10. REMOVE REAR FLOOR FINISH SIDE PLATE LH
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
12. REMOVE LUGGAGE COMPARTMENT TRAY BRACKET FRONT
a. Remove the 2 nuts and 3 bolts.
b. Remove the 2 luggage compartment tray bracket fronts.

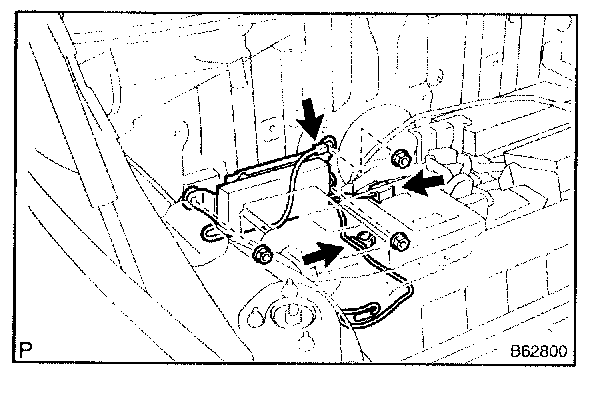

13. REMOVE TRANSCEIVER & BATTERY ASSY
a. Disconnect the connectors and clamps.
b. Remove the 3 nuts and transceiver & battery assembly.
14. REMOVE PORTABLEPHONE-L BATTERY
a. Remove the nut and mobile bracket No.2.
b. Disconnect the connector, and then remove the portablephone-L battery.
15. REMOVE TELEPHONE TRANSCEIVER ASSY
a. Disconnect the connectors and clamps.
b. Remove the 3 screws and telephone transceiver assembly from the mobile bracket No.1.
NOTE: The telephone transceiver assembly should be replaced together with the mayday ECU assembly.
16. INSTALL TRANSCEIVER & BATTERY ASSY

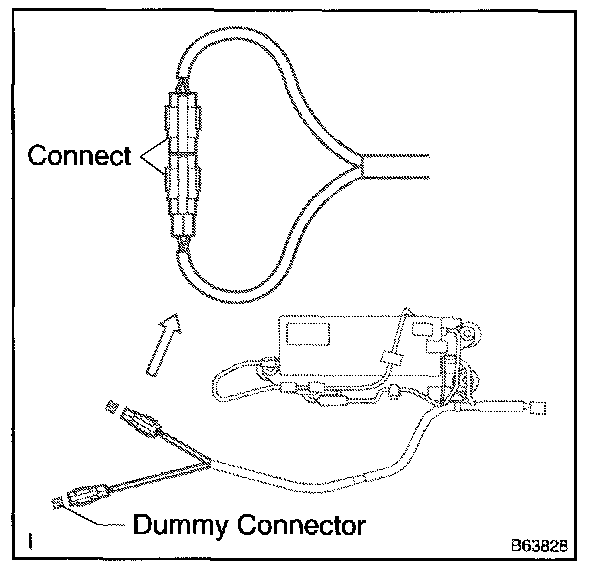

a. Disconnect the 2 dummy connectors from the wire harness connectors of a new telephone transceiver assembly, and connect those wire harness connectors each other.
b. Install the transceiver & battery assembly with the 3 nuts.
Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

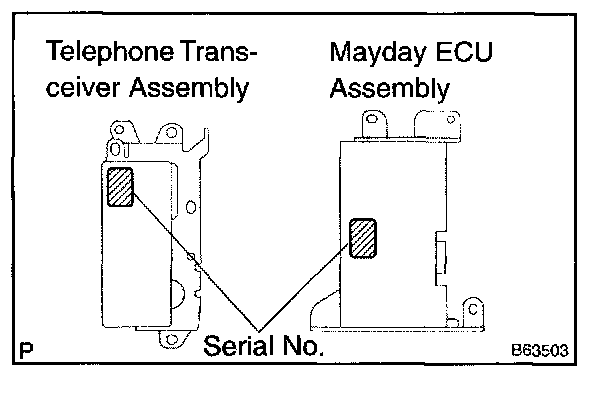

NOTE: Make sure that the last 4 digits of serial No. of the mayday ECU assembly correspond to those of the telephone transceiver assembly.
c. Connect the connectors and clamps.
