Microphone Amplifier Assy

REPLACEMENT

HINT: The installation is in the revers order of the removal.

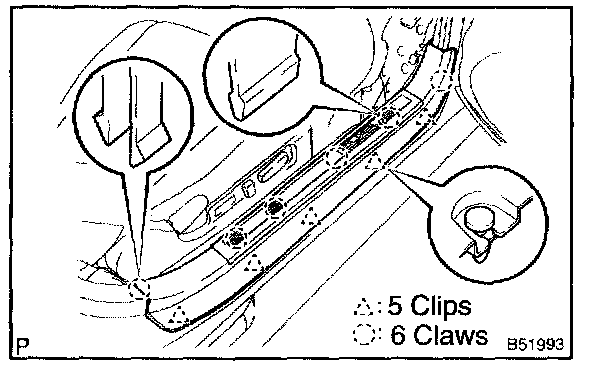

1. REMOVE DOOR SCUFF PLATE ASSY RH
a. Disengage the 6 claws and 5 clips.
b. Remove the door scuff plate assembly RH then disconnect the connector.

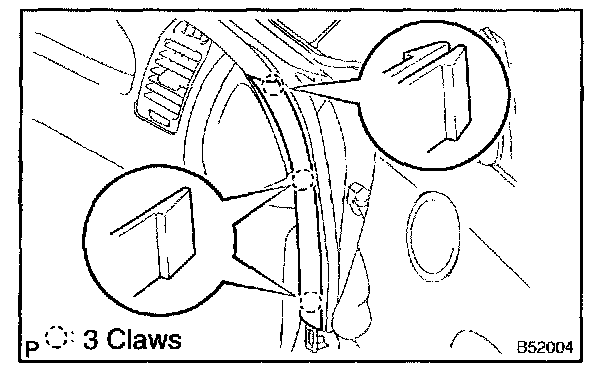

2. REMOVE FRONT DOOR OPENING TRIM COVER RH
a. Disengage the 3 claws then remove the front door opening trim cover RH.

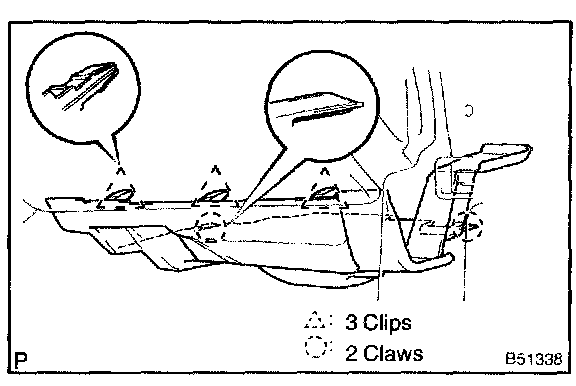

3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
a. Disengage the 3 clips, 2 claws and remove the instrument panel under cover No.2, and then disconnect the connectors.




4. REMOVE GLOVE COMPARTMENT DOOR ASSY
a. Remove the 2 bolts, 2 screws and glove compartment door assembly, and then disconnect the connectors.

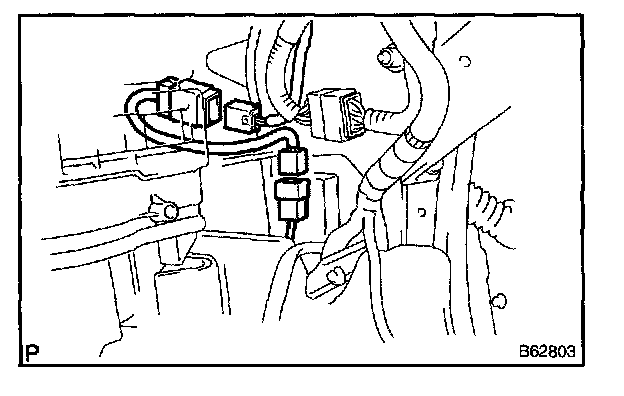

5. REMOVE MICROPHONE AMPLIFIER ASSY
a. Disconnect the connectors.
b. Disconnect the clamp and then remove the microphone amplifier assembly.
