Theft Deterrent Horn Circuit

CIRCUIT DESCRIPTION
This circuit is used to make the theft deterrent horn and vehicle's horn sound intermittently to issue an alarm.

NOTE: The troubleshooting should be performed after a confirmation that the theft deterrent horn system is turned on by the customizing function.

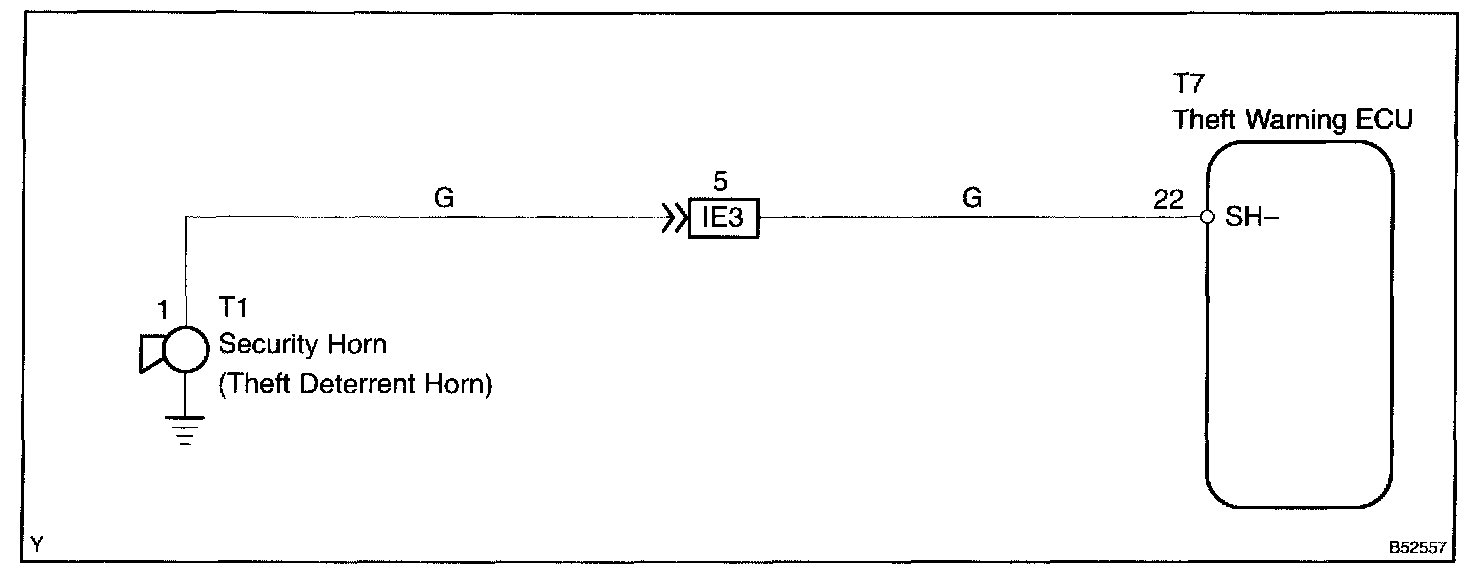

Wiring Diagram:

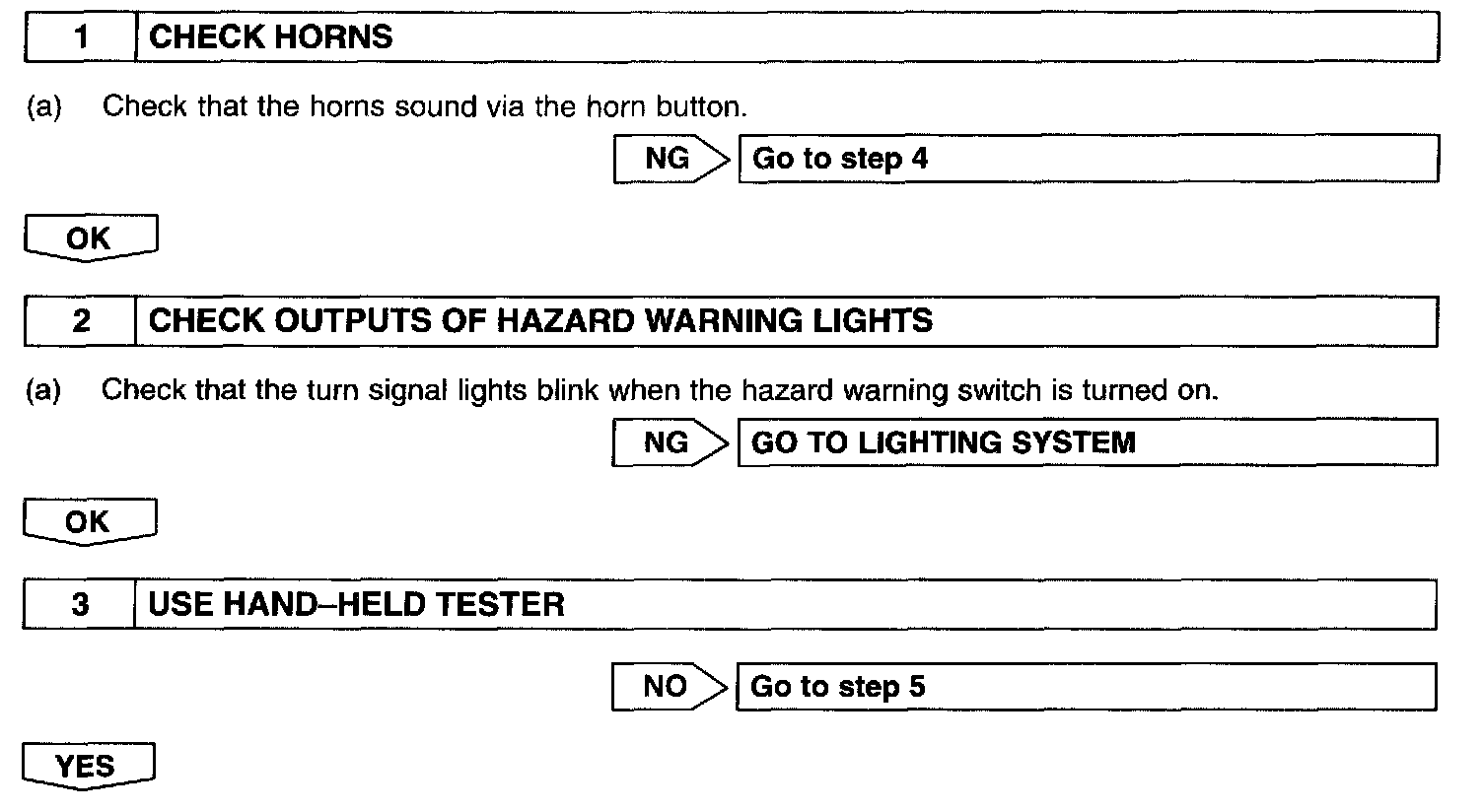

Step 1 - 3:

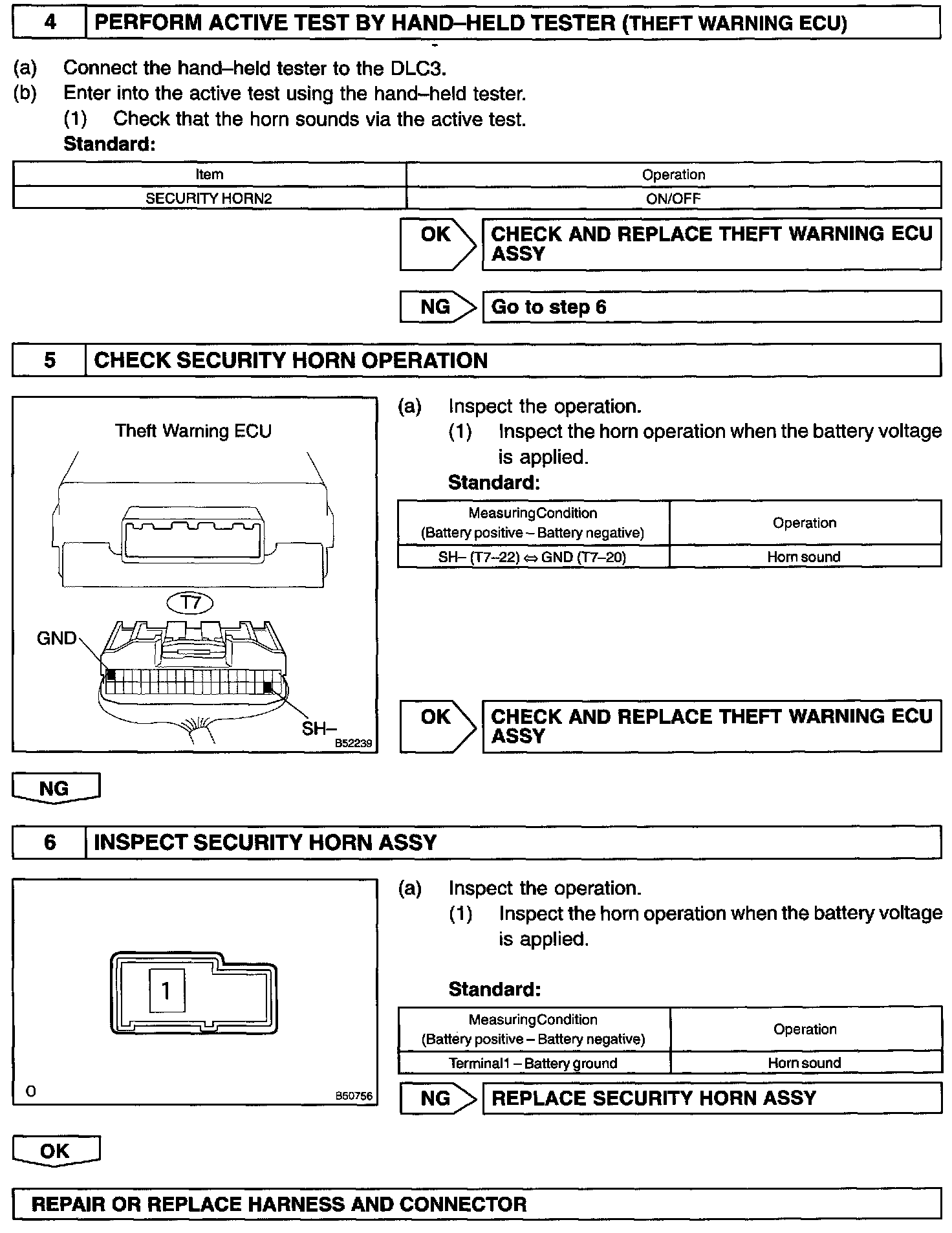

Step 4 - 6:

INSPECTION PROCEDURE
