Pre-Check

PRE-CHECK

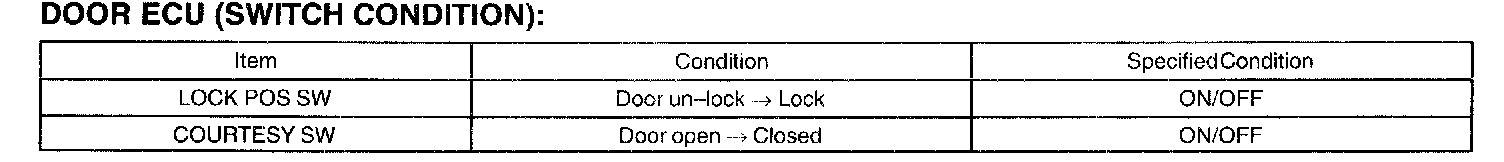

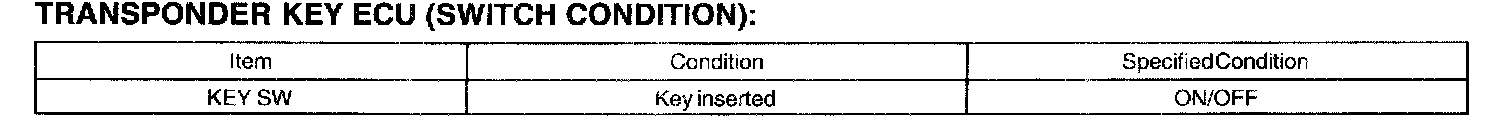

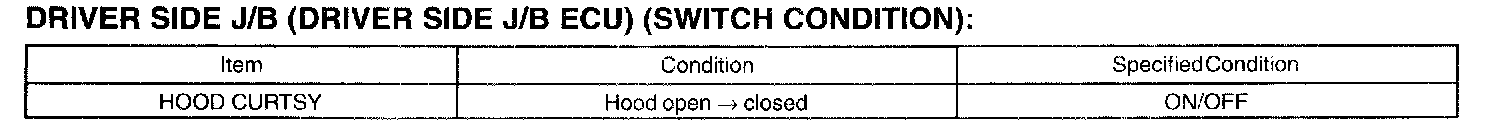

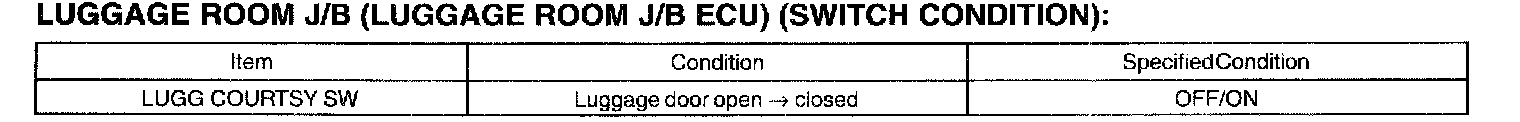

1. READ VALUE OF HAND-HELD TESTER













a. Connect the hand-held tester to the DLC3.
b. Read the data monitor using the hand-held tester

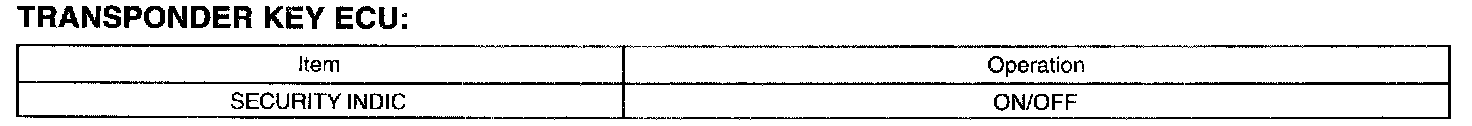

2. PERFORM ACTIVE TEST USING HAND-HELD TESTER







a. Connect the hand-held tester to the DLC3.
b. Enter into the active test using the hand-held tester.

3. CHANGE SETTING OF CUSTOMIZING FUNCTION USING HAND-HELD TESTER (REFERENCE)




a. Connect the hand-held tester to the DLC3.
b. Select a setting from the following items on the wireless door lock.
