Pre-Check

PRE-CHECK

1. READ VALUE OF HAND-HELD TESTER

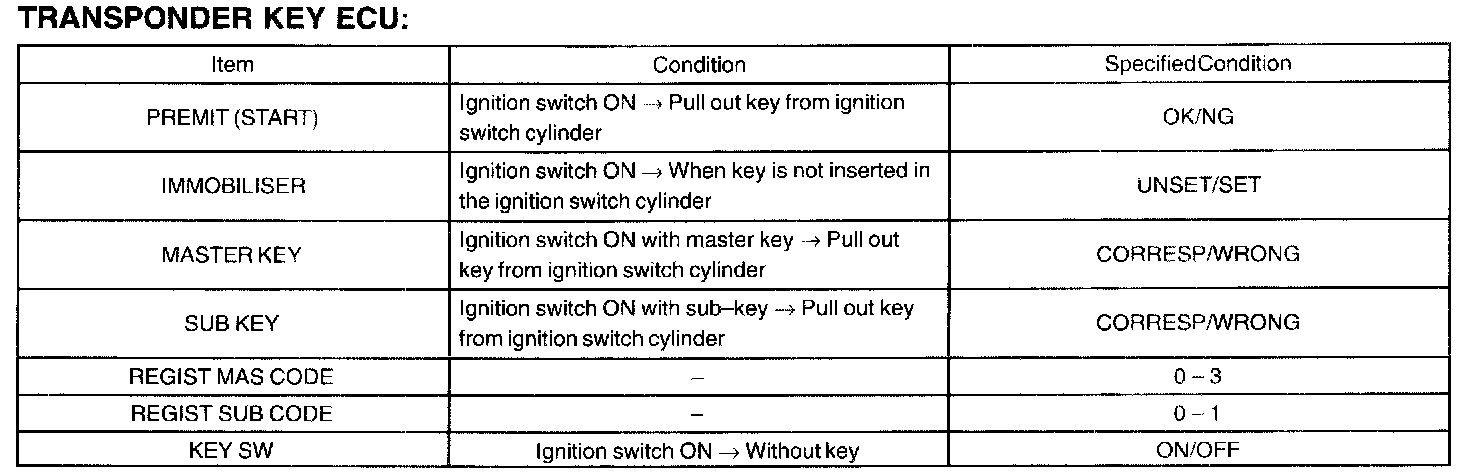

Transponder Key ECU:

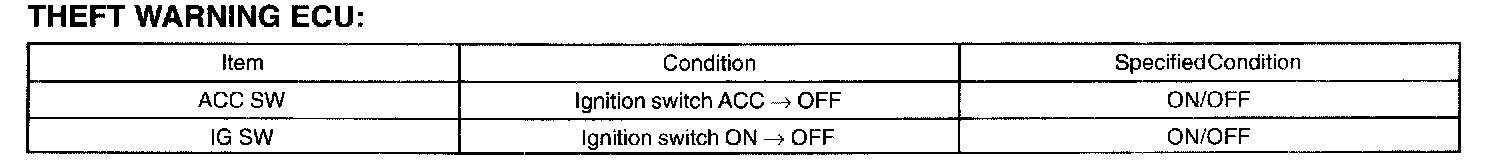

Theft Warning ECU:

a. Connect the hand-held tester to the DLC3
b. Read the data monitor using the hand-held tester.

2. PERFORM ACTIVE TEST USING HAND-HELD TESTER

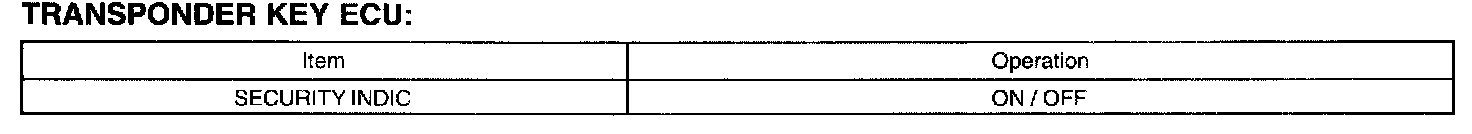

Transponder Key ECU:

a. Connect the hand-held tester to the DLC3.
b. Enter into the active test using the hand-held tester
