NAVIGATION ANTENNA ASSY

REPLACEMENT

1. TABLE OF BOLT, SCREW AND NUT
2. SHIP MODE SETTING
Refer to Radio/Stereo; Service and Repair.
3. SEPARATE BATTERY NEGATIVE TERMINAL
4. INSPECT CENTER FRONT WHEEL
5. REMOVE STEERING WHEEL COVER LOWER NO.2
6. REMOVE SWITCH & VOLUME CASE
7. REMOVE STEERING PAD SWITCH MODULATOR
8. REMOVE HORN BUTTON ASSY

9. REMOVE STEERING WHEEL ASSY
SST 09950-50012 (09951-05010, 09952-05010, 09953-05020, 09954-05020)

10. REMOVE DOOR SCUFF PLATE ASSY RH
11. REMOVE DOOR SCUFF PLATE ASSY LH
12. REMOVE FRONT DOOR OPENING TRIM COVER RH
13. REMOVE FRONT DOOR OPENING TRIM COVER LH
14. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY NO.1
15. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
16. REMOVE STEERING COLUMN COVER LWR
17. REMOVE STEERING COLUMN COVER UPR
18. REMOVE TURN SIGNAL SWITCH ASSY
19. REMOVE COMBINATION METER ASSY
20. REMOVE CONSOLE UPPER PANEL GARNISH REAR
21. REMOVE CONSOLE PANEL SUB-ASSY UPPER
22. REMOVE AIR CONDITIONER CONTROL ASSY
23. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER
24. SHIP MODE CONFIRMATION
25. REMOVE INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSY (W/ LEXUS NAVIGATION SYSTEM)
26. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY NO.2 (W/ LEXUS NAVIGATION SYSTEM)
27. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (W/ LEXUS NAVIGATION SYSTEM)
28. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
29. REMOVE GLOVE COMPARTMENT DOOR ASSY
30. REMOVE CONSOLE BOX CARPET
31. REMOVE BOX PANEL NO.3
32. REMOVE CONSOLE BOX ASSY
33. REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO.2
34. REMOVE INSTRUMENT PANEL BRACE SUB-ASSY NO.1
35. REMOVE FRONT PILLAR GARNISH RH
36. REMOVE FRONT PILLAR GARNISH LH
37. REMOVE INSTRUMENT SIDE PANEL RH
38. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
39. REMOVE HEATER TO REGISTER DUCT NO.4
40. REMOVE STEERING COLUMN ASSY
41. REMOVE INSTRUMENT PANEL PIN NO.1
42. REMOVE DEFROSTER NOZZLE GARNISH NO.1
43. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.1
44. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.2
45. REMOVE DEFROSTER NOZZLE FRONT
46. REMOVE HEATER TO REGISTER DUCT NO.1
47. REMOVE HEATER TO REGISTER DUCT NO.3
48. REMOVE HEATER TO REGISTER DUCT NO.2
49. REMOVE INSTRUMENT PANEL REINFORCEMENT




50. REMOVE NAVIGATION ANTENNA ASSY

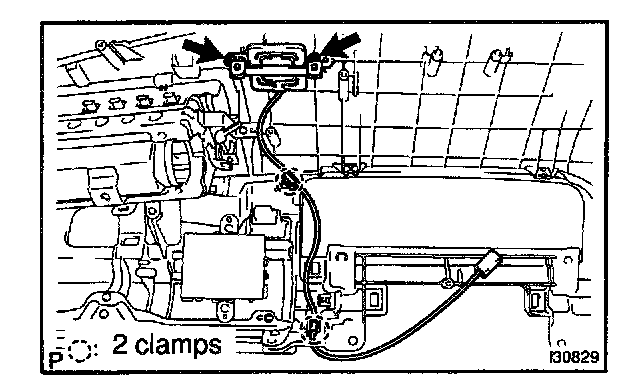

a. Remove the 2 clamps.
b. Remove the 2 screws and navigation antenna assy.

51. INSTALL INSTRUMENT PANEL REINFORCEMENT
52. INSTALL STEERING COLUMN ASSY
53. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY
54. INSTALL INSTRUMENT PANEL BRACE SUB-ASSY NO.2
55. INSTALL INSTRUMENT PANEL BRACE SUB-ASSY NO.1
56. INSTALL CONSOLE BOX ASSY
57. CENTER SPIRAL CABLE
58. INSTALL STEERING WHEEL ASSY
59. INSPECT STEERING WHEEL CENTER POINT
60. INSPECT HORN BUTTON ASSY
61. INSTALL HORN BUTTON ASSY
62. INSPECT SRS WARNING LIGHT
