MULTI-DISPLAY (CRT DISPLAY) DISPLAY

REPLACEMENT

1. REMOVE AIR CONDITIONER CONTROL ASSY
2. REMOVE INSTRUMENT PANEL SAFETY PAD GARNISH SUB-ASSY (W/ LEXUS NAVIGATION SYSTEM)
3. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY NO.2 (W/ LEXUS NAVIGATION SYSTEM)




4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (W/ LEXUS NAVIGATION SYSTEM)

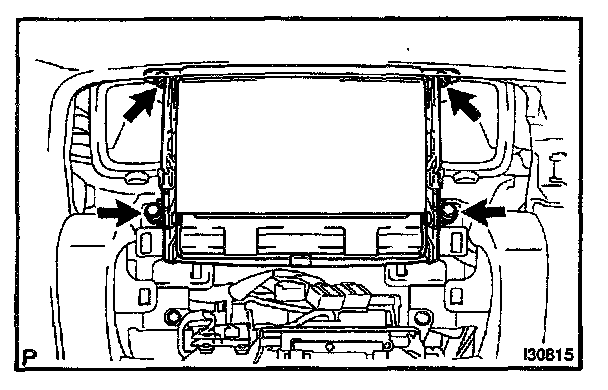

a. Remove the 2 bolts and 2 screws.
b. Disconnect the connector, then remove the multi-display (CRT DISPLAY) display and instrument cluster finish panel sub-assy center and clip.




5. REMOVE MULTI-DISPLAY (CRT DISPLAY) DISPLAY
a. Remove the 4 screws and instrument panel finish UPR panel.

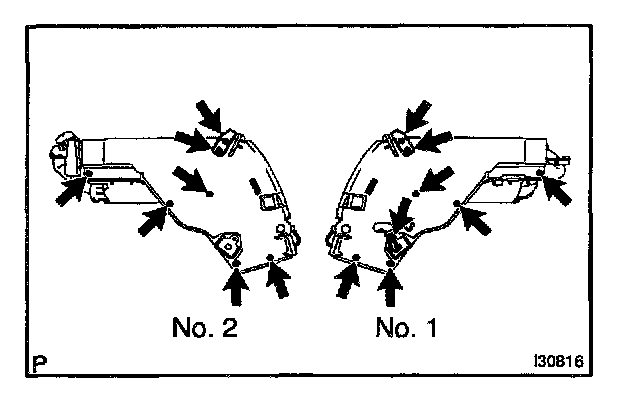

b. Remove the 6 screws and instrument panel finish panel No.1 retainer.
c. Remove the 5 screws and instrument panel finish panel No.2 retainer.
d. Remove the instrument cluster finish CTR LWR panel.

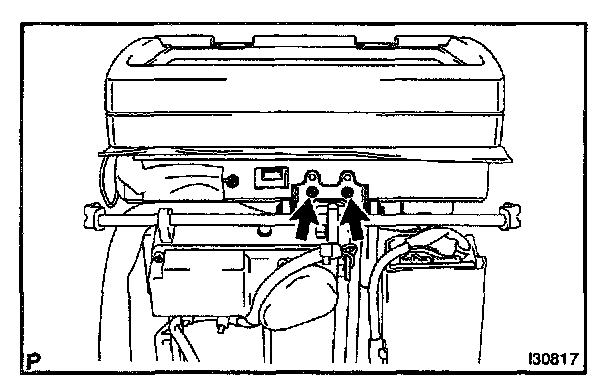

e. Remove the 2 screws.




f. Remove the 2 screws and wiring harness clamp.
g. Disconnect the 4 connectors, then remove the clamp.
h. Remove the multi-display (CRT DISPLAY) display.
