Troubleshooting

DTC P0982 SHIFT SOLENOID "D" CONTROL CIRCUIT LOW (SHIFT SOLENOID VALVE S4)

CIRCUIT DESCRIPTION

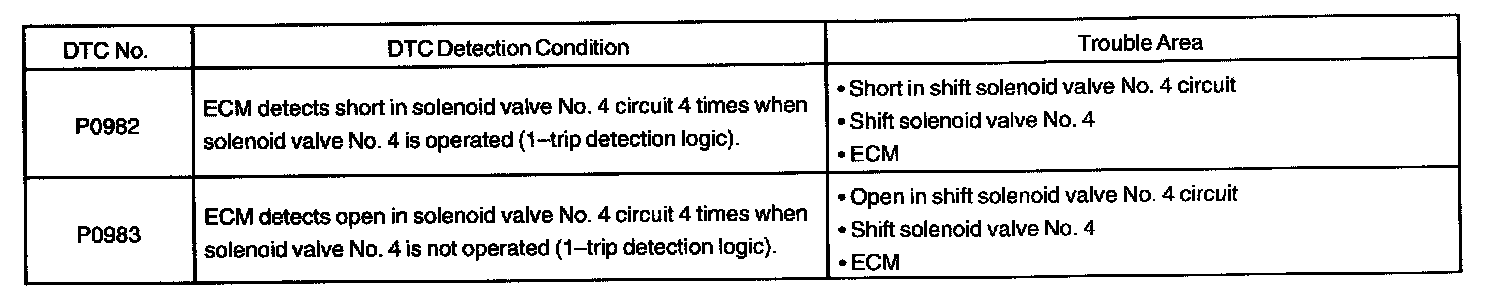

DTC Detection Condition:

Shift solenoid valve No.4 is controlled by ECM and it switches ON and OFF of the O/D direct clutch.

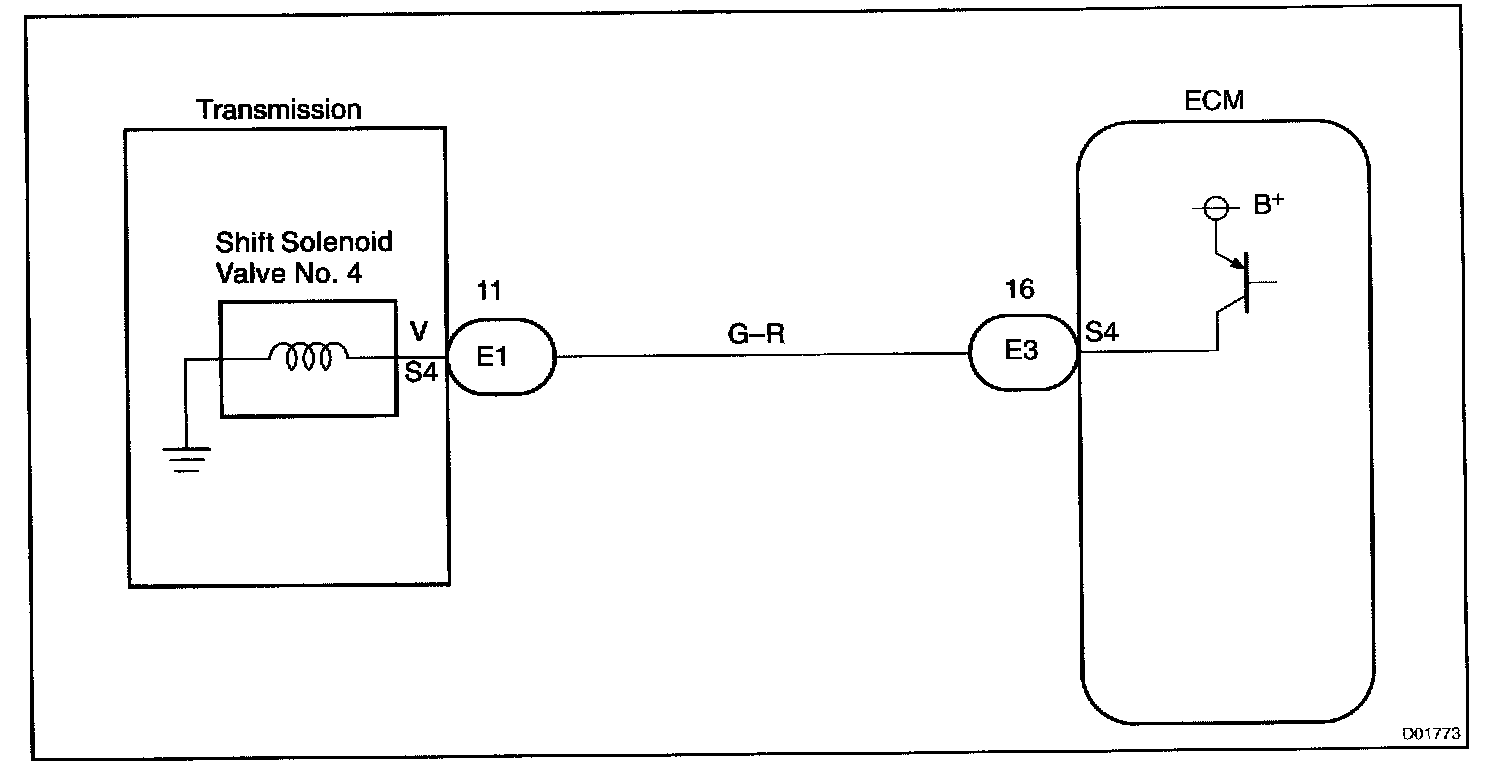

Wiring Diagram:

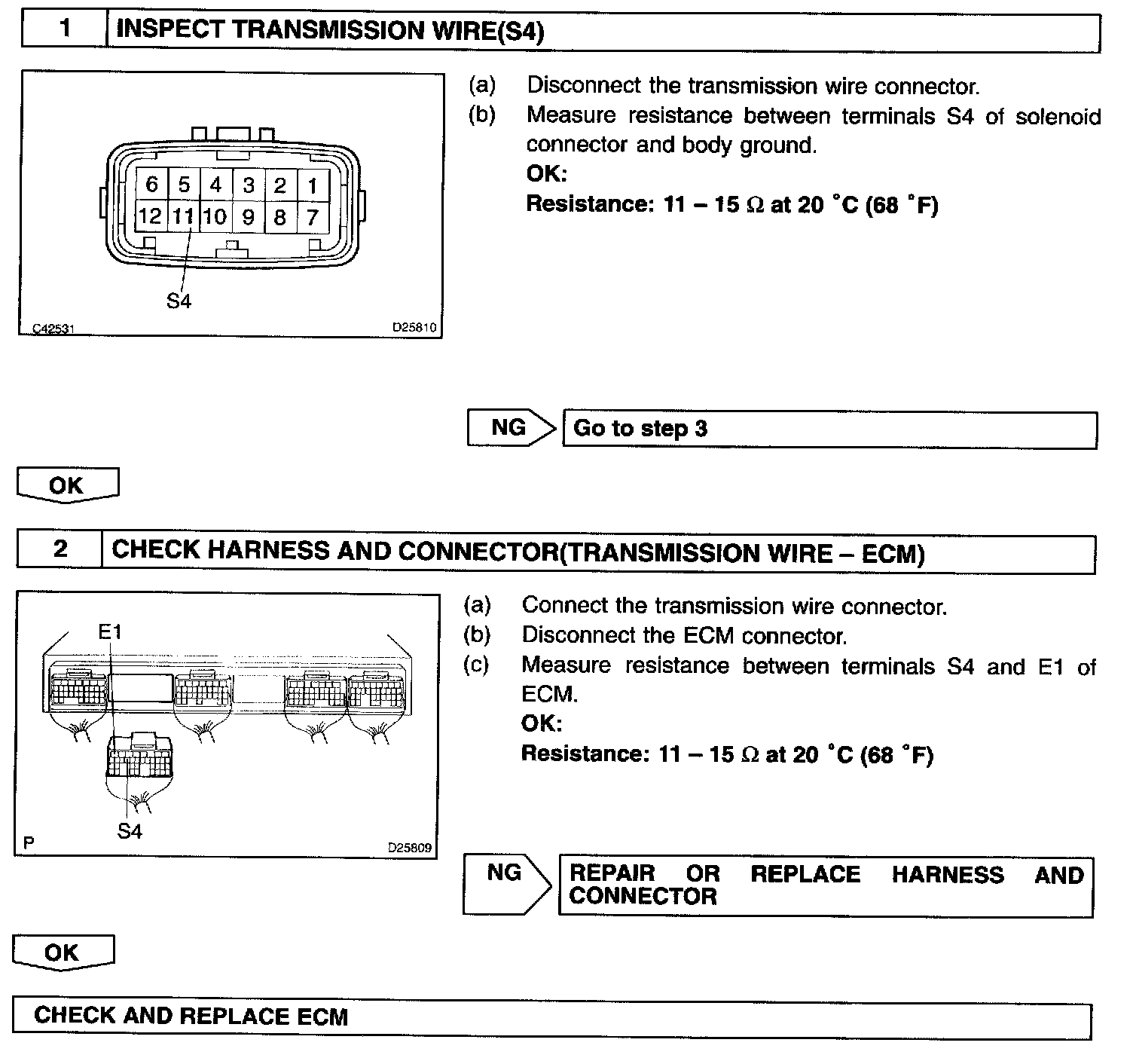

Step 1 - 2:

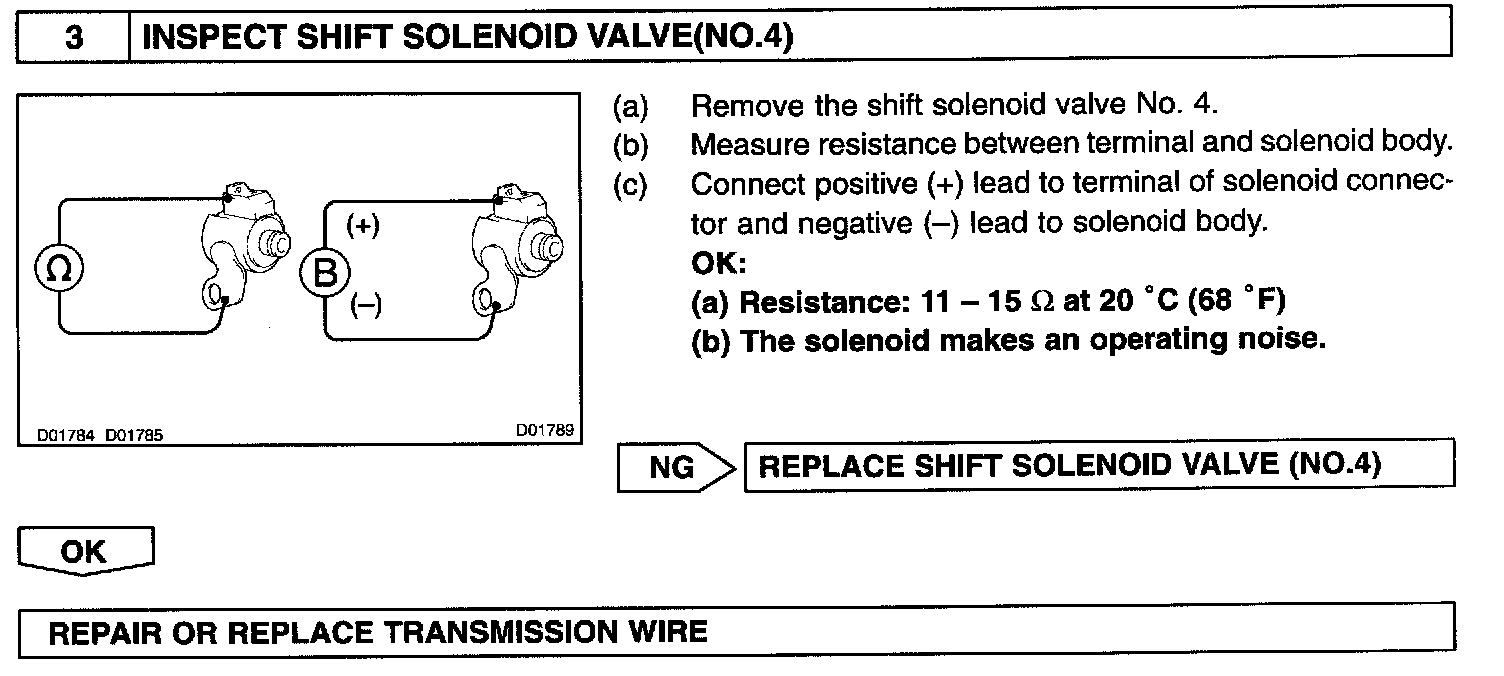

Step 3:

INSPECTION PROCEDURE
