Troubleshooting

DTC P0713 TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT HIGH INPUT

CIRCUIT DESCRIPTION

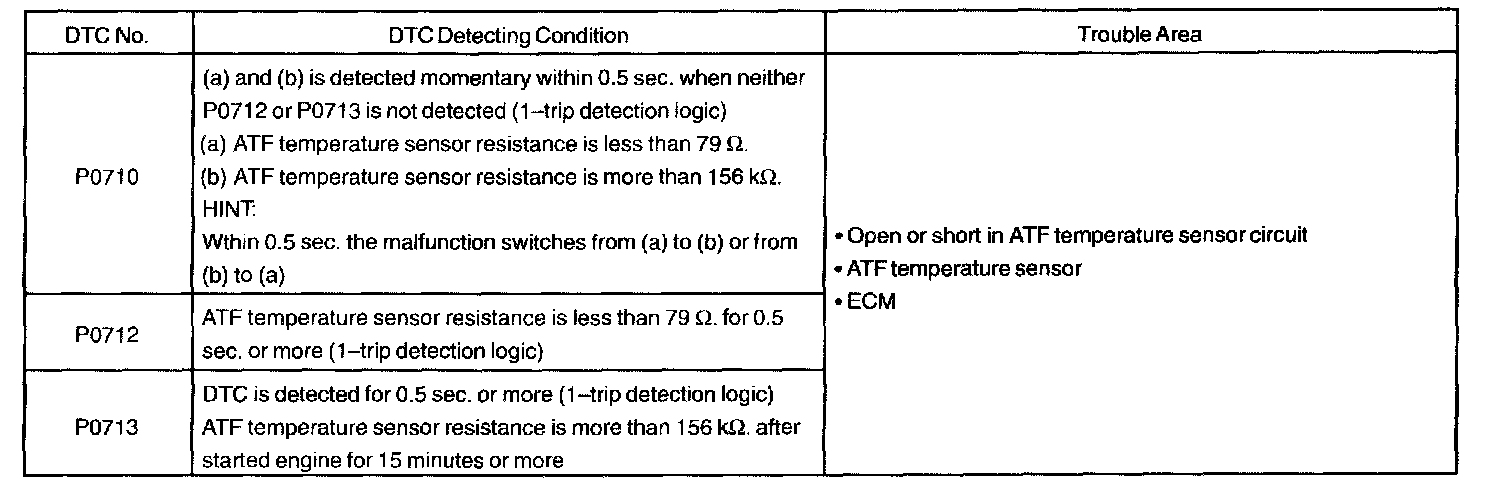

DTC Detecting Condition:

The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

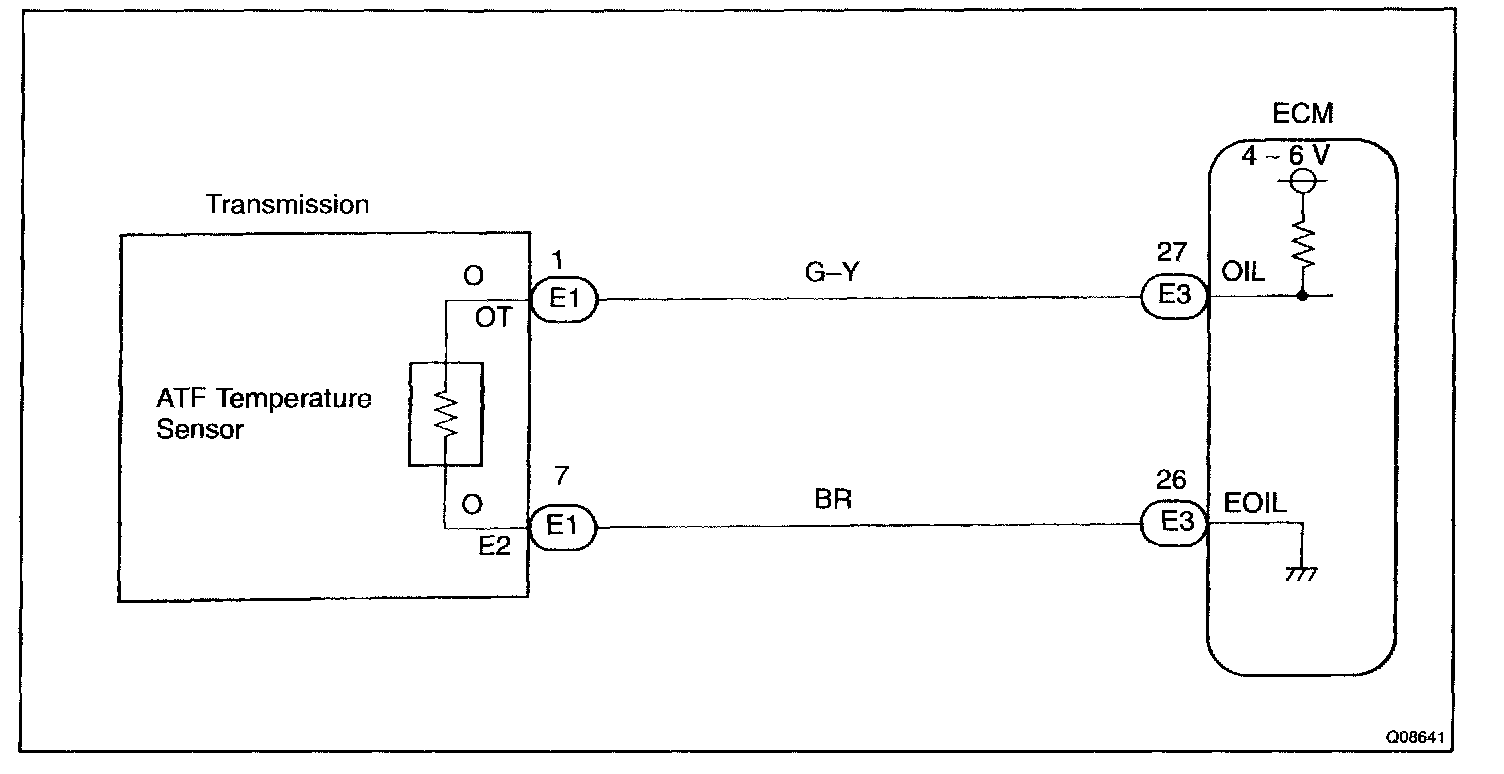

Wiring Diagram:

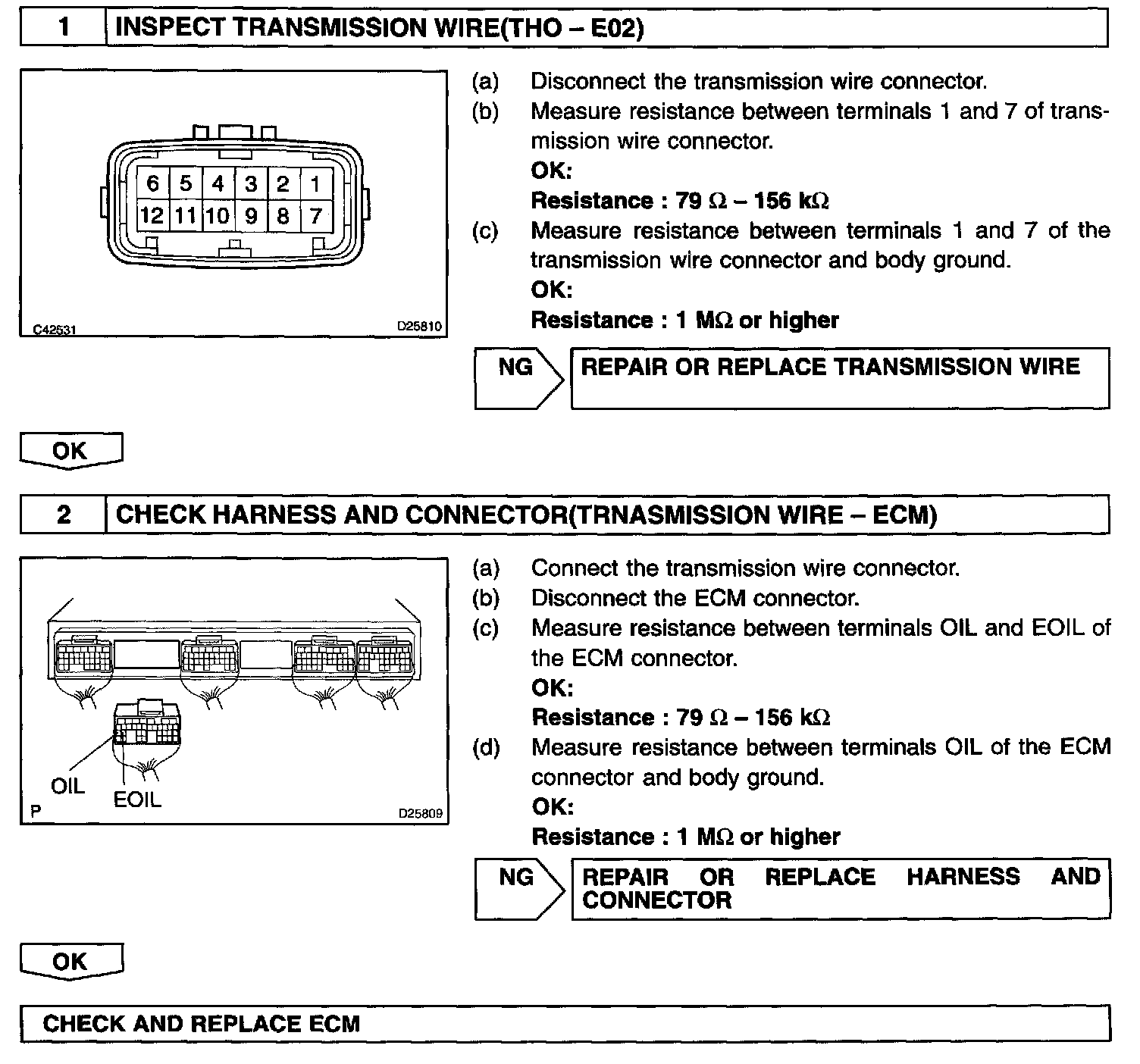

Step 1 - 2:

INSPECTION PROCEDURE
