Engine Control System
DTC P0571 BRAKE SWITCH "A" CIRCUITCIRCUIT DESCRIPTION

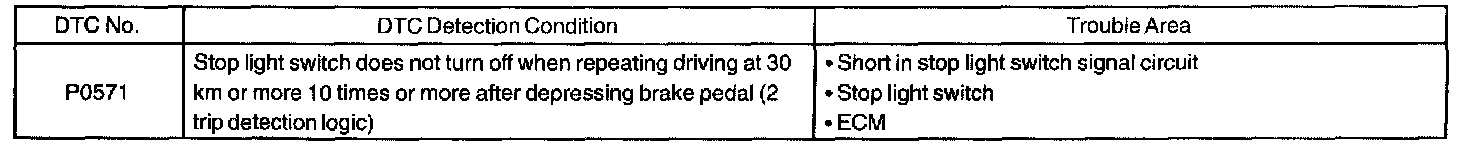

DTC Detection Condition:
This signal is used to detect when the brakes have been applied. The STP signal voltage is the same as the voltage supplied to the stop lights.
The STP signal is used mainly to control the fuel cut-off engine speed (The fuel cut-off engine speed is reduced slightly when the vehicle is braking.).
INSPECTION PROCEDURE:

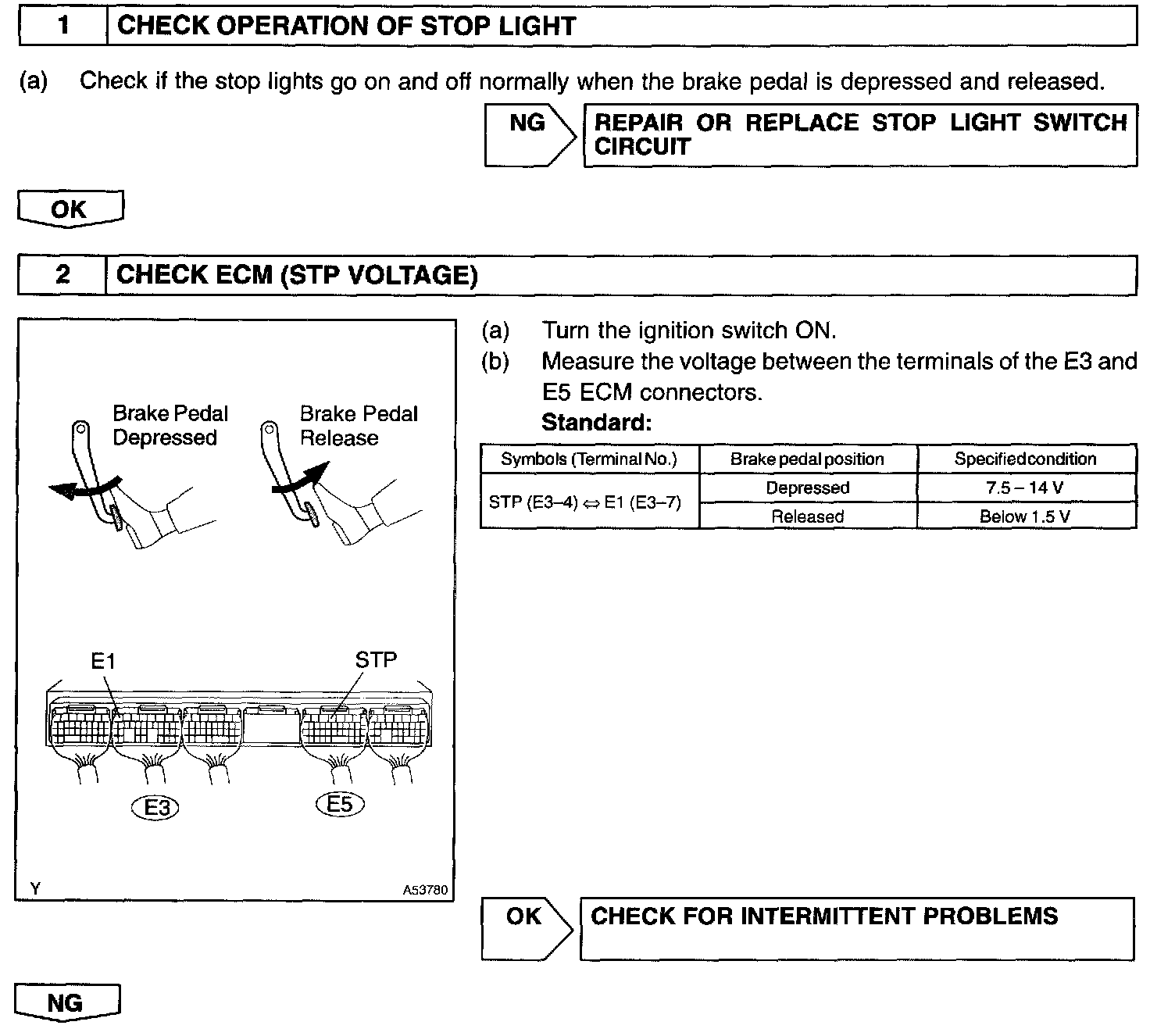

Step 1:

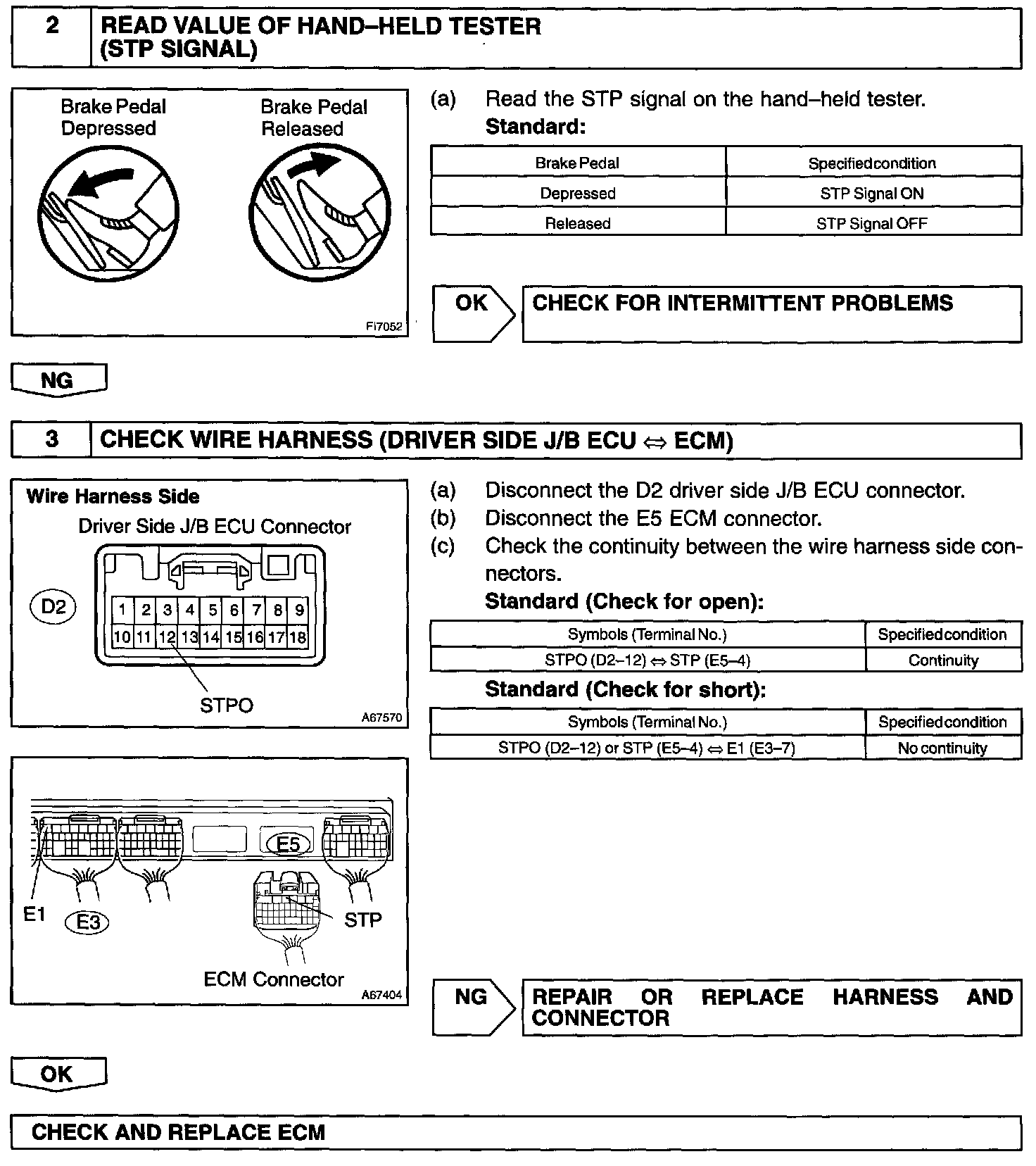

Step 2 - 3:
Hand-held tester
Step 1 - 2:

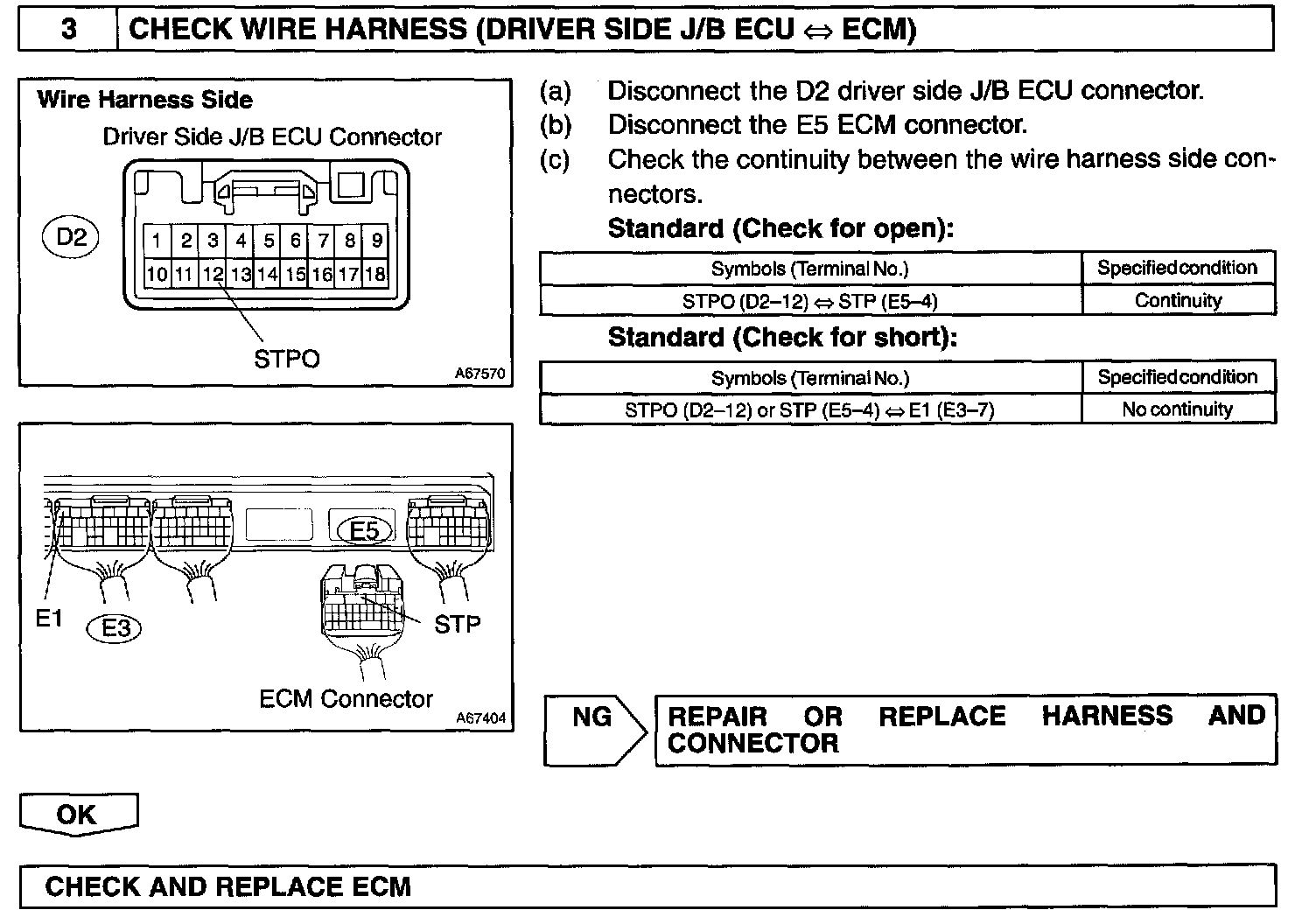

Step 3:
OBD II scan tool (excluding hand-held tester)
CHECK FOR INTERMITTENT PROBLEMS
Hand-held tester only:
By putting the vehicle's ECM in the check mode, the 1 trip detection logic is possible instead of the 2 trip detection logic and the sensitivity to detect open circuits is increased. This makes it easier to detect intermittent problems.
1. Clear the DTCs.
2. Set the check mode.
3. Perform a simulation test.
4. Check the connector and terminal.
5. Handle the connector.
