DTC 6

DTC 6 - "CODE 6. LOSS OF BEAN COMMUNICATION"

CIRCUIT DESCRIPTION
This DTC is output when communication from the airbag ECU is interrupted for 10 sec. or more. In this case, possible causes are communication interruption from the airbag ECU, a failure in the bus buffer ECU or a break of the harness between the bus buffer ECU and the telephone ECU (Mayday ECU).

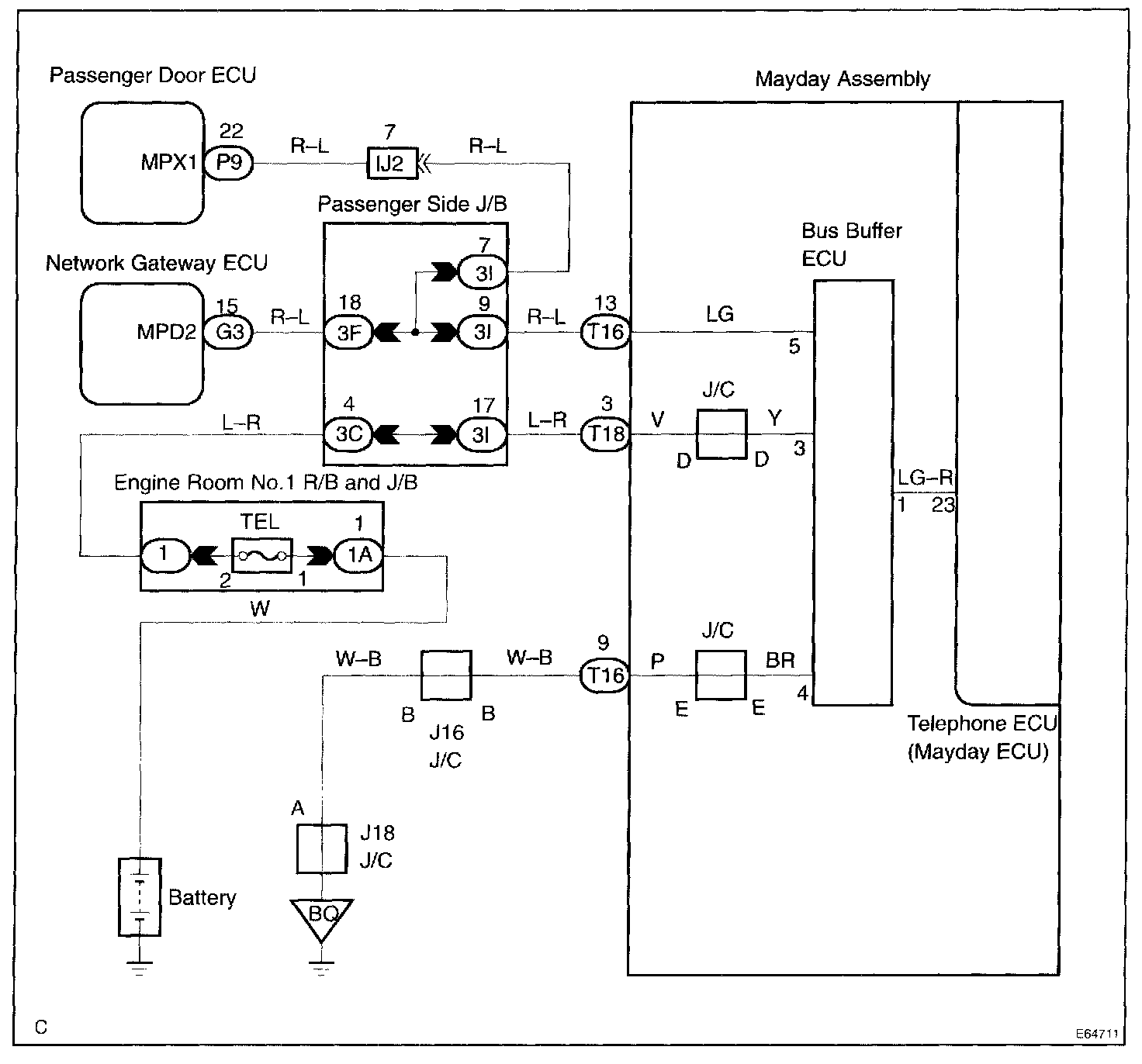

Wiring Diagram:

Step 1 - 2:

INSPECTION PROCEDURE
