DTC 24

DTC 24 SOLAR SENSOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

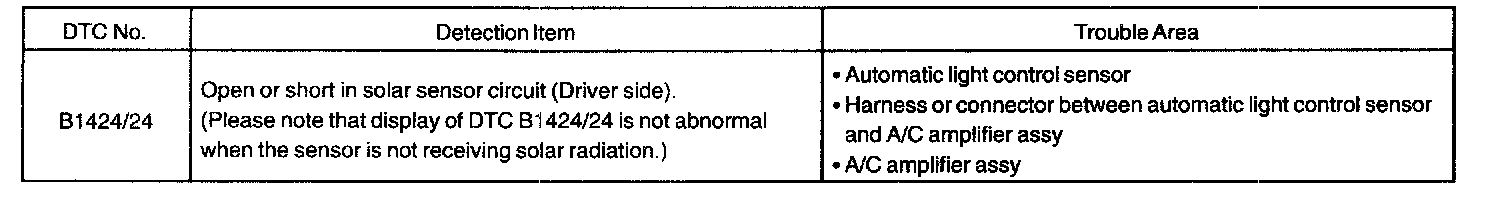

Detection Item:

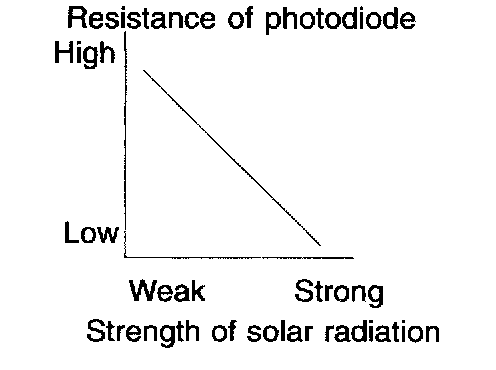

A photo diode in the automatic light control sensor detects solar radiation and sends signals to the A/C amplifier.

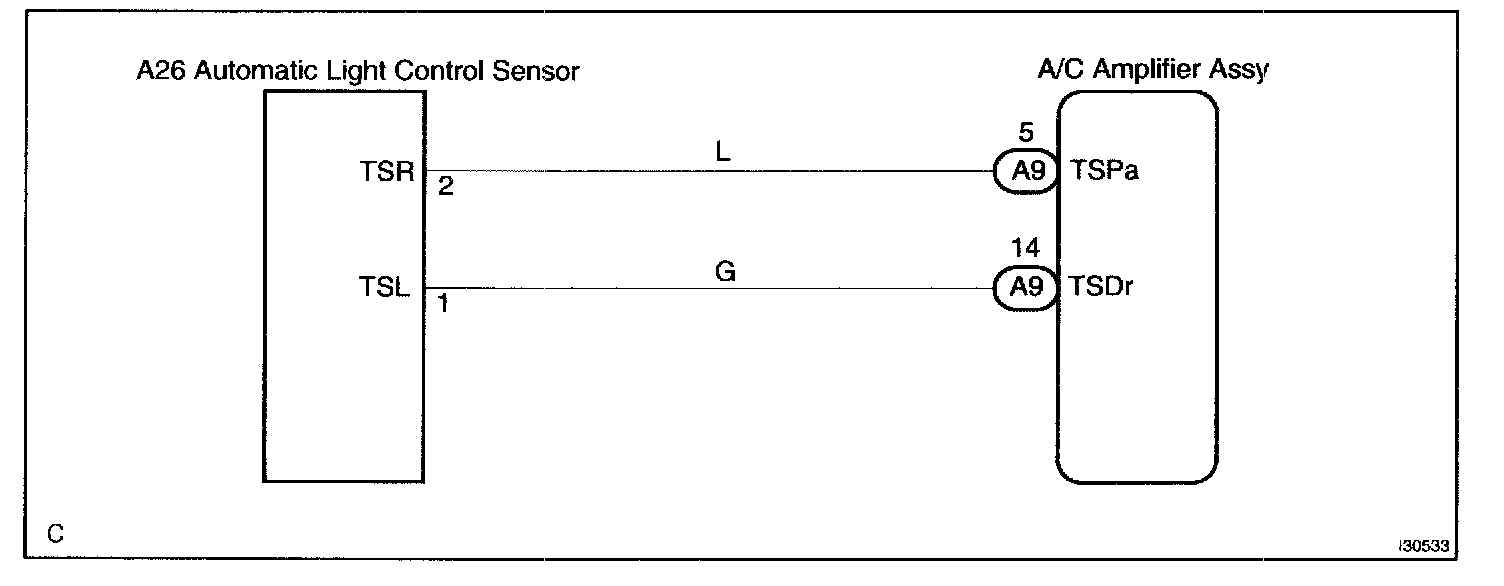

Wiring Diagram:

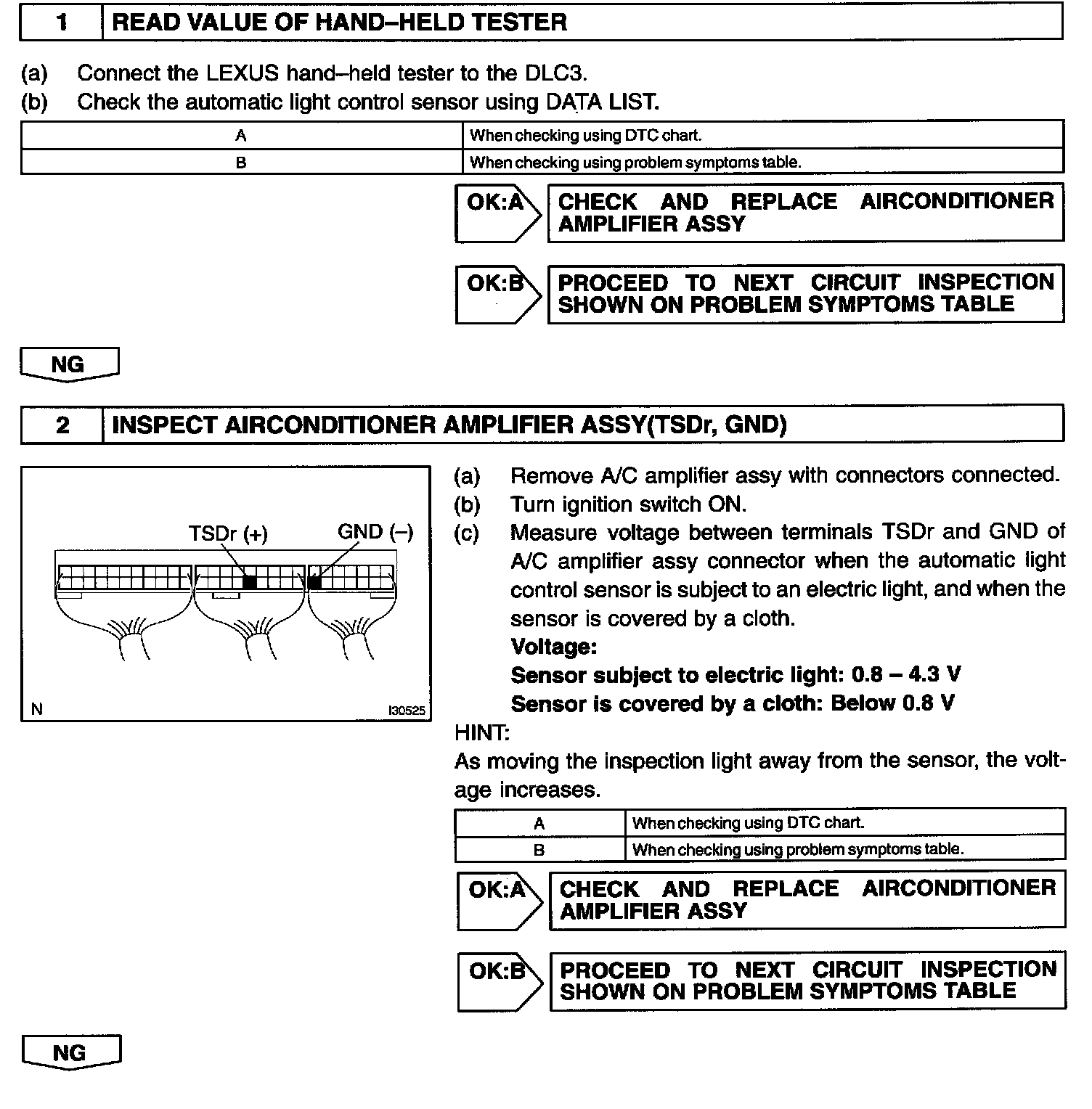

Step 1 - 2:

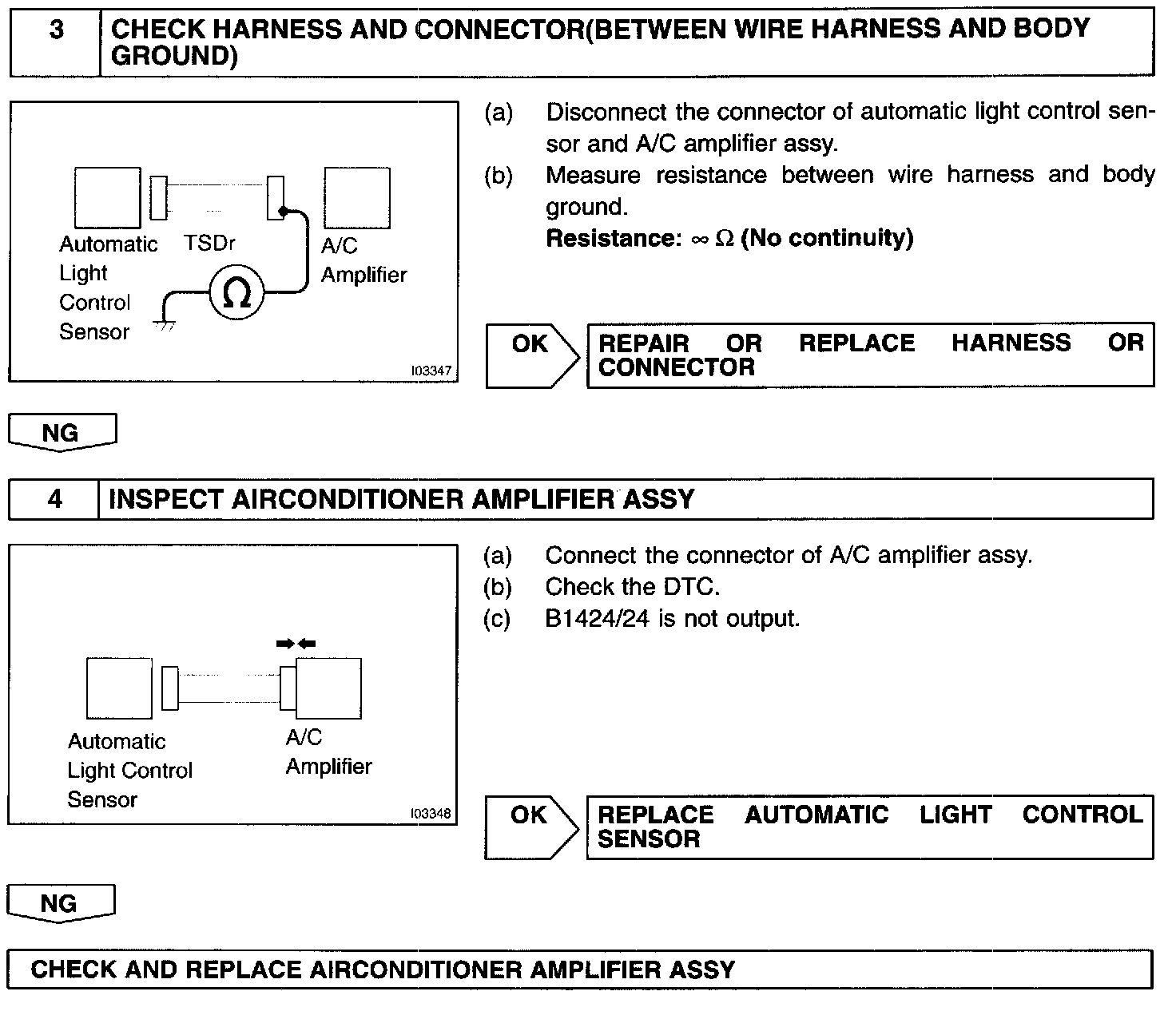

Step 3 - 4:

INSPECTION PROCEDURE

HINT: In case of using LEXUS hand-held tester, start the inspection step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
