DTC 56

DTC 55 SHORT IN P SQUIB (2ND STEP) CIRCUIT (TO B+)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assy center and the instr pnl pass I/door airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1188/56 is recorded when a B+ short is detected in the P squib (2nd step) circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3 - 4:

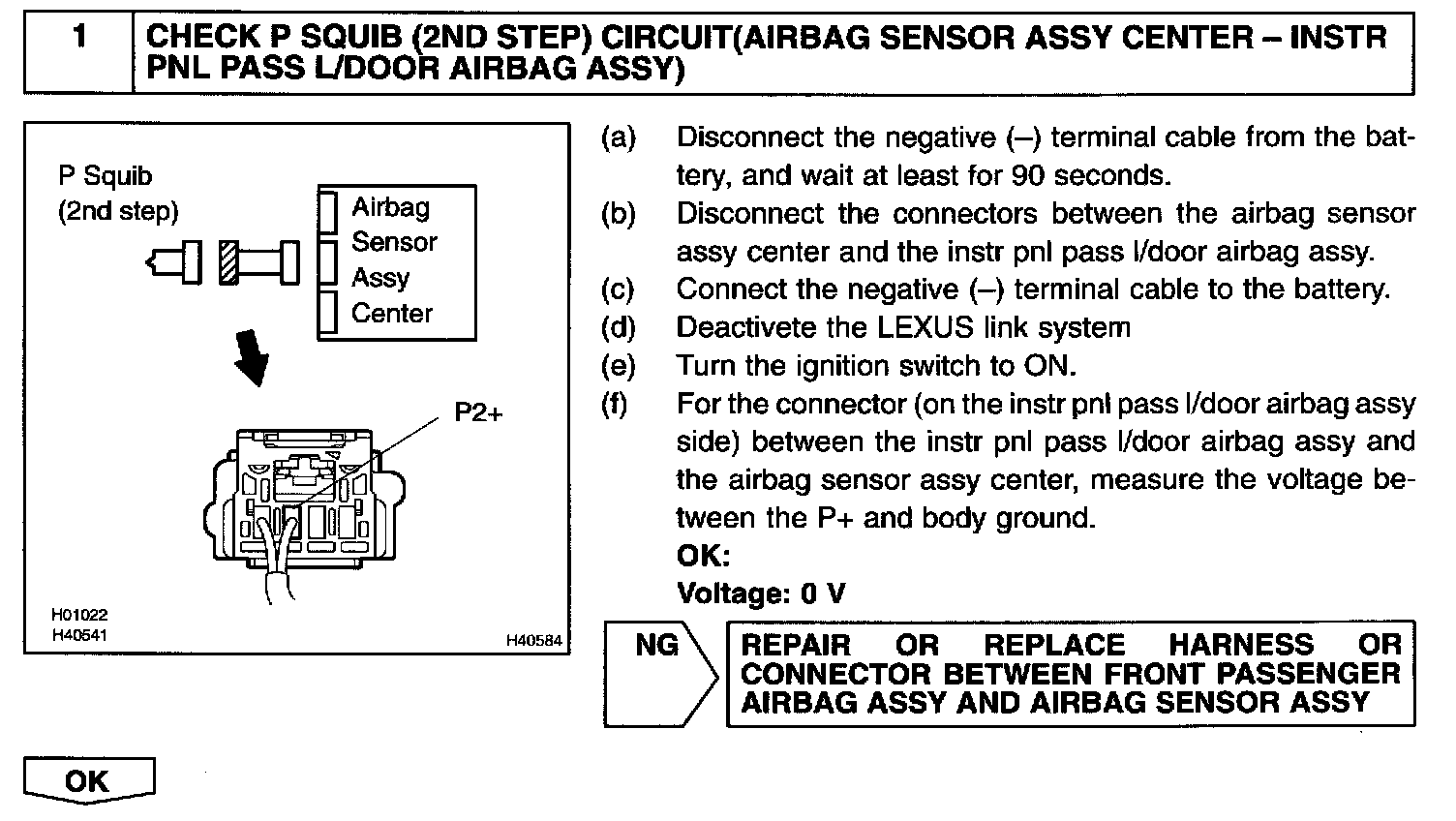

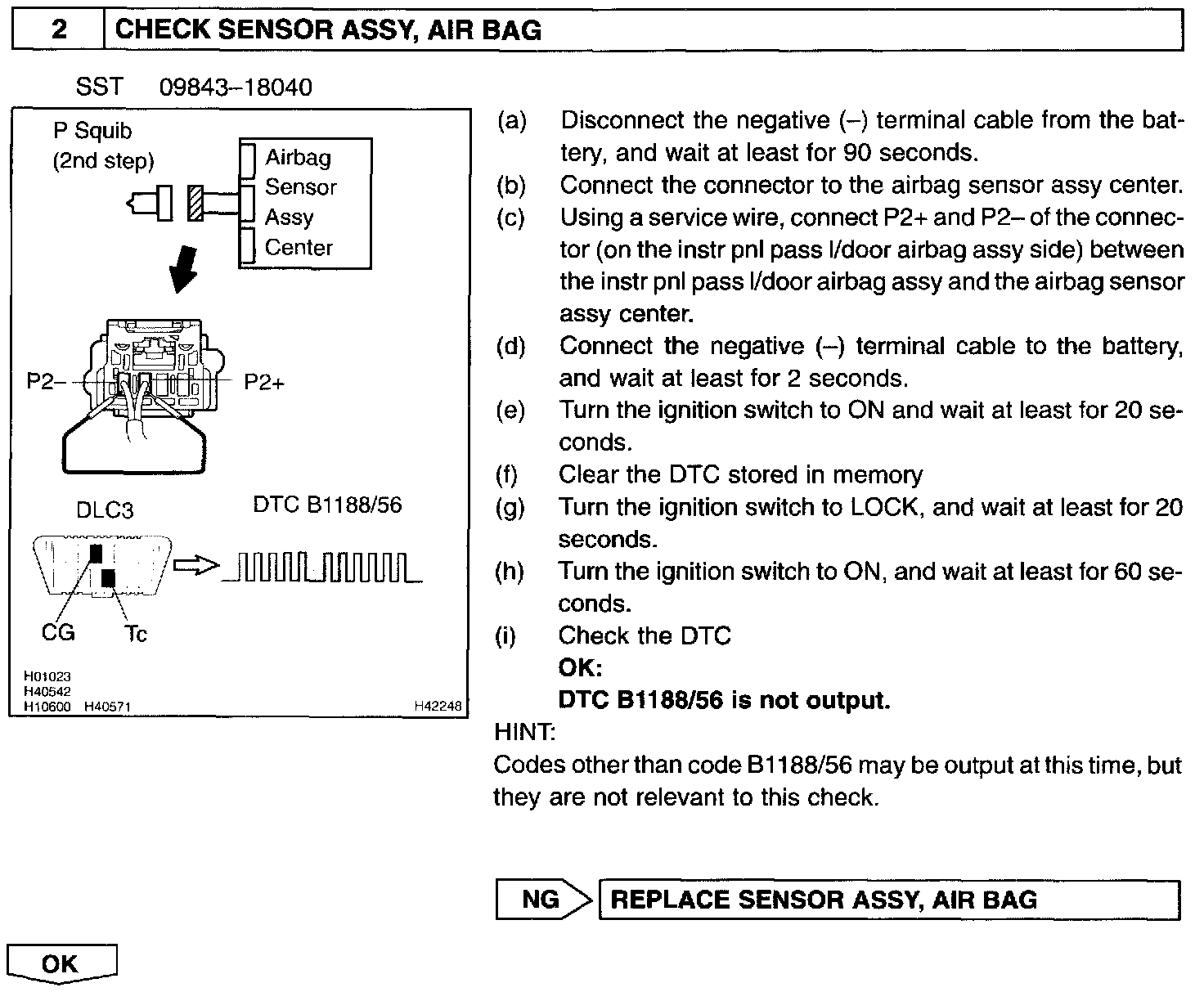

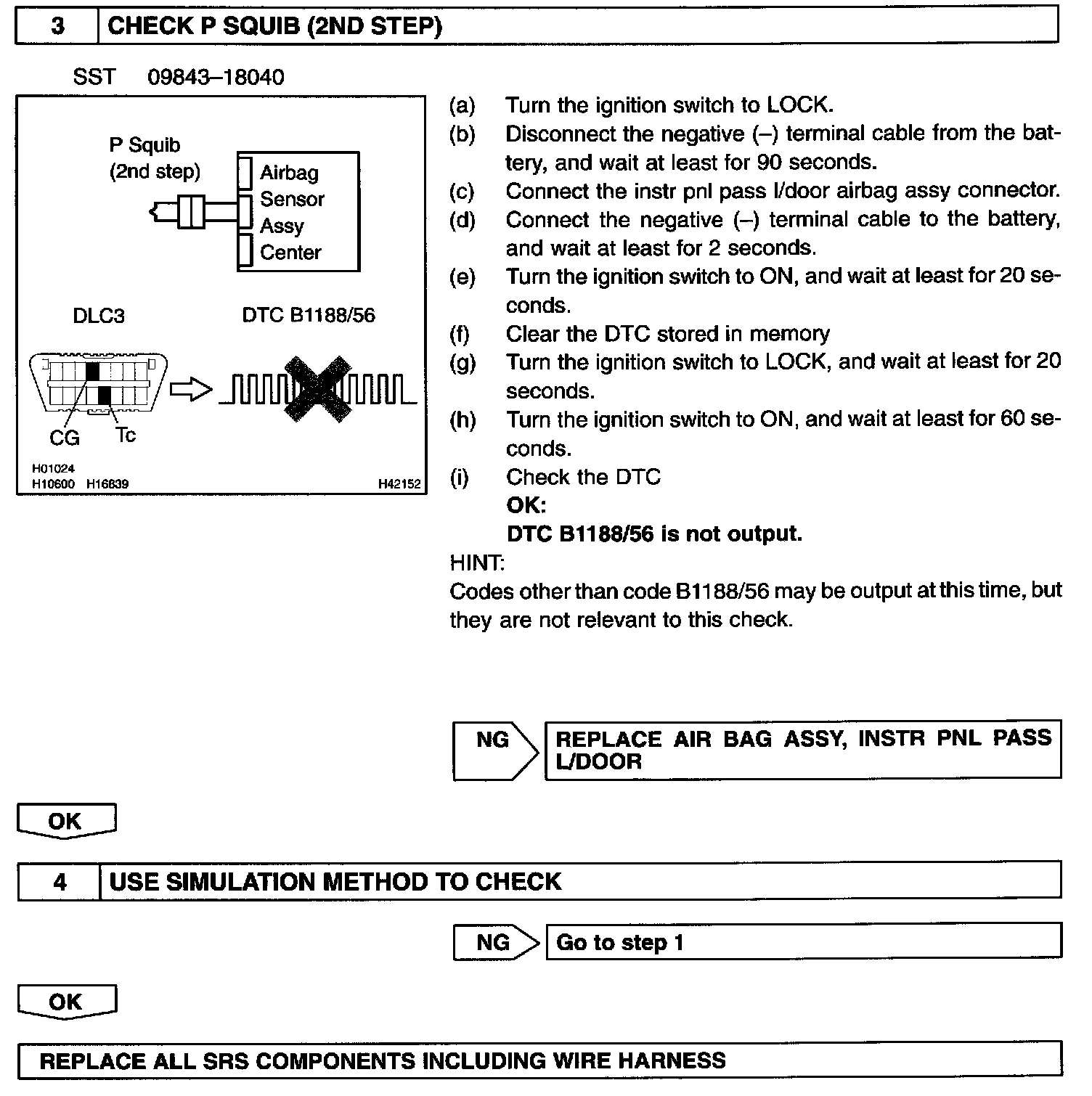

INSPECTION PROCEDURE
