DTC 56

DTC 56 ACCUMULATOR LOW PRESSURE

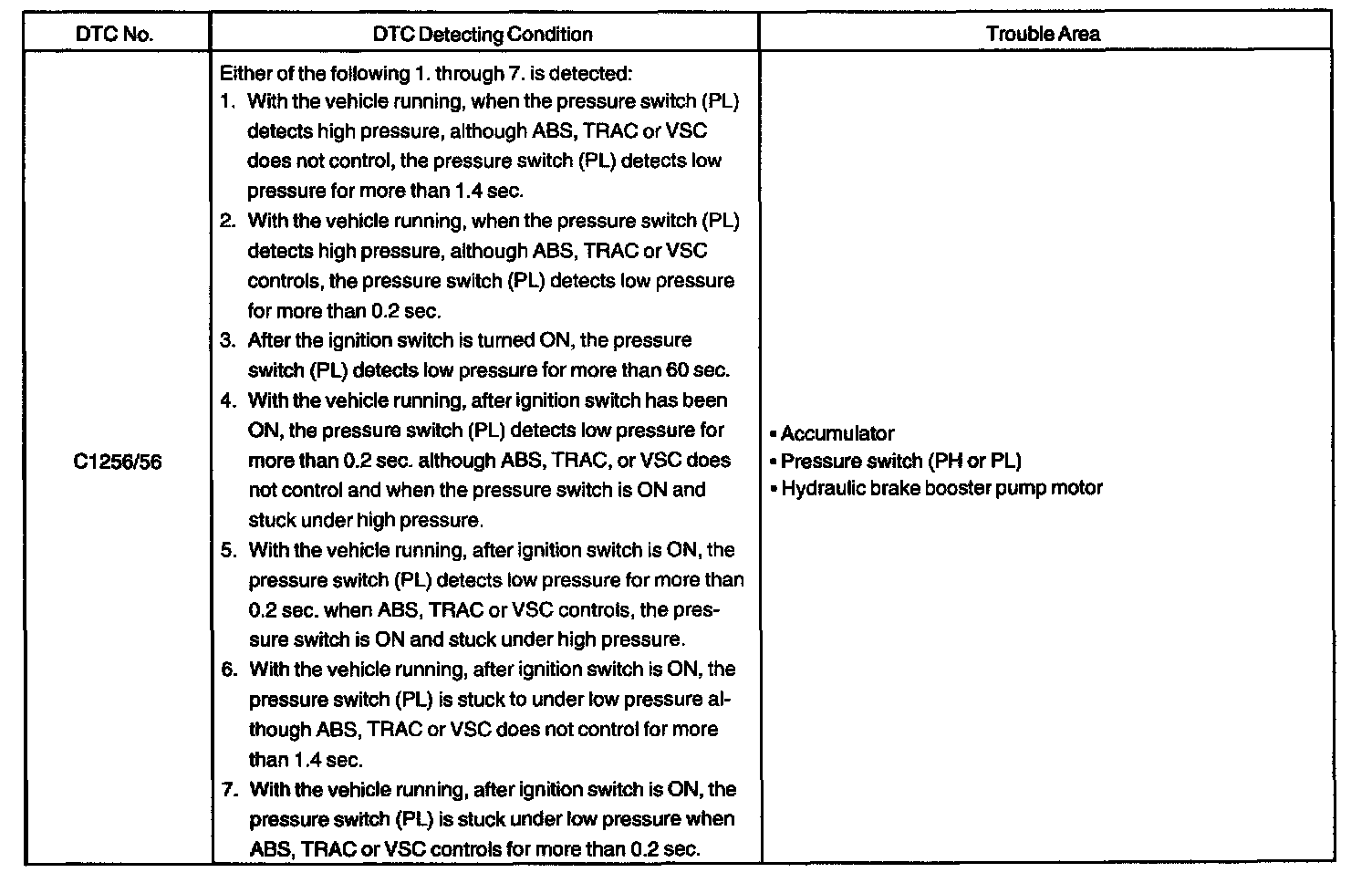

DTC Detecting Condition:




CIRCUIT DESCRIPTION

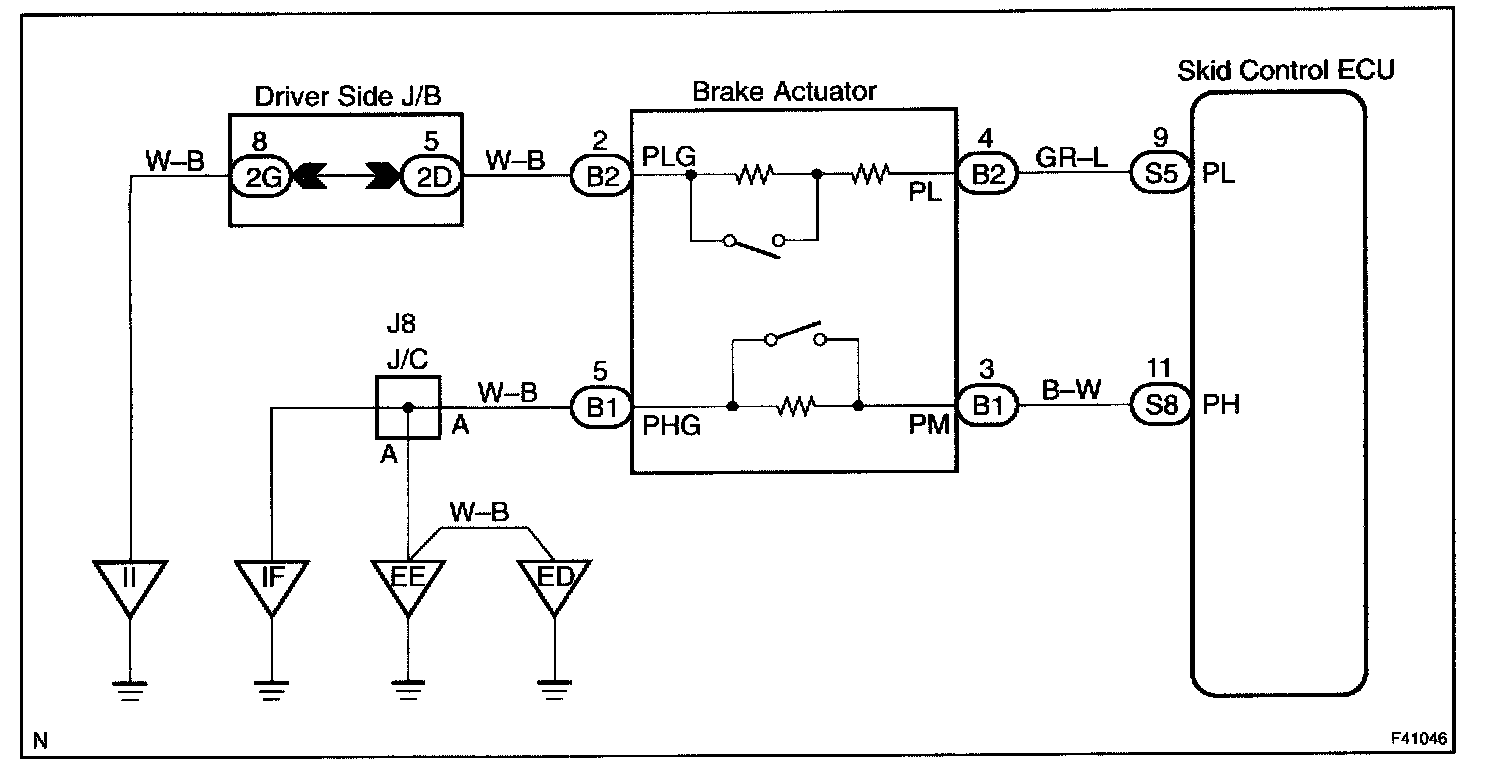

Wiring Diagram:

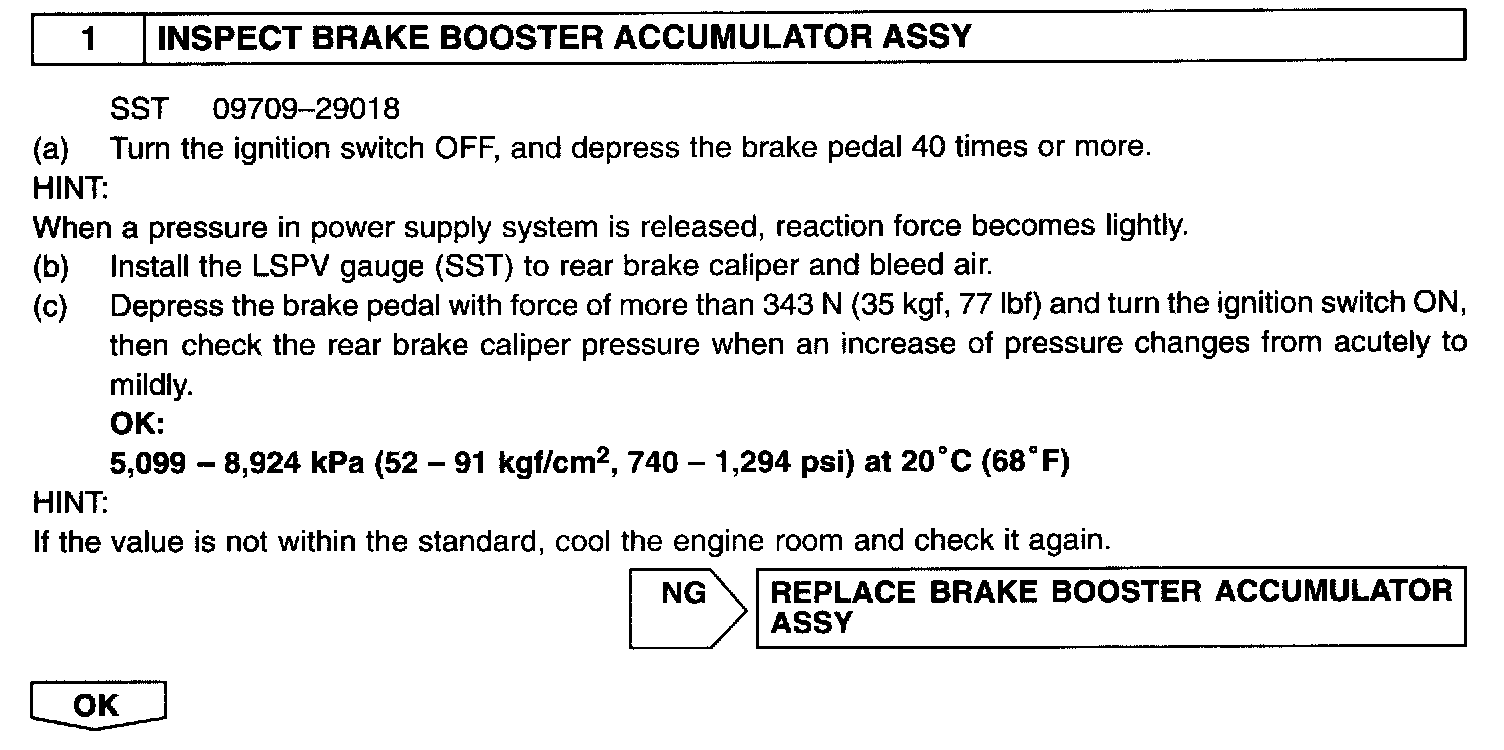

Step 1:

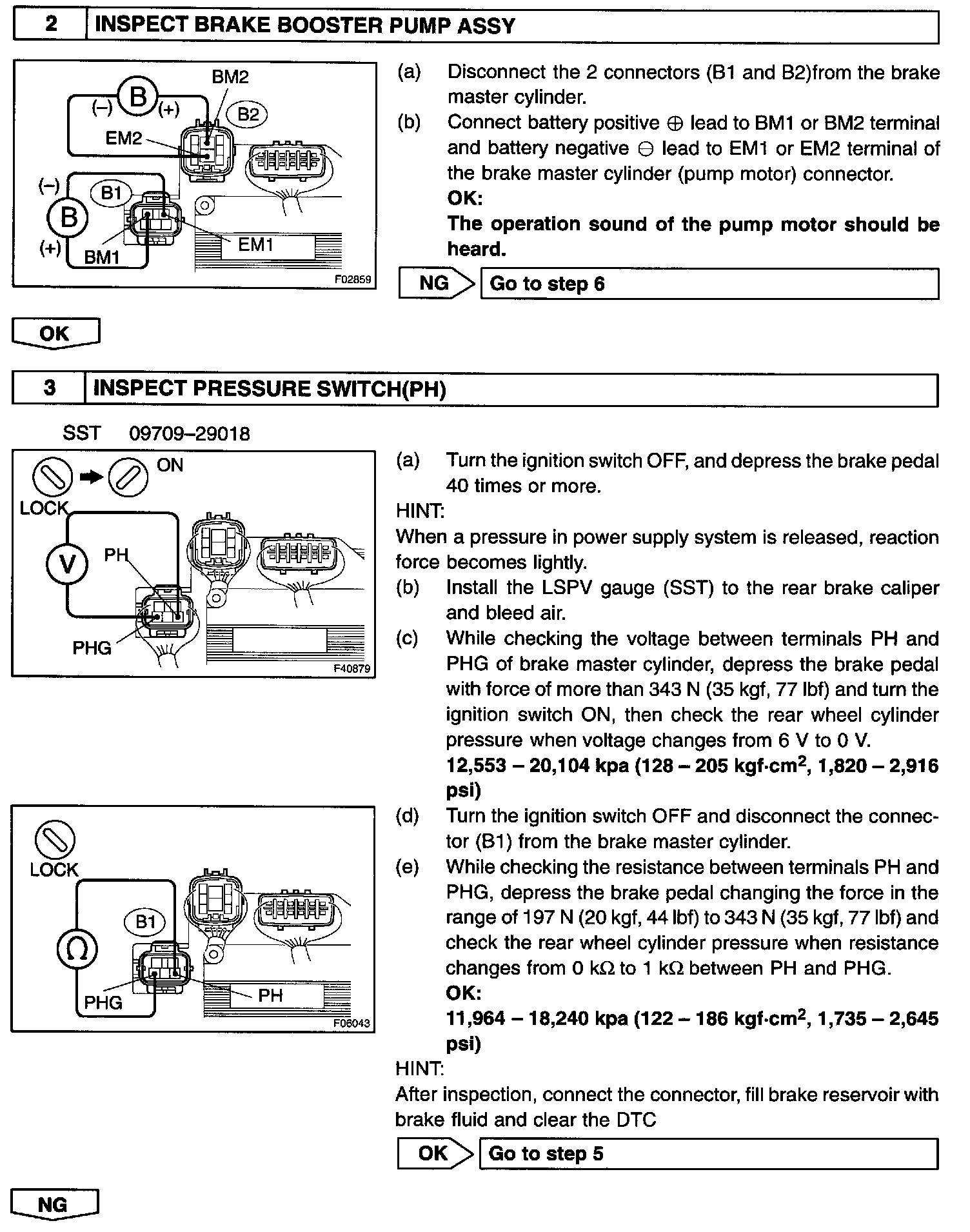

Step 2 - 3:

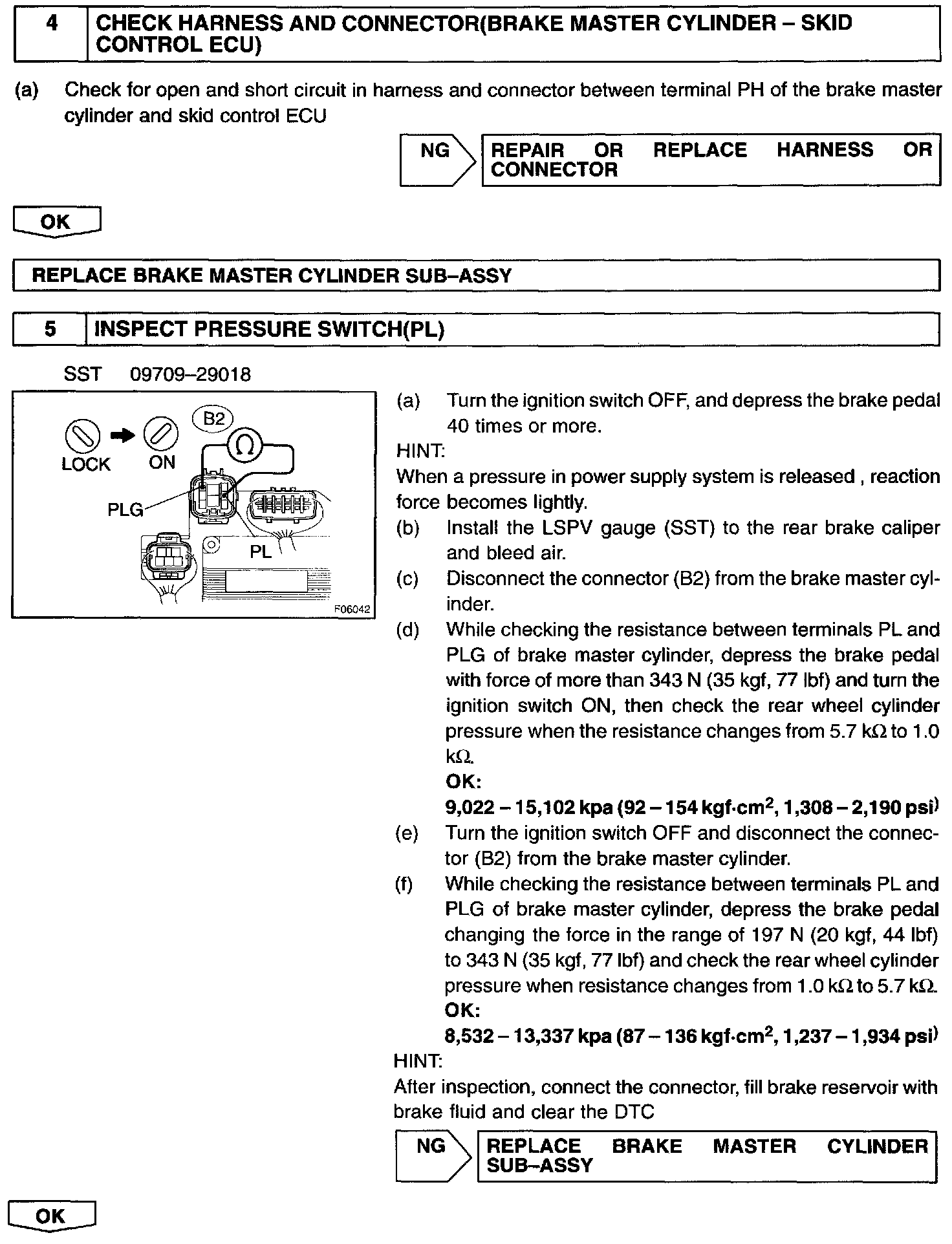

Step 4 - 5:

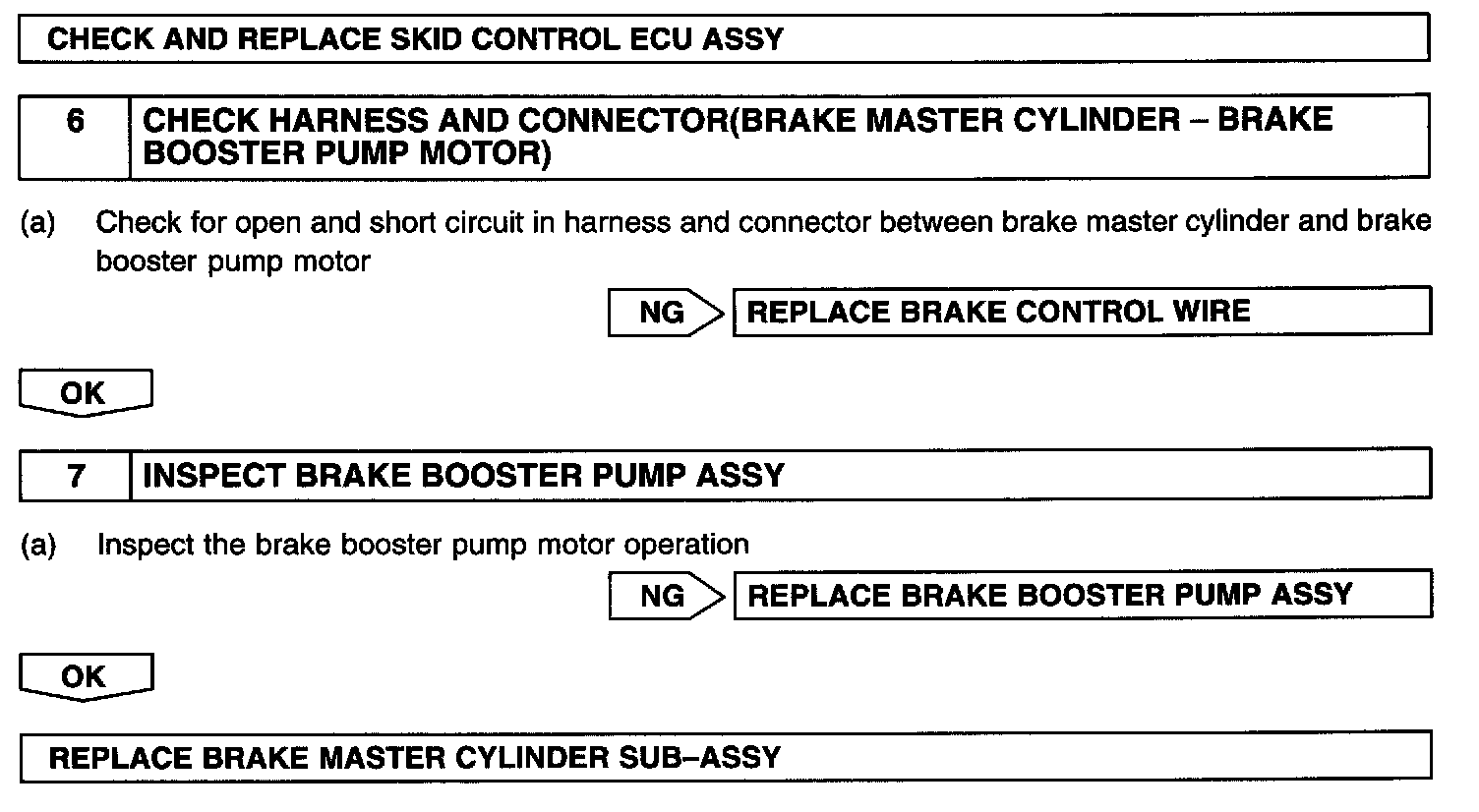

Step 5(Continued) - 7:




INSPECTION PROCEDURE
