DTC 46

DTC 46 MASTER CYLINDER PRESSURE SENSOR CIRCUIT

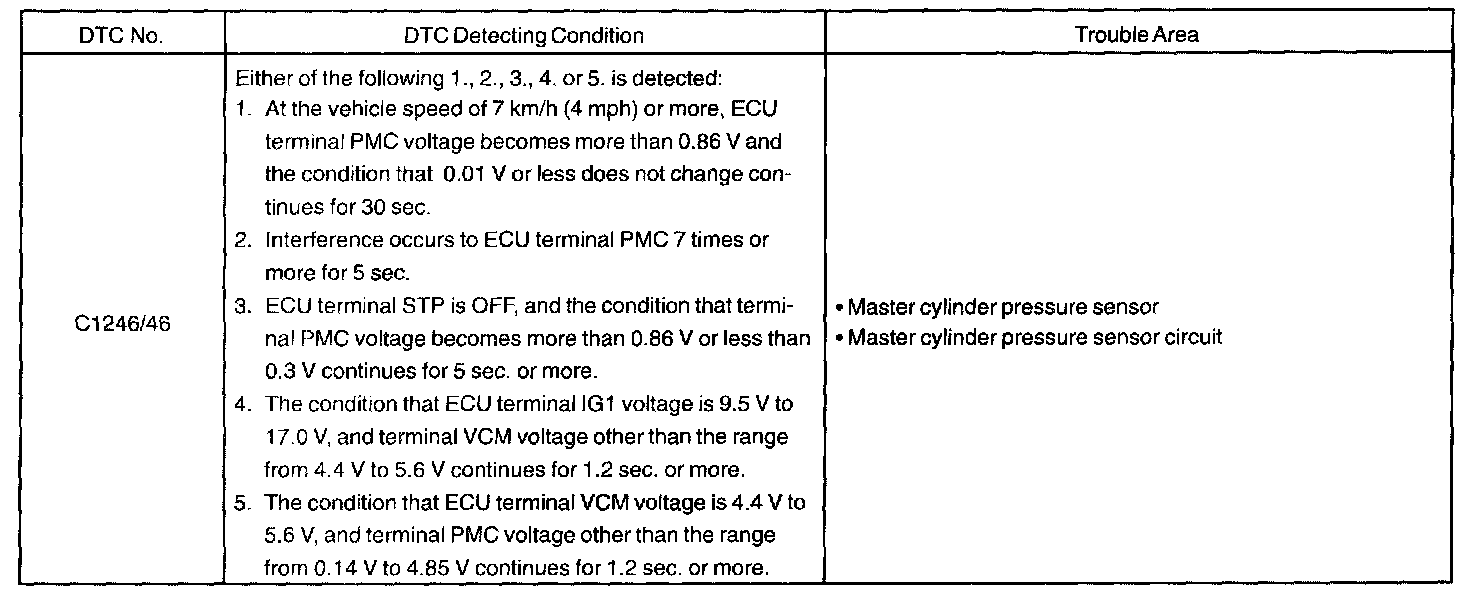

DTC Detecting Condition:

CIRCUIT DESCRIPTION

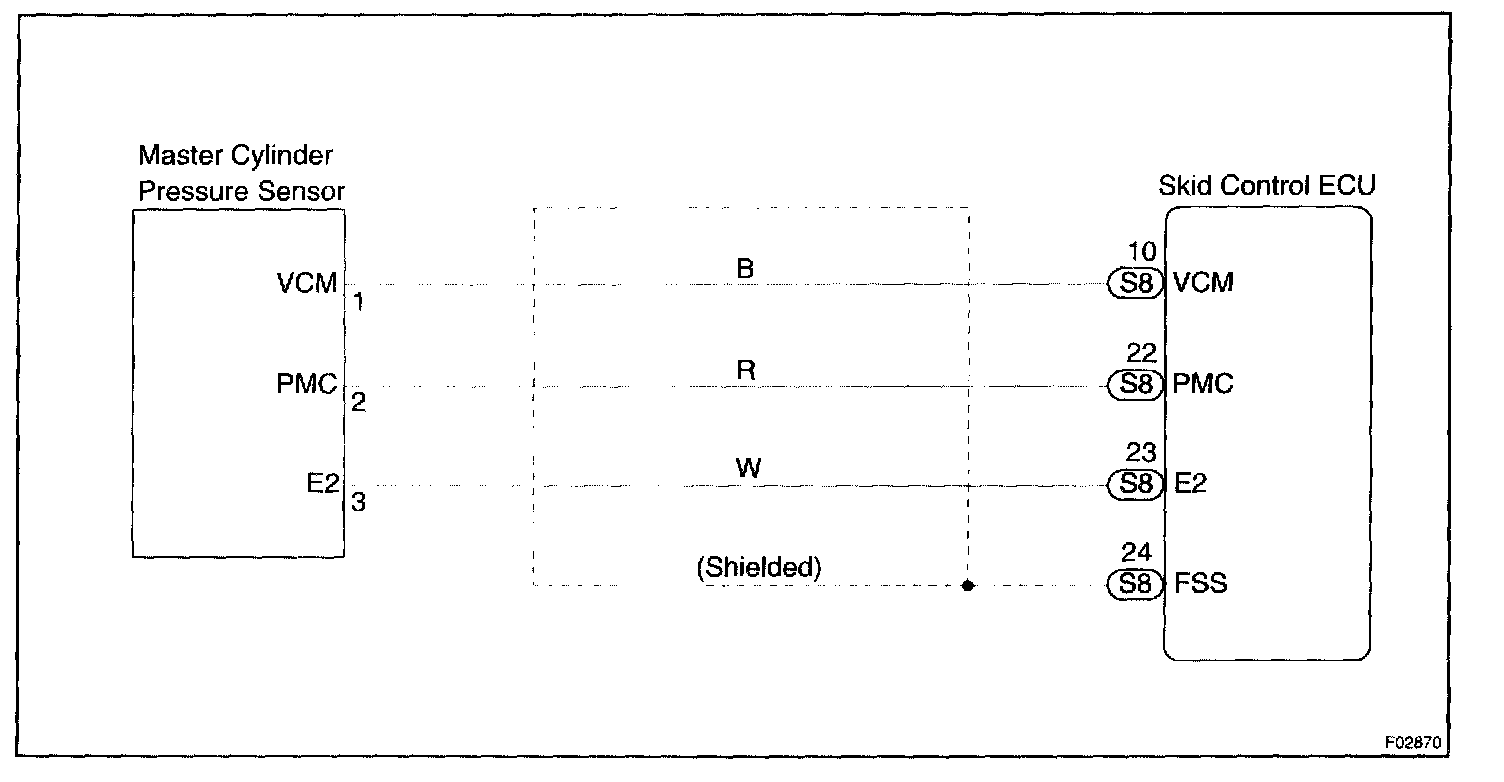

Wiring Diagram:

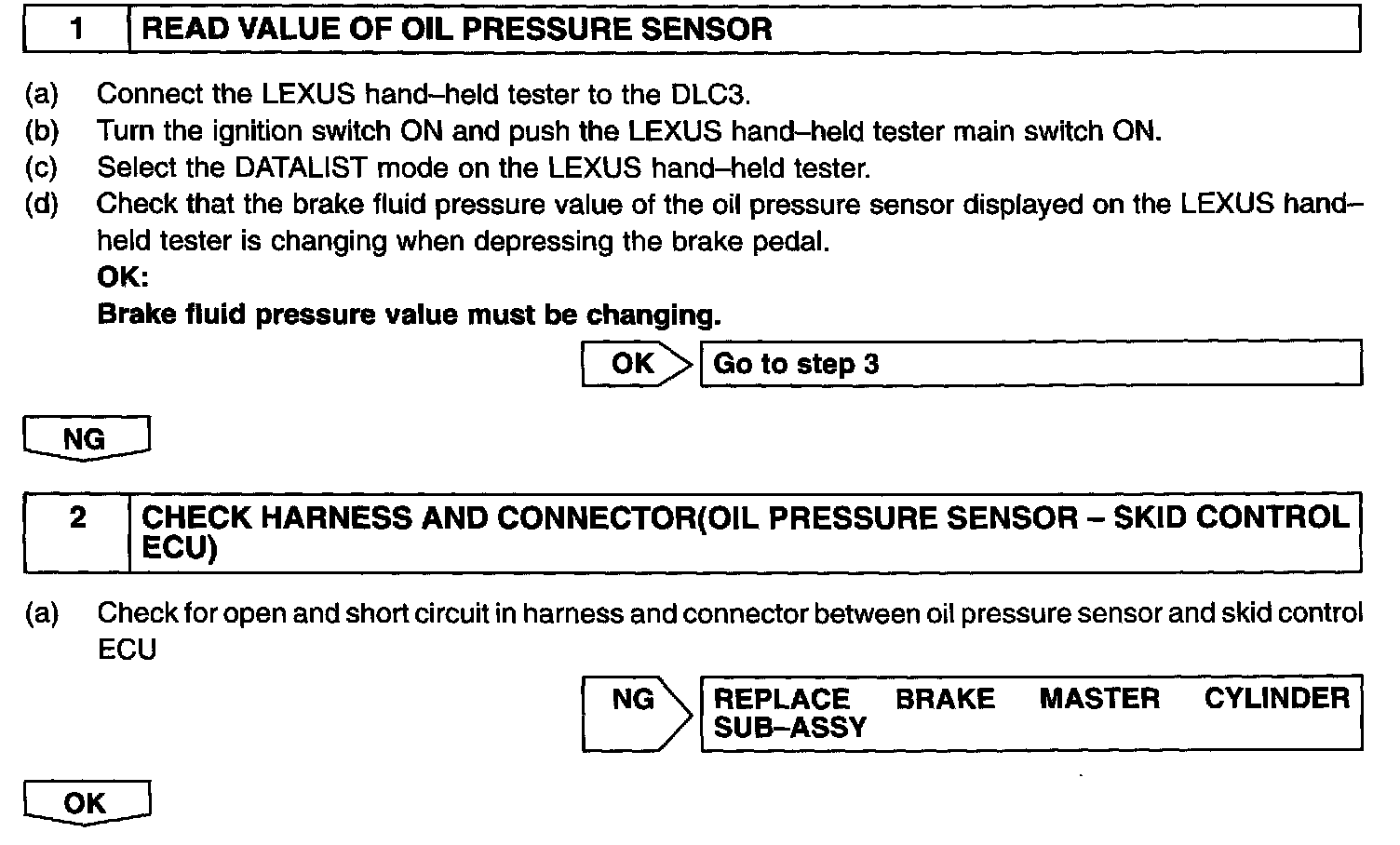

Step 1 - 2:

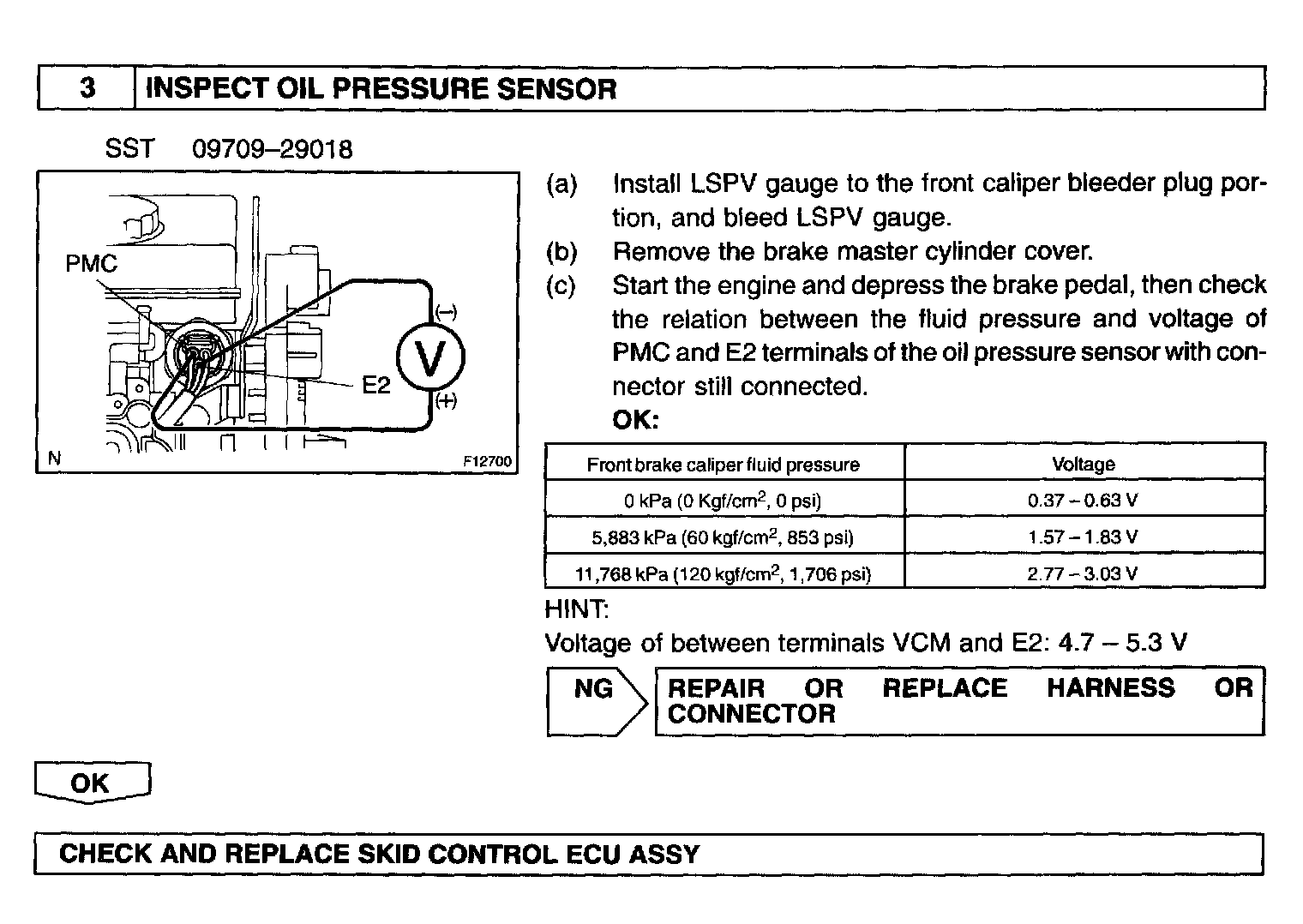

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using LEXUS hand-held tester and start from step 2 in case of not using LEXUS hand-held tester.
