Zero Point Calibration of Yaw Rate Sensor Undone

DTC 36 ZERO POINT CALIBRATION OF YAW RATE SENSOR UNDONE

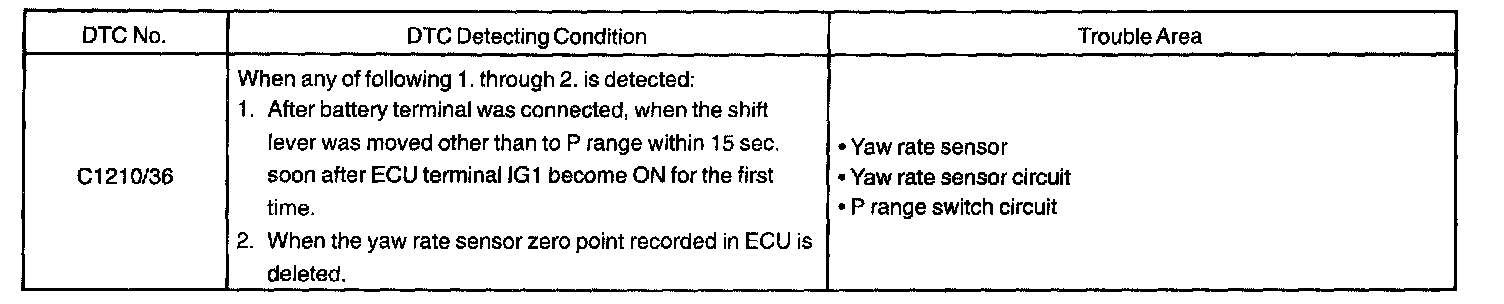

DTC Detecting Condition:

CIRCUIT DESCRIPTION

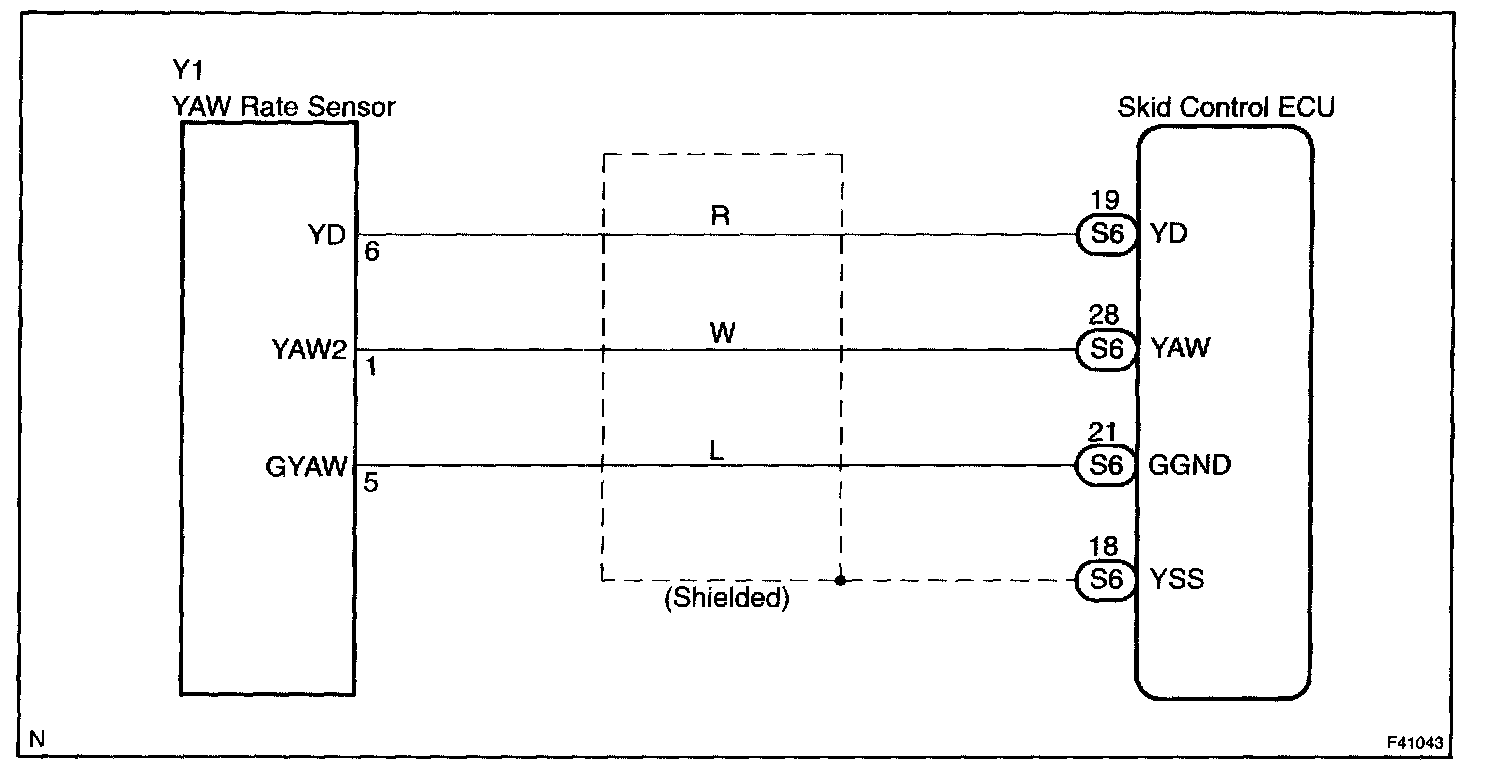

Wiring Diagram:

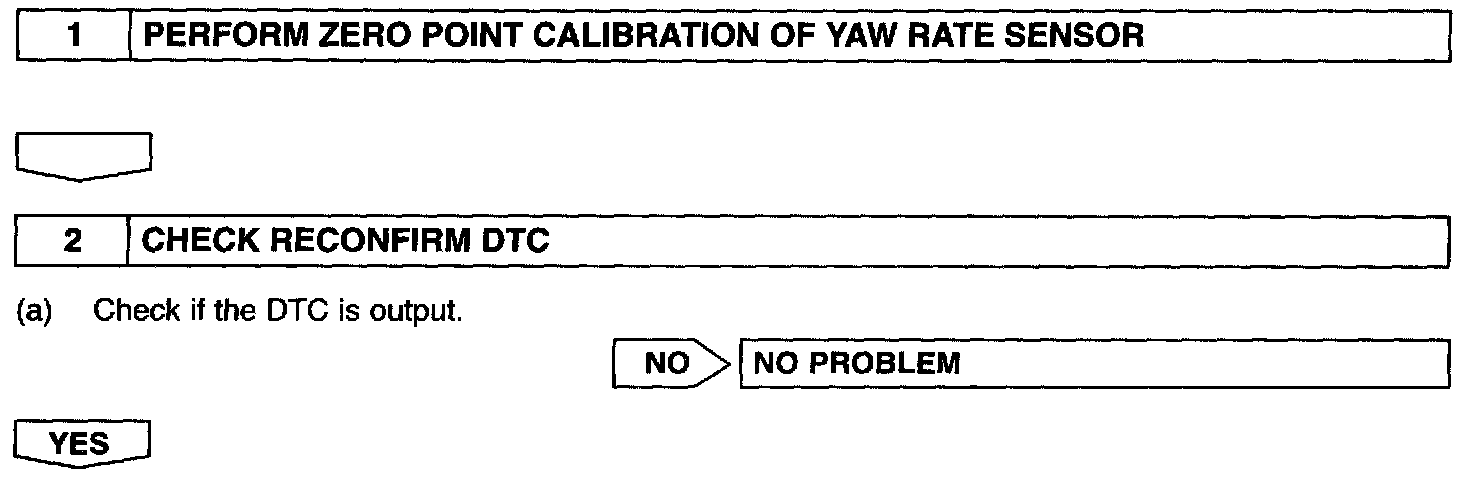

Step 1 - 2:

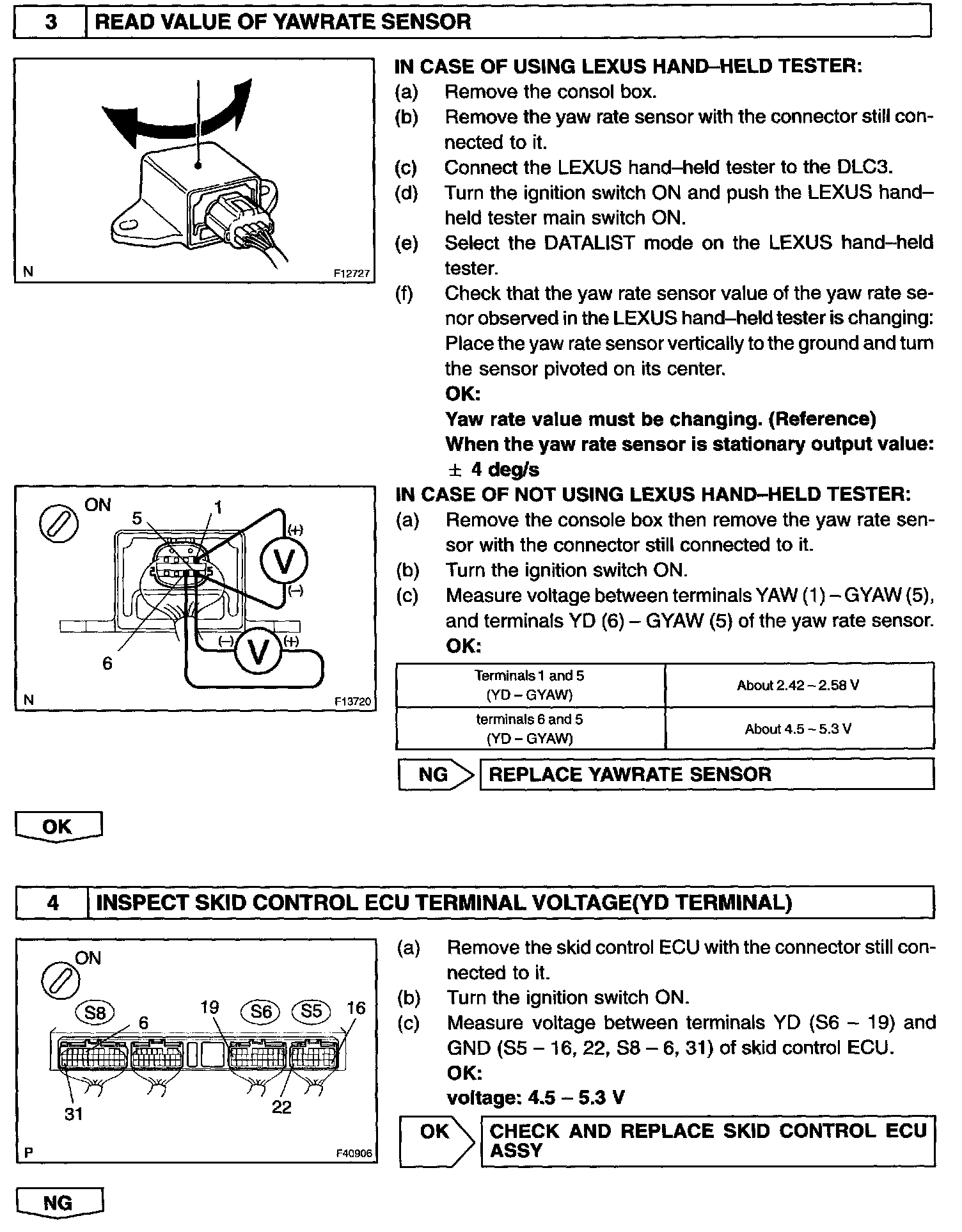

Step 3 - 4:

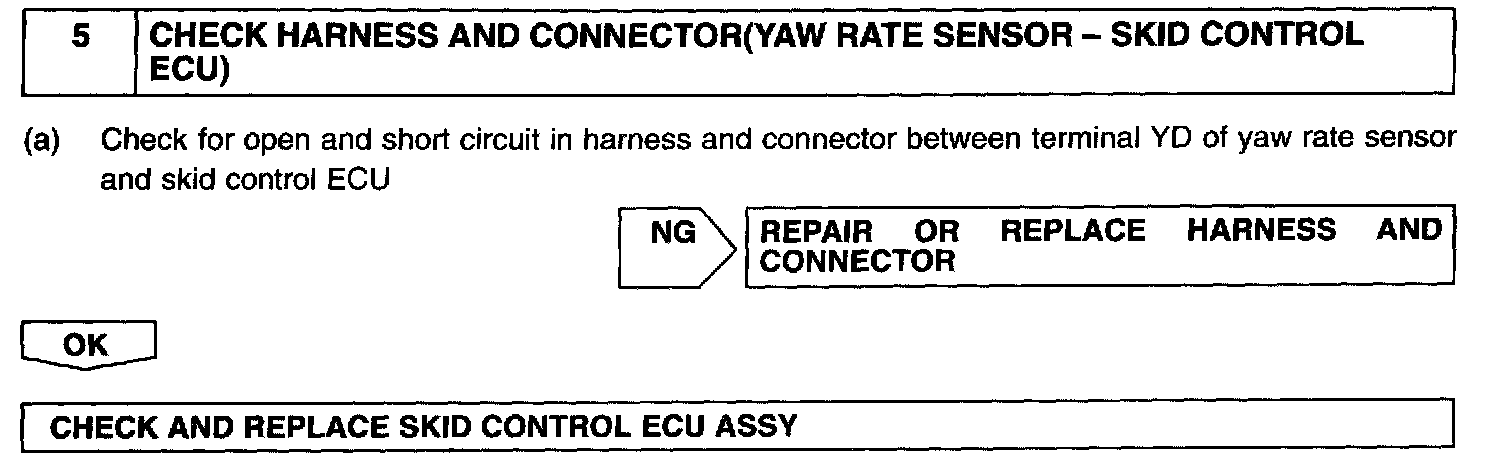

Step 5:

INSPECTION PROCEDURE
