Tire Pressure Warning System

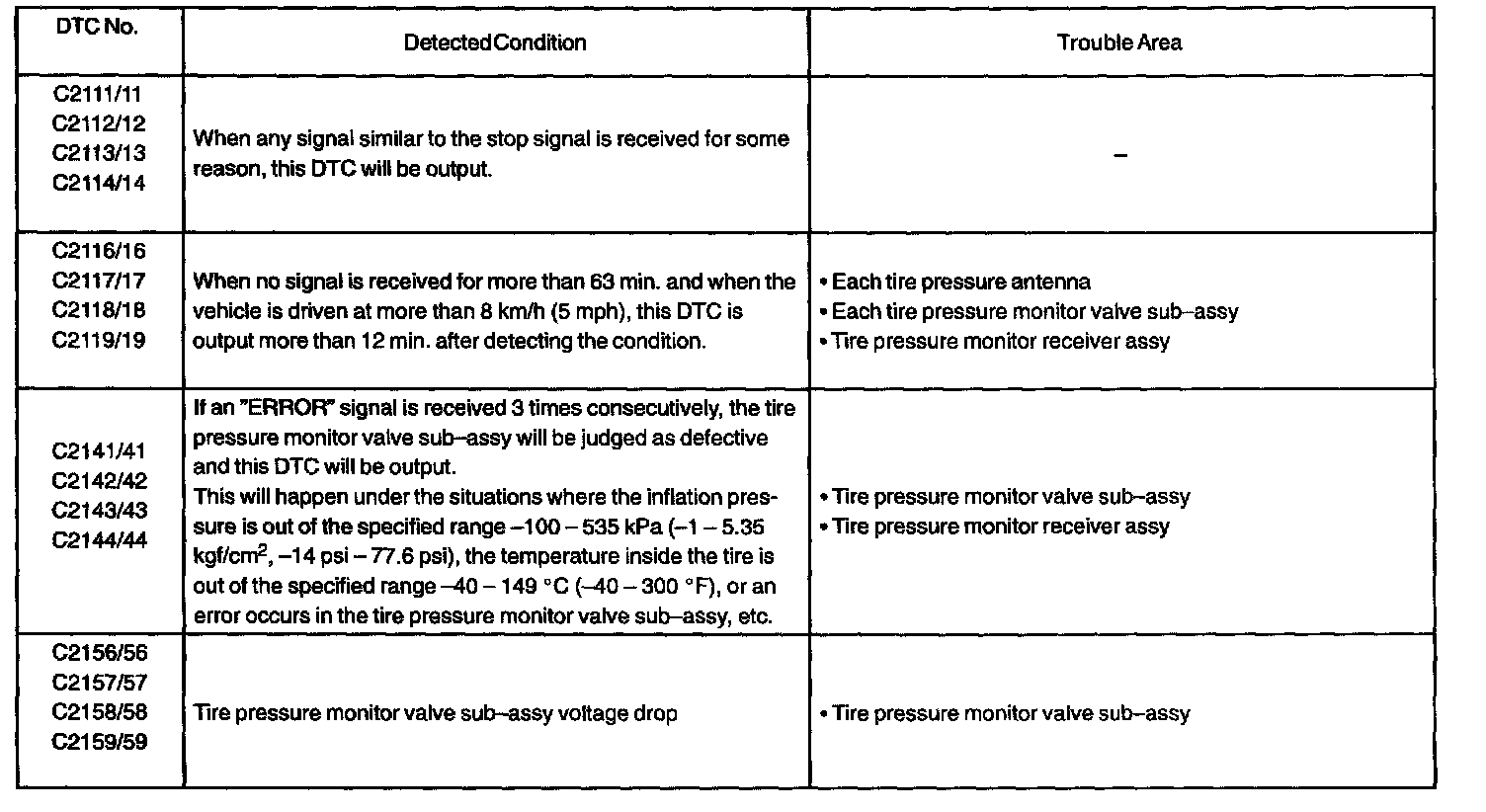

DIAGNOSTIC TROUBLE CODE CHART

DTC C2111/11 - C2159/59:

HINT:
- Using SST 09843-18040, connect the terminals TC and CG of DLC3.
- If any abnormality is not found when inspecting parts, inspect the tire pressure warning receiver.
- If a malfunction code is displayed during DTC check, check the circuit listed for the code. For details of each code, refer to the respective "DTC No." in the DTC chart.
